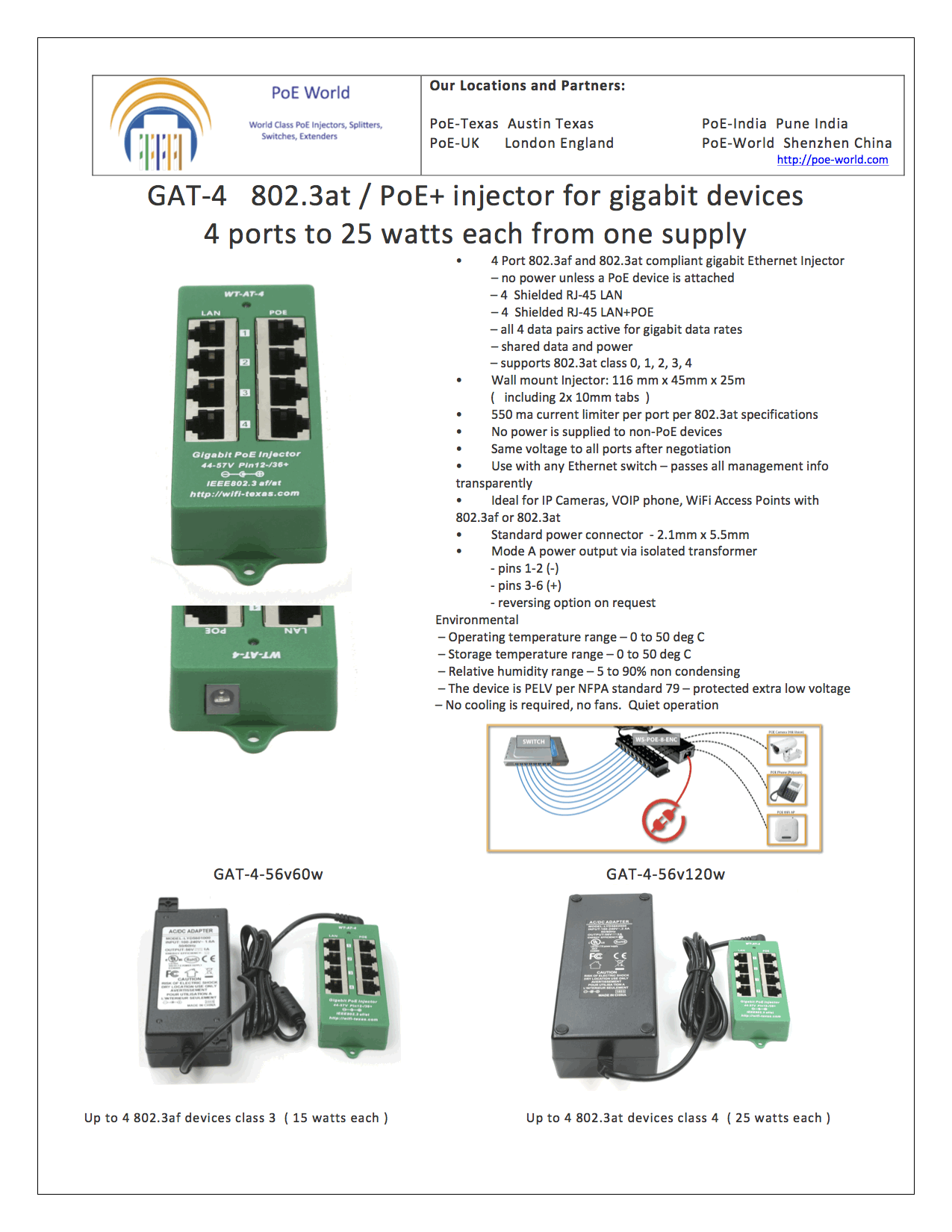

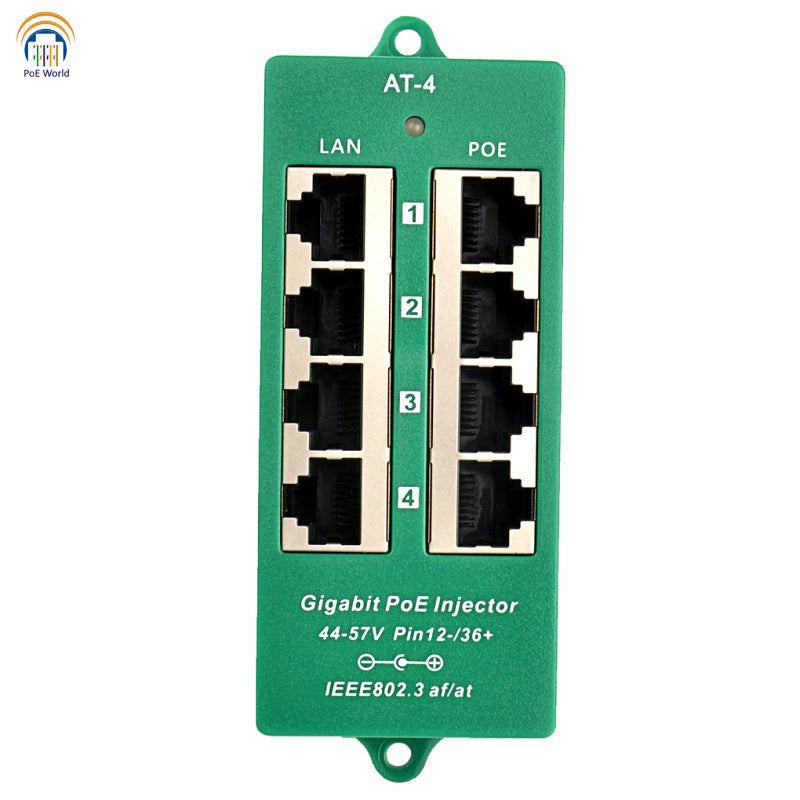

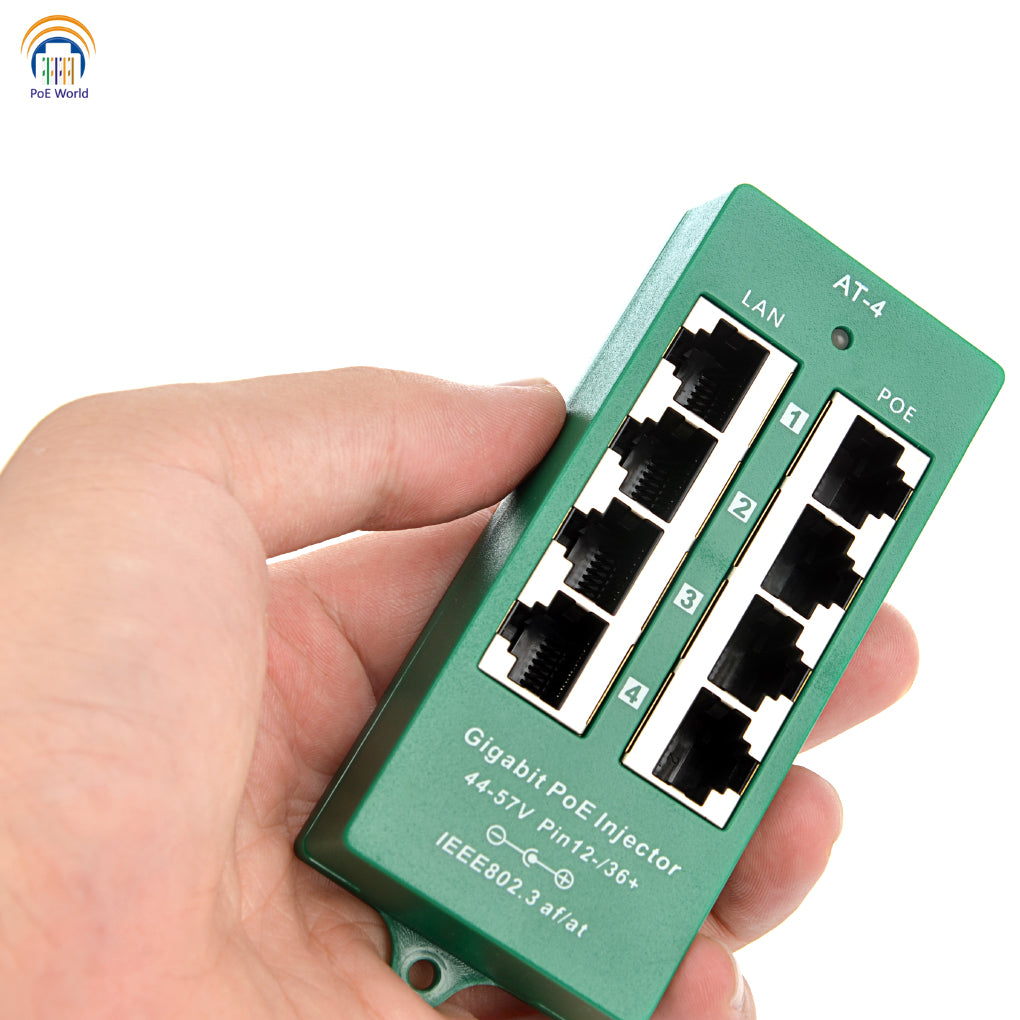

4 Port Active Gigabit PoE Plus Injector Mode A IEEE802.3at Standard with 60 Watt or 120 Watt Power Supply

4 Port Active Gigabit PoE Plus Injector Mode A IEEE802.3at Standard with 60 Watt or 120 Watt Power Supply

Regular price £45.99 GBP
Regular price Sale price £45.99 GBP
Sale Sold out

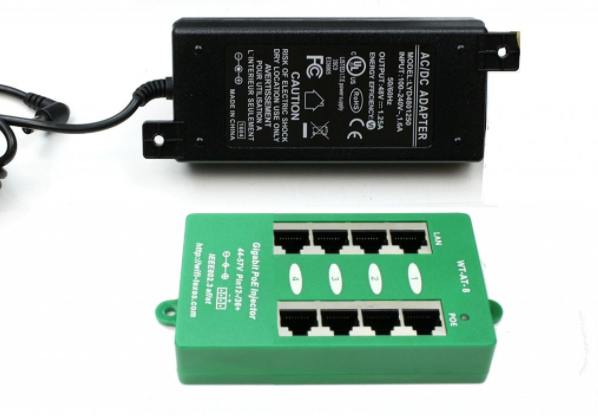

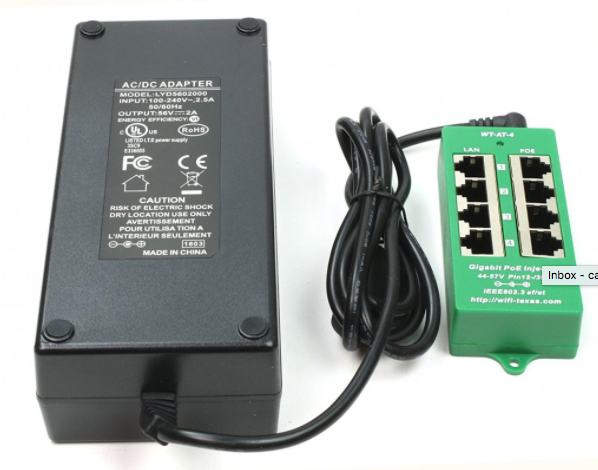

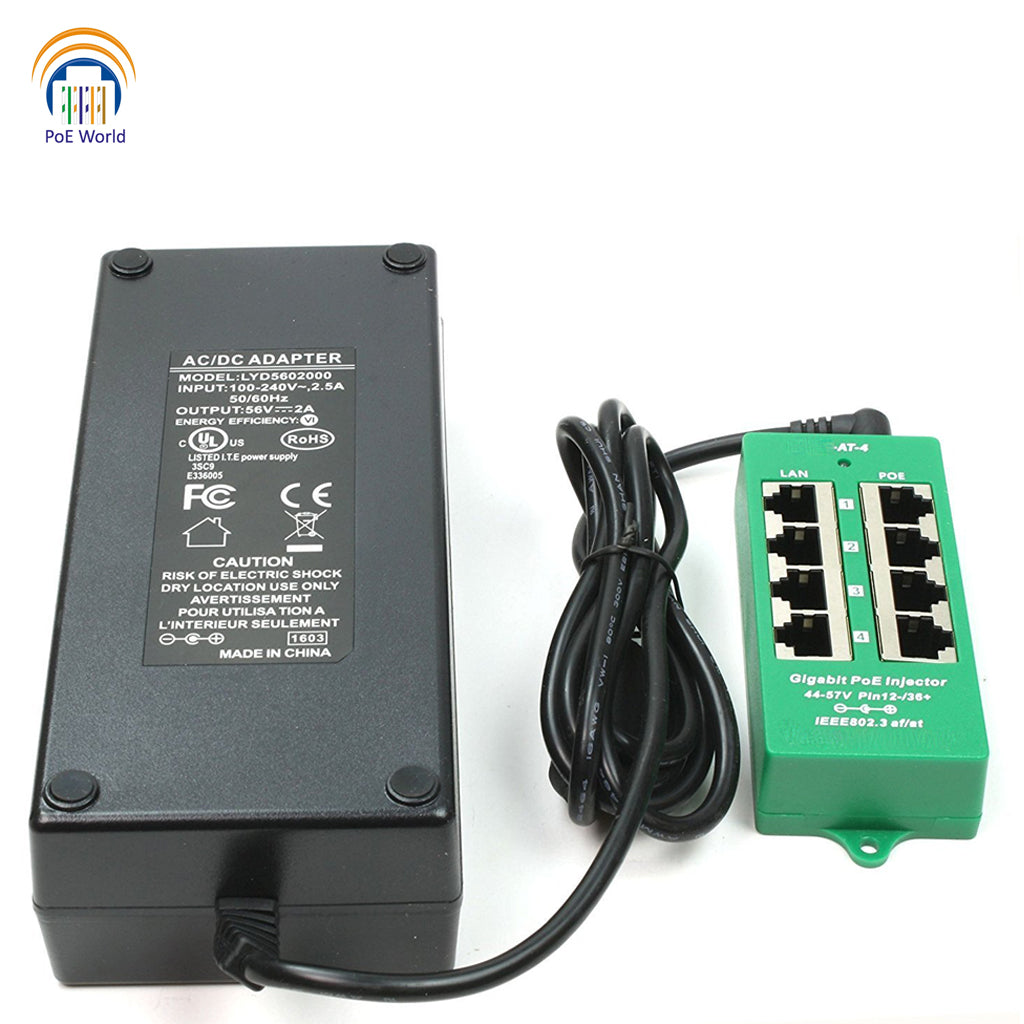

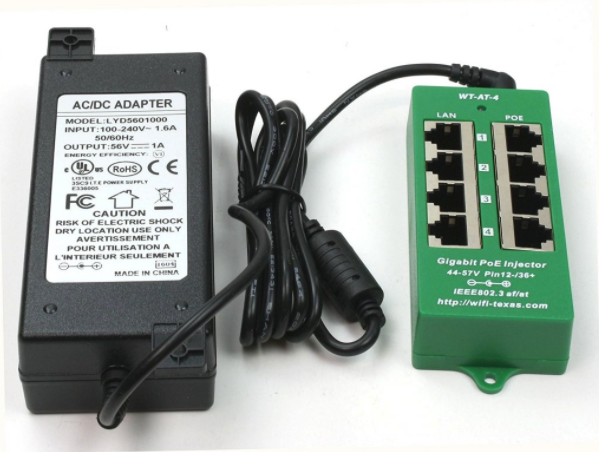

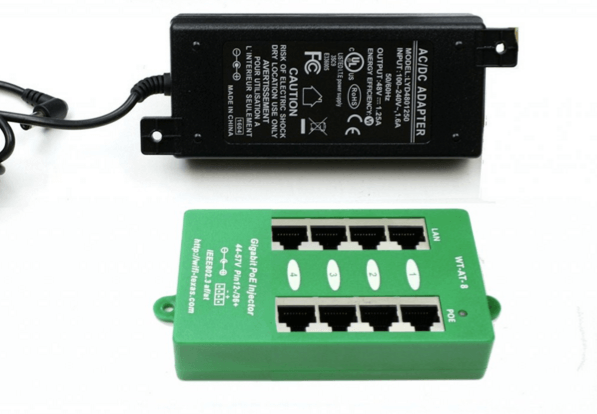

Power Supply

4 port Gigabit PoE+ auto negotiating injector - See various power supply options

This 4 port PoE+ Gigabit injector allows for 10/100/1000 data speed and is able to provide up to 25 watts of power to each individual port. It negotiates with 802.3af devices and gives the device the power it needs. No power is given until a PoE device is found and activated.

Features:

  • Wall mount
  • Use with any PoE or non-PoE switch
  • No power given to non-PoE devices
  • 802.3af compatible
  • LED power display
  • 10/100/1000 data speed
  • 48 volt power supply with 30 watts of power
  • Protected extra low voltage - PELV per NFPA standard 79
  • 650 ma current limiter per port
  • 2.1mm x 5.5mm DC plug
  • Mode A output pins: 1&2 (-) and 3&6 (+)
  • Quiet operation - no fan or cooling required
  • Operating temperature: 0°C ~ 50°C
  • Storage temperature: 0°C ~ 50°C
  • Humidity range: 5% to 90% non-condensing

Product Specifications:

  • Size: 116 x 45 x 25 mm includes 210mm tabs
  • Weight 24 ounces

Other Options:

  • 8 port version available
  • 6, and 12 wall mount gigabit injectors
  • 6 and 12 rack mount injectors

Similar Products:

  • GAT-8-48v60w
  • GAT-8-48v120w
  • GAT-8-56v120w
  • GAT-16-48v60w
  • GAT-16-56v120w
  • GAT-16-56v220w
    View full details

    Frequently Questions About POE

    What is "POE"?

    PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

    What is the difference between Mode A and Mode B?

    Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

    Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

    If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

    What does passive POE mean?

    Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

    Which power supply do I need?

    The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
