Portable PoE Tester Pocket-Sized PoE Detector Bundle Inline PoE Voltage & Current Tester PoE Detector for CCTV installation

Portable PoE Tester Pocket-Sized PoE Detector Bundle Inline PoE Voltage & Current Tester PoE Detector for CCTV installation

Regular price £56.95 GBP
Regular price £60.45 GBP Sale price £56.95 GBP
Sale Sold out
Shipping calculated at checkout.

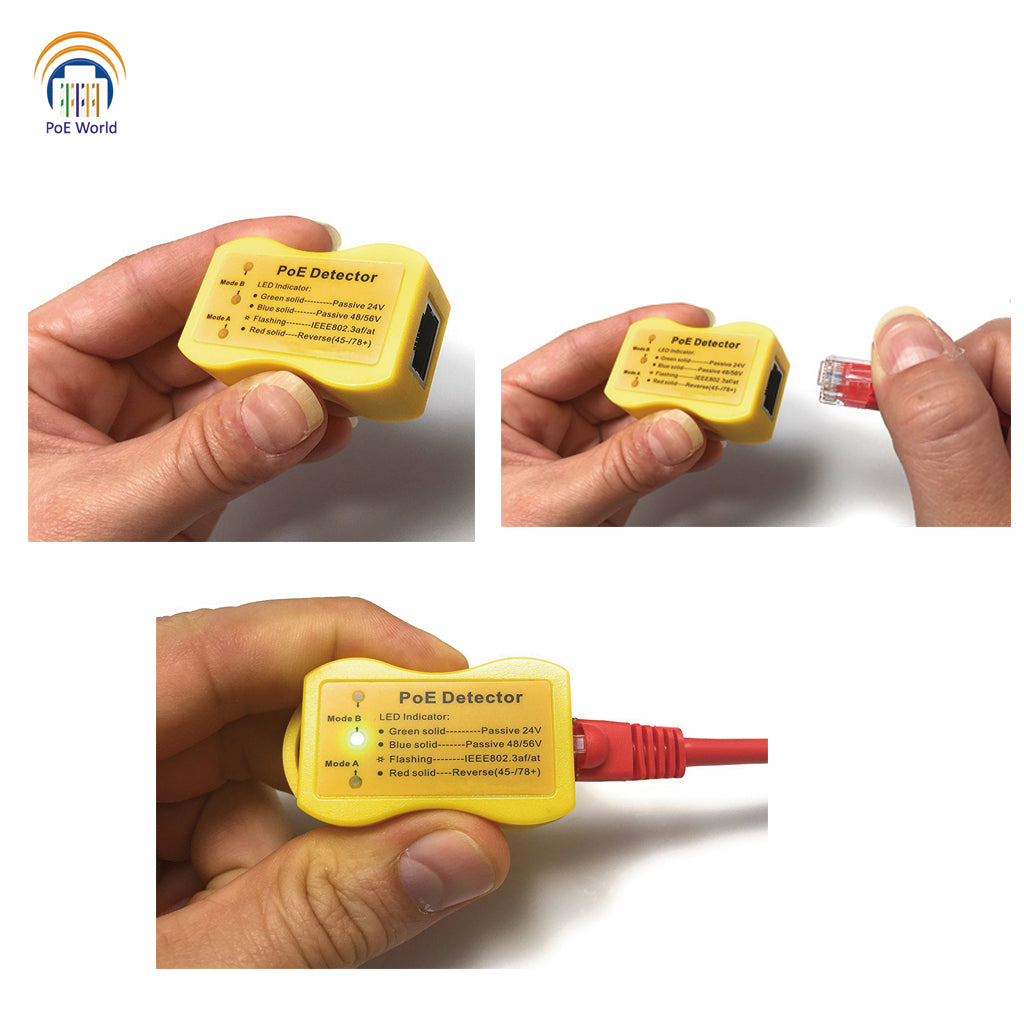

POE Detector

PoE that Fits in Your Pocket - The PoE Detector Quickly Identifies PoE on Any Cable

This pocket-size, ergonomic PoE Detector indicates with clear LED's what type of PoE is on a cable. It will detect IEEE 802.3af or .at, 24 volt passive, and even reverse polarity Mode B for Cambium or Canopy without a battery. Ergonomically designed to fit in your fingers and allow for rapid insertion and removal of the RJ45 jack, this cost effective tool is the perfect companion for any IT professional.

Diagnose PoE problems

Identify the type of PoE to check compatibility

Ergonomic and Fast

No batteries to change or worry about - Powered by PoE

Ergonomically designed, it fits into your hand to quickly insert and remove RJ45 connectors

Bright LED displays with clear labels make for rapid identification

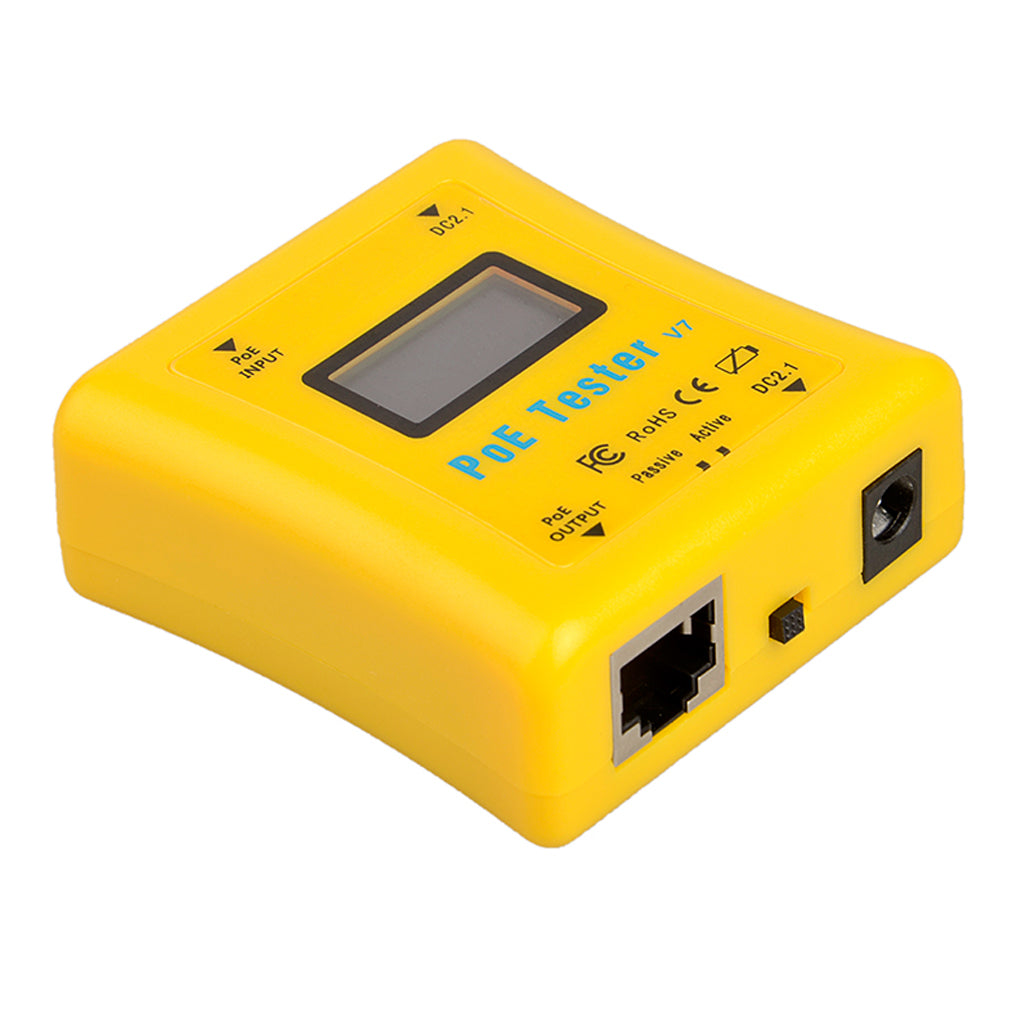

POE Tester Gen2

Specifications of PoE Tester Gen-2
Data Rate: 10/100/1000
DC Power Input: 2.1mm DC Barrel
Dimensions: 6.5x6x2 cm
Display Range (DC Input): 3.5 to 57 volts, 0 to 5 Amps
Display Range (POE Input): 12 to 57 volts, 0 to 1500 mA
Display Type: LCD
Operating Humidity: 5% to 90 %
Operating Temperature Range: -10° to 60°C
PoE Method: Passive (simulted 802.3af)
PoE Standard: 802.3af/at
PoE Standards Supported: Passive, 802.3af
DC Adapter Cable: 2.1mm x 5.5mm DC (Male to Male)

PoE Tester GEN-2 FEATURES

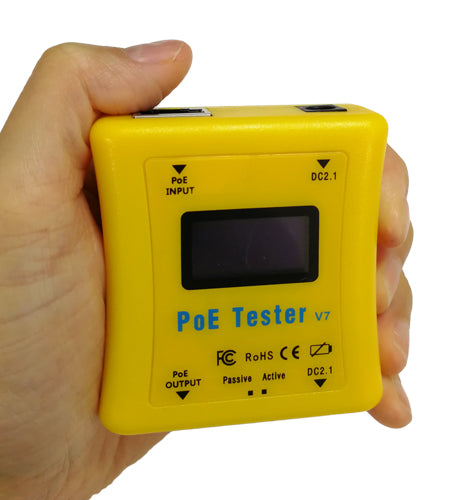

Ergonomic Body Design: A new curved body design that’s 25% smaller than the original PoE Tester makes the GEN2 easier to hold and use.
High-quality LCD Display: The new scrolling LCD displays more information at once and can be read in full daylight.

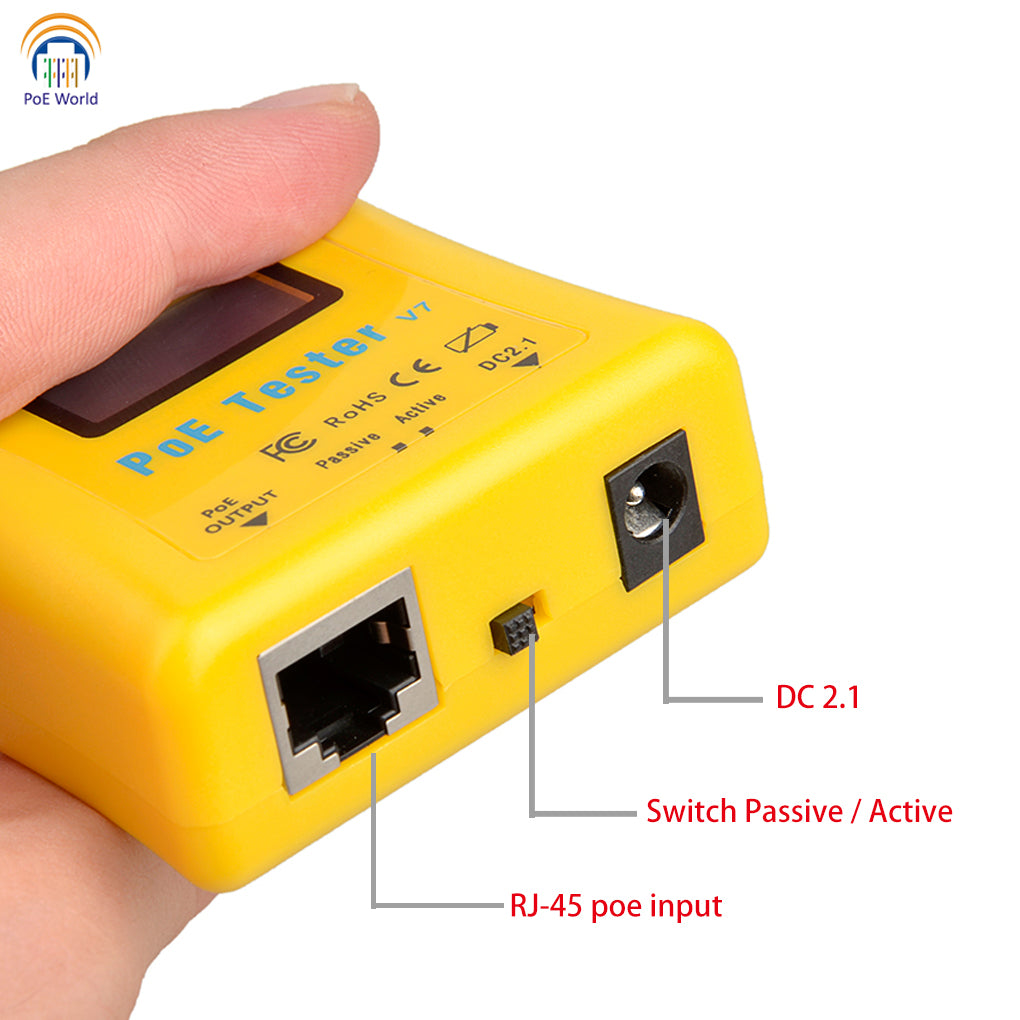

Simplified Operation: Thanks to automatic mode and polarity detection, the new GEN2 requires only one RJ45 input.
Up to 60W test range: 4-pair testing capability to measure devices supporting IEEE 802.3bt Type 3, not contain standard IEEE 802.3bt chips, but rather achieves similar functionality through 802.3at Mode A + Mode B.
Increased Testing Range: Measures DC power supply voltages from 3.5 to 56 volts and current up to 280 watts at 56 volts.

What does it do?
-Test PoE cameras, VOIP phones, and WiFi installations without interrupting data flow
-Quickly detect and identify PoE type
-Measure power consumption from DC power supplies
-Activate any port on an AF/AT PoE switch

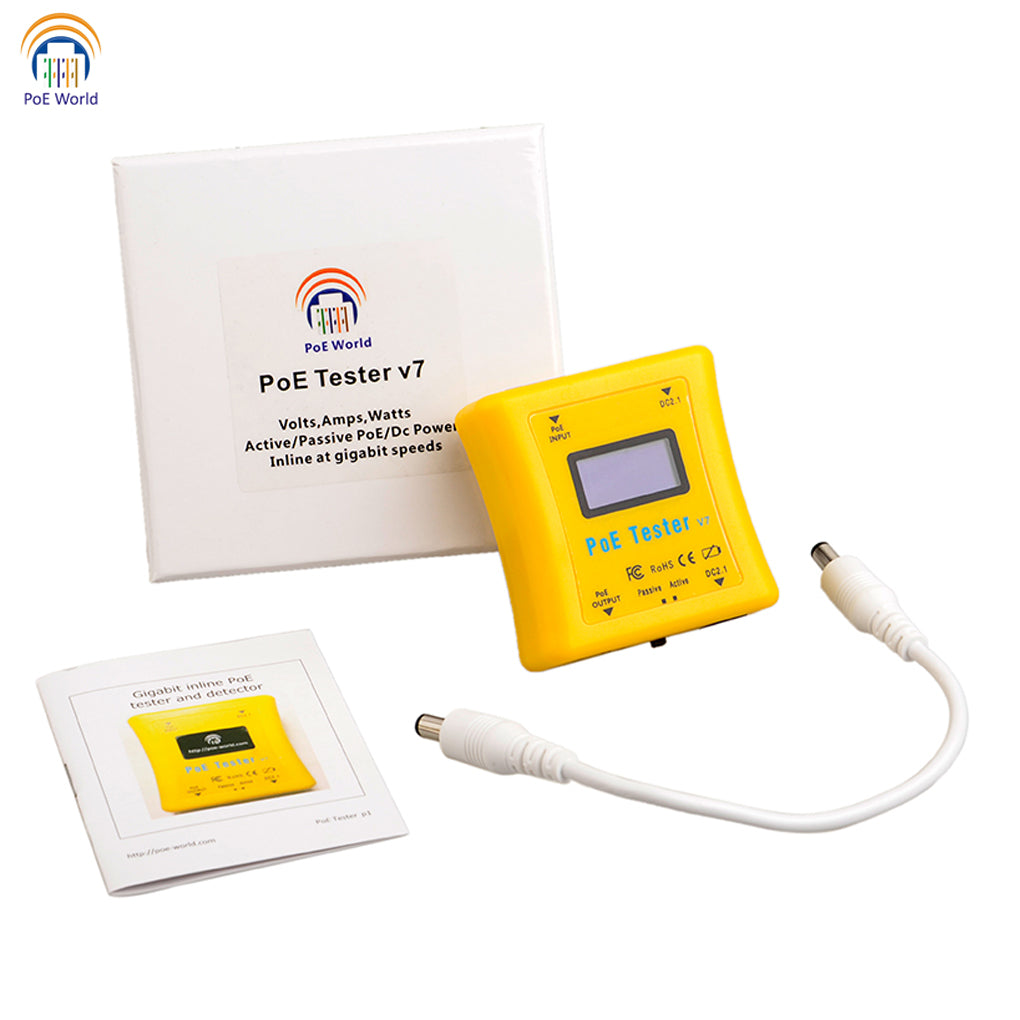

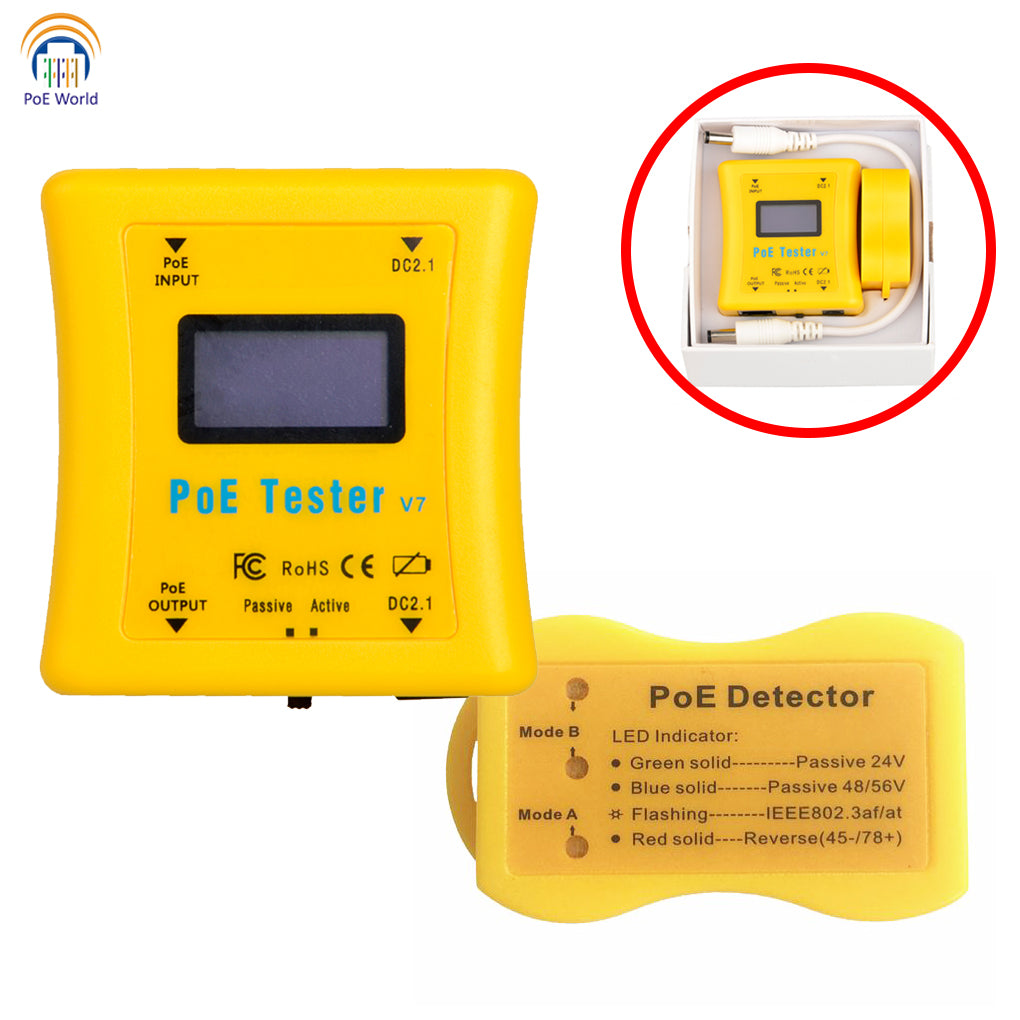

Package: 1pcs POE Tester + 1pcs POE Detector
View full details

Frequently Questions About POE

What is "POE"?

PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

What is the difference between Mode A and Mode B?

Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

What does passive POE mean?

Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

Which power supply do I need?

The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
