POE-Pihat Power Over Ethernet PoE HAT for Raspberry Pi 4 4B 3B+ 3B Plus, 12 to 56 volts Input, Passive PoE DC 5V 2A 10Watt max output

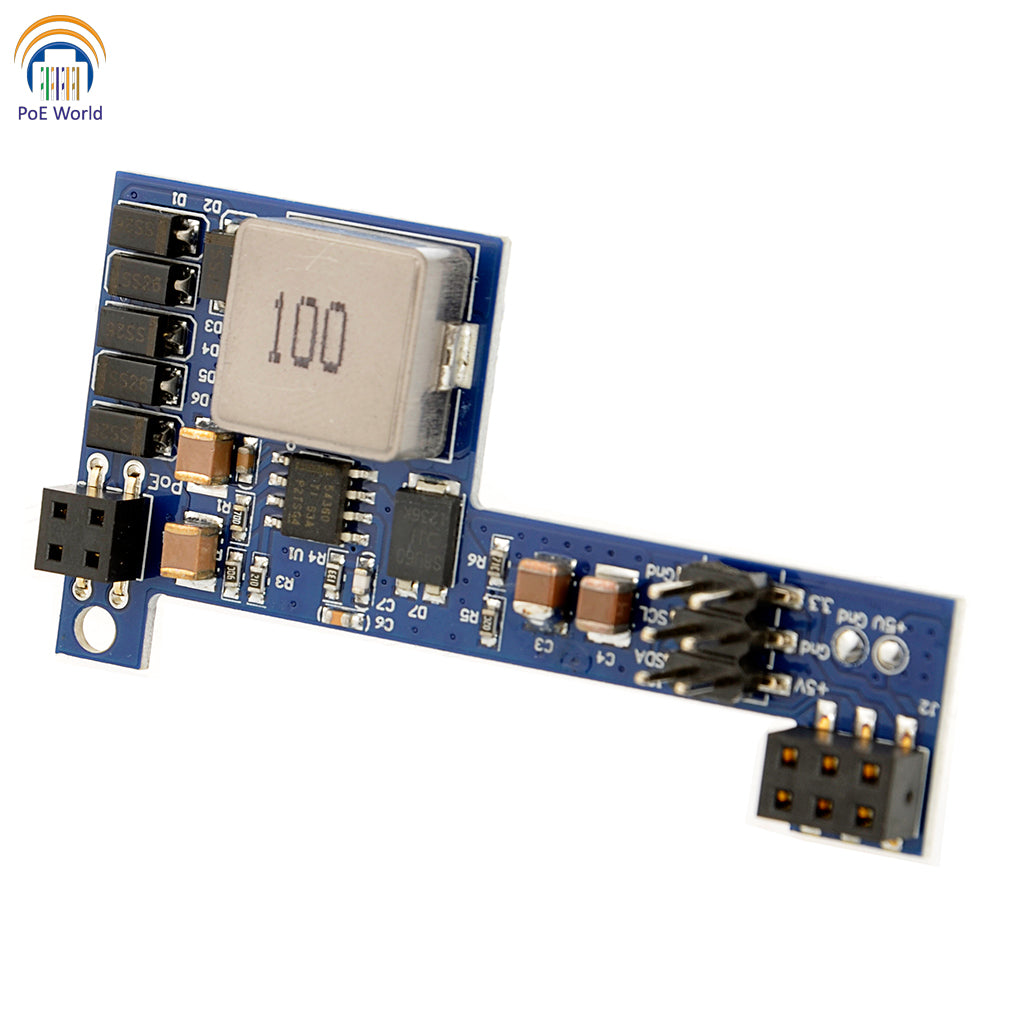

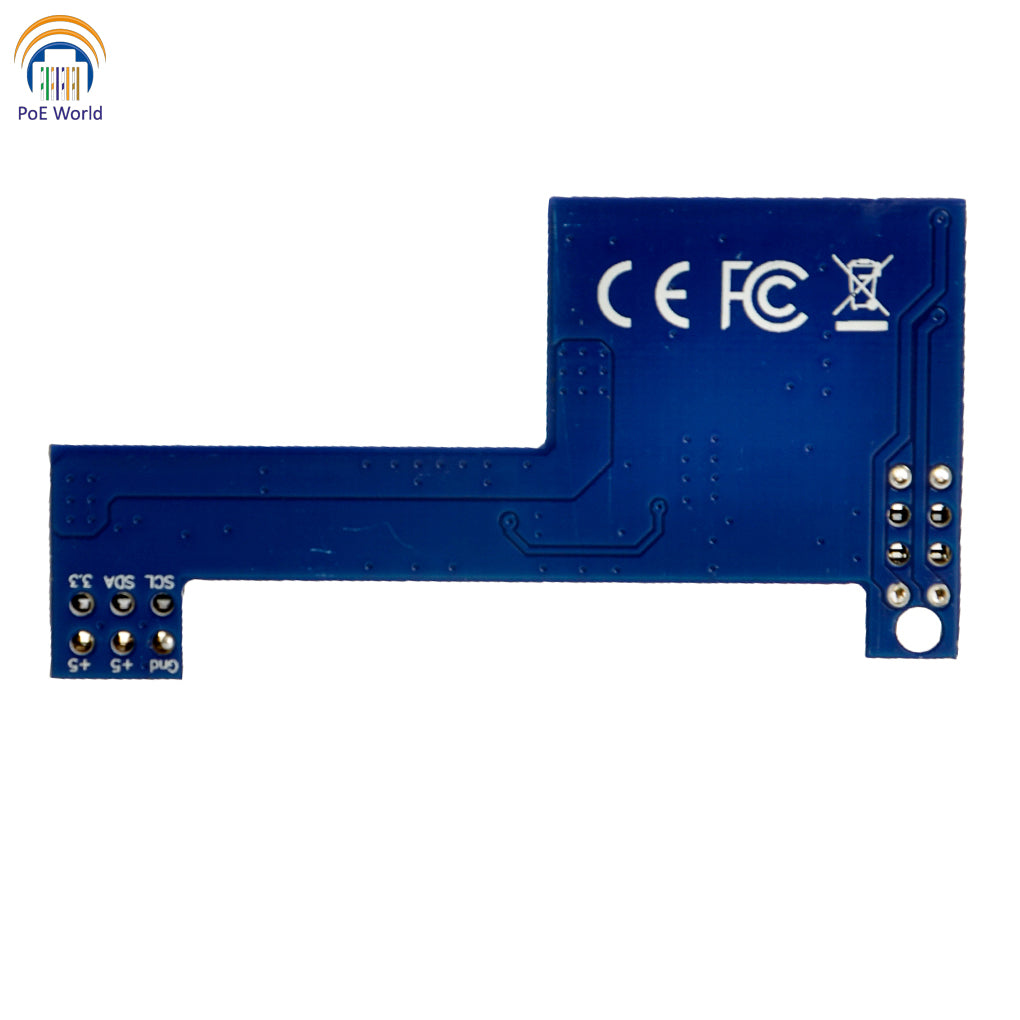

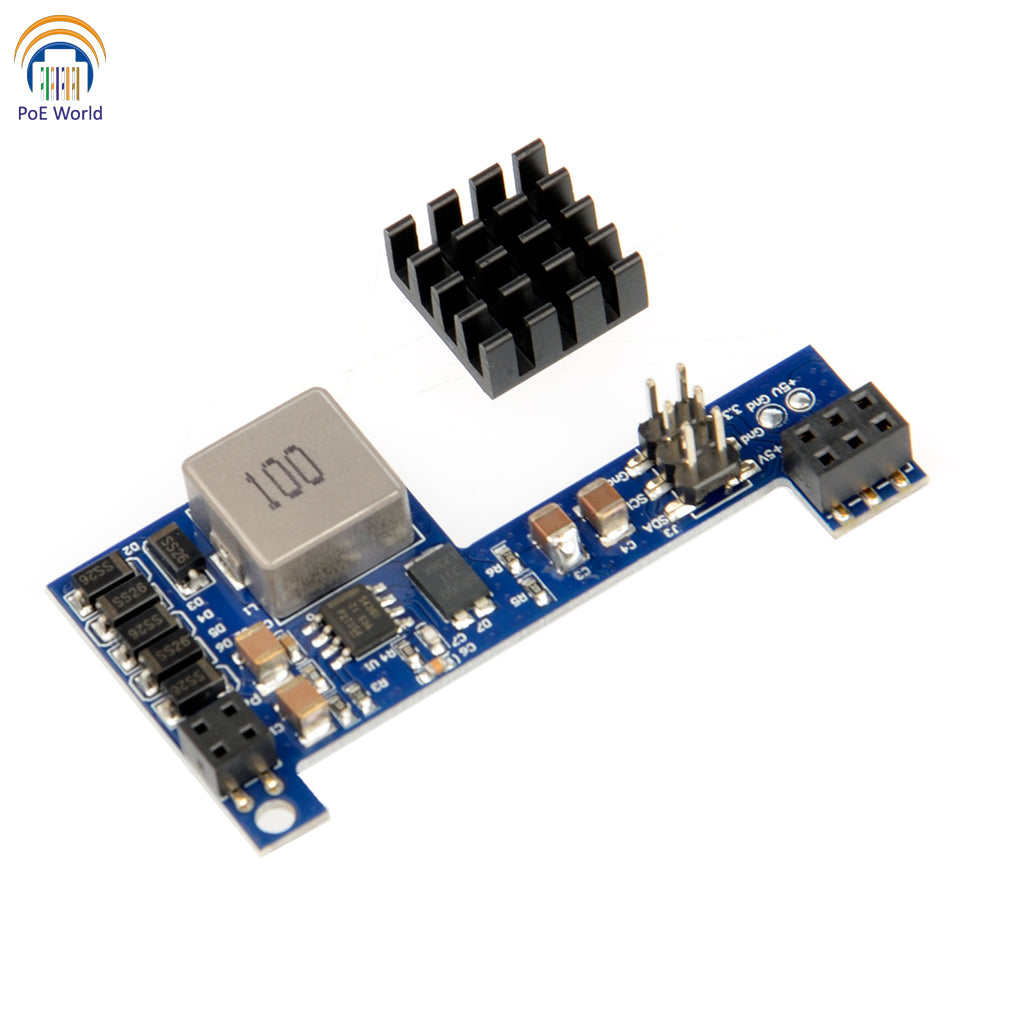

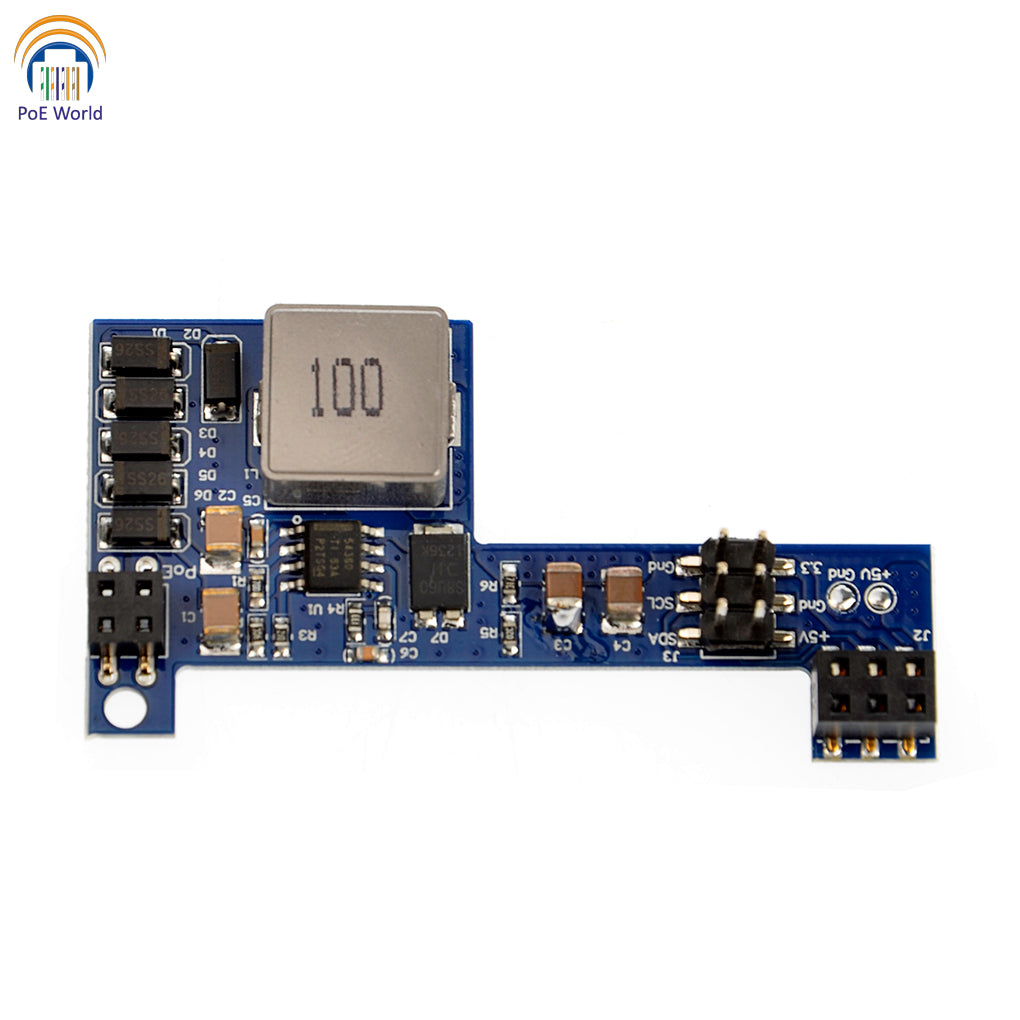

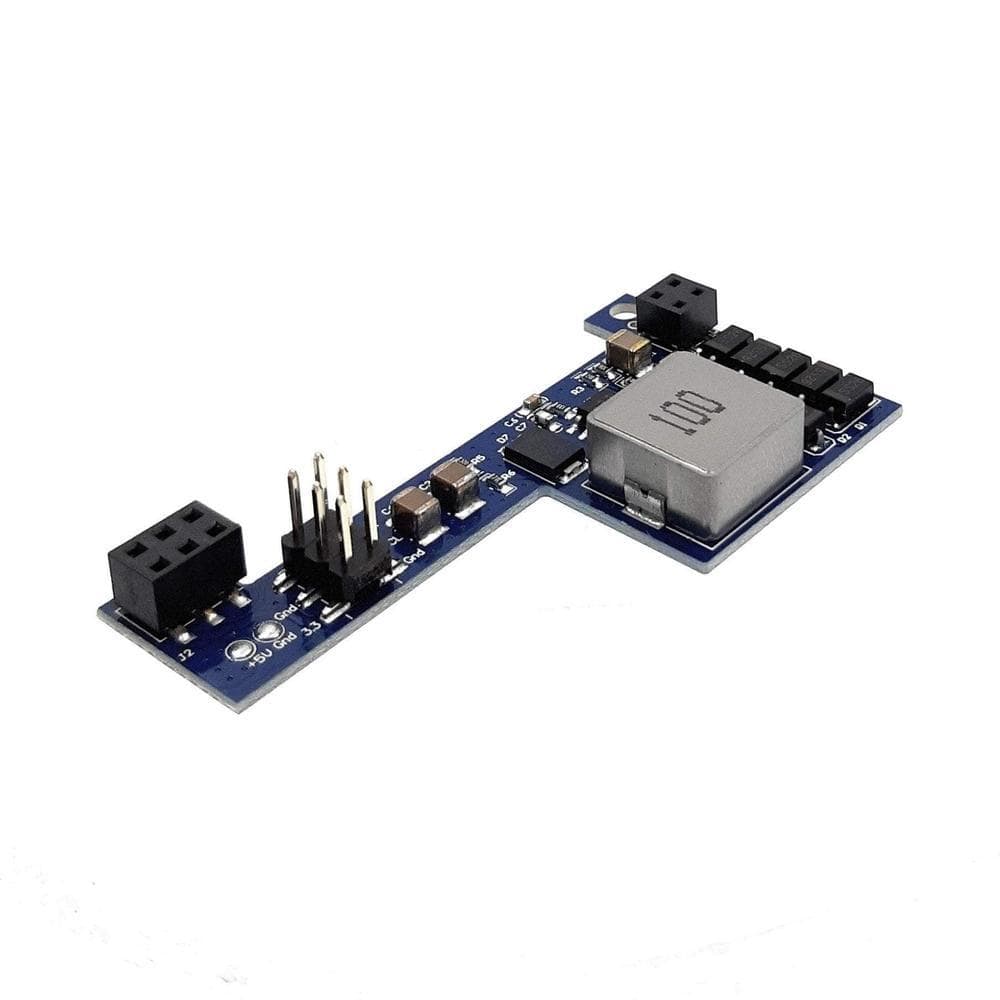

PoE-PiHat 10 Watt passive PoE for Raspberry Pi 3B+ or Raspberry Pi4

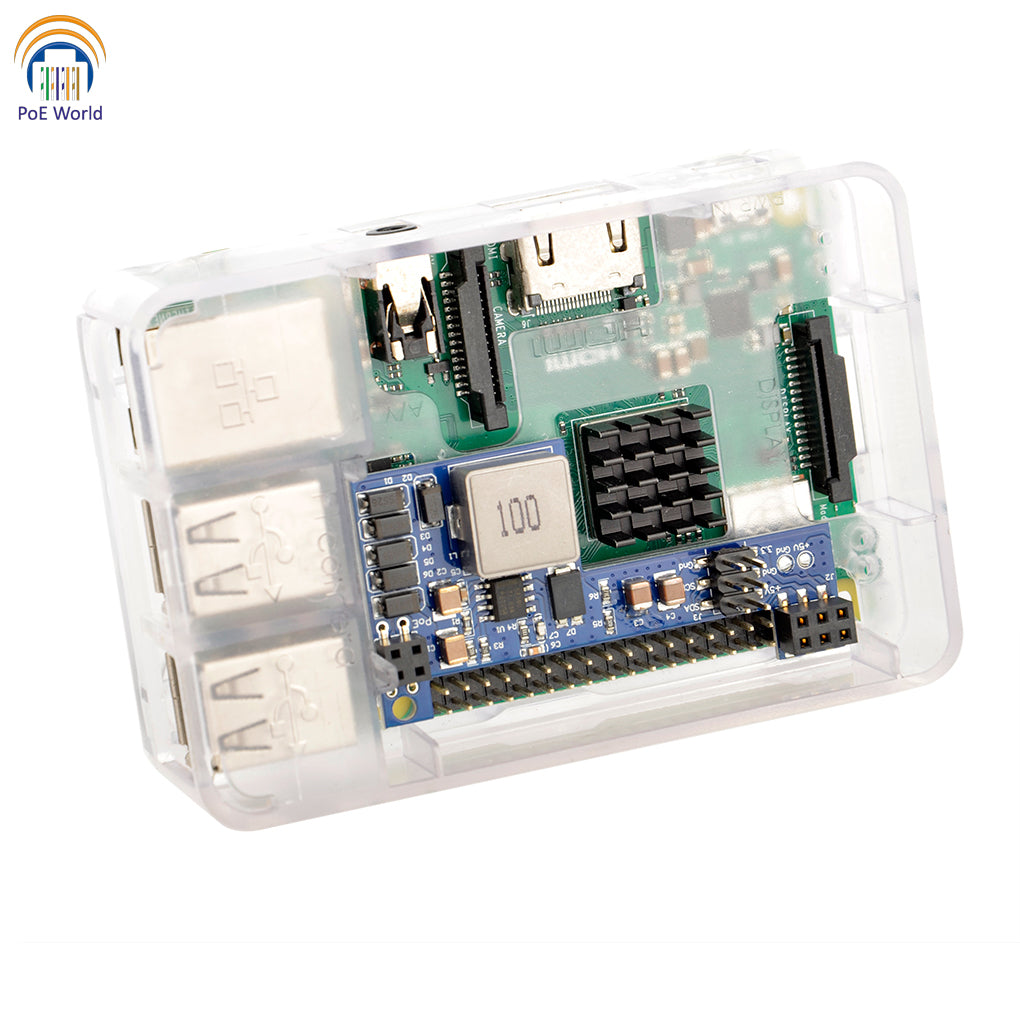

This PoE-World device provides a very low profile and efficient solution for delivering power to a Raspberry Pi 3B+ or 4 over 328ft of network cable.

This device allows power to be carried on 10/100/1000 networks with passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable.

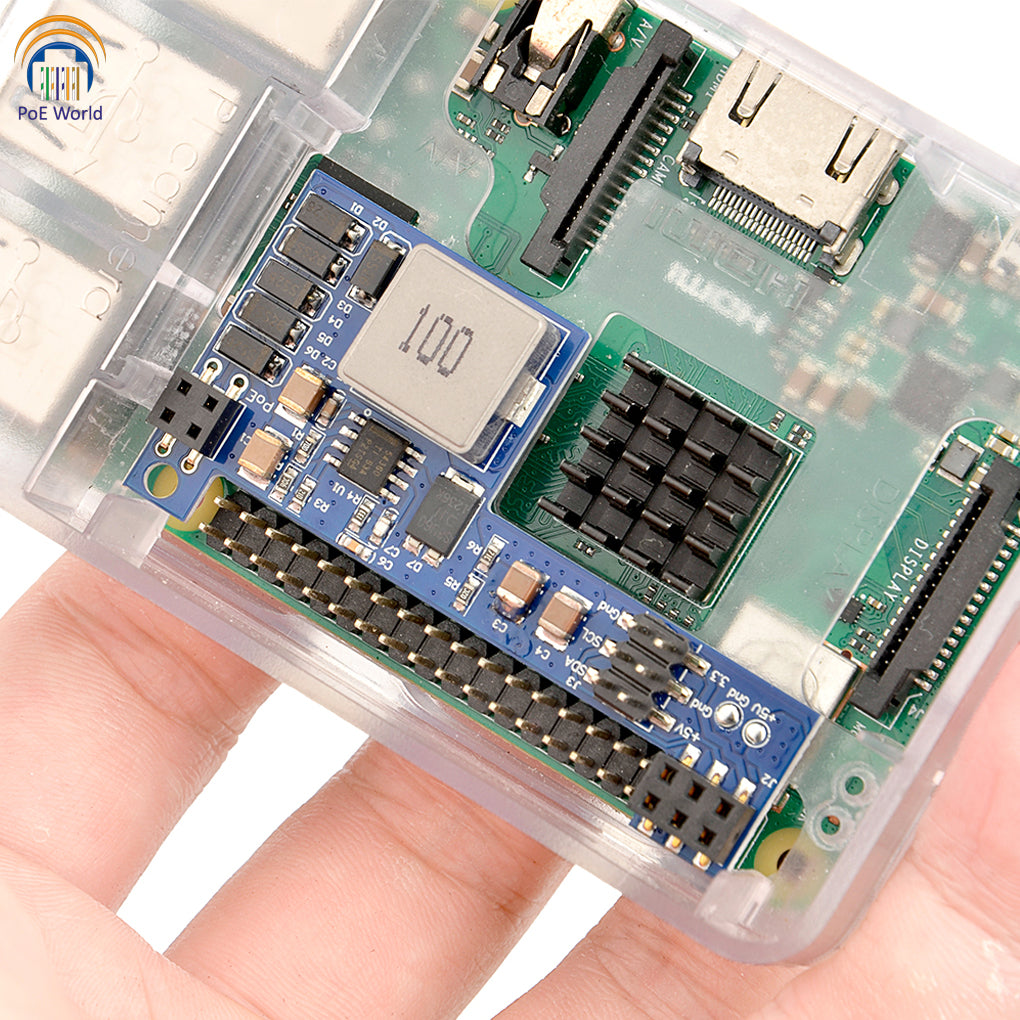

This device adds no height to the Pi itself.

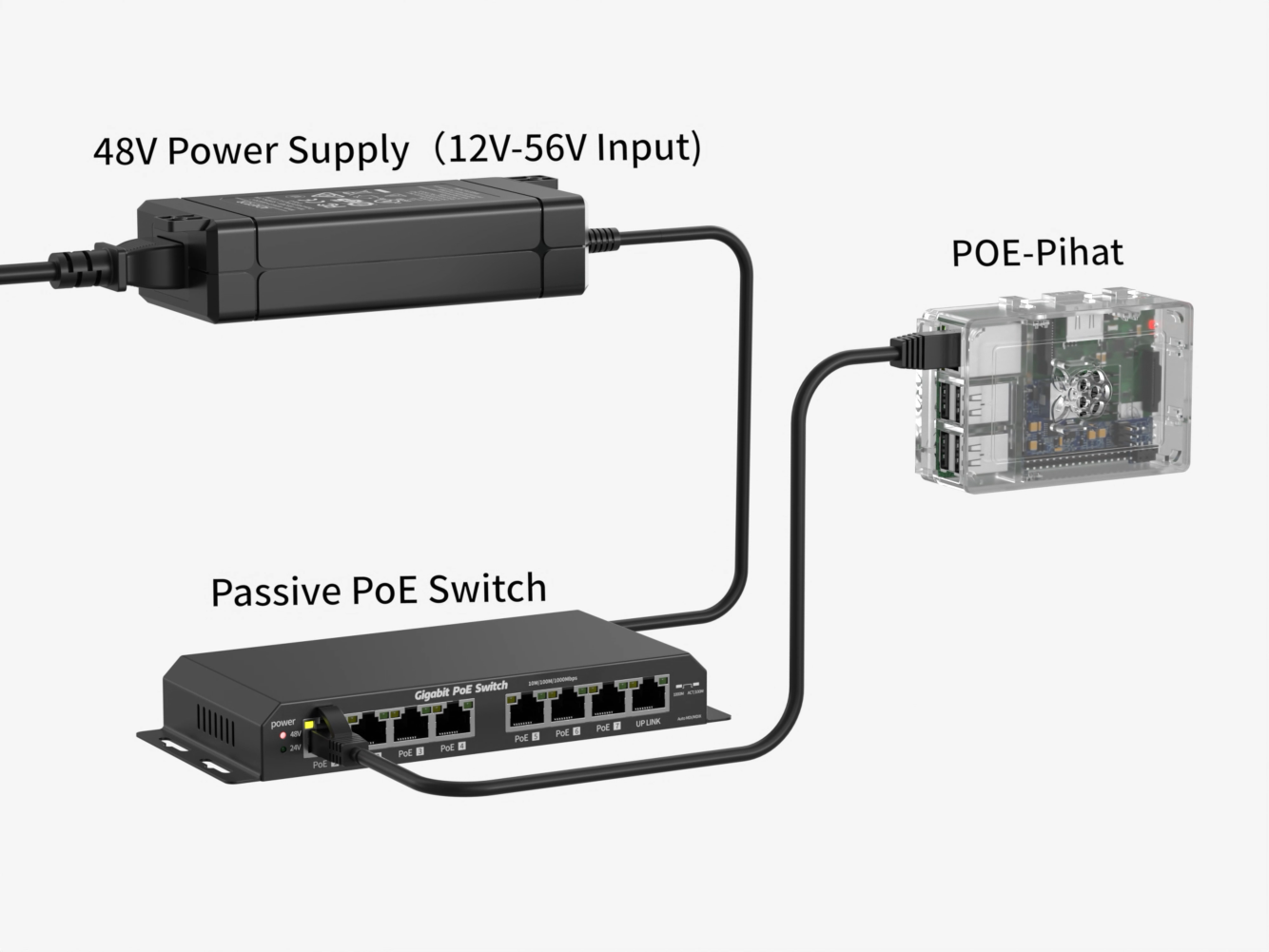

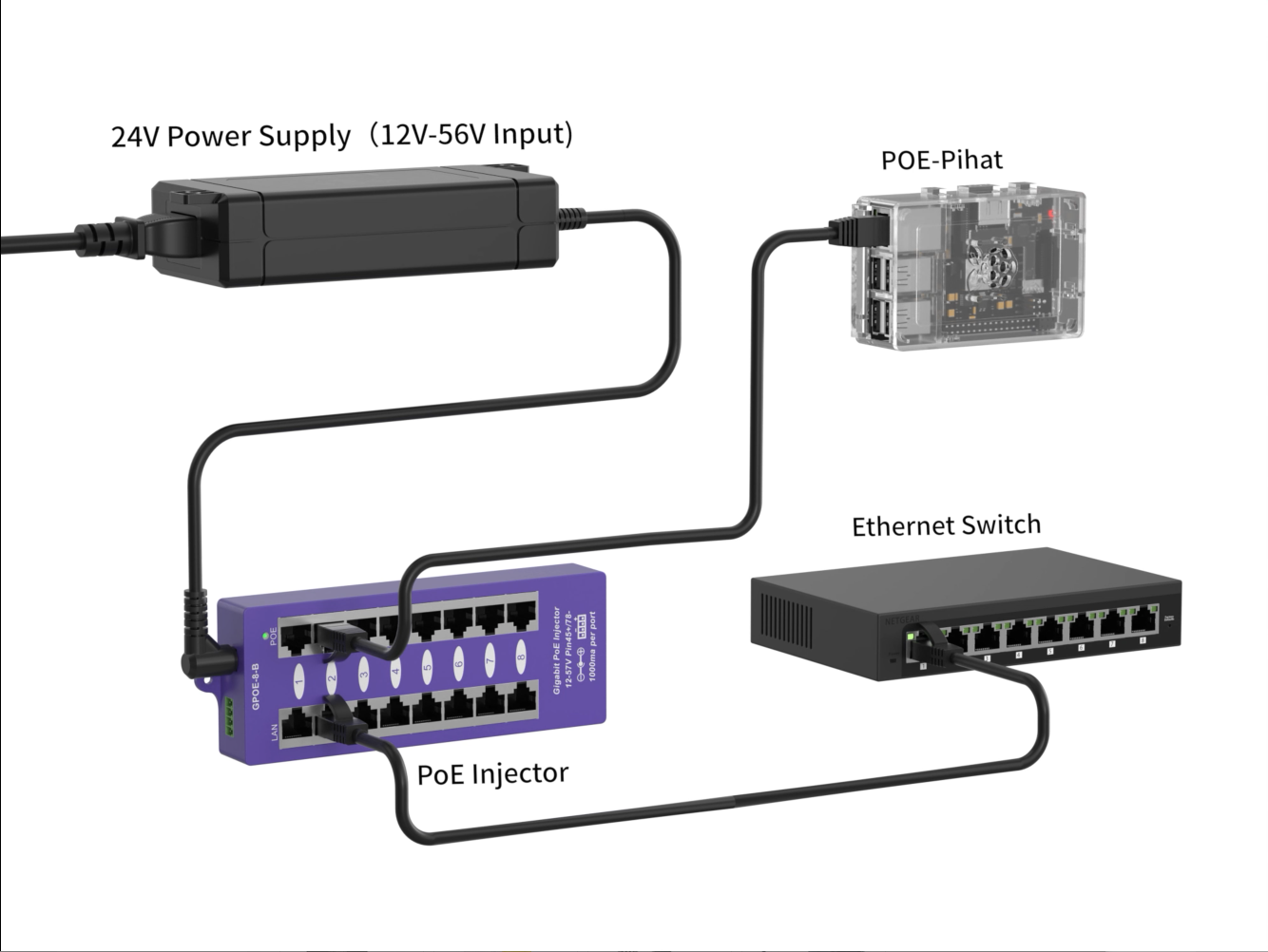

Intended for use with Mode A and B passive injectors and passive PoE switches ( like Ubiquiti, Mikrotik, and PoE-World )– this simple PoE solution requires no negotiation with the switch.

Specifications--Passive PoE Standard

Power and data source input :RJ 45 female connector on Pi 3 B+ or Pi 4
Data to powered device :All 4 pairs are active for data at 10/100/1000
PoE - mode B :4&5 + plus; 7&8- minus
PoE - mode A :1&2 and 3&6 – auto polarity
Input Voltage Range :From 12 to 56 volts
Input Current at 48v :265 ma input delivers 2 amps out
Output Voltage Max load (5v10w) :5v +- 2%
Output Current @ 12 volts input :2.5 Amps, 12.5 Watts
Output Current @ 24 volts input or higher :3.0 Amps, 15 Watts
Operating Temperature :0°C ~ 50°C
Size :65 x 39 x 11 mm (height from top of Pi pins)
Isolation :Not isolated

Note: The Raspberry Pi was not included.

This is the Passive PoE Pihat, the PoE Power is "Always On".
If your PoE Switch/ PoE Injector is Active PoE Standard, please take our GAF-Pihat.
