POE-8-24v60w 24 Volt PoE Injector Set Mode B 100mbps Operation for Up to 8 pcs 24 Volt Passive PoE Devices

POE-8-24v60w 24 Volt PoE Injector Set Mode B 100mbps Operation for Up to 8 pcs 24 Volt Passive PoE Devices

Regular price £34.99 GBP
Regular price Sale price £34.99 GBP
Sale Sold out
Shipping calculated at checkout.

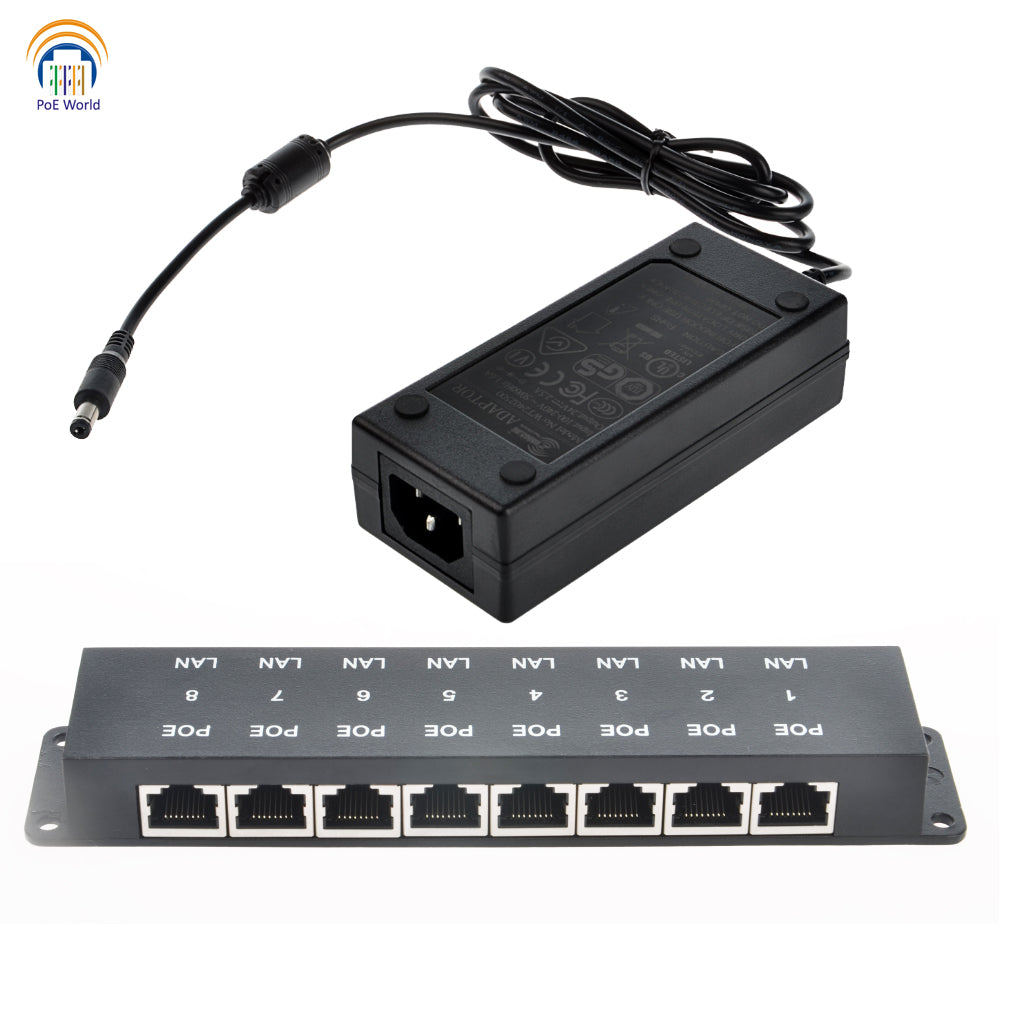

8 port wall mount PoE injector with 24 volt 60 watt power supply

This midspan injector allows you to remotely power up to 8 devices up to 100 meters via a single ethernet cable. Used with any 24 volt power supply to power IP security cameras, phones, wireless access points and other devices. This injector operates on mode B and power is “always on”.

Features:

  • Use with any PoE or non-PoE switch
  • 802.3af compatible
  • LED power display - green for 45 (+) and 78 (-) and red for reverse polarity
  • Wall mount
  • 10/100 data speed
  • Use with 30, 60, or 120 watt power supply
  • 24 volts and 60 watts of power
  • Power is distributed equally among each port
  • 2.1mm x 5.5mm DC plug
  • Quiet operation - no fan or cooling required
  • Operating temperature: 0°C ~ 50°C
  • Humidity range: 5% to 90% non-condensing

Product Specifications:

  • Size: 177.8 x 38.1 x 25.4 mm
  • Weight: 19 ounces

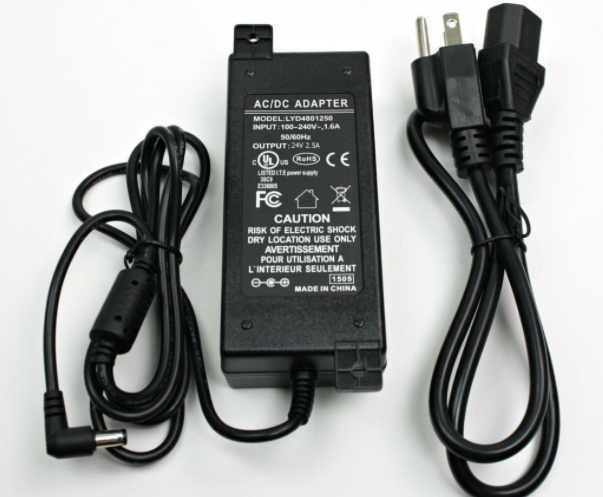

Power Supply Specifications:

  • Operating temperature: -10°C ~ 60°C
  • Storage temperature: -20°C ~ 85°C
  • Operating humidity: 5% to 90% non-condensing
  • UL, FCC, DoE listed
  • C13 prong grounded AC connector
  • Voltage: 100 volts to 240 volts
  • AC input: 50/60h
  • Class II - fully isolated

Other Options:

  • Gigabit options available
  • 4, 6, and 12 port Gigabit injectors
  • 8 and 12 port 100mb/s injectors

Similar Products:

  • POE-8-ENC
  • POE-12v-60w
  • POE-24v30w
  • POE-24v120w
  • POE-48v30w
  • POE-48v60w
  • POE-48v120w
    View full details

    Frequently Questions About POE

    What is "POE"?

    PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

    What is the difference between Mode A and Mode B?

    Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

    Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

    If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

    What does passive POE mean?

    Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

    Which power supply do I need?

    The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
