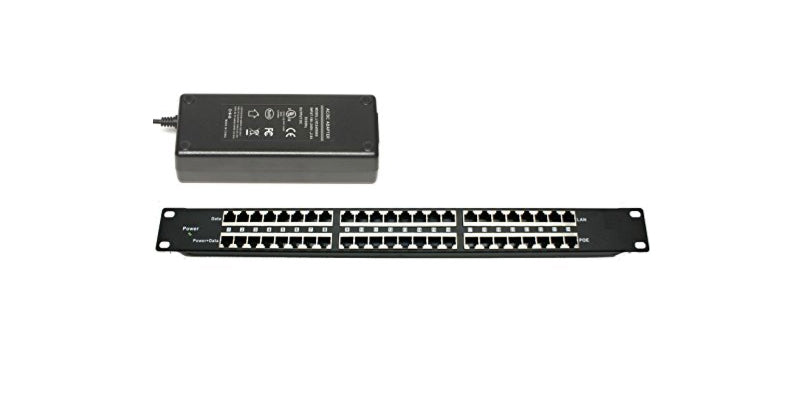

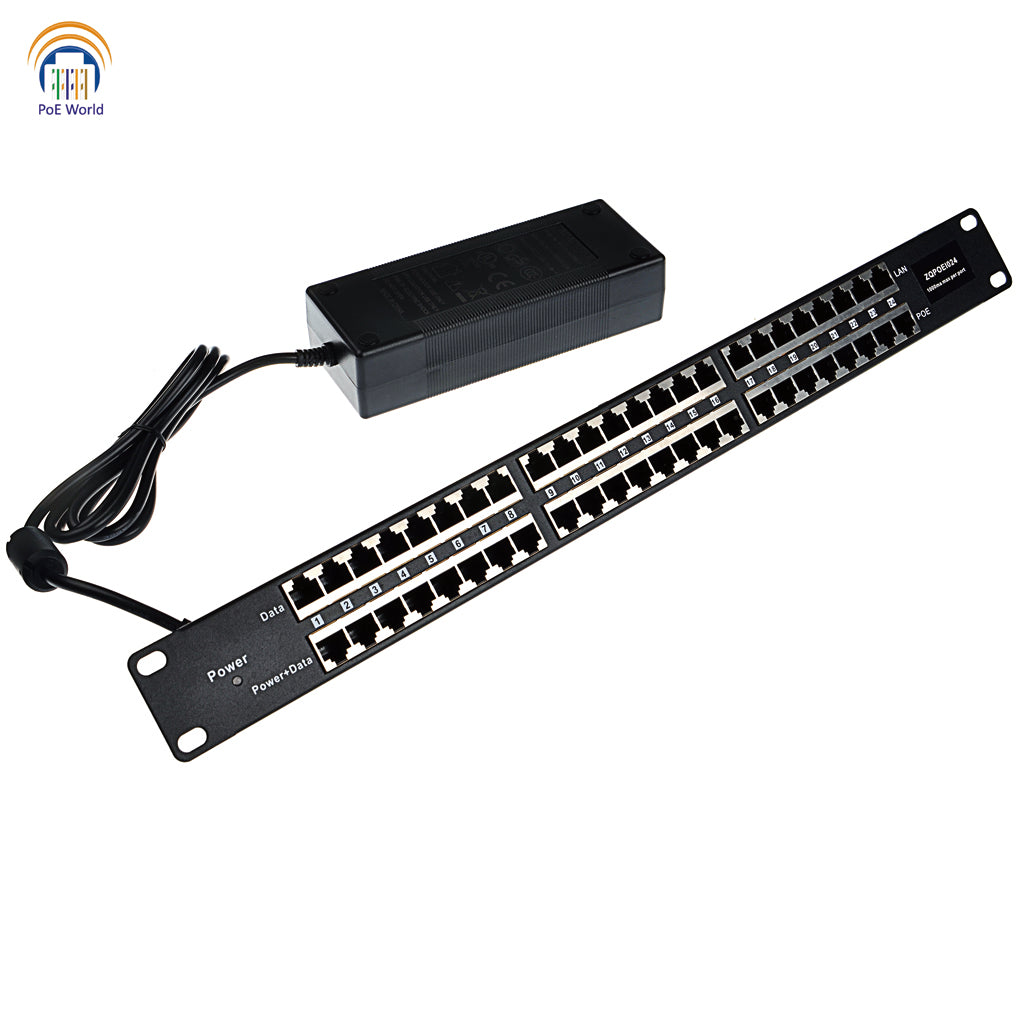

24 Port PoE Injector with 120 Watt Power Supply Kits Passive 24 Volt 48Volt Midspan Injector Mode B Operation

24 Port PoE Injector with 120 Watt Power Supply Kits Passive 24 Volt 48Volt Midspan Injector Mode B Operation

Regular price £91.63 GBP
Regular price Sale price £91.63 GBP
Sale Sold out
Shipping calculated at checkout.
Power Supply

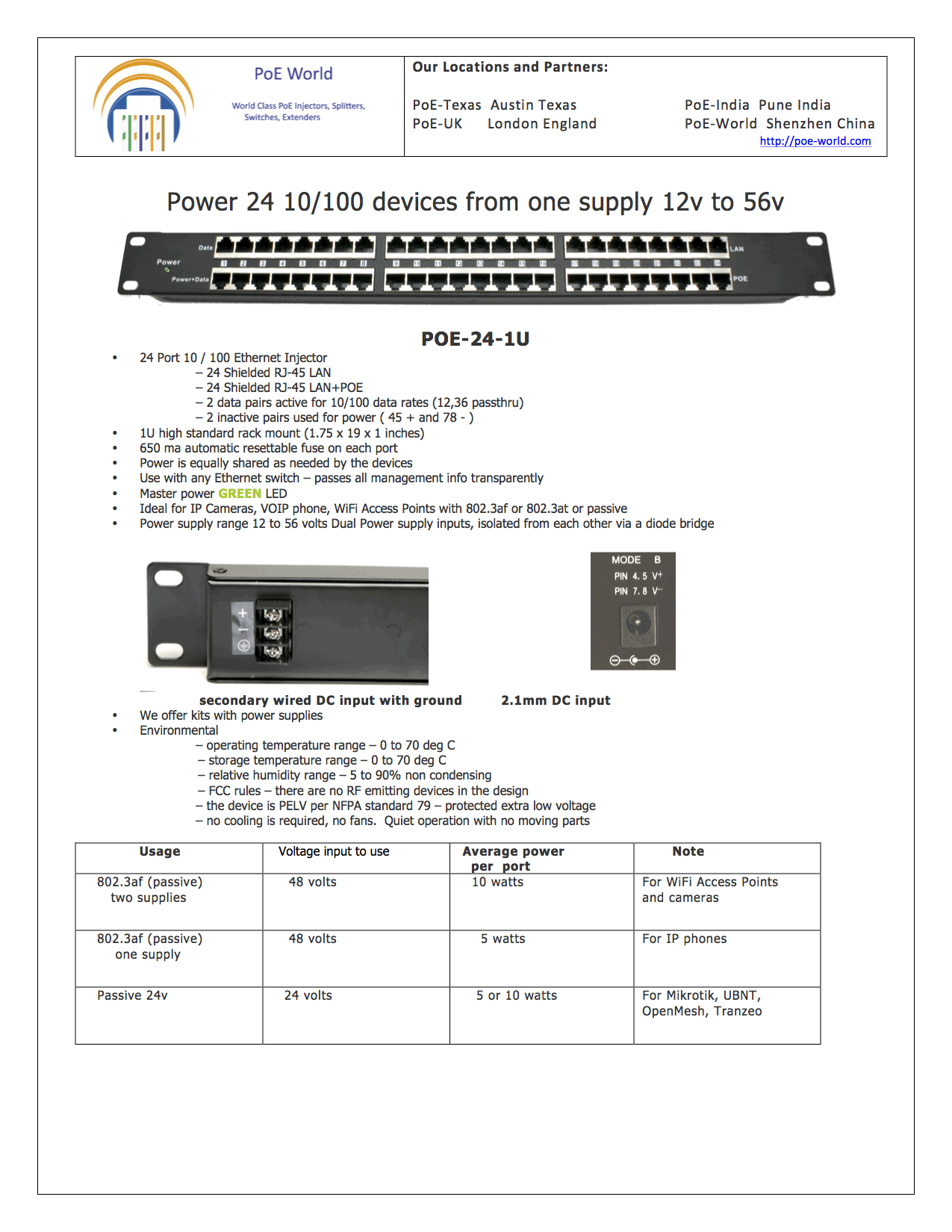

24 port PoE injector for 802.3af or passive 802.3at devices - 24 volt 48 volt Power supply for option

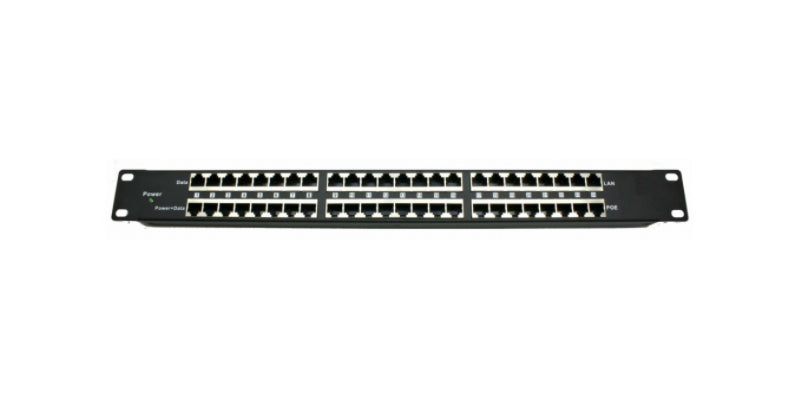

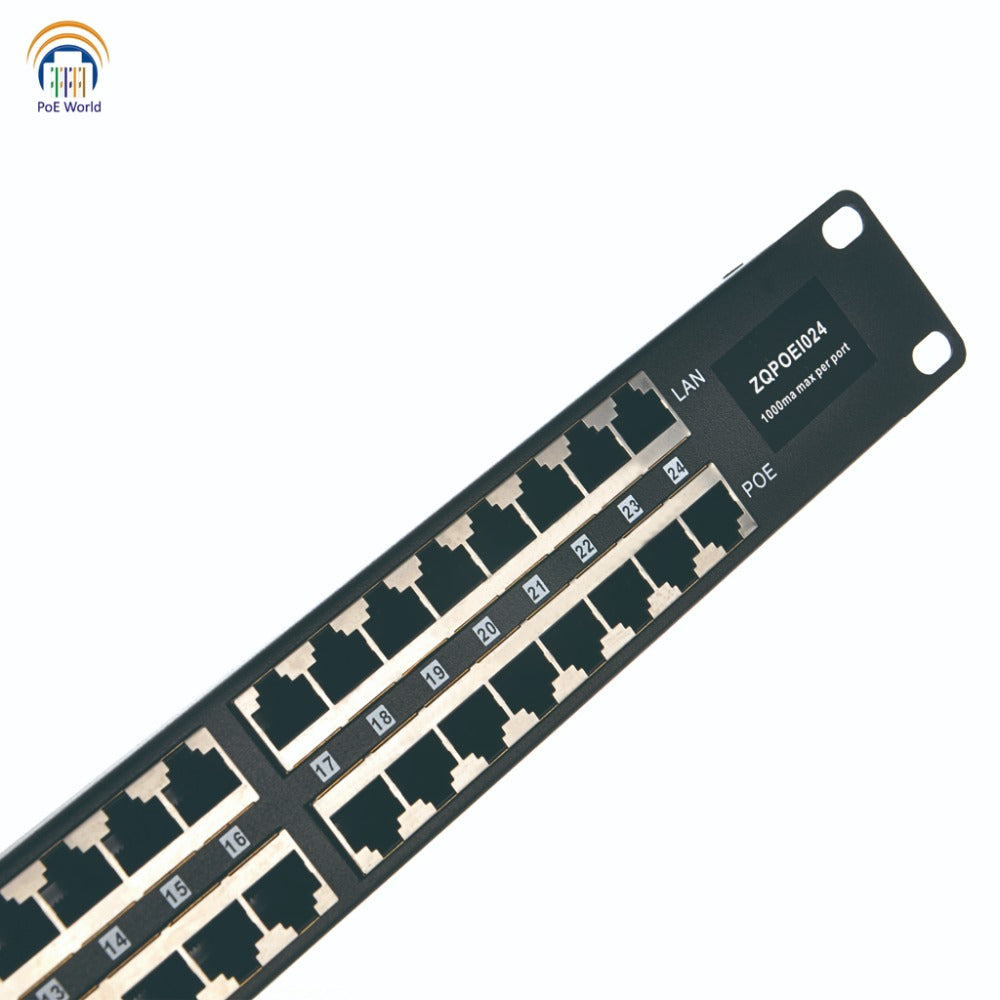

This rack mountable 24 port 10/100 midspan injector is able to provide PoE power and data for 24 devices for up to 100 meters . Use this injector to power IP cameras, VoIP phones, access points, and more. This injector operates on mode B and power is “always on”.

    Features:

    • Rack mount
    • Use with any PoE or non-PoE switch
    • 802.3af /at compatible
    • LED power display
    • 10/100 data speed

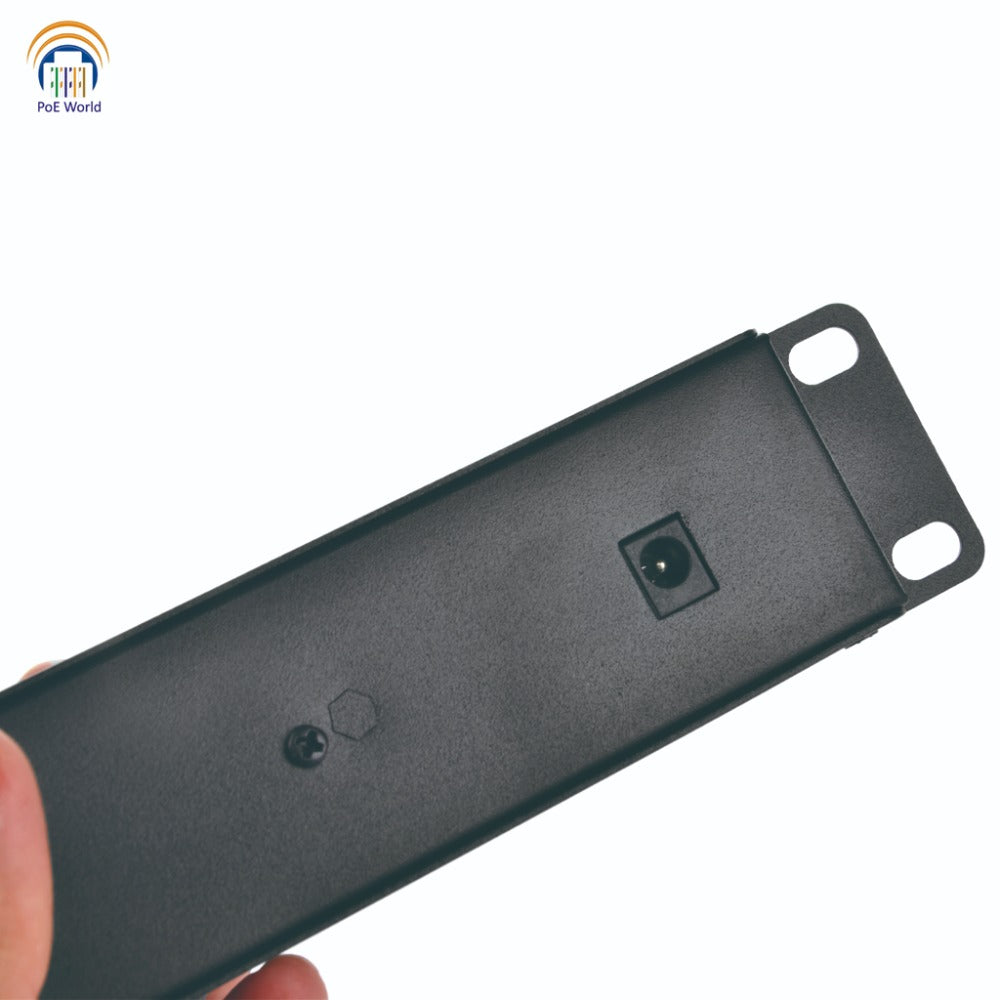

    • 2.1mm x 5.5mm DC plug
    • Mode B input pins: 4&5 (+) and 7&8 (-)
    • 650 ma automatic resettable fuses on each port
    • Operating temperature: 0°C ~ 65°C

    Product Specifications:

    • Size: 150 x 65 x 26 mm
    • Weight: 26 ounces

      Other Options:

      • Use with any 24v or 48v 120 watt power supply
      • 1, 4, 8, 12, and 16 injectors available


          View full details

          Frequently Questions About POE

          What is "POE"?

          PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

          What is the difference between Mode A and Mode B?

          Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

          Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

          If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

          What does passive POE mean?

          Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

          Which power supply do I need?

          The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
