16 Port Passive PoE Injector Rack Mount Midspan Patch Panel With 24 Volt 48 Volt Power Supply for Option, Power Up to 16pcs PoE Cameras
16 Port Passive PoE Injector Rack Mount Midspan Patch Panel With 24 Volt 48 Volt Power Supply for Option, Power Up to 16pcs PoE Cameras
Couldn't load pickup availability

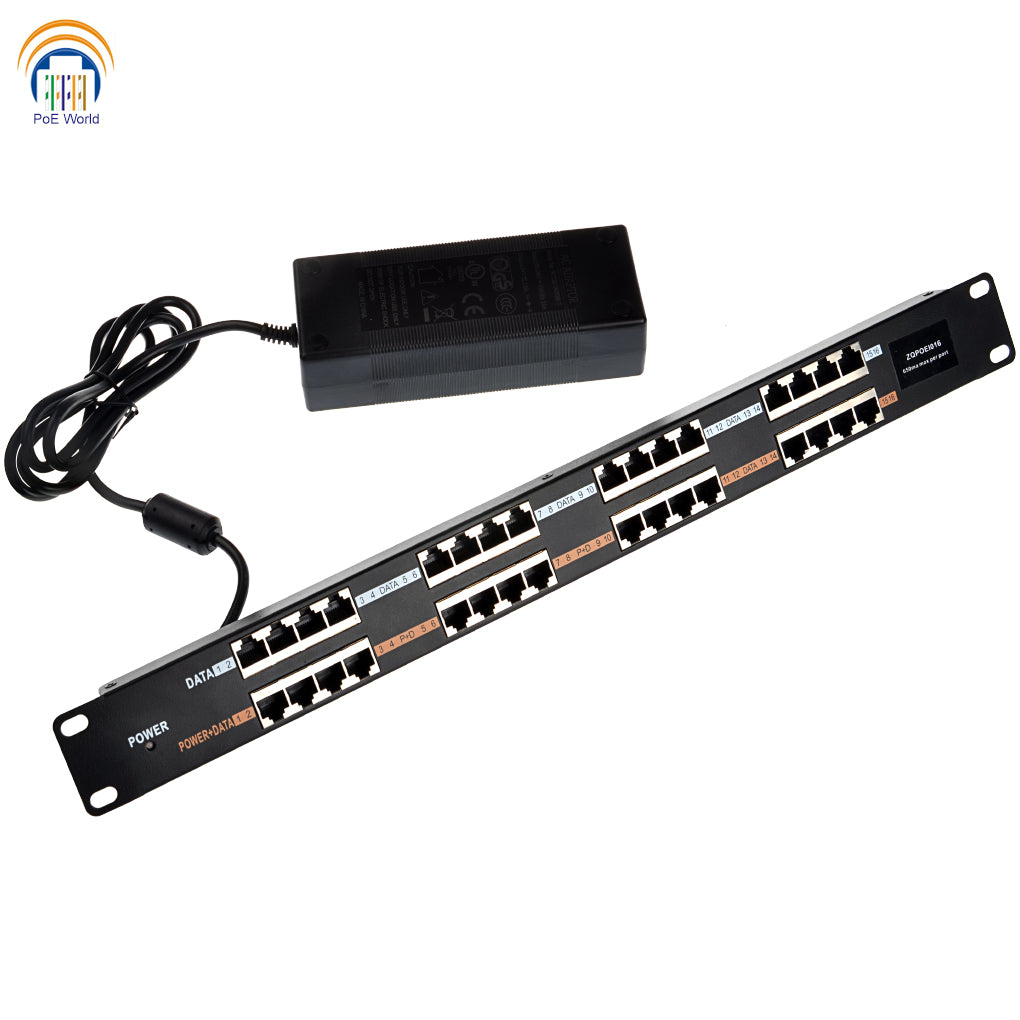

16 port PoE injector for 802.3af devices - power supply included

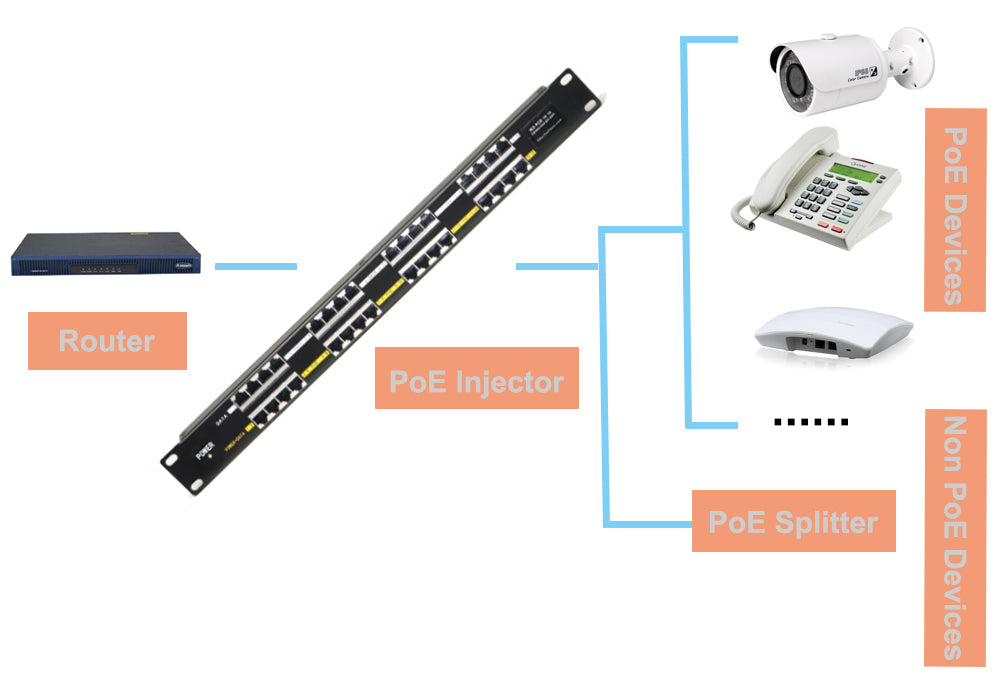

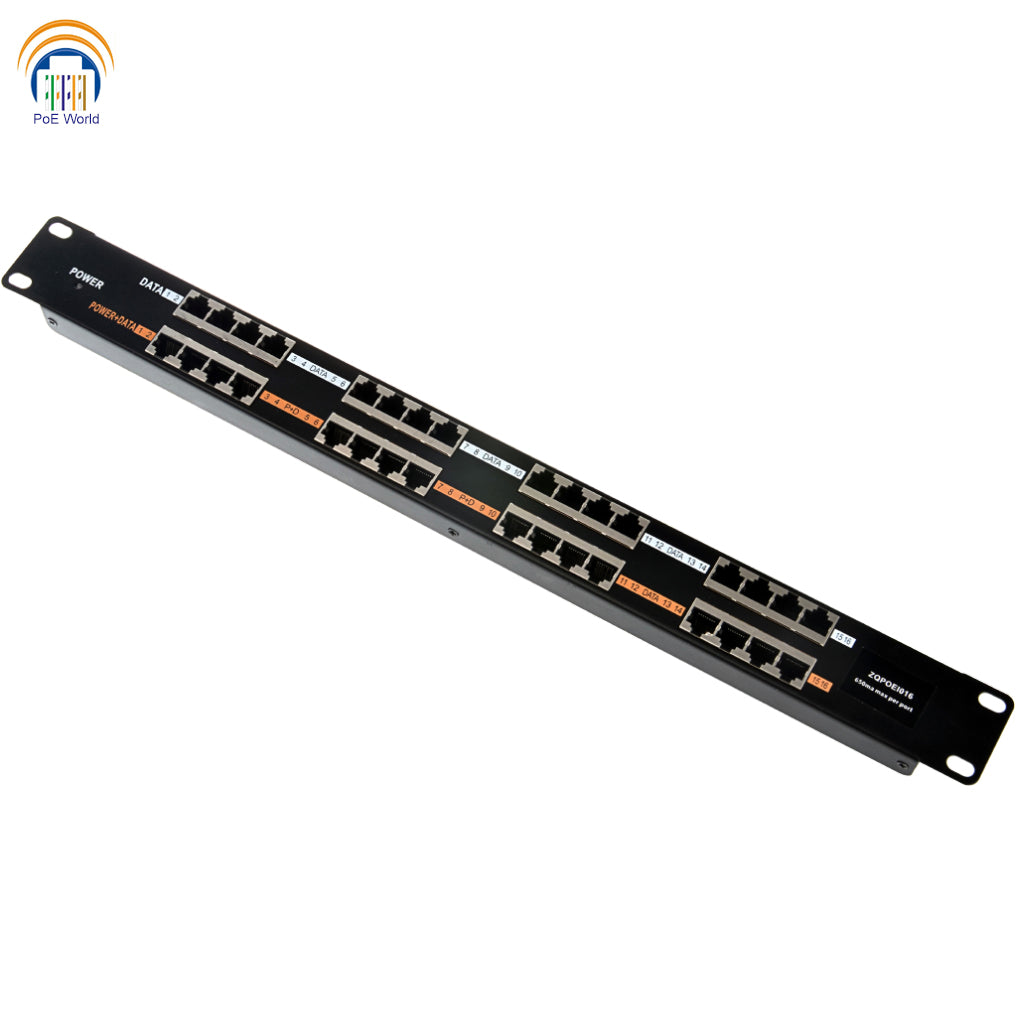

This rack mountable 16 port 10/100 midspan injector is able to provide PoE power and data for 16 devices for up to 100 meters . Use this injector to power IP cameras, VoIP phones, access points, and more. This injector operates on mode B and power is “always on”.
Features:

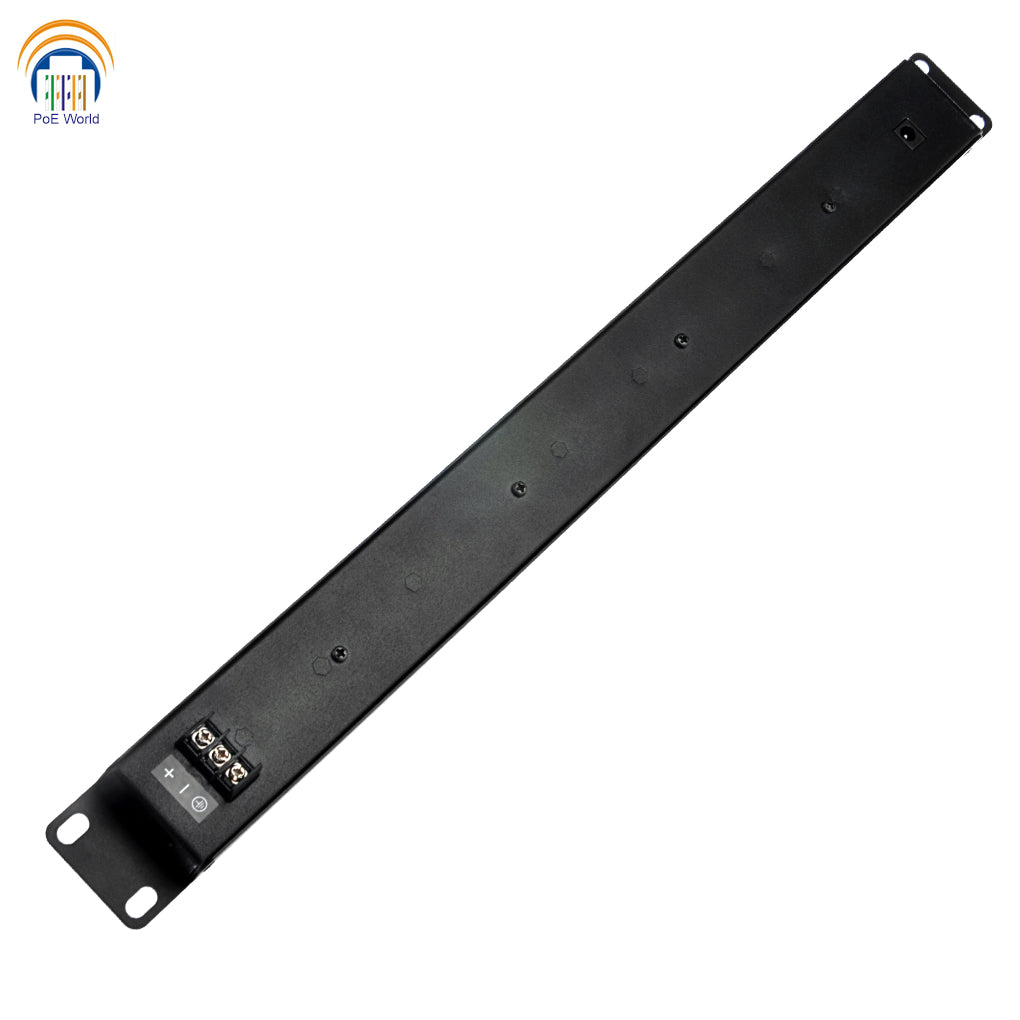

- Rack mount
- Use with any PoE or non-PoE switch
- LED power display
- 10/100 data speed

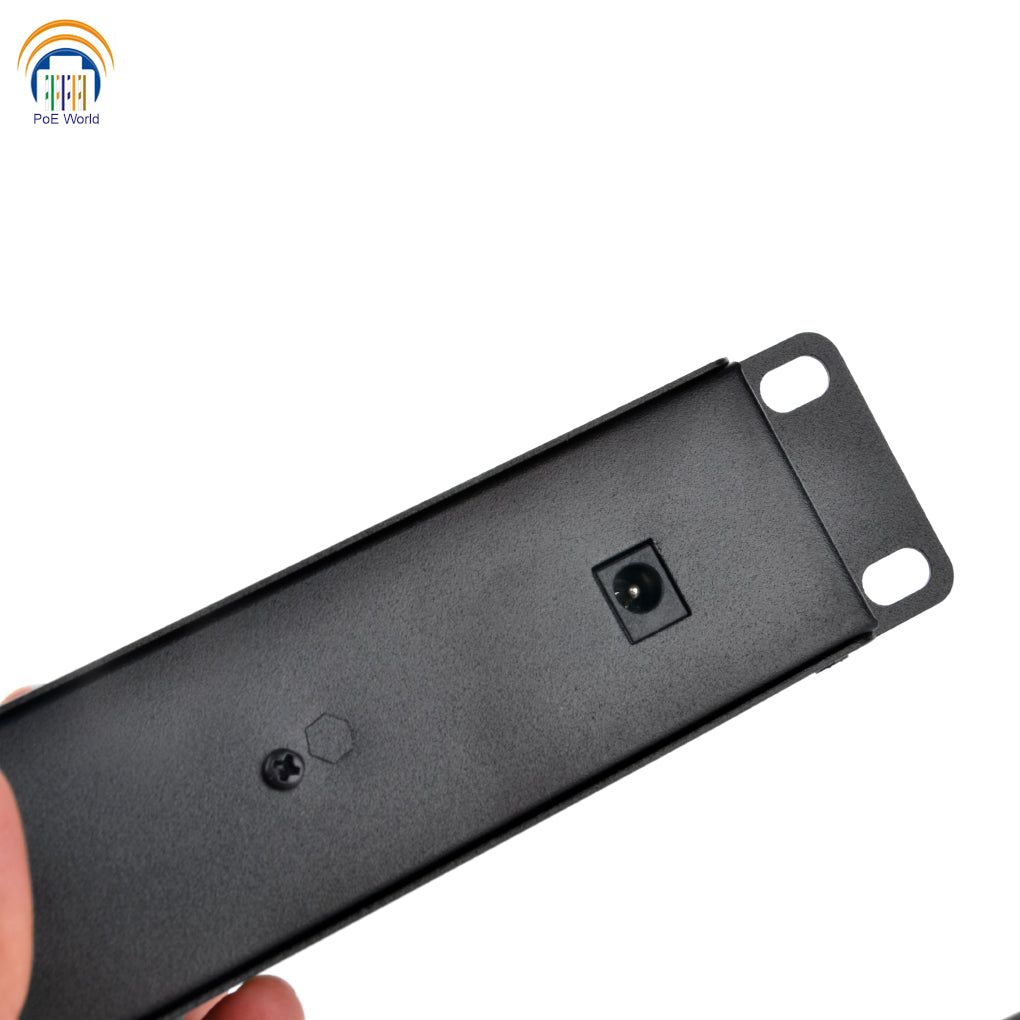

- 2.1mm x 5.5mm DC plug
- Mode B input pins: 4&5 (+) and 7&8 (-)
- 650 ma automatic resettable fuses on each port
- Operating temperature: 0°C ~ 65°C
Product Specifications:
- Size: 150 x 65 x 26 mm
- Weight: 26 ounces
Power Supply Specifications:
- Operating temperature: -10°C ~ 60°C
- Storage temperature: -20°C ~ 85°C
- Operating humidity: 5% to 90% non-condensing
- UL, FCC, DoE listed
- C13 prong grounded AC connector
- Voltage: 100 volts to 240 volts
- AC input: 50/60h
- Class II - fully isolated
Other Options:
- Upgrade to 120 watt power supply
- 1, 4, 8, and 24 port injectors available
Similar Products:
- GPOE-16-1U
- POE-16-24v60w
- POE-16-24v120w
- POE-16-48v60w
- GPOE-16-24v120w
- GPOE-16-48v120w
- GPOE-16-48v240w
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
