12 Port PoE Injector with Power Supply 100mbps Data Speed Mode B Operation 12-56Volt Power Input, 60 Watt 120 Watt Power Supply for Option

12 Port PoE Injector with Power Supply 100mbps Data Speed Mode B Operation 12-56Volt Power Input, 60 Watt 120 Watt Power Supply for Option

Regular price £72.00 GBP
Regular price Sale price £72.00 GBP
Sale Sold out
Power Supply

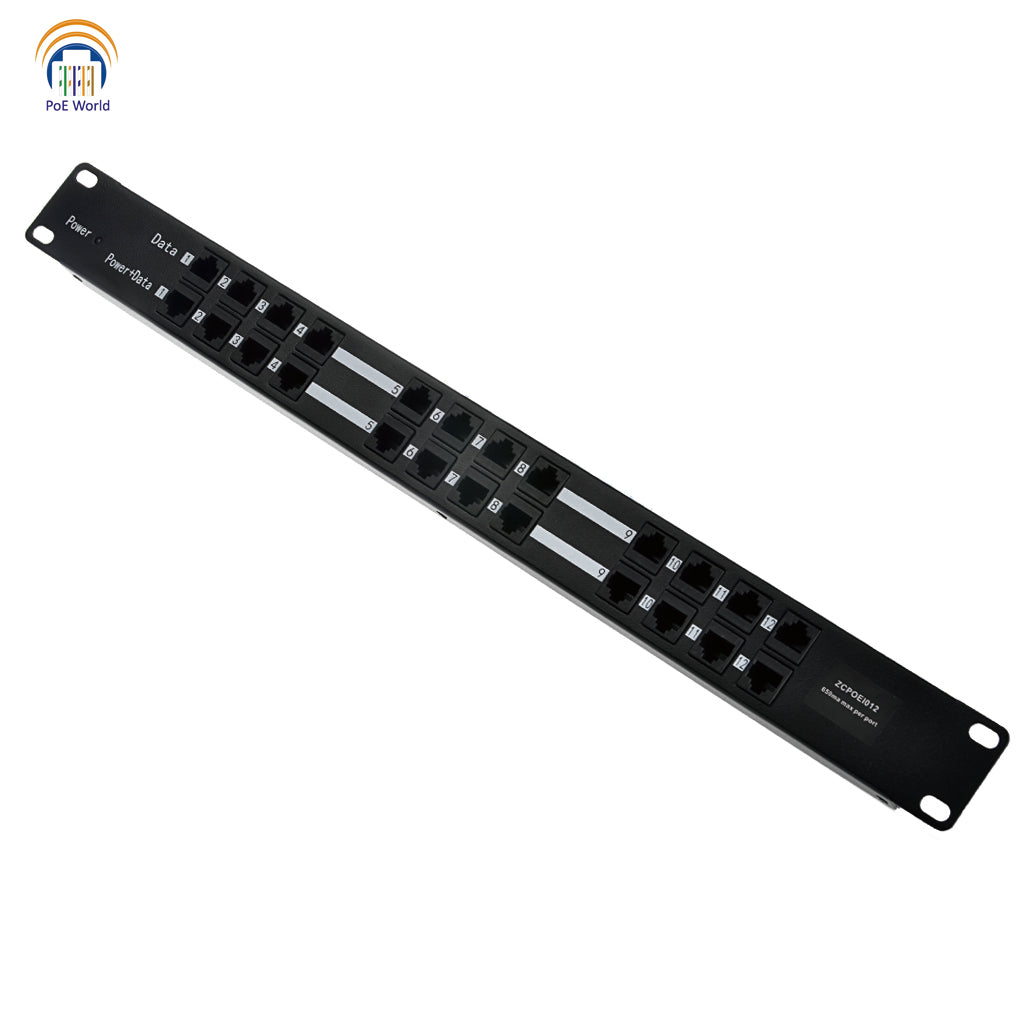

12 port PoE injector for 802.3af devices - see power supply options

This 12 port PoE injector that allows for 10/100 data speed on a switch. This injector operates on mode B and can be used to power PoE cameras, IP phones, and access points. This device powers 802.3af/at devices passively and power is “always on”.

    Features:

    • Rack mount
    • Use with any PoE or non-PoE switch
    • 802.3af/at compatible

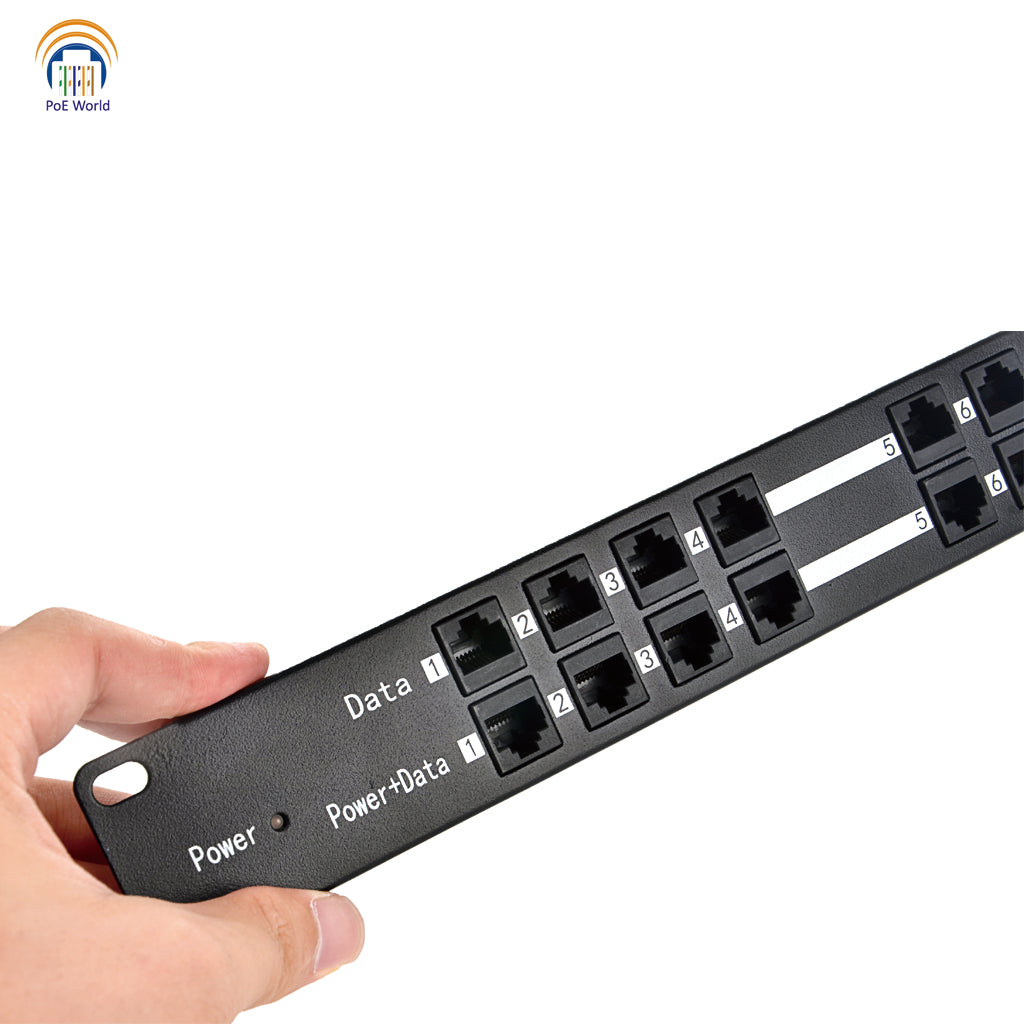

    • LED power display
    • 10/100 data speed
    • 2.1mm x 5.5mm DC plug
    • Mode B operation: 7&8 (-) and 4&5 (+)

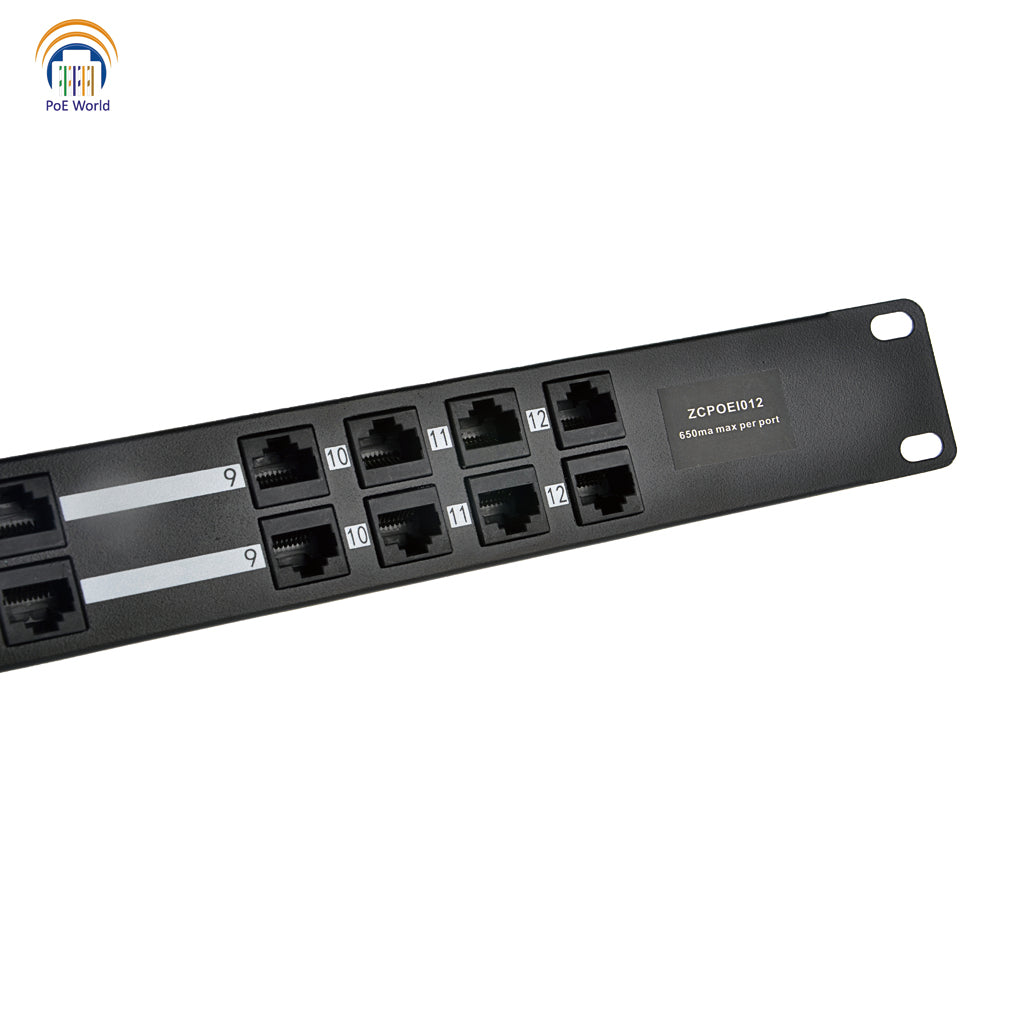

    • 650 ma automatic resettable fuses on each port
    • Operating temperature: 0°C ~ 65°C

    Product Specifications:

    • Size: 508 x 101.6 x 50.8 mm
    • Weight: 26 ounces

      Other Options:

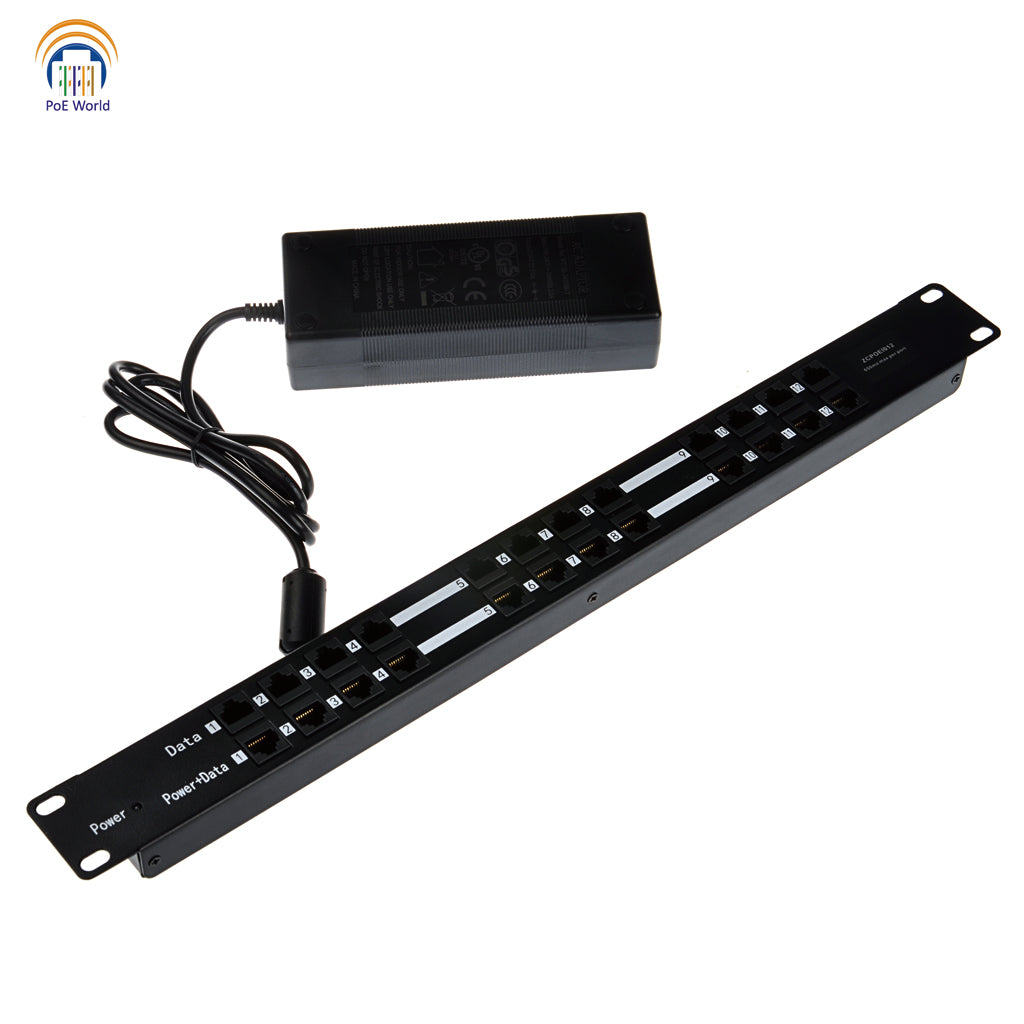

      • 60 and 120 watt power supply
      • 24 and 48 volt power supply option available
      • 10/100/1000 option available
      • Injector kits also available

      Similar Products:

      • POE-12-24v60w
      • POE-12-24v120w
      • POE-12048v60w
      • POE-12-48v120w
      • GPOE-B-12-24v120w
      • GPOE-12-48v60w
      • GPOE-12-48v120w
        View full details

        Frequently Questions About POE

        What is "POE"?

        PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

        What is the difference between Mode A and Mode B?

        Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

        Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

        If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

        What does passive POE mean?

        Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

        Which power supply do I need?

        The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
