GPOE-48V10W Gigabit PoE Converter 10-30V Input 48V Output For Any 802.3af 48V devices

GPOE-48V10W Gigabit PoE Converter 10-30V Input 48V Output For Any 802.3af 48V devices

Regular price £17.50 GBP
Regular price Sale price £17.50 GBP
Sale Sold out
Shipping calculated at checkout.

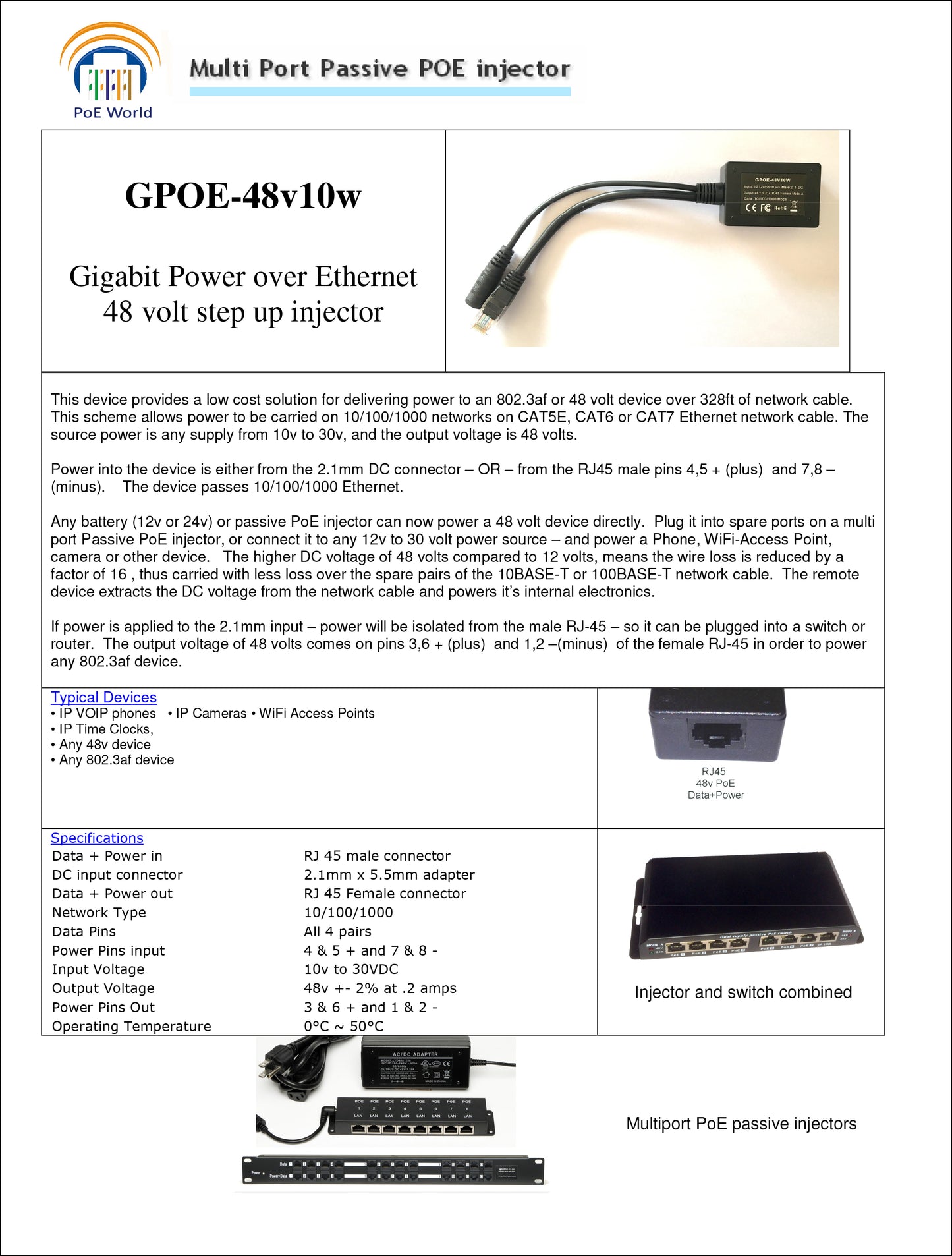

10V-30VDC input 48V Output Gigabit POE Converter

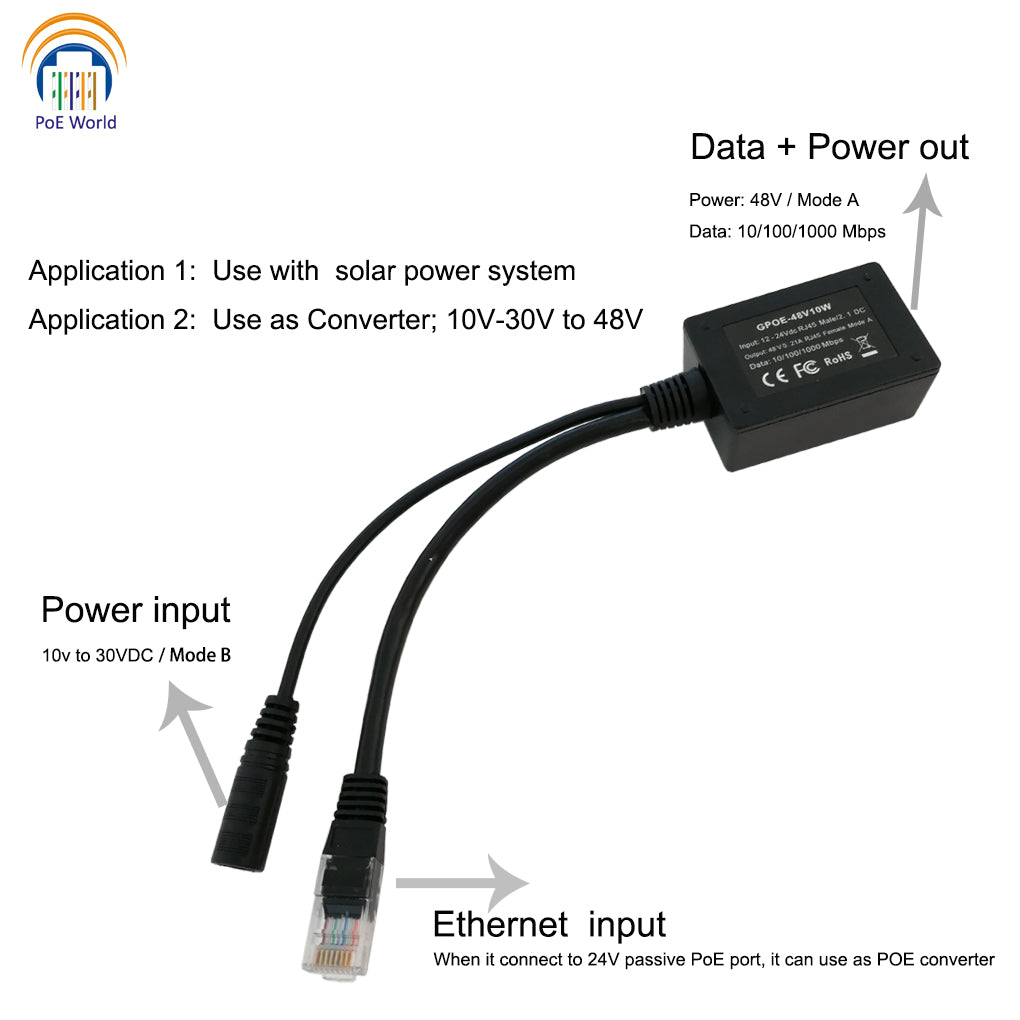

This device provides a low cost solution for delivering power to an 802.3af or 48 volt device over 328ft of network cable. This scheme allows power to be carried on 10/100/1000 networks on CAT5E, CAT6 or CAT7 Ethernet network cable. The source power is any supply from 10v to 30v, and the output voltage is 48 volts.
Specifications
Data + Power in:             RJ 45 male connector

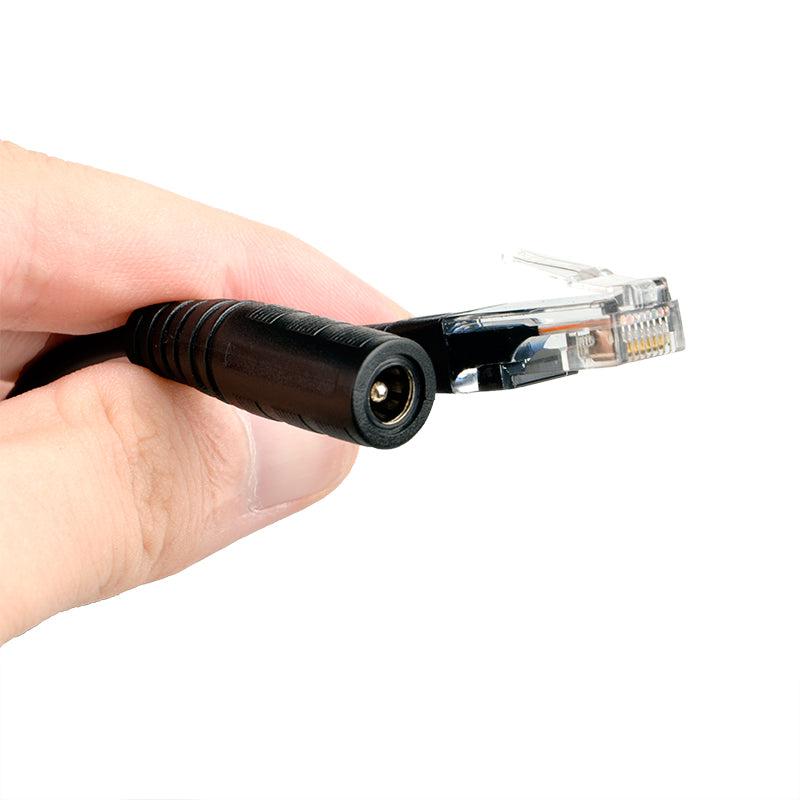

DC input connector:       2.1mm x 5.5mm adapter

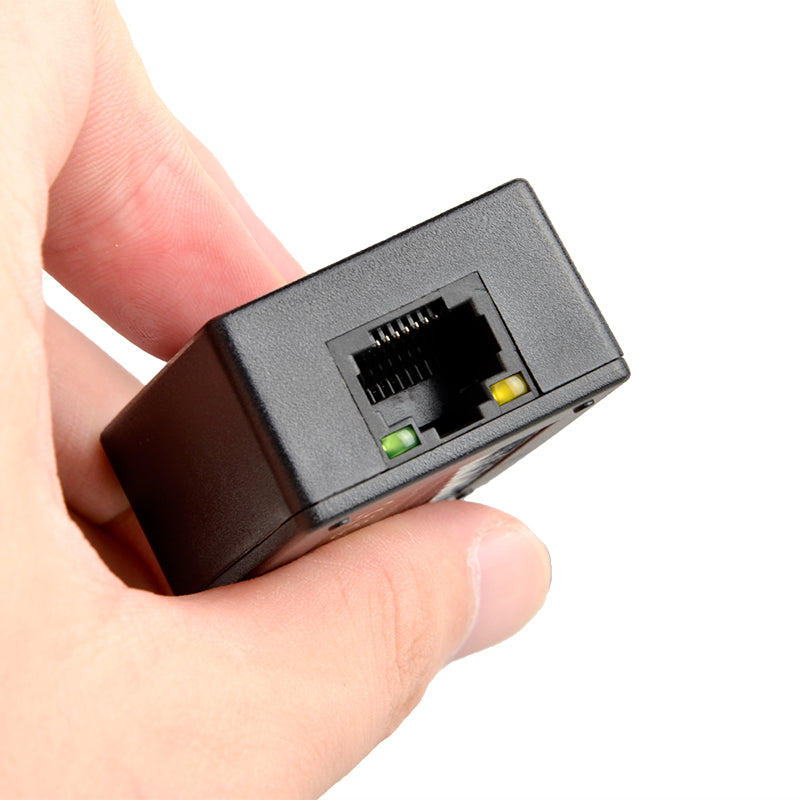

Data + Power out:           RJ 45 Female connector
Network Type:            10/100/1000
Data Pins:                   All 4 pairs
Power Pins input:       4 & 5 + and 7 & 8 - (Mode B)
Input Voltage:             10v to 30VDC
Output Voltage:          48v +- 2% at .2 amps
Power Pins Out:         3 & 6 + and 1 & 2 - (Mode A)
Operating Temperature:  0°C ~ 50°C
