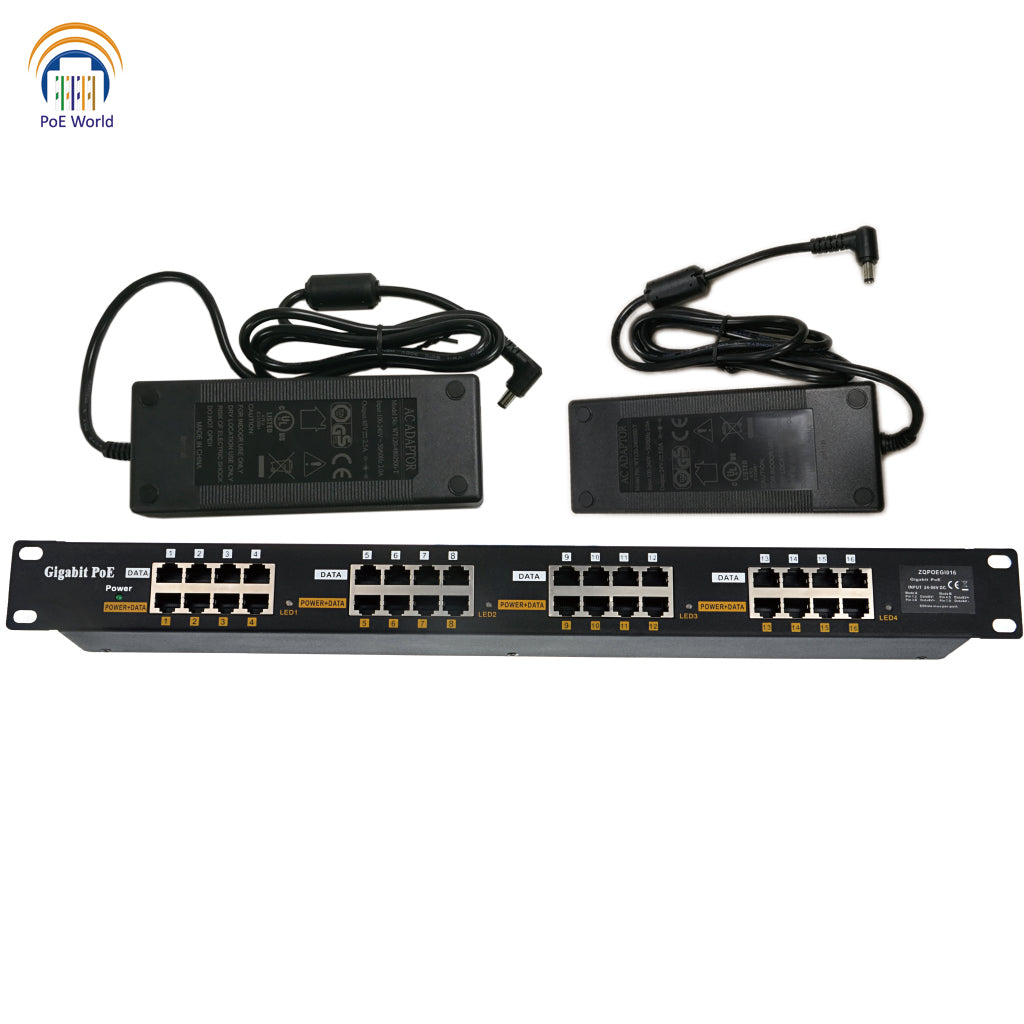

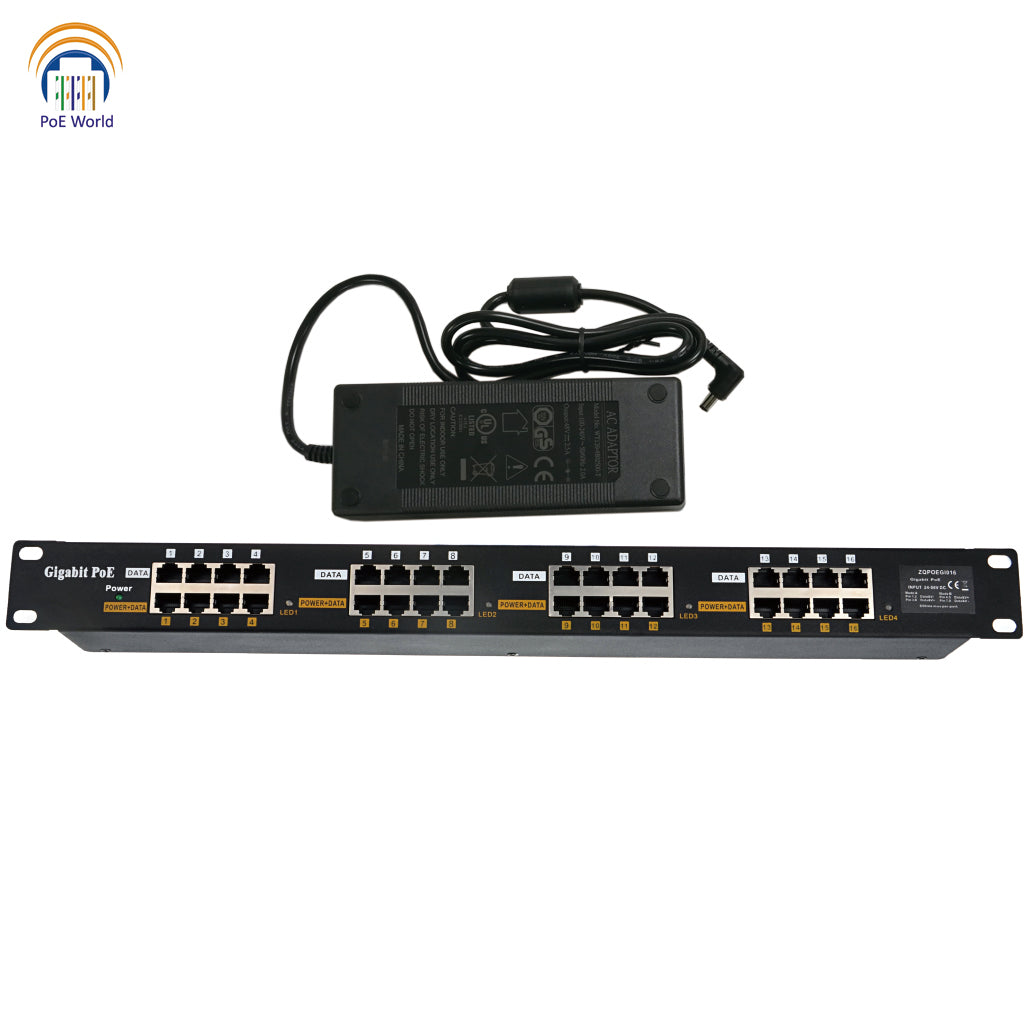

16 Port 1U Gigabit PoE Injector with 180 Watt 240 Watt Power Supply, Rack Mount Midspan Patch Panel Support Mode A Mode B, Dual Power Supply Input

16 Port 1U Gigabit PoE Injector with 180 Watt 240 Watt Power Supply, Rack Mount Midspan Patch Panel Support Mode A Mode B, Dual Power Supply Input

Regular price £129.99 GBP
Regular price Sale price £129.99 GBP
Sale Sold out
Power Supply

16 port Gigabit PoE injector for 802.3af or passive 802.3at devices - see power supply options

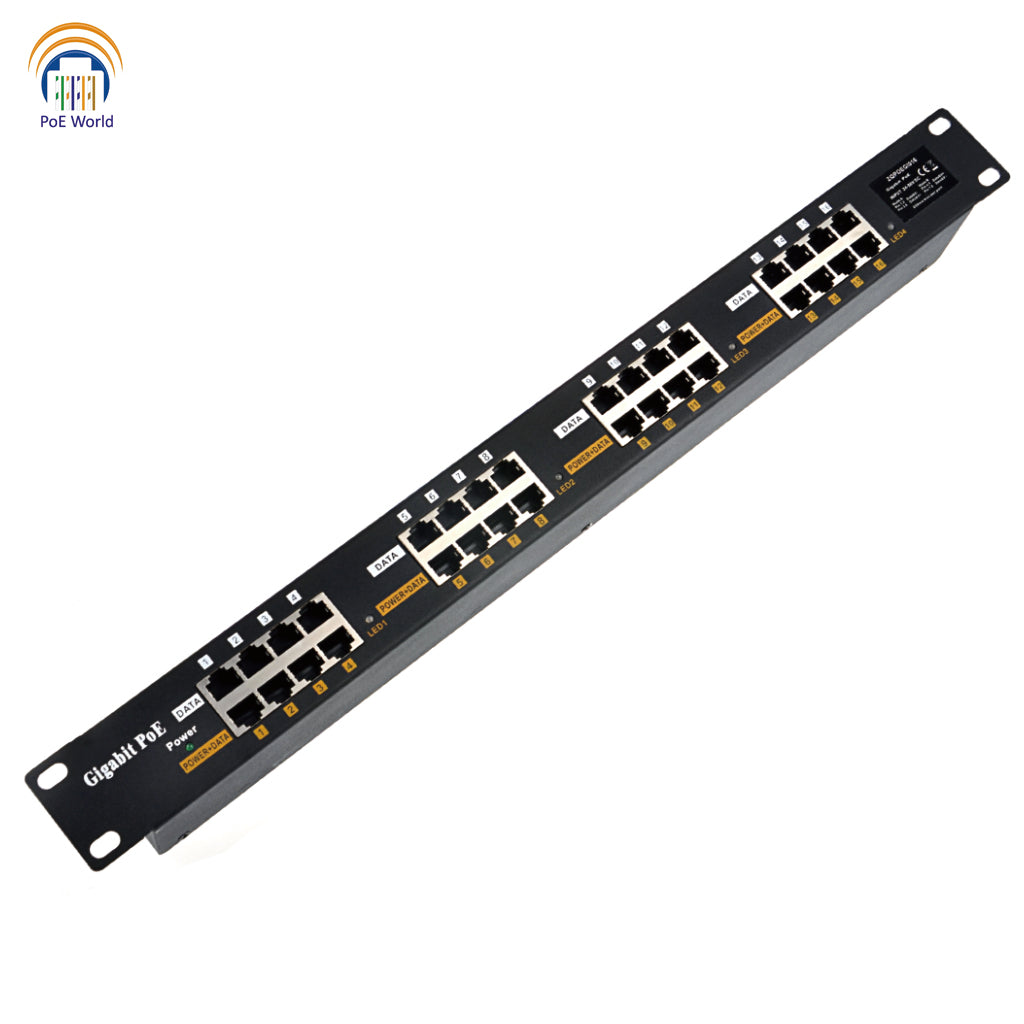

This rack mountable 16 port Gigabit midspan injector is able to provide PoE power and data for 16 devices for up to 100 meters . Use this injector to power IP cameras, VoIP phones, access points, and more. This injector operates on mode A and B and power is “always on”.

Features:

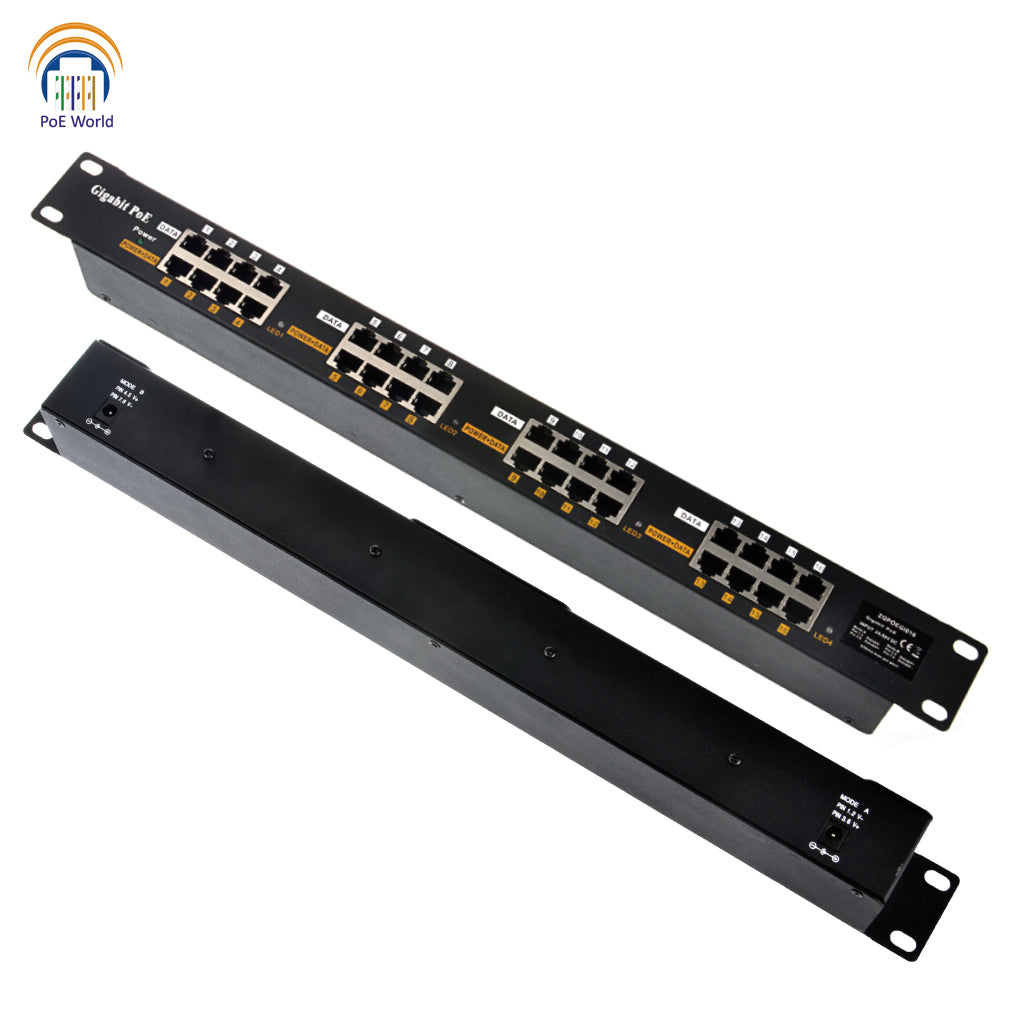

  • Rack mount
  • Use with any PoE or non-PoE switch
  • 802.3af /at compatible
  • LED power display
  • 10/100/1000 data speed
  • 2.1mm x 5.5mm DC plug

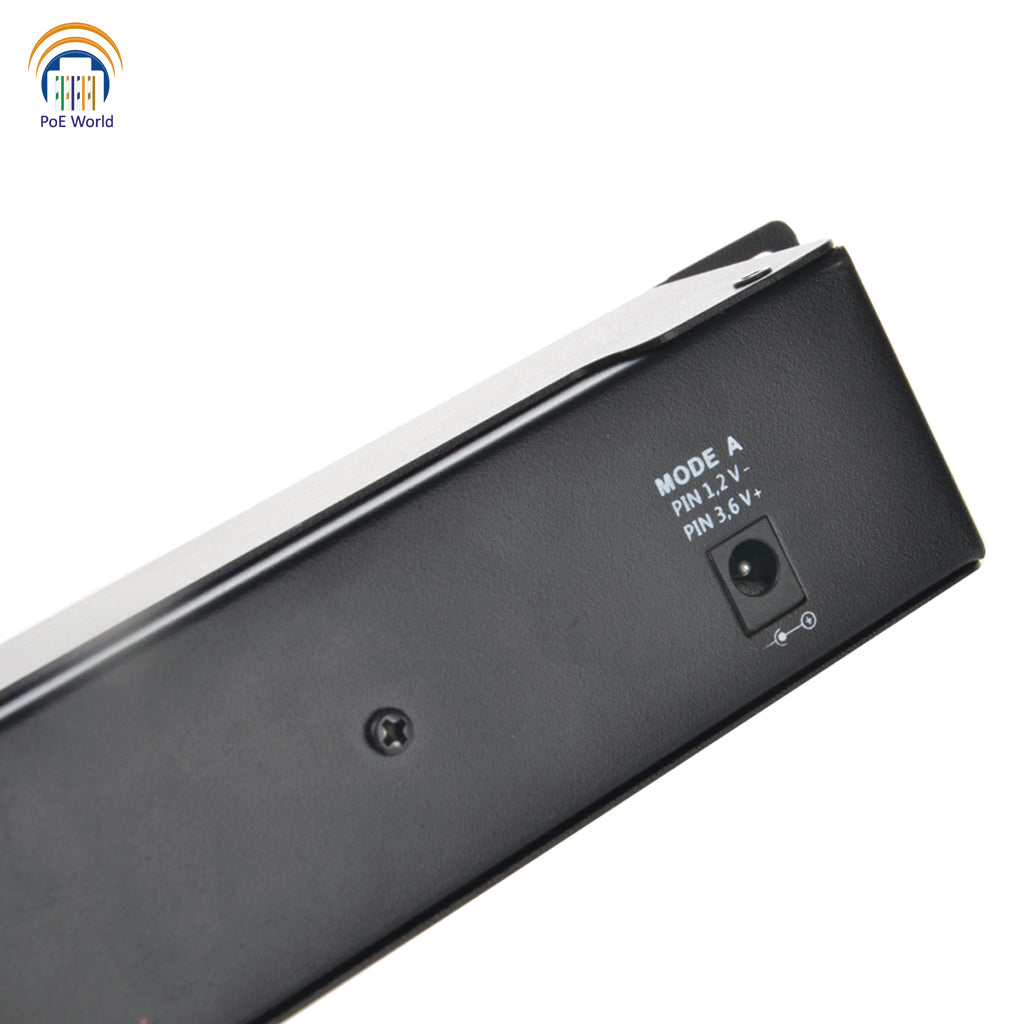

  • Mode A data pins: 1&2 (-) and 3&6 (+)

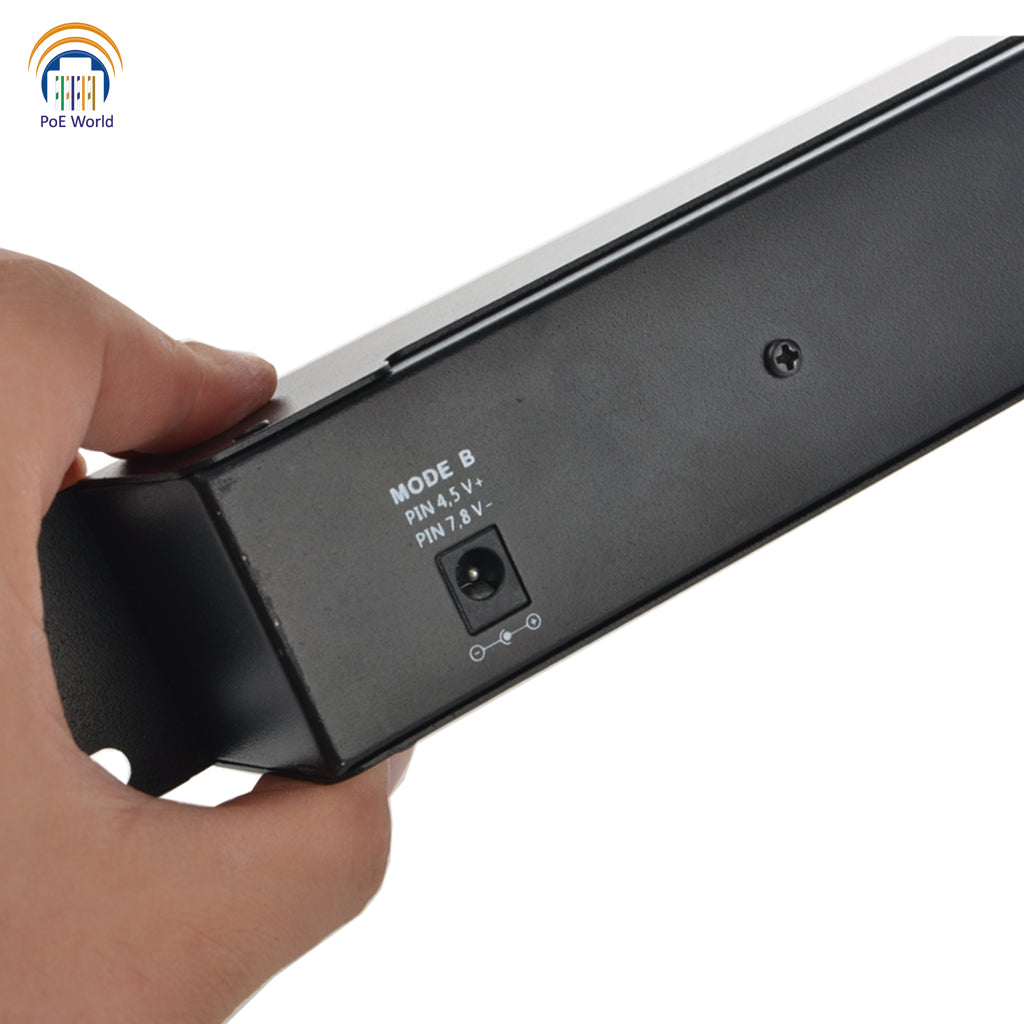

  • Mode B input pins: 4&5 (+) and 7&8 (-)
  • 650 ma automatic resettable fuses on each port
  • Operating temperature: 0°C ~ 65°C

Product Specifications:

  • Size: 150 x 65 x 26 mm
  • Weight: 61 ounces

    Power Supply Specifications:

    • UL, DoE, CE, and FCC approved
    • AC operation: 110 to 120 volt
    • Operating temperature: -10°C ~ 60°C
    • Storage temperature: -20°C ~ 85°C
    • Operating humidity: 5% to 90% non-condensing
    • 90% efficient
    • C13 style prong

    Other Options:

    • 60 and 120 watt with either 24 or 48 volt power supply
    • 1, 4, 8, and 24 port injectors available
    • Non-Gigabit option available

    Similar Products:

    • POE-16-1U
    • POE-16-24v60w
    • POE-16-24v120w
    • POE-16-48v60w
    • GPOE-16-24v120w
    • GPOE-16-48v120w
    • GPOE-16-48v240w
      View full details

      Frequently Questions About POE

      What is "POE"?

      PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

      What is the difference between Mode A and Mode B?

      Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

      Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

      If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

      What does passive POE mean?

      Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

      Which power supply do I need?

      The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
