GBT-USBC-PD Upgraded 65W USBC Charger! 802.3bt PoE to USBC Power + Data Delivery PoE Adapter, 65W Max Output with Gigabit Ethernet Speed, Compatible with Laptops, iPad Pro and More
GBT-USBC-PD Upgraded 65W USBC Charger! 802.3bt PoE to USBC Power + Data Delivery PoE Adapter, 65W Max Output with Gigabit Ethernet Speed, Compatible with Laptops, iPad Pro and More
Couldn't load pickup availability
GBT-USBC-PD is a versatile and high-performance USB-C Power Delivery (PD) adapter designed to meet the power and connectivity needs of modern devices.
With its compatibility with various PoE standards and the ability to deliver up to 65W of power, it's an ideal solution for charging laptops, tablets, and other USB-C devices.
Its compact design, smart chip technology, and robust feature set make it a must-have accessory for both office and entertainment use.
Features
High Power Output: Provides up to 65W, supporting multiple voltage options (5V, 9V, 12V, 15V, 20V) to accommodate various devices.
Simultaneous Charging and Data Transfer: Enables charging while accessing the internet at speeds of 10/100/1000 Mbps over distances up to 100 meters.

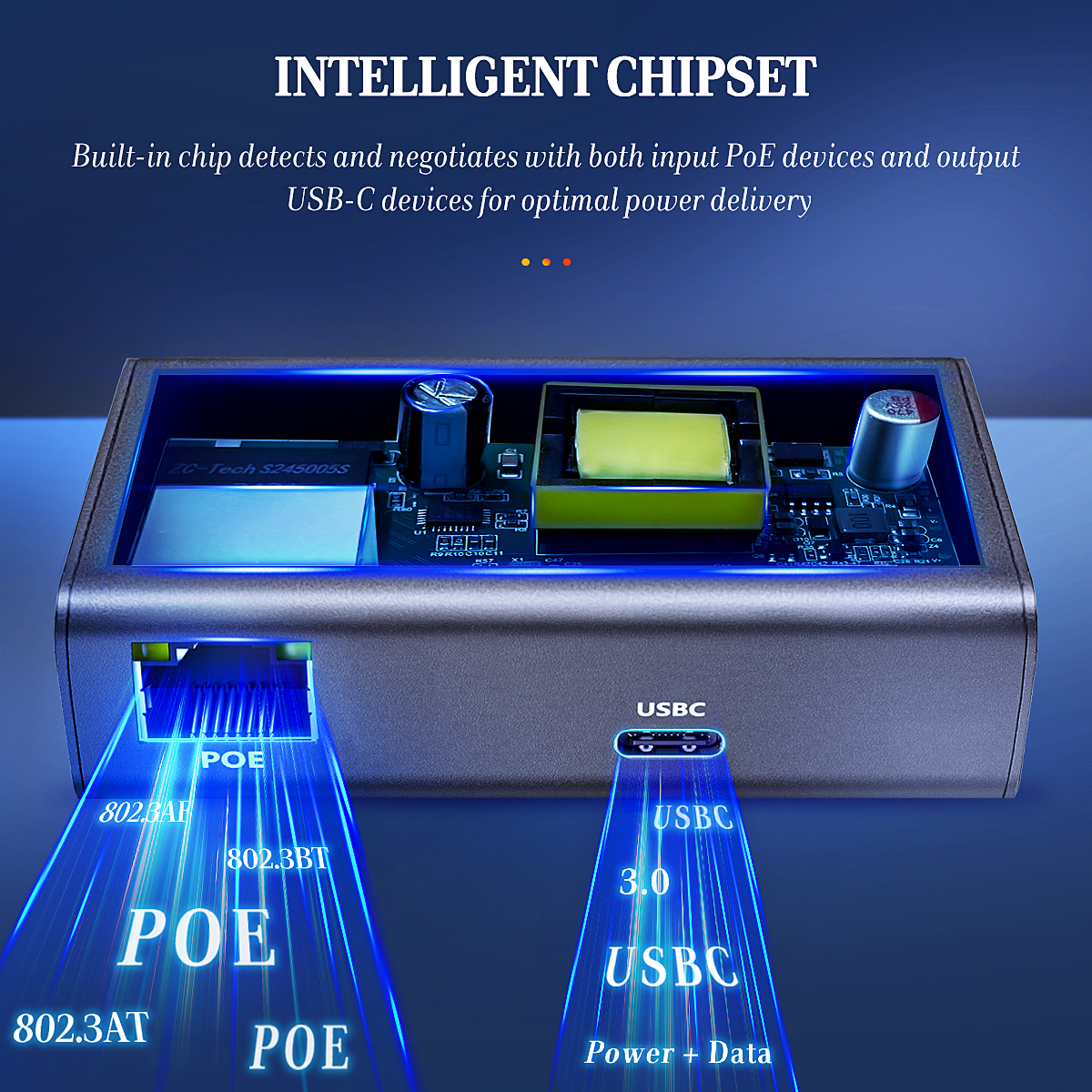

Intelligent Chipset: Built-in chip detects and negotiates with both input PoE devices and output USB-C devices for optimal power delivery.
Plug-and-Play Design: Easy to use with no additional setup required, ensuring stable and efficient internet access.

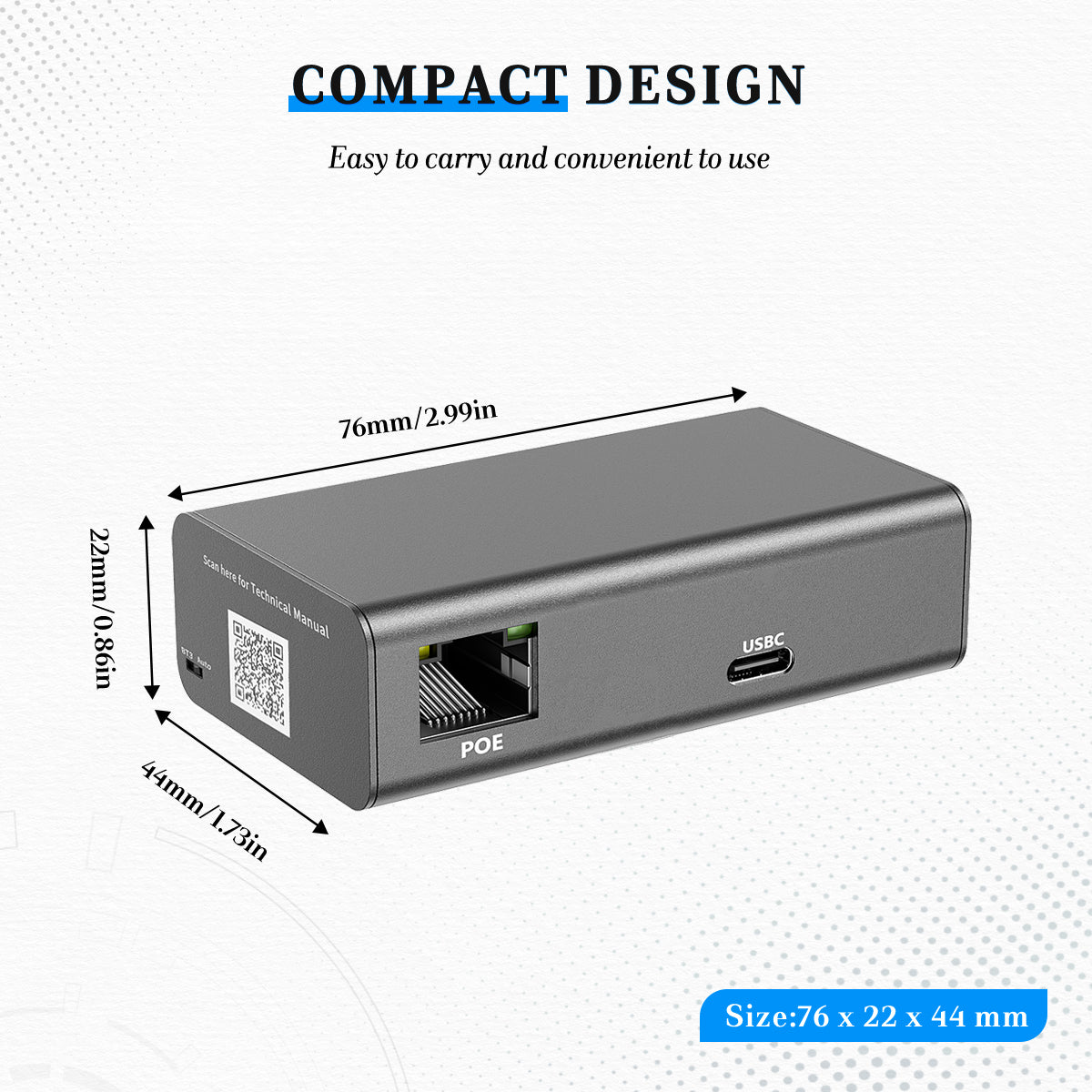

Compact and Portable: Sleek metallic casing that enhances aesthetics while improving heat dissipation, suitable for both office and entertainment use.

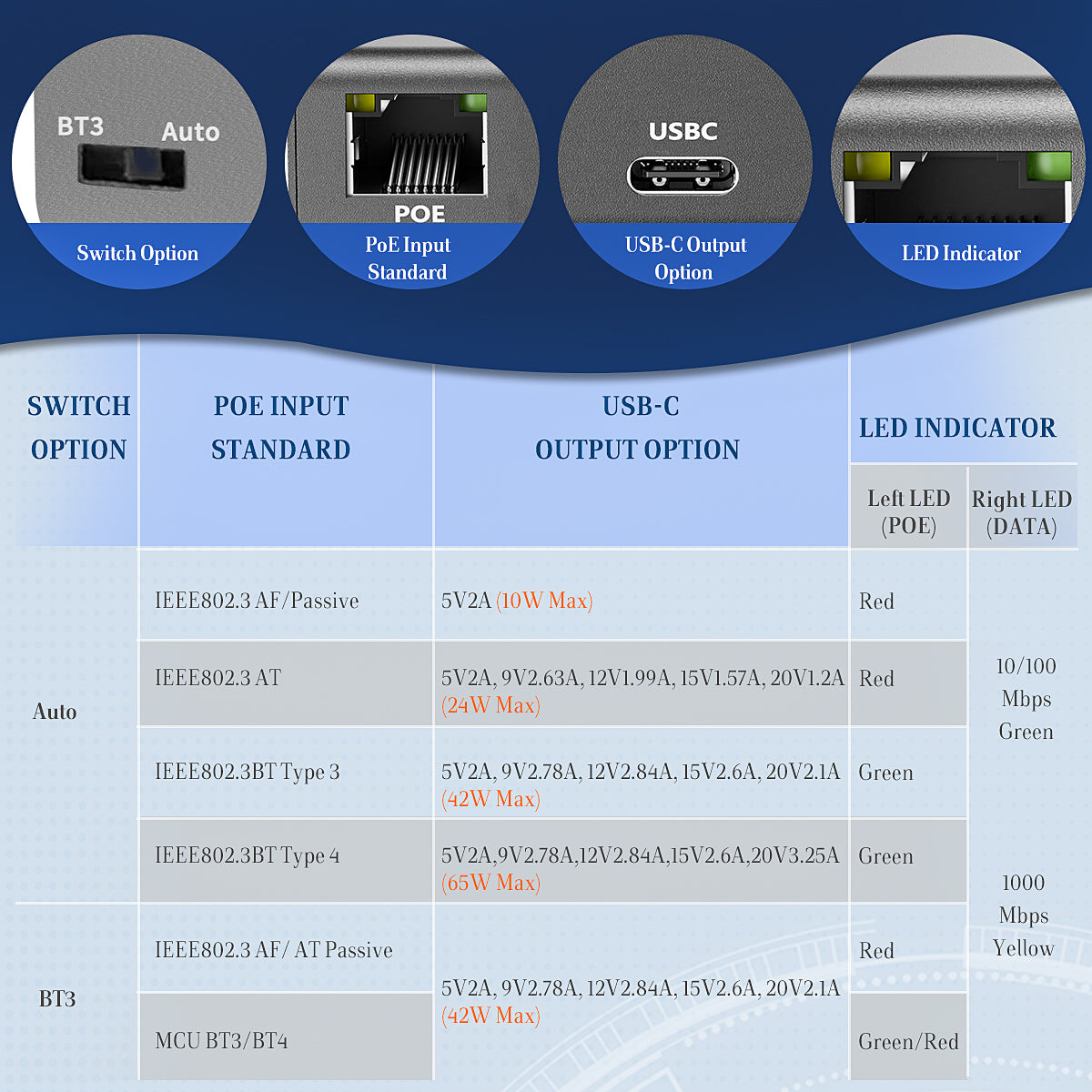

LED Indicators: Visual feedback for power and connectivity status with green/red (PoE) and yellow/green (Link) LEDs.
Specifications

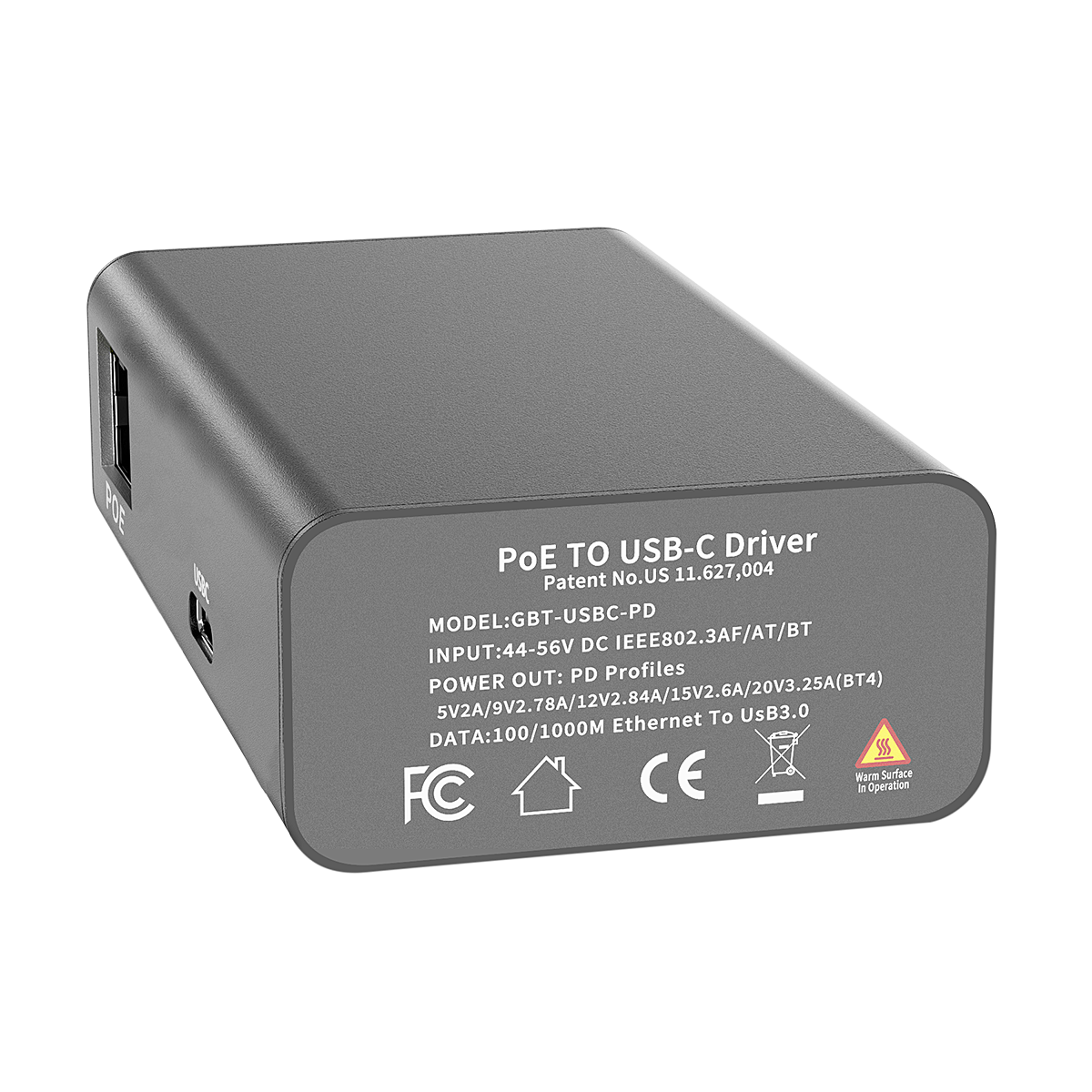

Model: GBT-USBC-PD

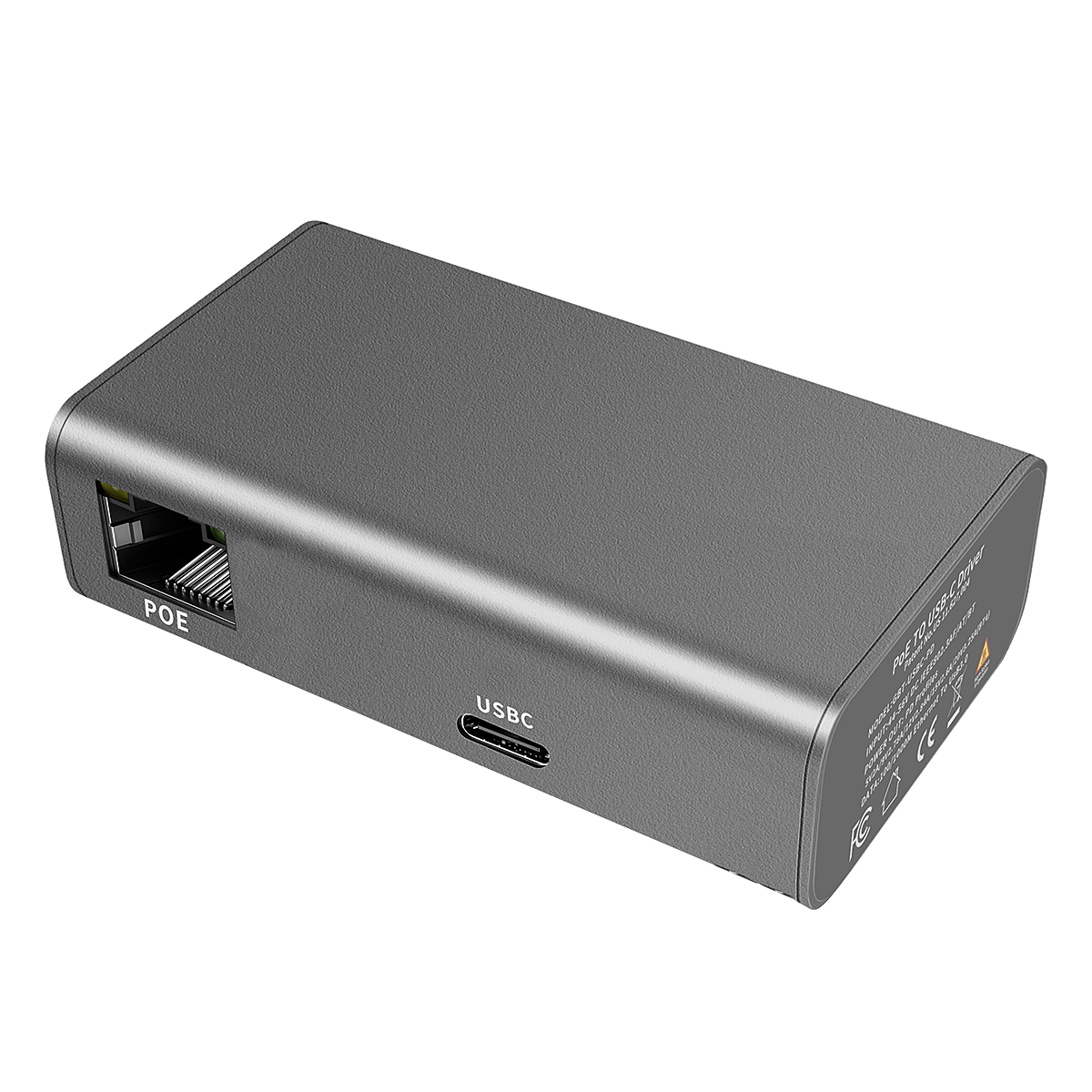

Connector Types: USB-C (Female) x1; RJ45 Input (Female) x1
Data Rate: Input: 10/100/100 Mbps
Output: 10/100/100 Mbps
Input Voltage Range: 48-56 Volts (IEEE 802.3bt Type 4 Compliant)
Max Power Output: 65 Watts
Output Voltage Options:
5V @ 2A
9V @ 2.78A
12V @ 2.84A
15V @ 2.6A
20V @ 3.25A
POE Method: IEEE 802.3af / at / bt / Passive PoE
Data + Power Input Pins: Mode A (1,2 3,6) / Mode B (4,5 7,8)
Operating Temperature: -10 to 60°C
Operating Humidity: 5% to 90%
LED Indicators: Green/Red (POE) and Yellow/Green (Link)
Compatibility
The GBT-USBC-PD is compatible with a wide range of devices, including but not limited to:
Tablets: Supports various tablet models that require USB-C charging, such as iPad Pro, Samsung Galaxy Tab, and Microsoft Surface devices.
Laptops: Works seamlessly with laptops from brands like Apple (MacBook), Dell (XPS series), HP (Spectre series), Lenovo (ThinkPad series), and ASUS (ZenBook series).
Smartphones: Compatible with modern smartphones equipped with USB-C, including many Android devices.
Other USB-C Devices: Ideal for powering accessories and peripherals that utilize USB-C, including some monitors and docking stations.
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
