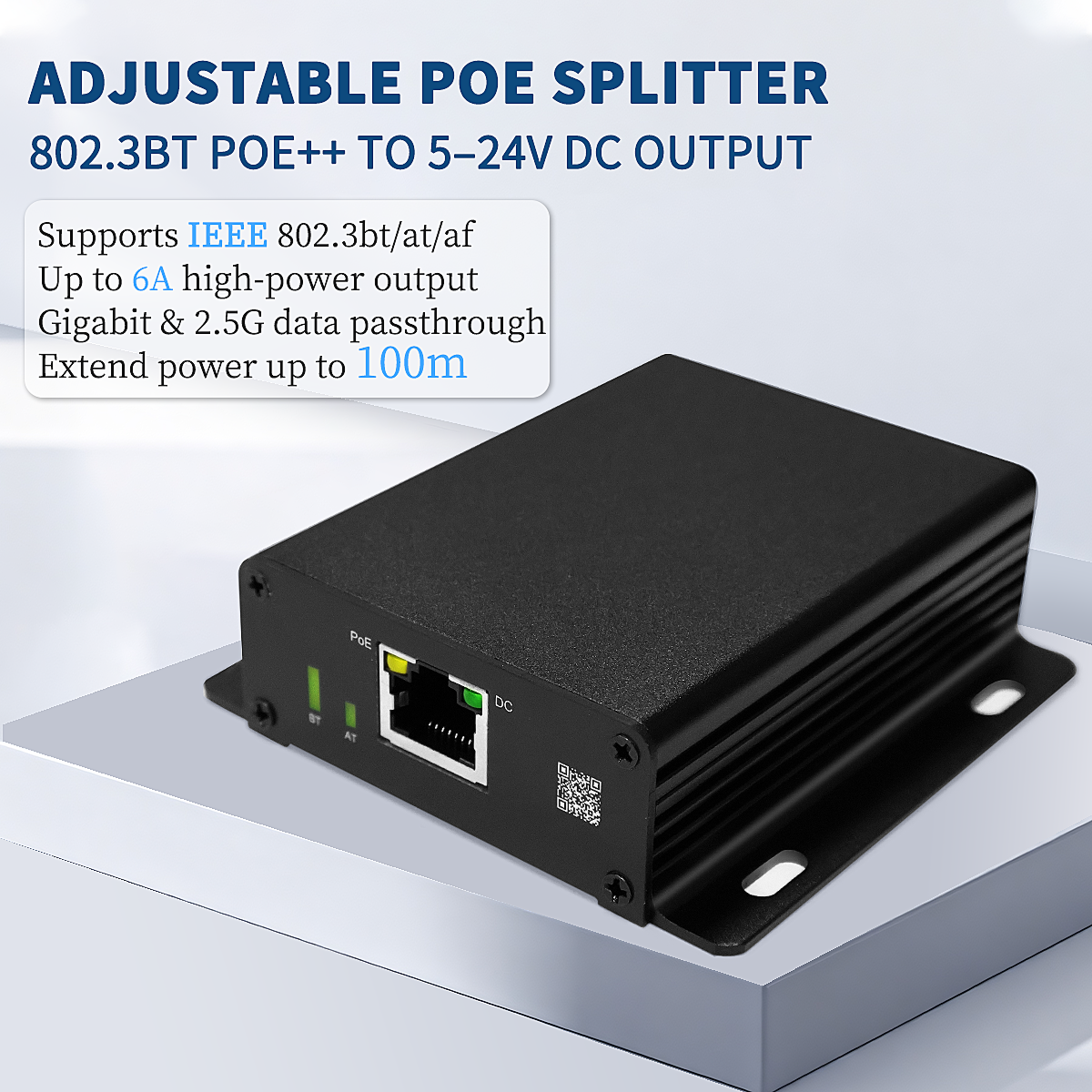

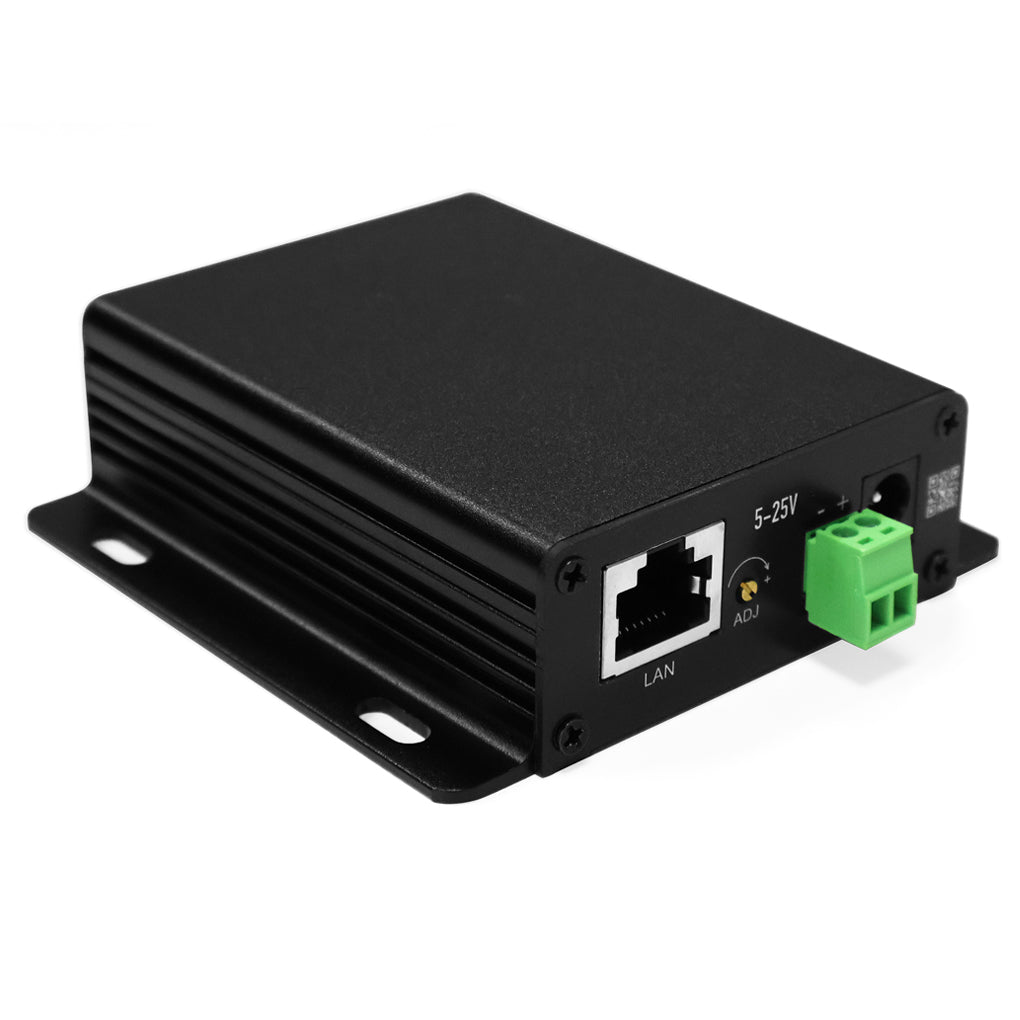

GBT-65W Adjustable PoE Splitter, 65W PoE++ to 5–24V DC Output, Gigabit/2.5G Data, IEEE 802.3bt Compatible, Up to 6A, 100m Extension

The GBT-65W is a high-power PoE splitter designed to convert PoE++ (802.3bt) into a wide range of adjustable DC output voltages. It provides up to 65 watts of power and allows you to set the output anywhere from 5V to 24V (up to 26V max).
This makes it suitable for many different devices, including cameras, routers, industrial equipment, displays, and custom voltage applications.

The splitter works with 802.3af / 802.3at / 802.3bt PoE switches and 56V passive PoE injectors. It supports 10/100/1000 Mbps and 2.5G data, and can deliver power and data over a distance of up to 100 meters (328 ft).

The device uses a high-efficiency DC-DC converter to provide stable output with up to 6 amps of current. It includes LED indicators for power status and offers 3000V isolation for equipment protection. A compact design makes it easy to install in many environments.

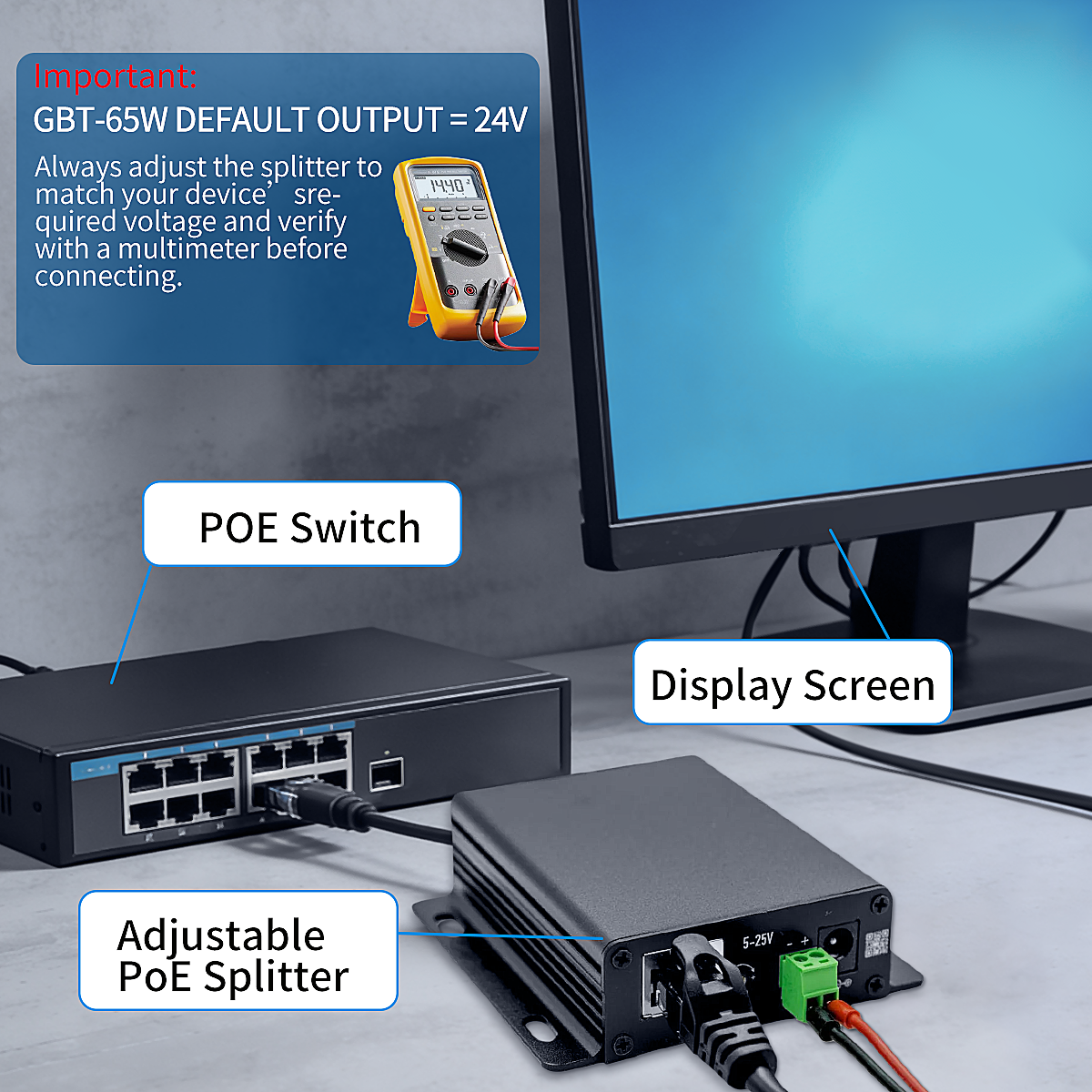

Important: The factory default output is 24V. If your device requires a lower voltage, please adjust the output and confirm the correct voltage before connecting your equipment.

Specifications

PoE Input Voltage: 44–56V DC
PoE Standards: IEEE 802.3af / 802.3at / 802.3bt, 56V Passive

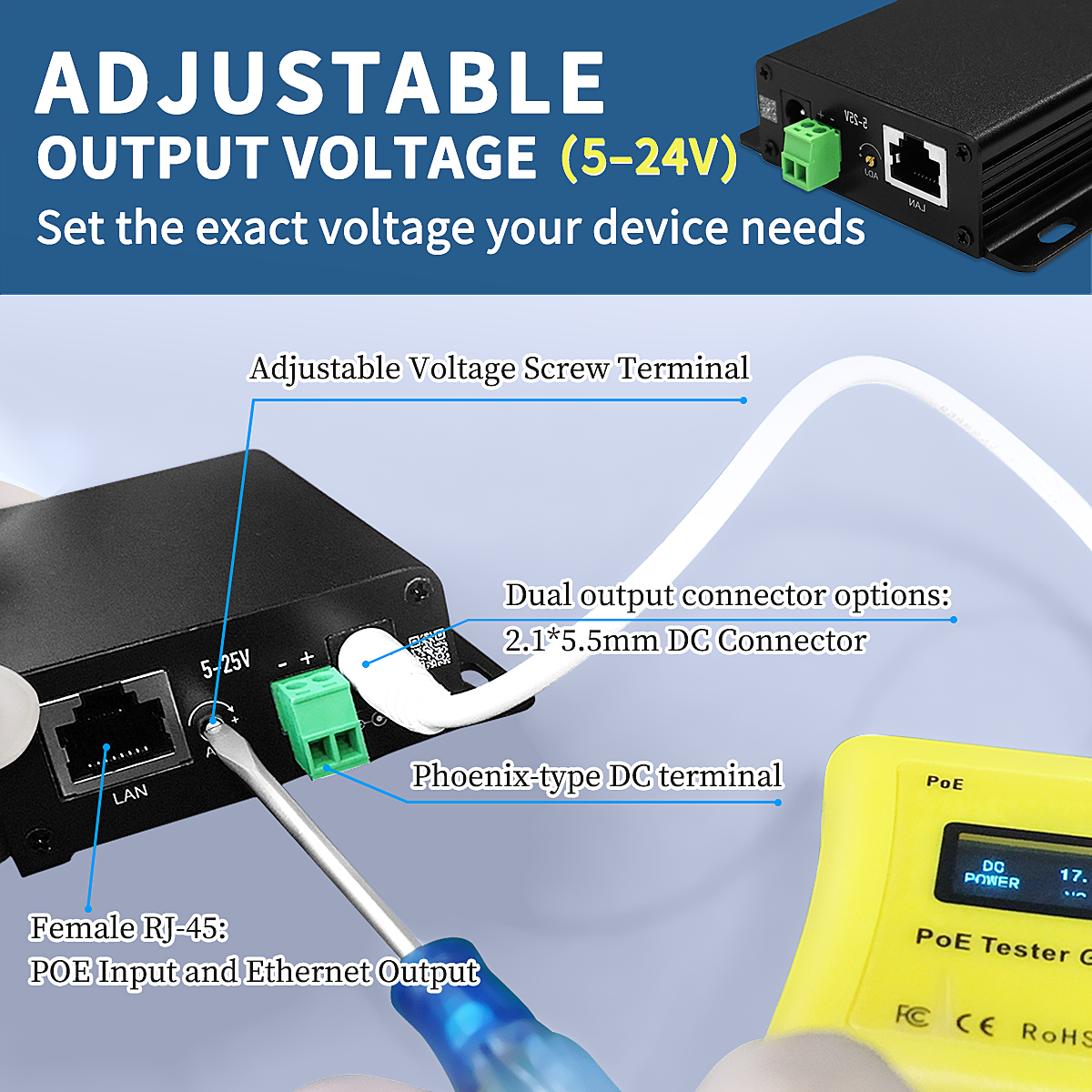

Output Voltage: Adjustable 5–24V
Output Current: Up to 6A (varies by voltage)
Max Output Power: 65W
Internal Power Consumption: 300mW
Data
Input Data: 10/100/1000 Mbps / 2.5G
Output Data: 10/100/1000 Mbps / 2.5G
Connections
Input: RJ45 Female (PoE In)
Output: Phoenix-type terminal or 2.1*5.5mm DC connector
LED Indicators: Power In, Power Out, AT/BT Status
Environmental
Operating Temperature: 0°C to 50°C
Humidity: –10°C to 60°C
Isolation: 3000V isolation between PoE and DC output
Physical

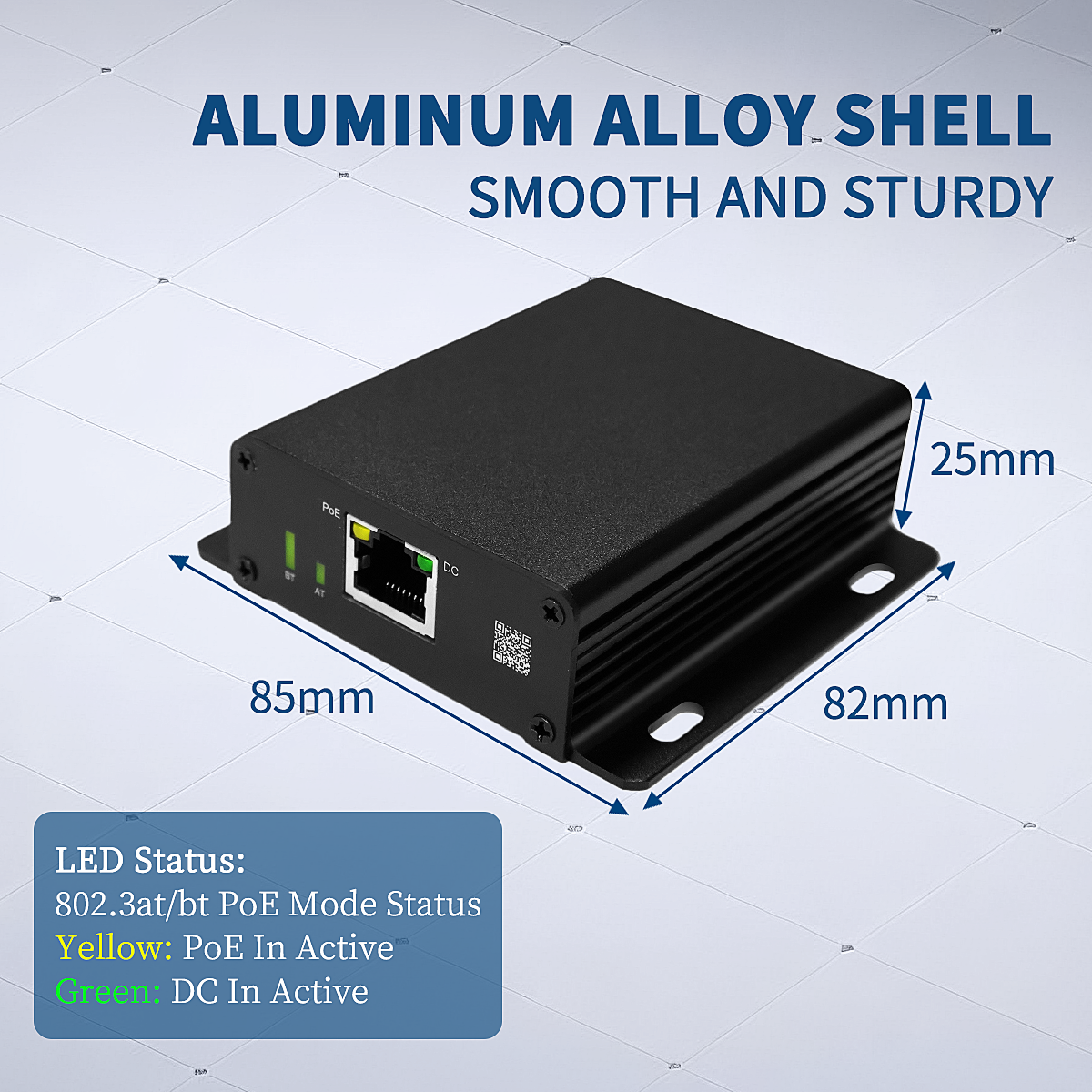

Dimensions: 82 × 85 × 25 mm
Weight: 3.5 oz (approx. 0.1 kg)
