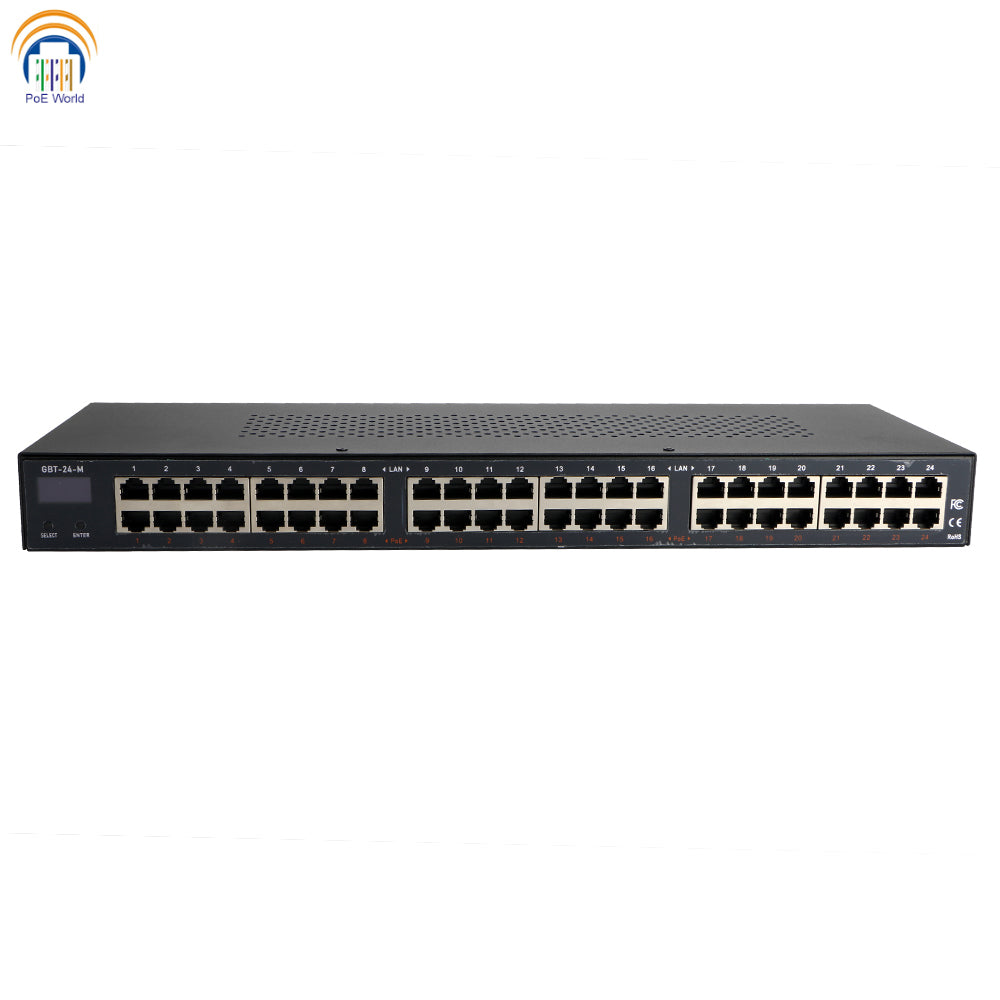

GBT-24-M Managed PoE Injector Gigabit Data Speed 24 Port Mid-Span Injector Support IEEE 802.3 Bt 80W Output Per Port OLED Dispaly Passive Active configuration
GBT-24-M Managed PoE Injector Gigabit Data Speed 24 Port Mid-Span Injector Support IEEE 802.3 Bt 80W Output Per Port OLED Dispaly Passive Active configuration
Couldn't load pickup availability
Product Description
The high density Midspan GBT-24-M converts any switch or PoE switch into an 80 watt per port PoE (IEEE 802.3bt Type 3) Power Sourcing Equipment for PoE lighting, A/V applications, or Node Centric PoE architecture.
Active IEEE 802.3bt negotiation on Mode A and Mode B with power capacity up to 60 watts and a managed passive configuration up to 80 watts per port.

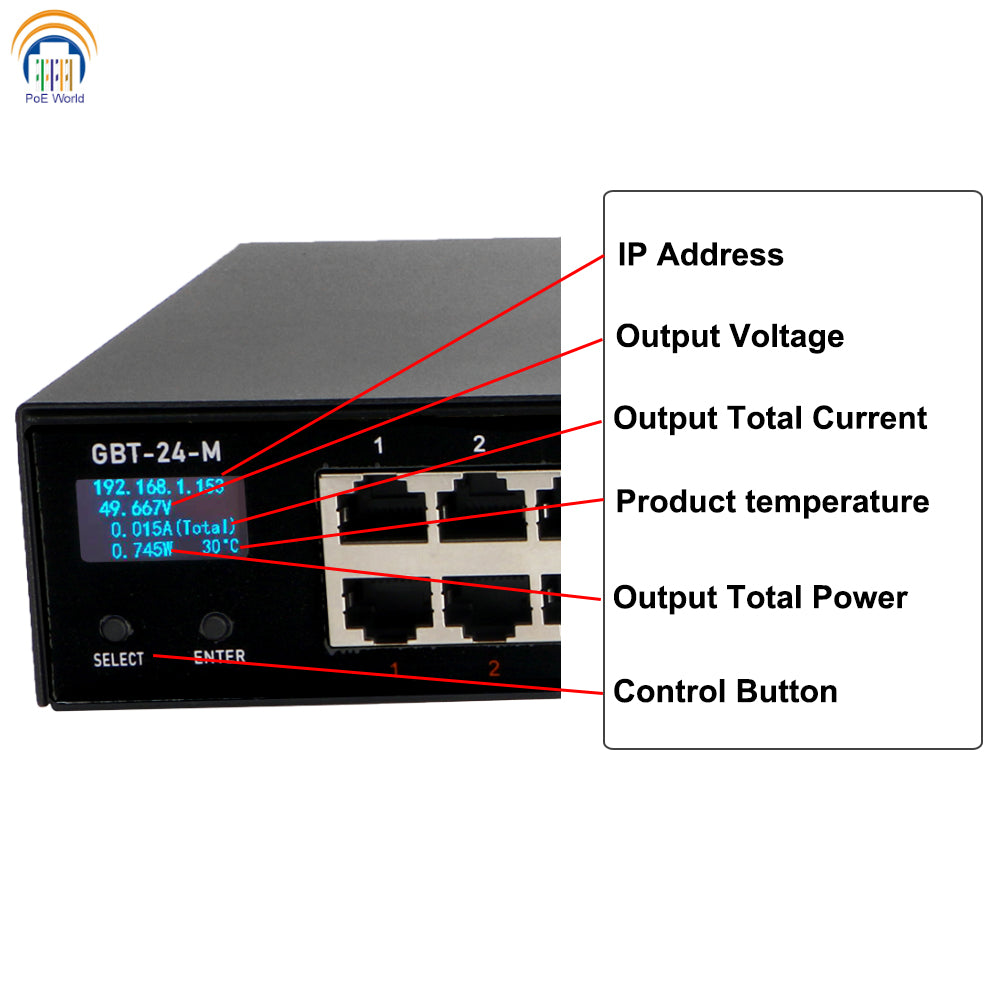

The on board, highly visible OLED provides an intuitive Layer 1 control as well as real time monitoring by port of status and power performance of the port.
Product Specifications
|

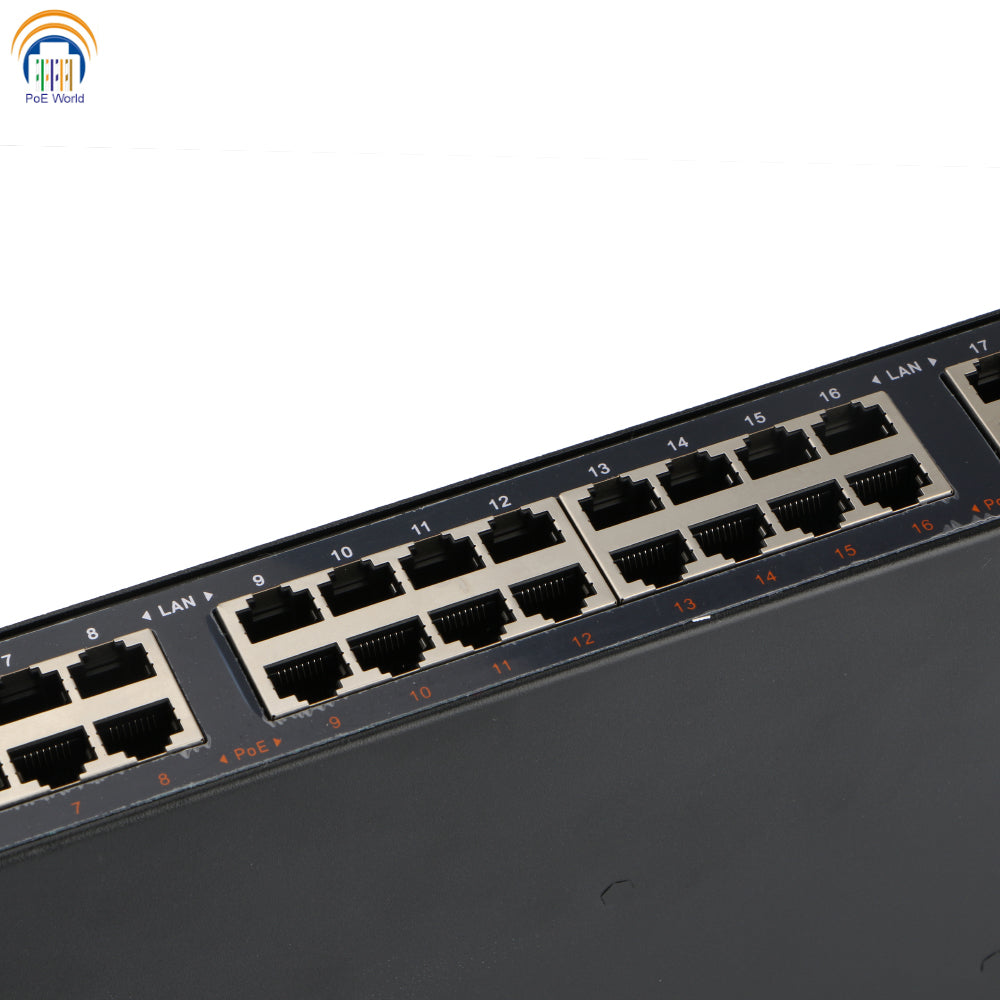

Data + PoE Ports |
24 |
|
Data Ports |
25 |
|
Data Rate |
Gigabit |
|
DC connector |
2 x 2.1mm DC / 2 x Phoenix connectors |
|
Dimensions |
1.5 x 19 x 3.5 inches |
|
Display Type |
OLED |
|
Input Voltage Range |
48 - 55 Volts DC |
|
Management Port |
Yes |
|
Max Power for Kit |
60 Watts (Active IEEE 802.3bt negotiation) / 80 watts (Managed passive configuration) |
|
Mount Type |
Rack |
|
Operating Humidity |
10% to 90% |
|
Operating Temperature Range |
0-40 C |
|
PoE Method |
Active / Passive |
|
PoE Mode/Pinout |
Mode A / B |
|
PoE Standard |
IEEE 802.3bt Type 3; 4 Pair PoE; Mode A / B negotiation |
|
Weight |
4.5 lbs |
-
Provides 80 watt per port output for PoE Lighting, A/V Applications or Node Centric PoE Architecture
-
Works with Digital Electricity for alternate infrastructure applications
-
Layer 1 Port Management through the intuitive on board OLED screen and push button controller
-
Active IEEE 802.3bt negotiation on Mode A and Mode B with power capacity up to 60 watts and a managed passive configuration up to 80 watts per port
-
Designed to occupy one unit of a 19” server rack
-
Renders a cost effective and easy to implement alternative to expensive, complicated infrastructure
-

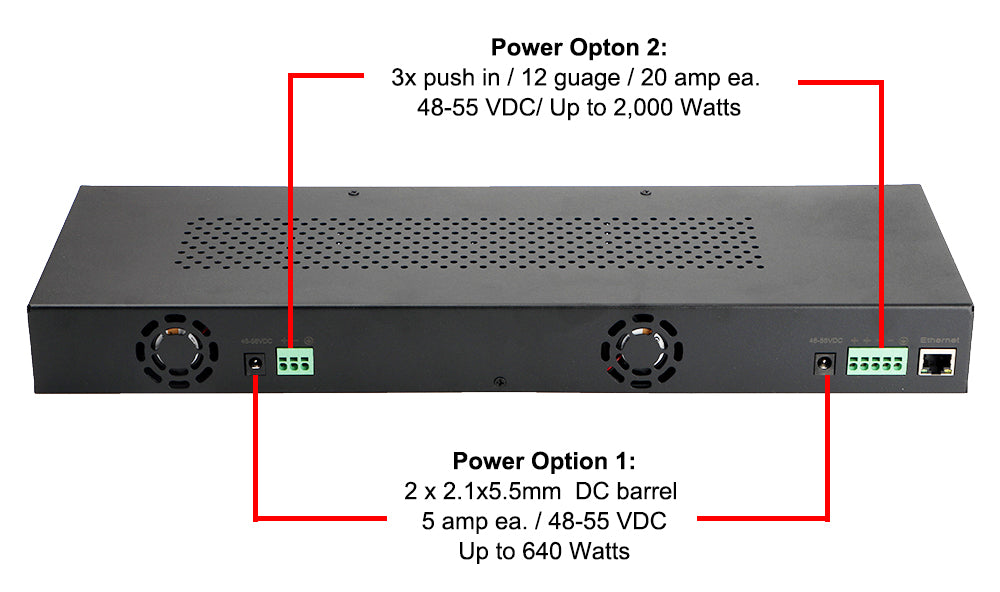

Input 48-55v DC - Includes two 2.1 x 5.5 mm DC inputs
Package:
1 X MIDSPAN INJECTOR

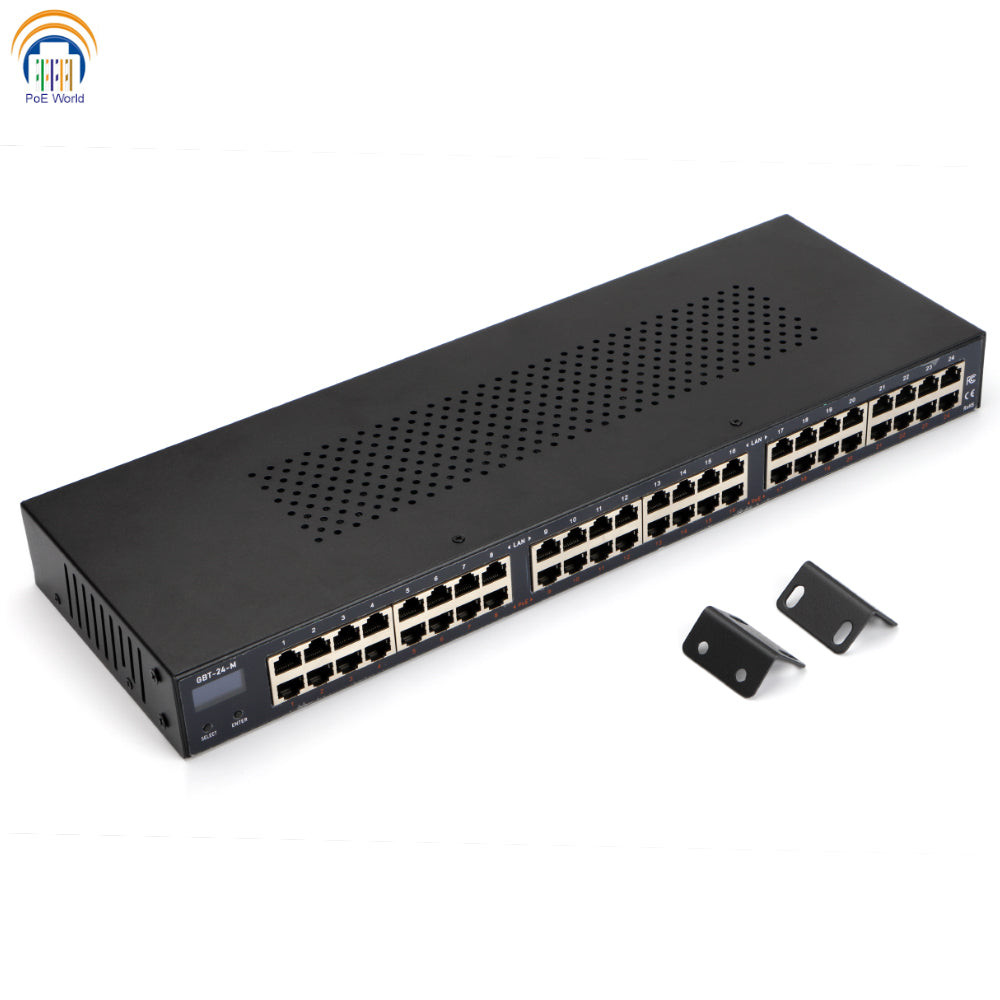

2 X RACK MOUNT BRACKETS
8 X SCREWS (FOR RACK MOUNT)
* The GBT-24-M does not have an integrated AC-DC power supply to give you power flexibility.
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
