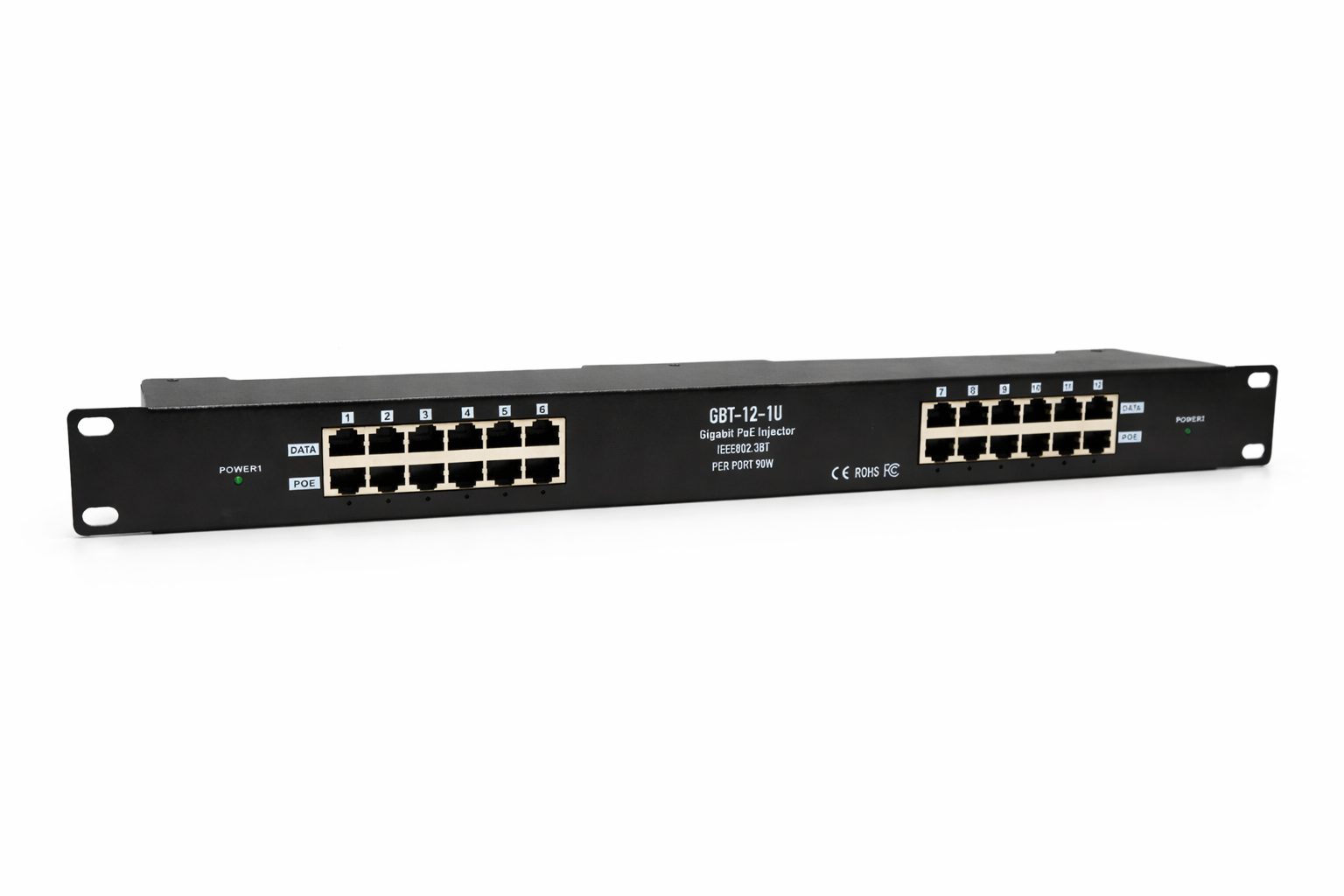

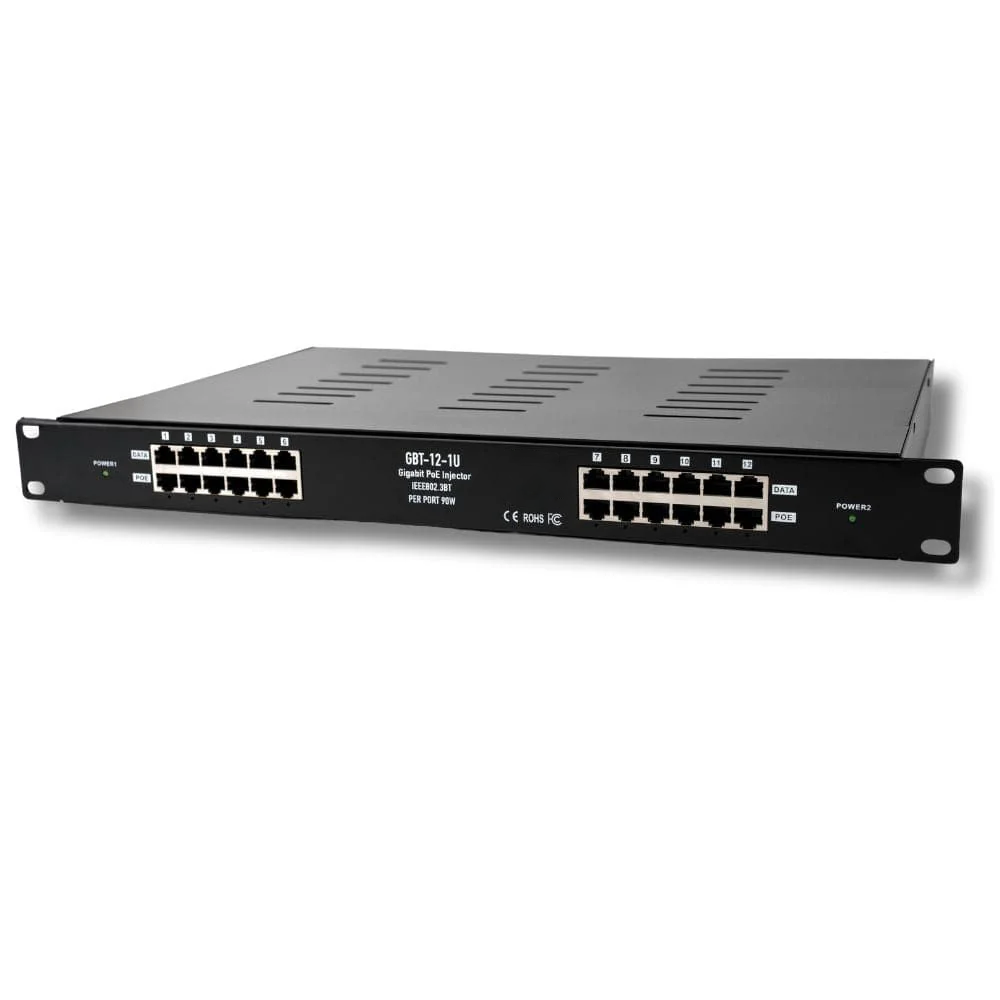

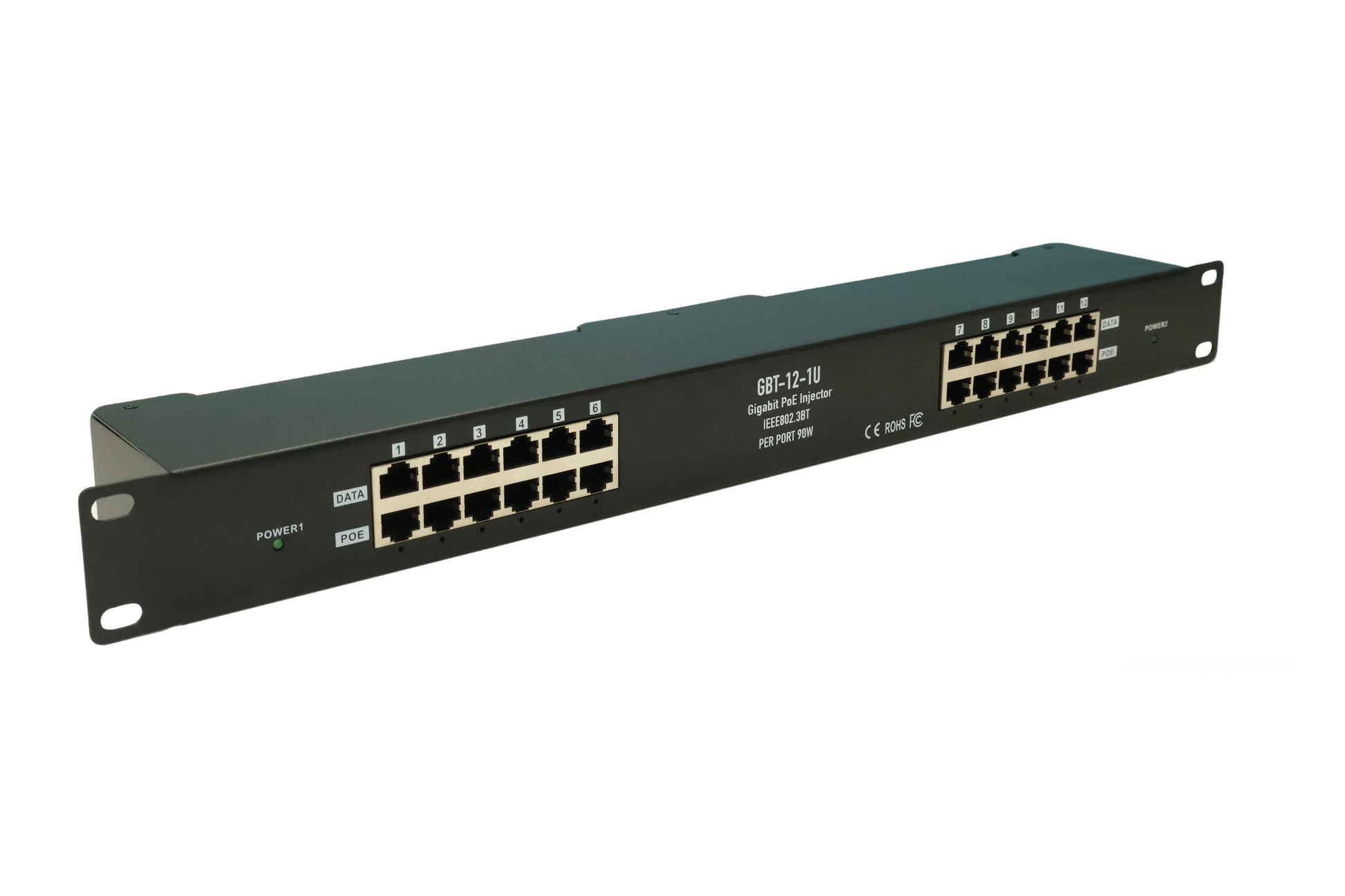

GBT-12-1U 2.5G 802.3BT Type 4 Active PoE++ Injector Up to 90W Max Output 1U Rackmount High-power Midspan Injector for PoE lighting PTZ Cameras

The GBT-12-1U is a high-power 12-port 2.5 Gigabit Active PoE++ injector, engineered for next-generation network deployments requiring both higher bandwidth and higher power density.

The GBT-12-1U supports IEEE 802.3af/at/bt compliant Active PoE, enabling automatic power negotiation and safe operation with a wide range of powered devices. This ensures reliable delivery of power only when a compatible device is detected—reducing the risk of damage and improving deployment flexibility.

With support for 2.5Gbps data rates, this injector is ideal for modern high-throughput applications such as WiFi 6/6E access points, high-resolution IP cameras, and bandwidth-intensive edge devices.

Its 1U rackmount form factor enables clean and scalable integration into data cabinets and network racks.

Specifications
12 Port 802.3af / at /bt compliant Gigabit Ethernet Injector
Ports: 12 Shielded RJ-45 LAN; 12 Shielded RJ-45 LAN+POE
Data Rate:10 / 100 / 1000 / 2500 Mbps

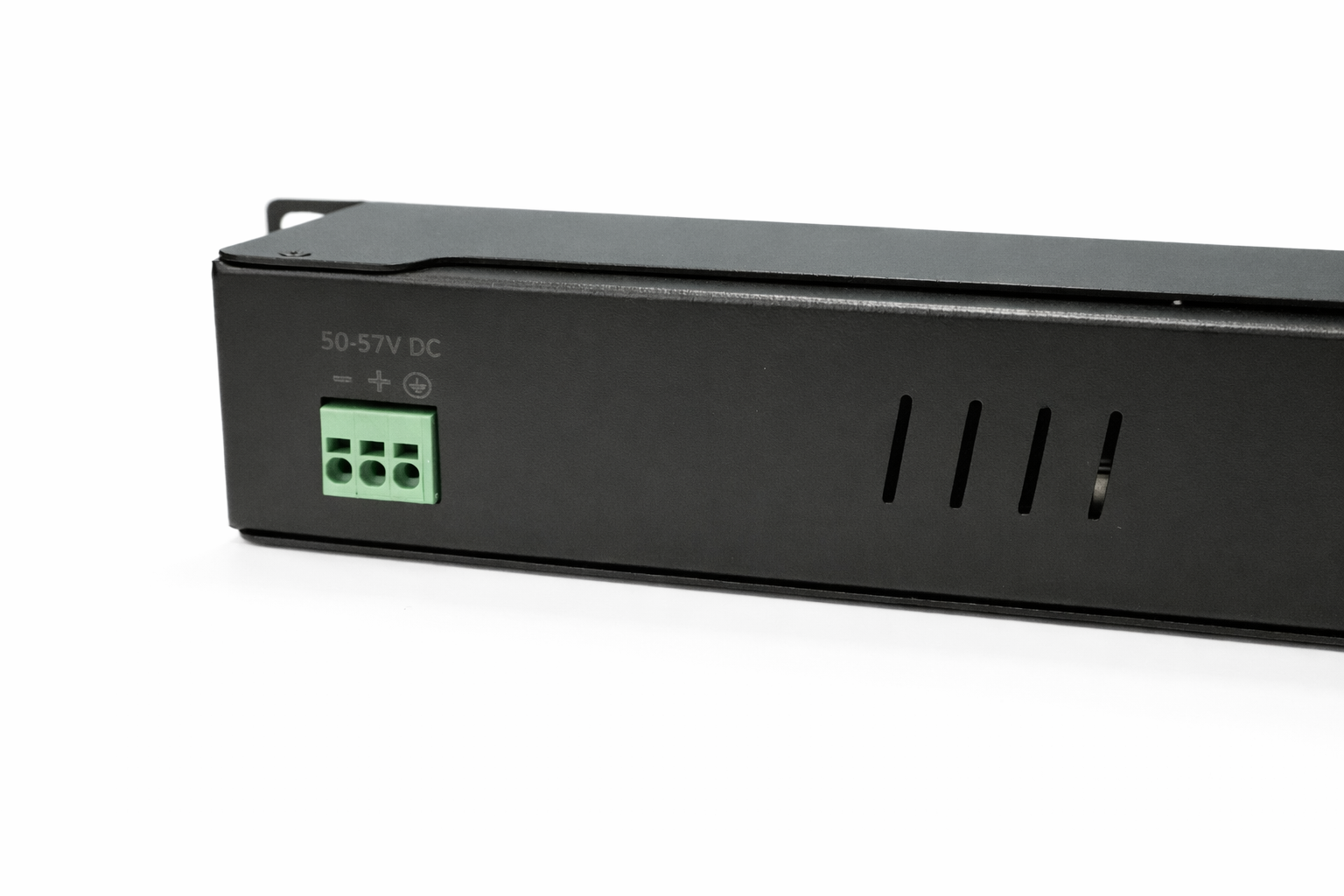

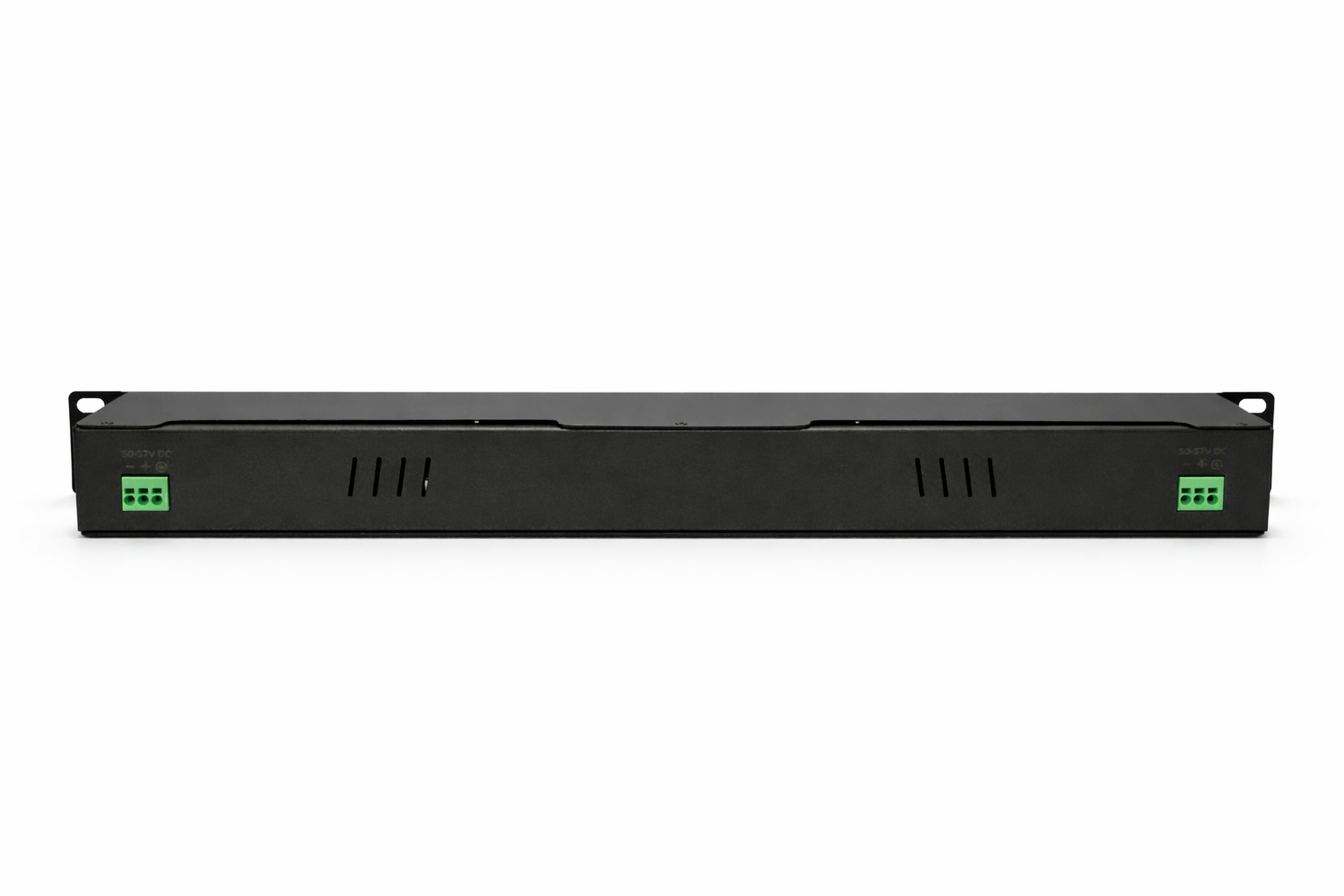

Power Input Connector: DC Terminal Block
Input Voltage：50-57V DC
Max Output per Port：Up to 1.8A
Output Voltage: 50-57V DC
Max Power Output: Up to 90W
PoE Standard: IEEE 802.3af / at / bt
PoE Type: Active PoE
Mounting: 1U high standard rack mount ( 1.75 x 19 x 2 inches)
Use with any Ethernet switch – passes all management info transparently
Ideal for IP Cameras, VOIP phone, WiFi Access Points with 802.3at or 802.3bt
Dual power supply inputs with relay failover/ load balancing (Power supply sold separately)

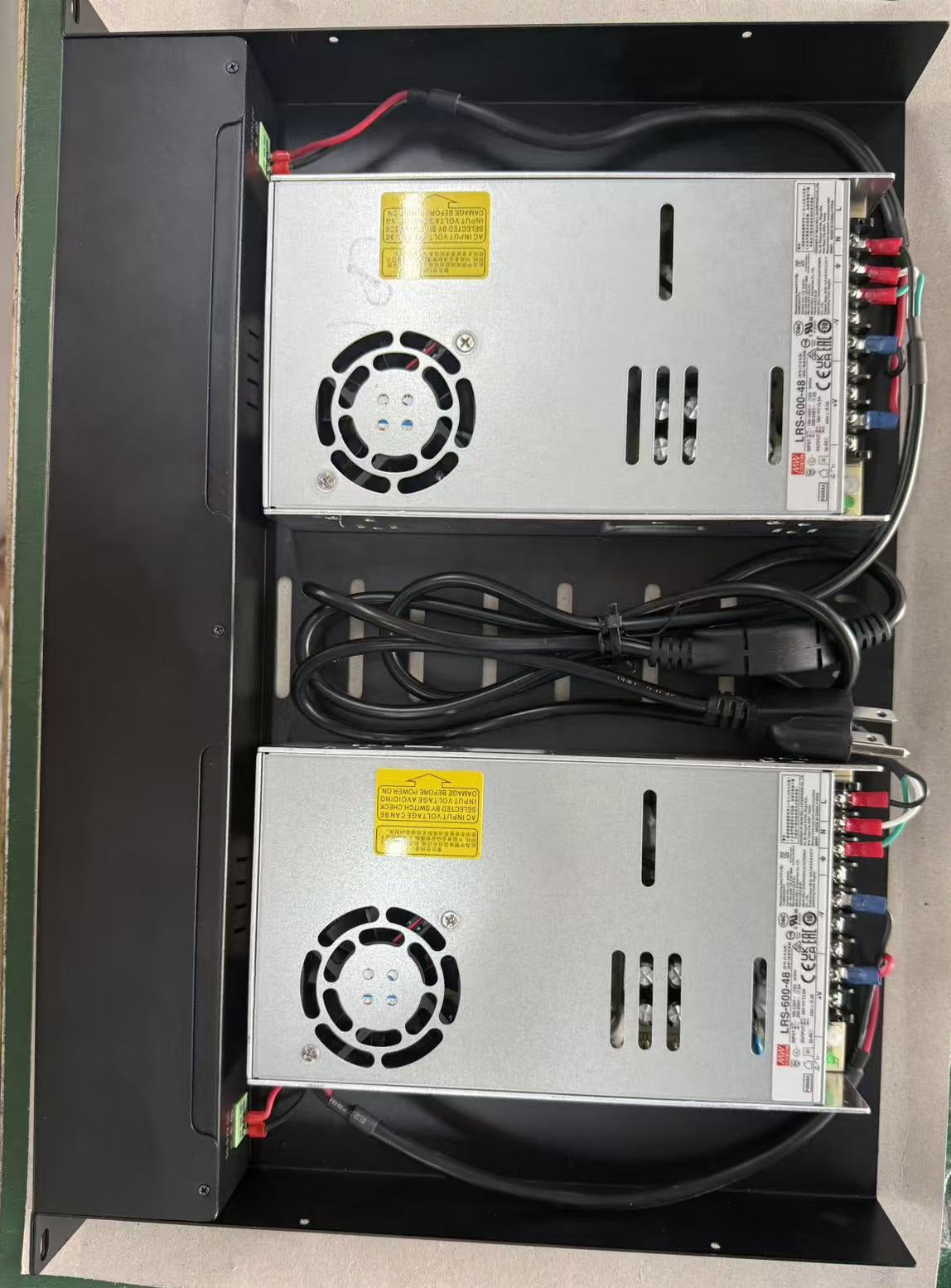

PS. We supply the power supply kits - GBT-12-53V1200W. They include two UL-listed 53V 600W power supplies and a rackmount case. Please contact us for more details if needed.

Environmental
– operating temperature range – 0 to 50 deg C
– storage temperature range – 0 to 50 deg C
– relative humidity range – 5 to 90% non condensing
– FCC rules – there are no RF emitting devices in the design
– the device is PELV per NFPA standard 79 – protected extra low voltage
– no cooling is required, no fans.  Quiet operation with no moving parts

Applications
WiFi 6 / WiFi 6E Access Points (2.5G required)
PTZ & AI IP Cameras (high power consumption)
Smart Building / IoT Systems
Enterprise Network Infrastructure
ISP / WISP High-Density Deployments
Edge Computing Devices
