Regular price £199.95 Sale

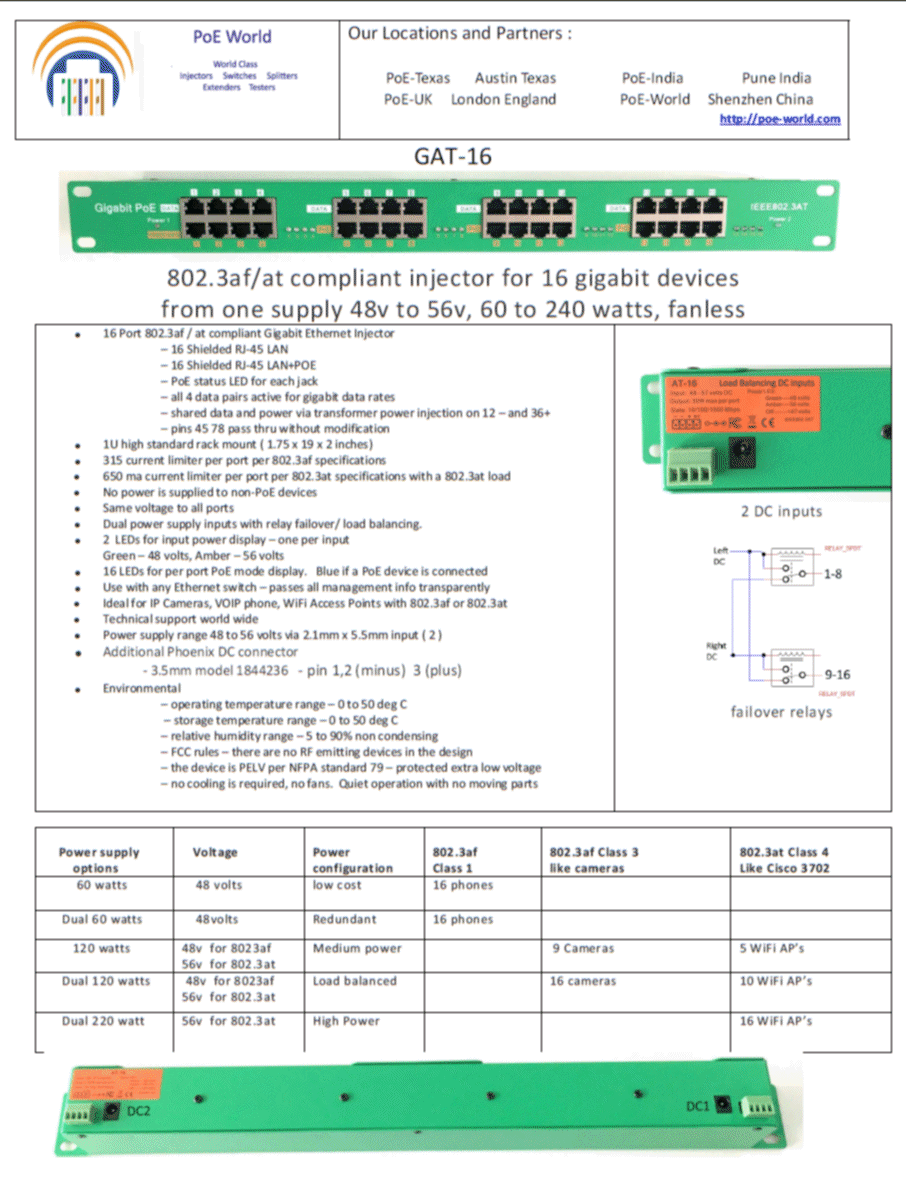

16 port Gigabit PoE+ injector for 802.3af or passive 802.3at devices - power supply NOT included

This rack mountable 16 port Gigabit midspan injector is able to provide PoE+ power and data for 16 devices for up to 100 meters. Negotiates with 802.3af/at devices and gives the device the power it needs. No power is given until a PoE device is found and activated. Used to power P cameras, phones, and access points.

Features:

  • Rack mount
  • Use with any PoE or non-PoE switch
  • 802.3af/at compatible
  • No power is given to non-PoE devices
  • Same voltage to all ports
  • 2 LEDs for power display
  • 16 LEDs for per port PoE mode display
  • 10/100/1000 data speed
  • 2.1mm x 5.5mm DC plug
  • Use with any 48v or 56v power supply with 60 - 240 watts
  • Mode A data pins: 1&2 (-) and 3&6 (+) -  polarity reversible (see our XRJ-45 crossover cable or use any Ethernet crossover cable)
  • 650 ma automatic resettable fuses on each port
  • Operating temperature: 0°C ~ 50°C
  • Storage temperature: 0°C ~ 50°C
  • Humidity range: 5- 90% non-condensing
  • The device is PELV per NFPA standard 79 – protected extra low voltage
  • Quiet operation - no cooling required

Product Specifications:

  • Size: 150 x 65 x 26 mm
  • Weight: 61 ounces

    Other Options:

    • 4 and 8 port option available

    Similar Products:

    • GAT-4
    • GAT-8
