GAF-USBC Gigabit POE Splitter Extend Power for USB Type C Device up to 100M for Nest IQ Macbook Google Wifi

GAF-USBC Gigabit POE Splitter Extend Power for USB Type C Device up to 100M for Nest IQ Macbook Google Wifi

Regular price £35.99 GBP
Regular price £39.99 GBP Sale price £35.99 GBP
Sale Sold out

Product Description

This device works with any 802.3at switch, it takes the 44 to 56 volts from the PoE switch, and converts that voltage to USB-C standard voltages and removes power from the data - it works with gigabit data speeds. Can also work with an 802.3af switch if the output is used below 13 watts.

Intended for use with Cisco or similar PoE switches – this PoE solution appears like a standard Class 4, 25 watt device. The PoE switch can send either polarity, and only 2 pairs are required for power, 4 pairs for gigabit data, 2 pairs for 10/100.

The output is fully isolated from the input voltage. Grounding is of no concern. The output power is on a USB-C connector. The voltage is defined by a negotiation between the attached device and the GAT-USB-C. The supported voltages with copper AWG24 CAT-5e or better

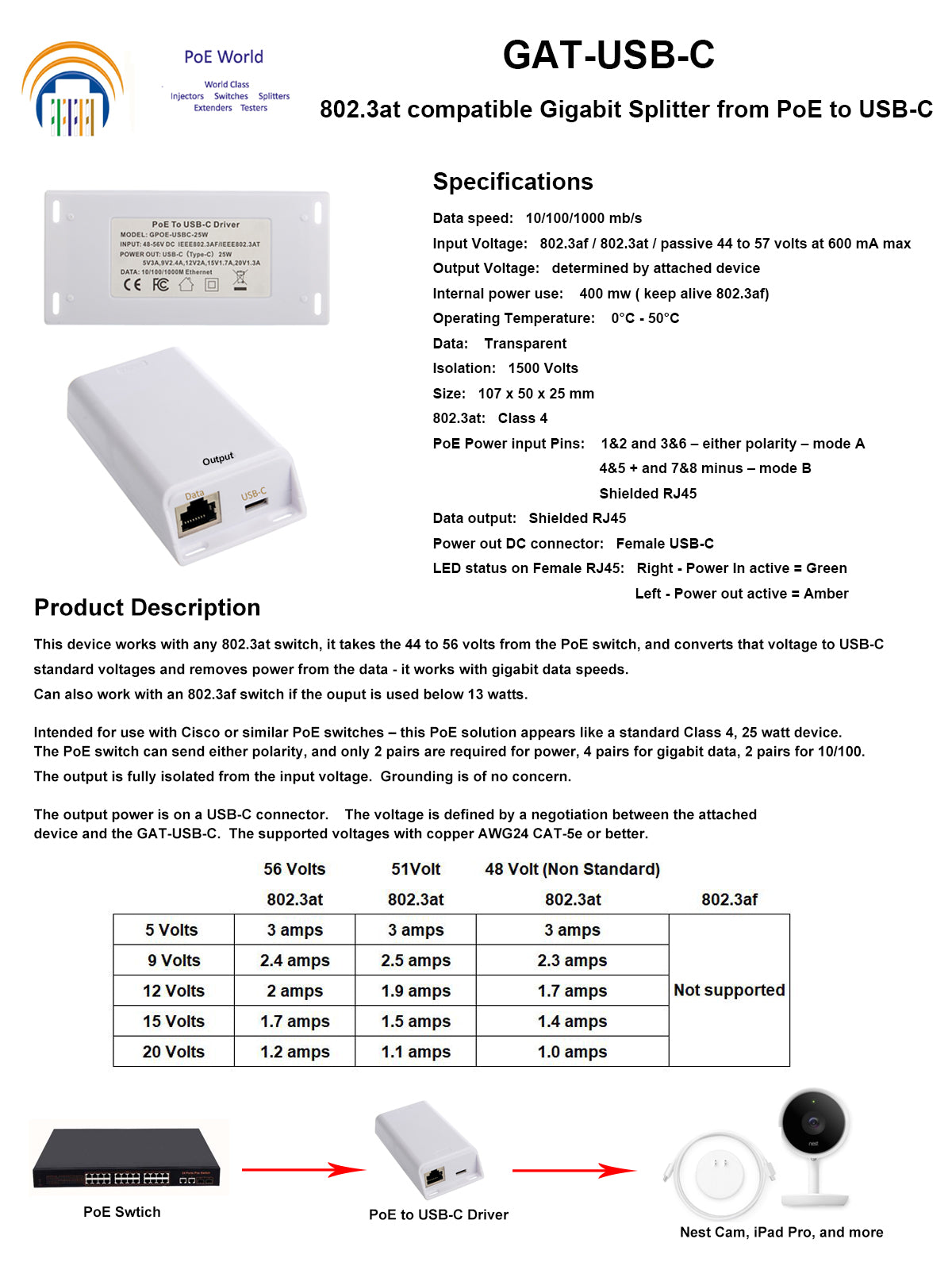

Specifications
Data speed: 10/100/1000 mb/s
Input Voltage: 802.3af / 802.3at / passive 44 to 57 volts at 600 mA max
Output Voltage: determined by attached device
Internal power use: 400 mw ( keep alive 802.3af)
Operating Temperature: 0°C - 50°C
Data: Transparent
Isolation: 1500 Volts
Size: 107 x 50 x 25 mm
802.3at: Class 4

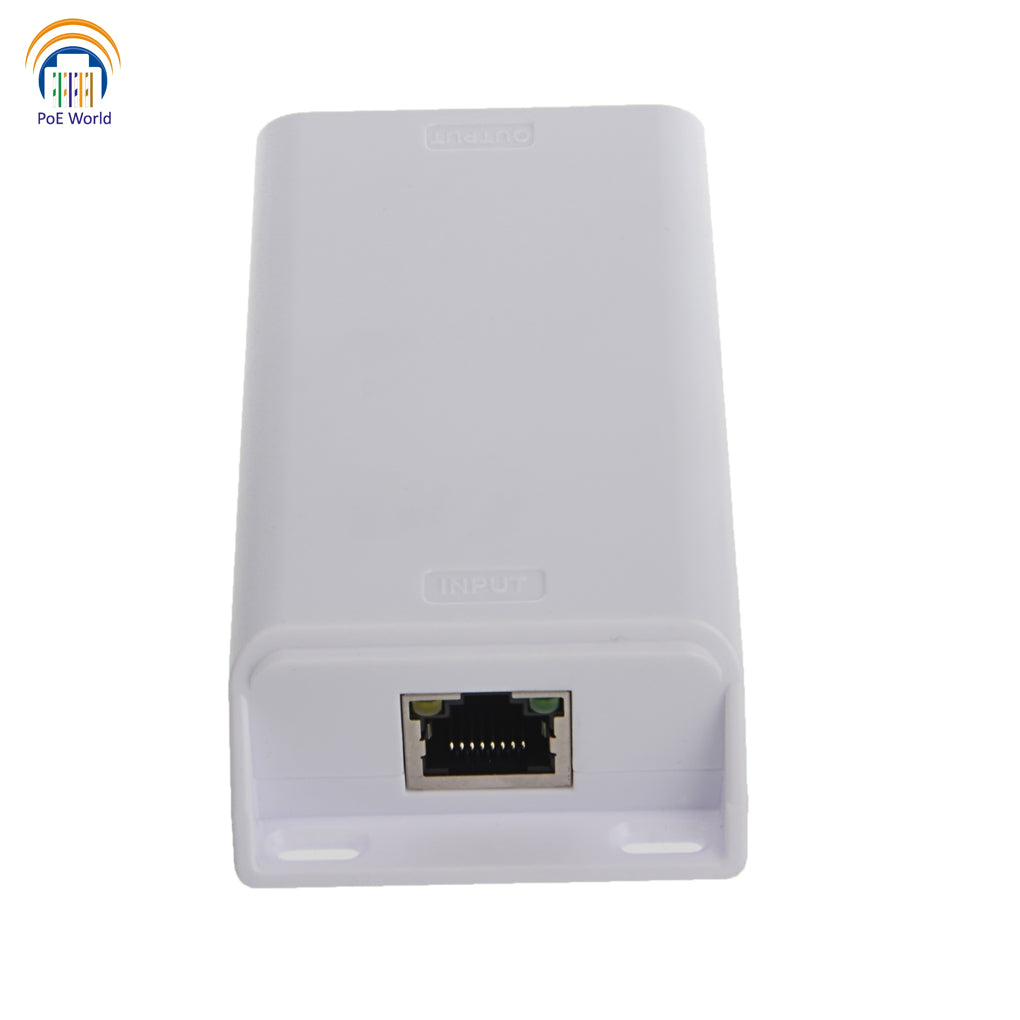

PoE Power input Pins: 1&2 and 3&6 – either polarity – mode A
4&5 + and 7&8 minus – mode B
Shielded RJ45
Data output: Shielded RJ45

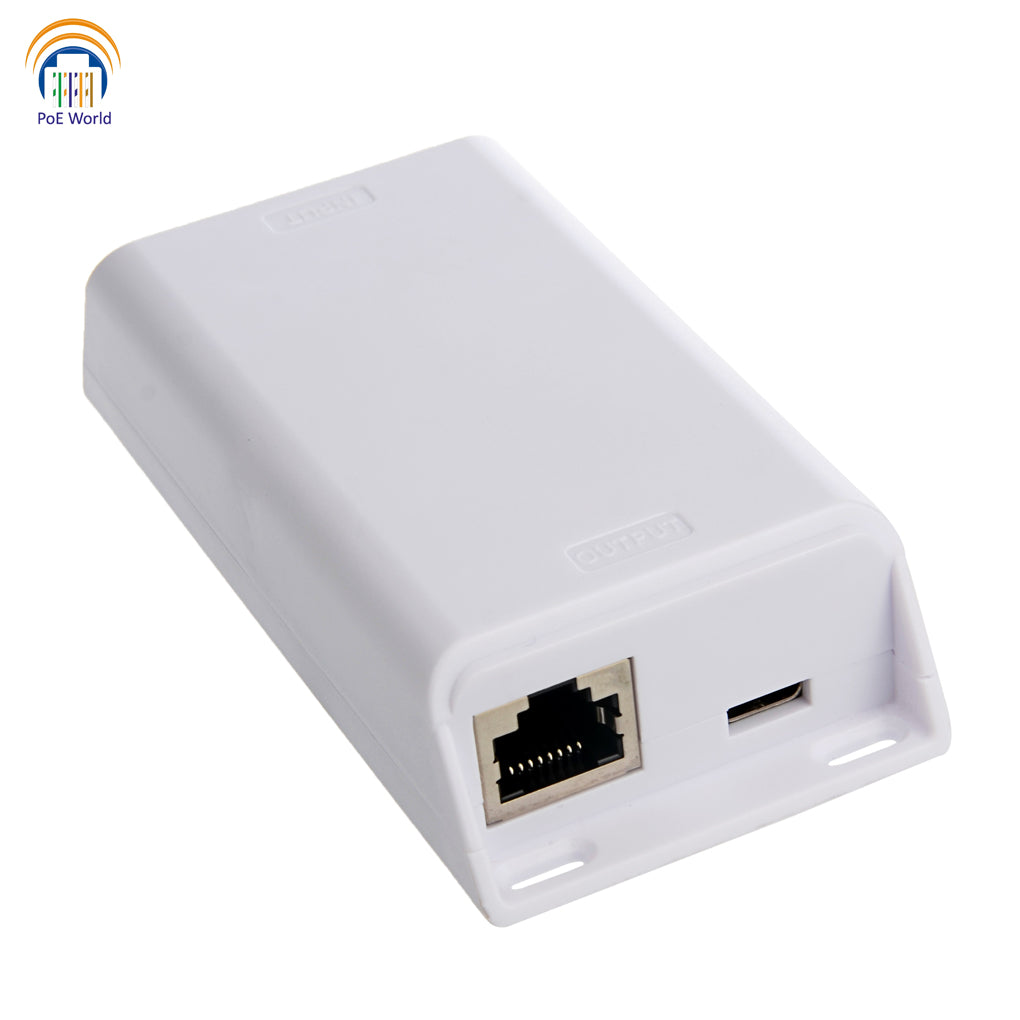

Power out DC connector: Female USB-C
LED status on Female RJ45: Right - Power In active = Green
Left - Power out active = Amber

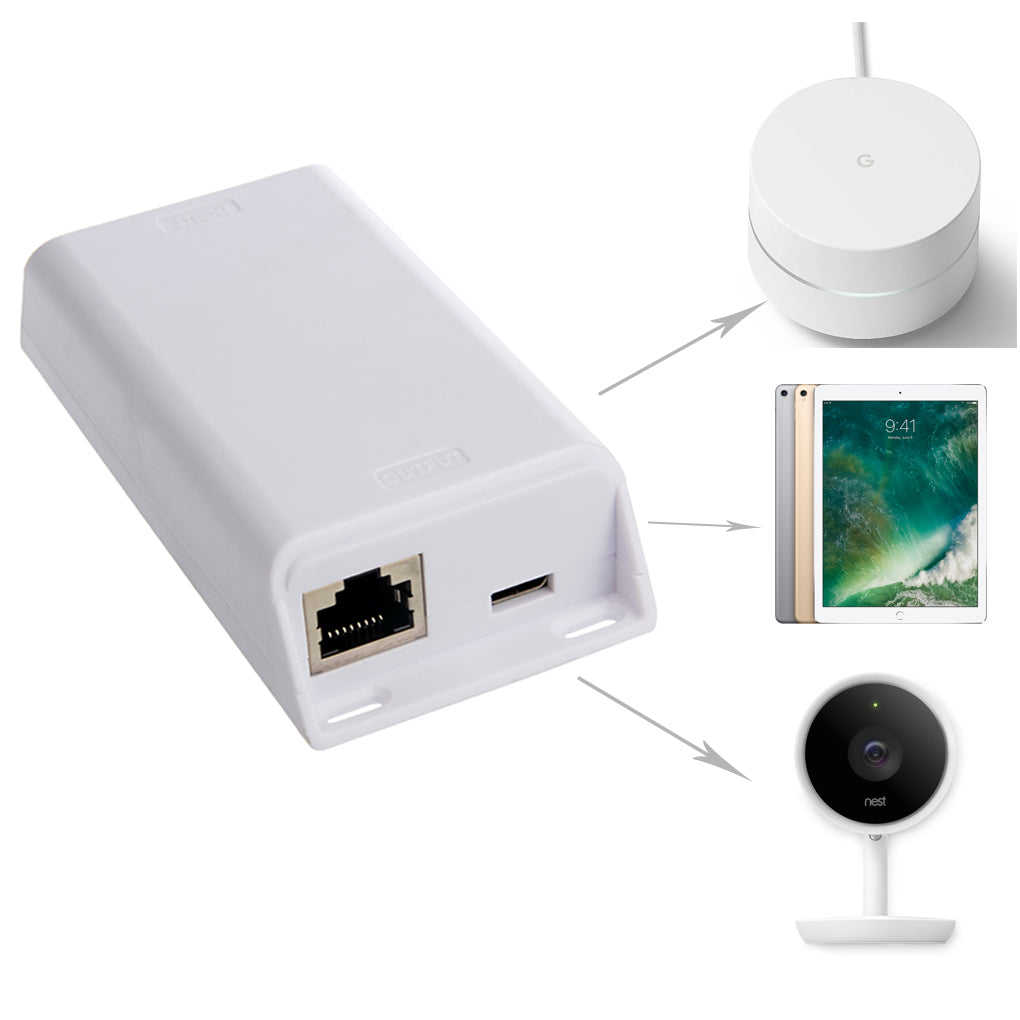

Typical Devices: Macbook, Apple iPad,Nest IQ and more
