AT-USBC-Rev3 PoE Adapter 802.3at PoE+ to USB-C for Tablets – 25W Max Output PD3.0 Charger for Ipad, Samsung Tab,Microsoft Surface Convert POE to 5V,9V,12V,15V,20V

PoE Adapter 802.3at PoE+ to USB-C for Tablets – 25W Max Output PD3.0 Charger

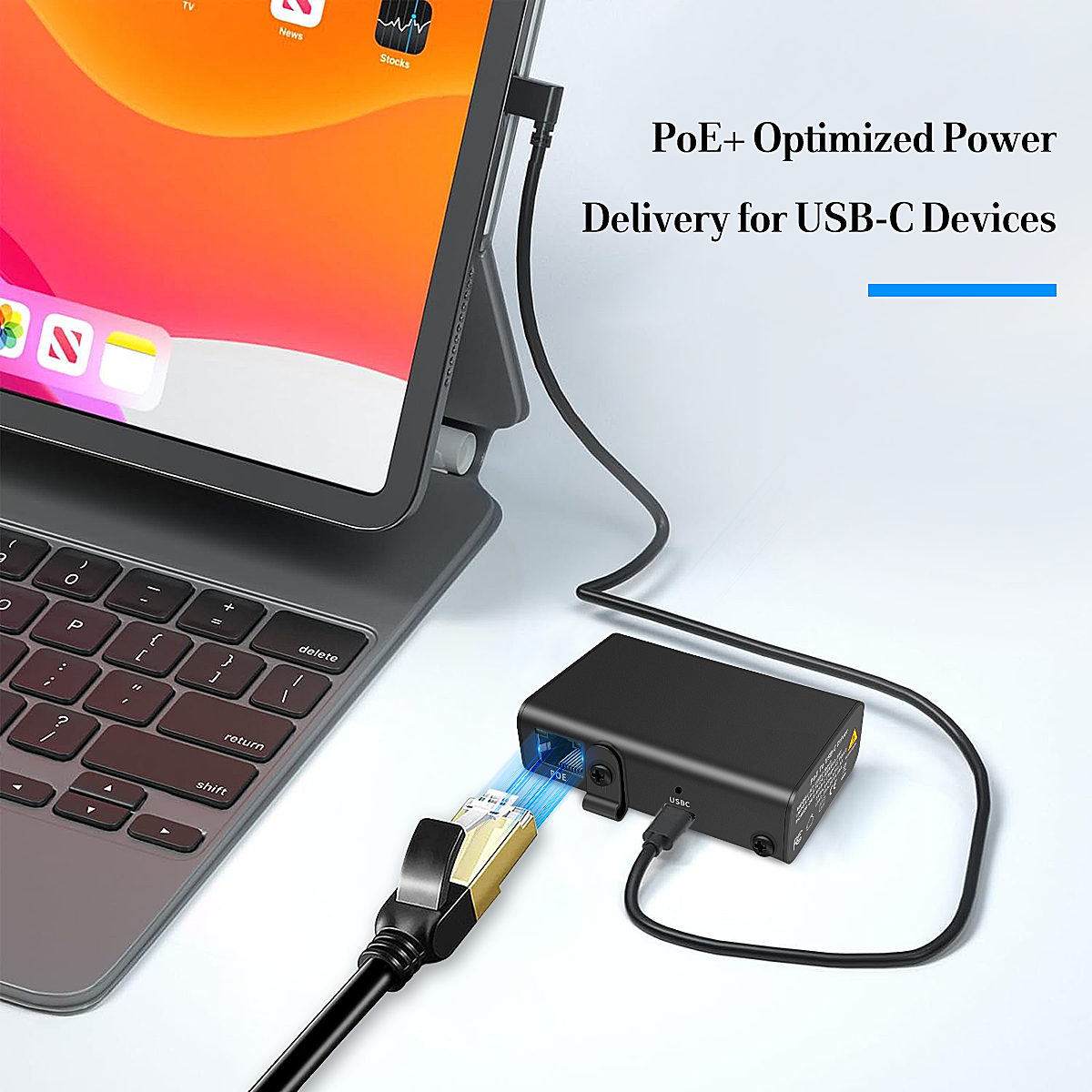

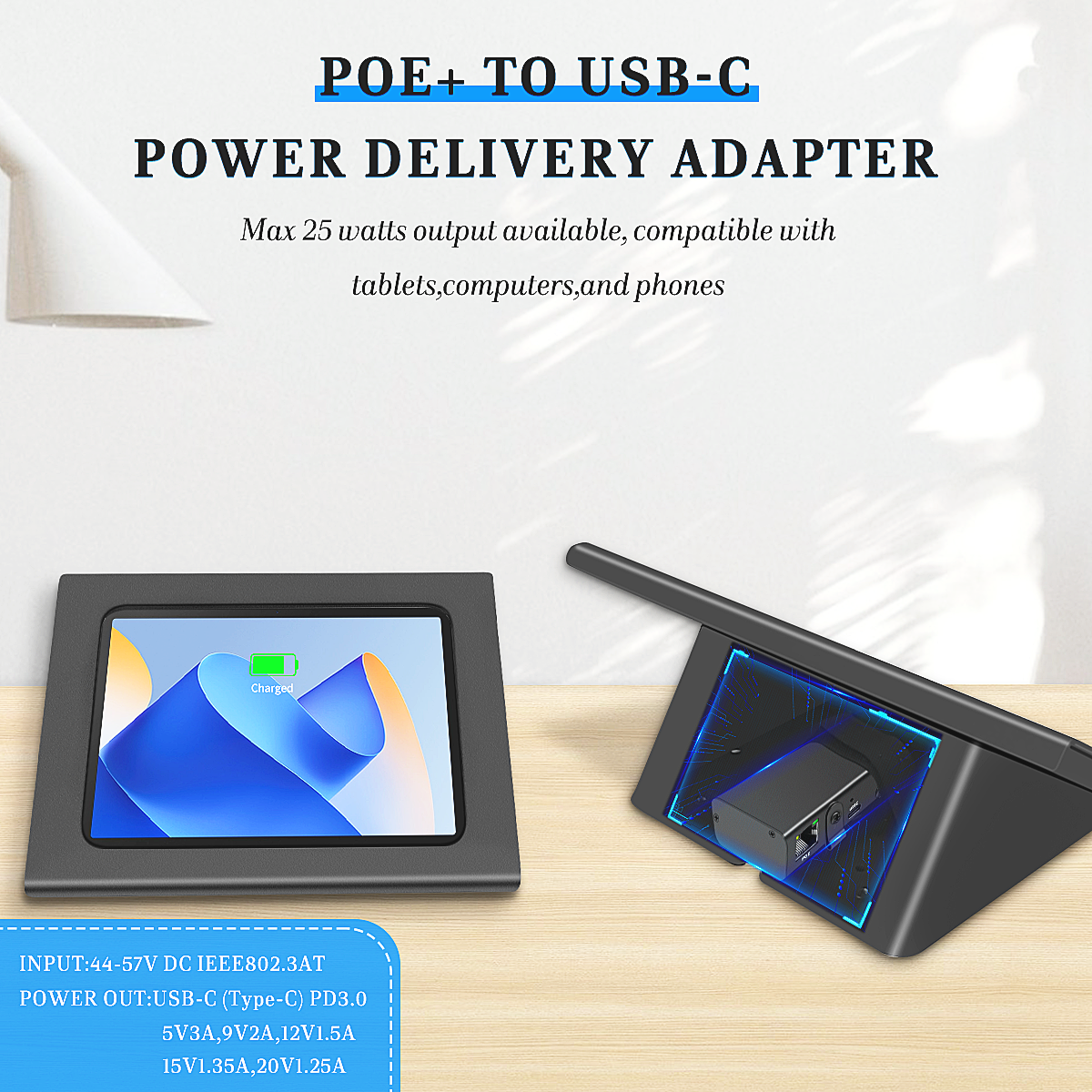

The AT-USBC-Rev3 PoE to USB Type-C Power Delivery solution is perfect for keeping your WiFi-enabled devices continuously charged.

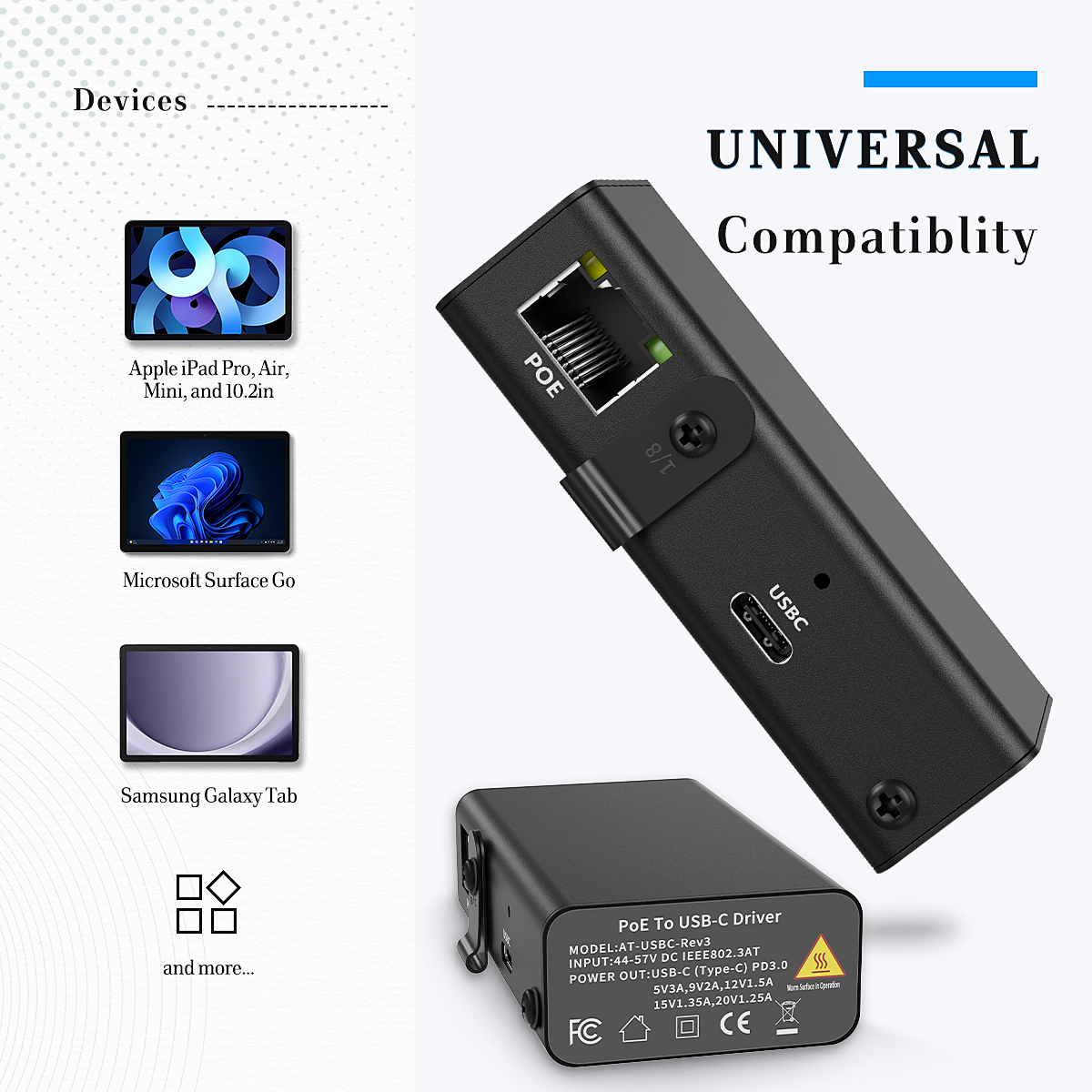

This PoE splitter or adapter supports USB-C devices, delivering up to 25 watts of power for  camera or tablets like the Apple iPad, Nest Cam Outdoor, Google WiFi Mesh Router, Samsung Tab, Microsoft Surface, and more.

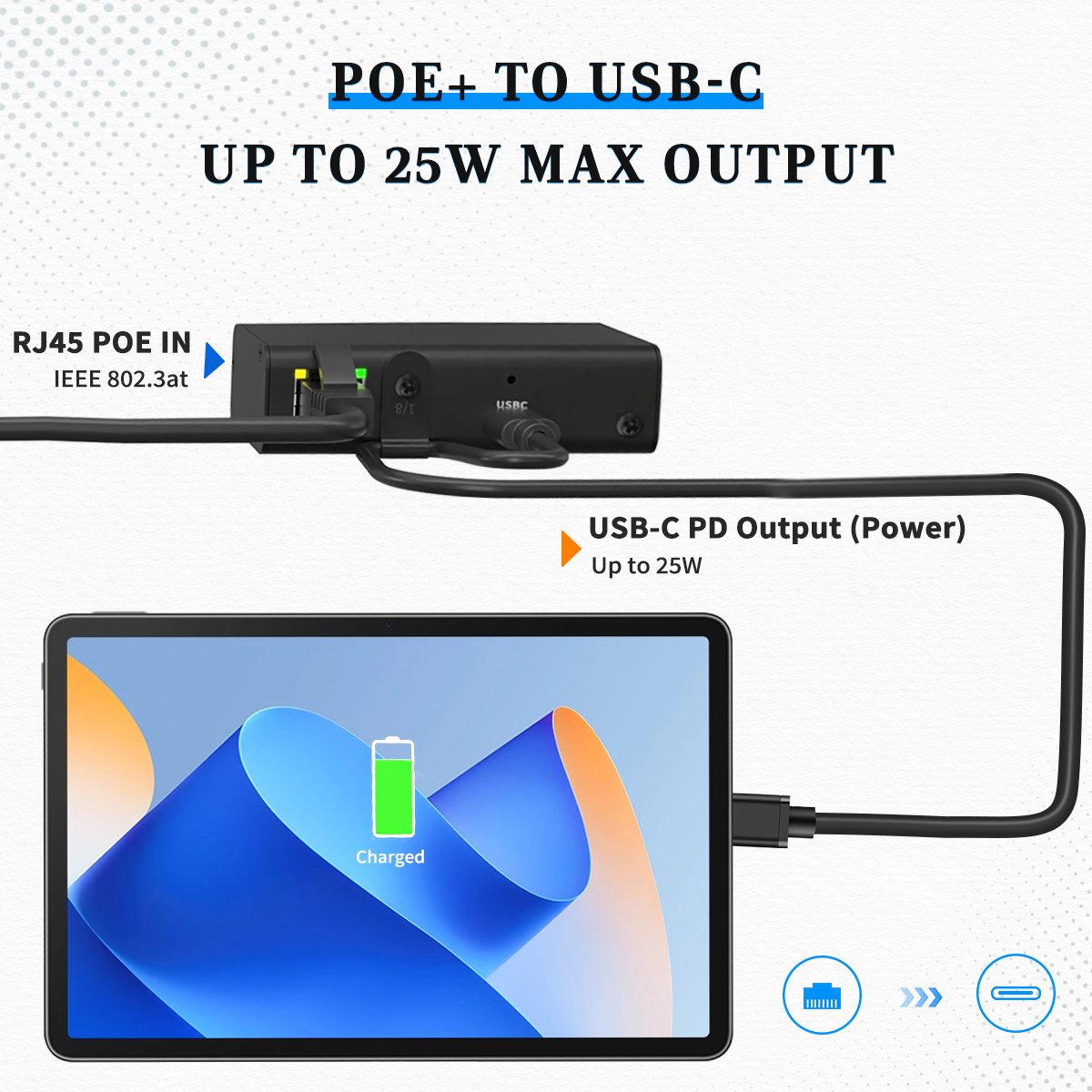

Powered by an IEEE 802.3at (PoE+) switch or injector (sold separately), it negotiates output at 5V, 9V, 12V, 15V, or 20V.

The new aluminum case design enhances heat dissipation and fits seamlessly into a single US or European wall box, allowing for a clean, hidden installation with a USB-C power connector.

Product Specifications:

Color: Black

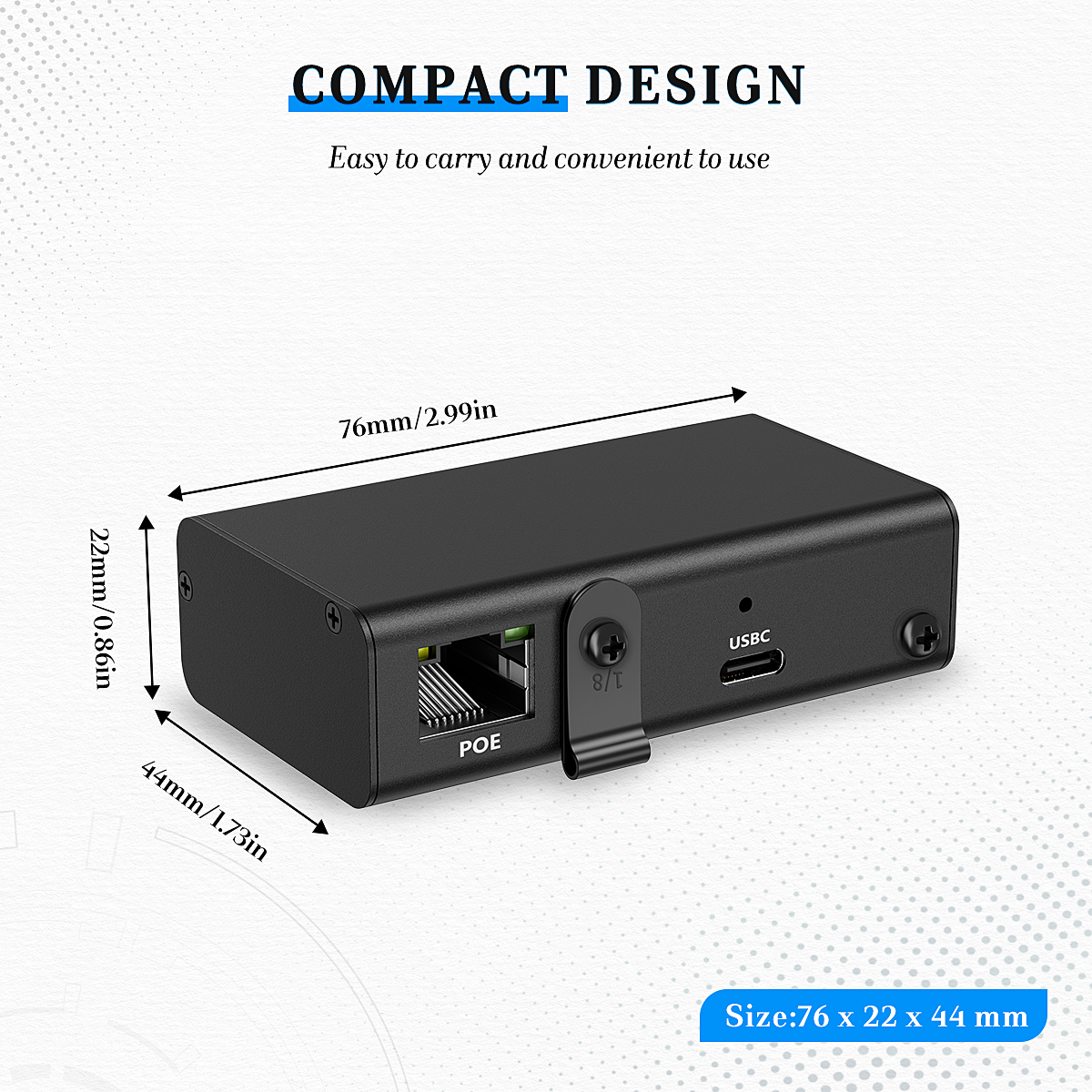

Size: 76 x 22 x 44 mm
Connector: RJ-45 Female, USB-C Female
Input Voltage Range: 44-56 volts (IEEE 802.3at compliant)

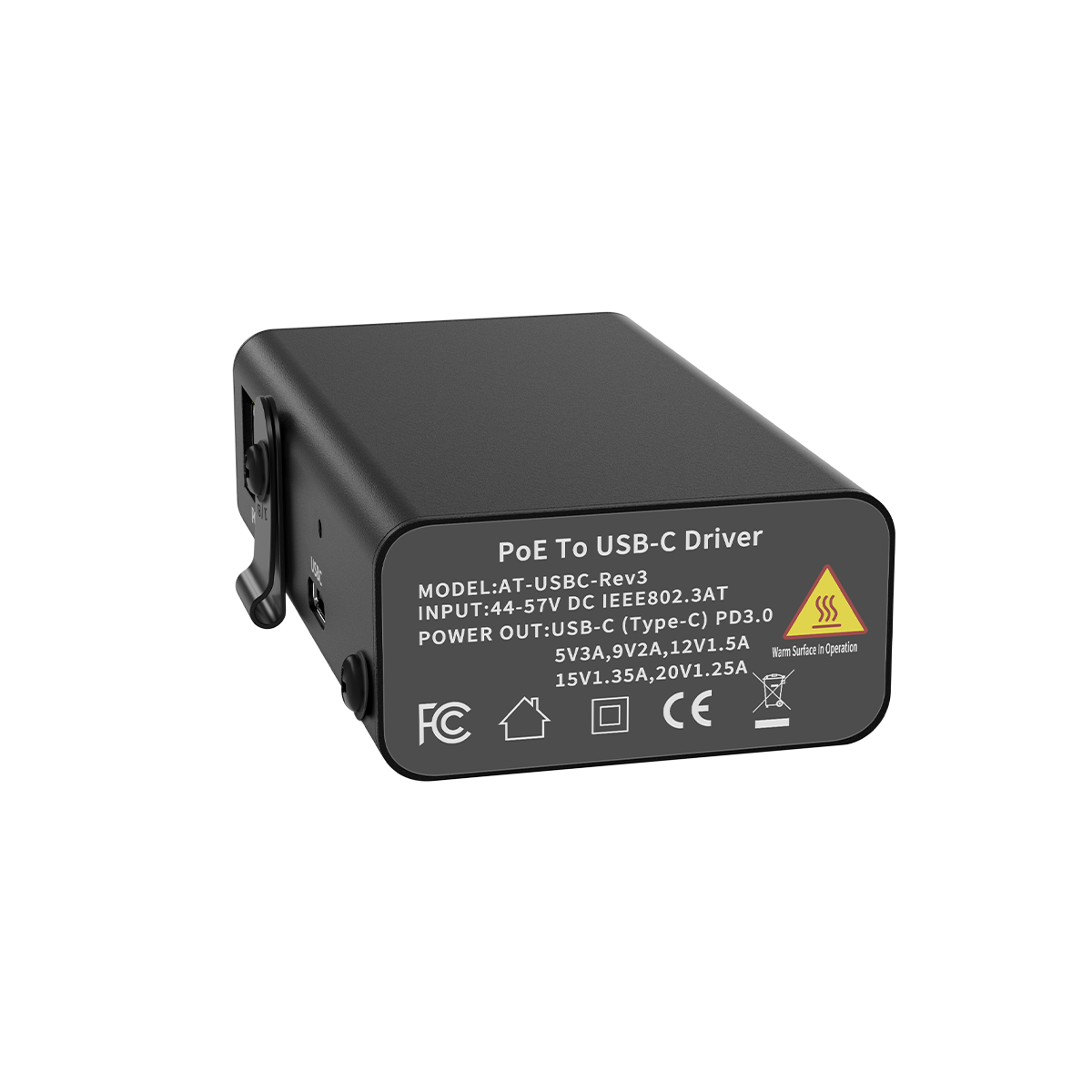

Output power: 5V3A, 9V2A, 12V1.5A, 15V1.35A, 20V1.25A
Max Power Output: 25 Watts
Data: Power Only, No Data Provided

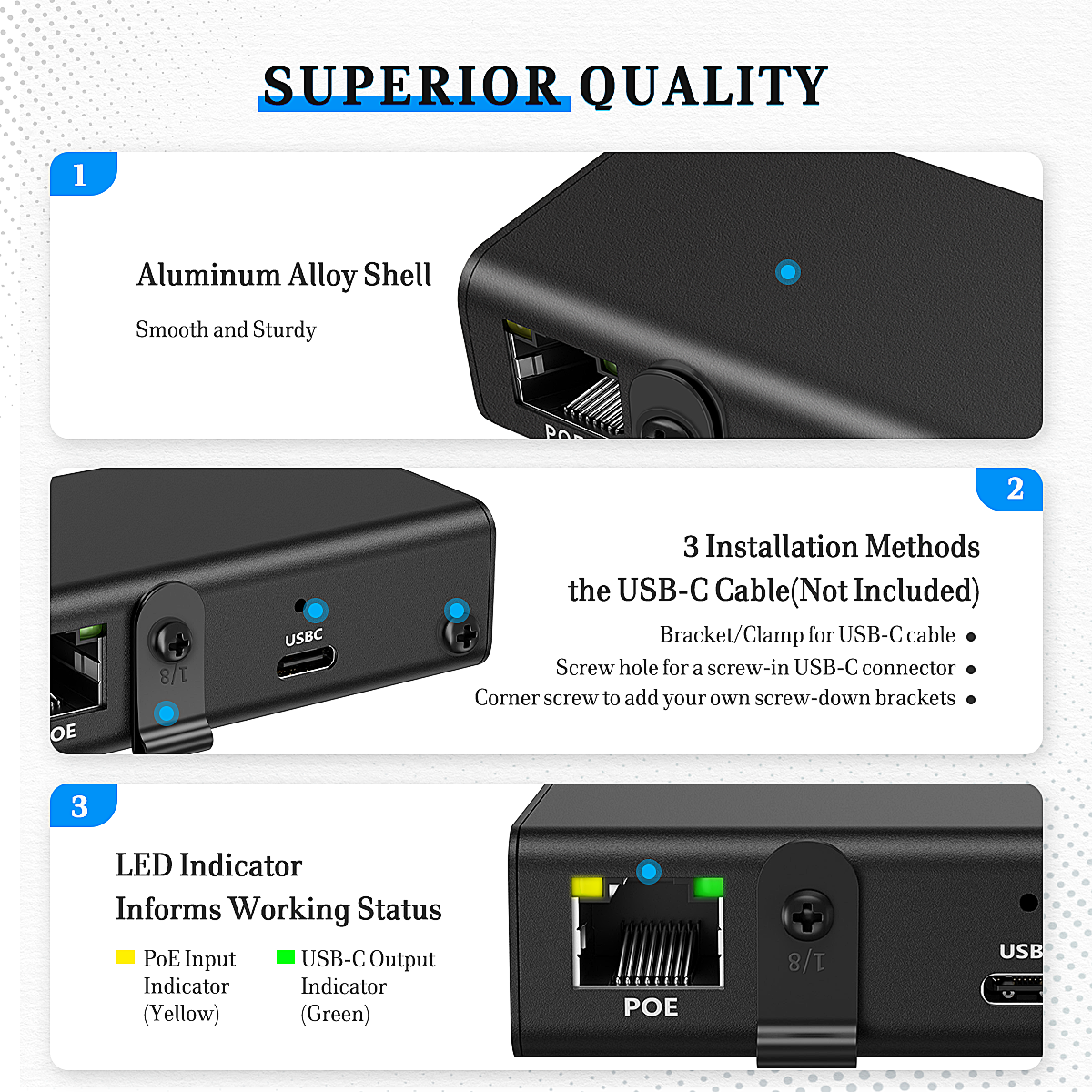

LEDs Per Port:  Yellow (POE) / Green (USB-C)
PoE Method: IEEE 802.3at / PoE+ / Passive 25 watt
PoE Mode/Pinout: Mode A/B
PoE Standard: IEEE 802.3at
Mount Type: Gang Box / Desktop
Operating Humidity: 5% to 90%
Operating Temperature Range: -10 - 60C

Note: The package includes only the AT-USBC-Rev3 PoE to USBC charger.
Did not included USBC to USBC cable, the US gang box or European wall box, and the PoE Switch or PoE Injector, these are sold separately.

Data Clarification: Power Only, No Data Provided
It's important to note that the AT-USBC-Rev3 is a power-only solution. If you require a PoE adapter that supports both power and data transfer, please consider our GAT-USBC-PD-V3/V4 models, which offer a comprehensive solution for your power and data needs.
