NEW! AC to USBC Adapter Flush Wall-mounted Power Supply 100 to 240 VAC to 5-20VAC with 30W Max Output Type-C Charger for Tablets
NEW! AC to USBC Adapter Flush Wall-mounted Power Supply 100 to 240 VAC to 5-20VAC with 30W Max Output Type-C Charger for Tablets
Couldn't load pickup availability

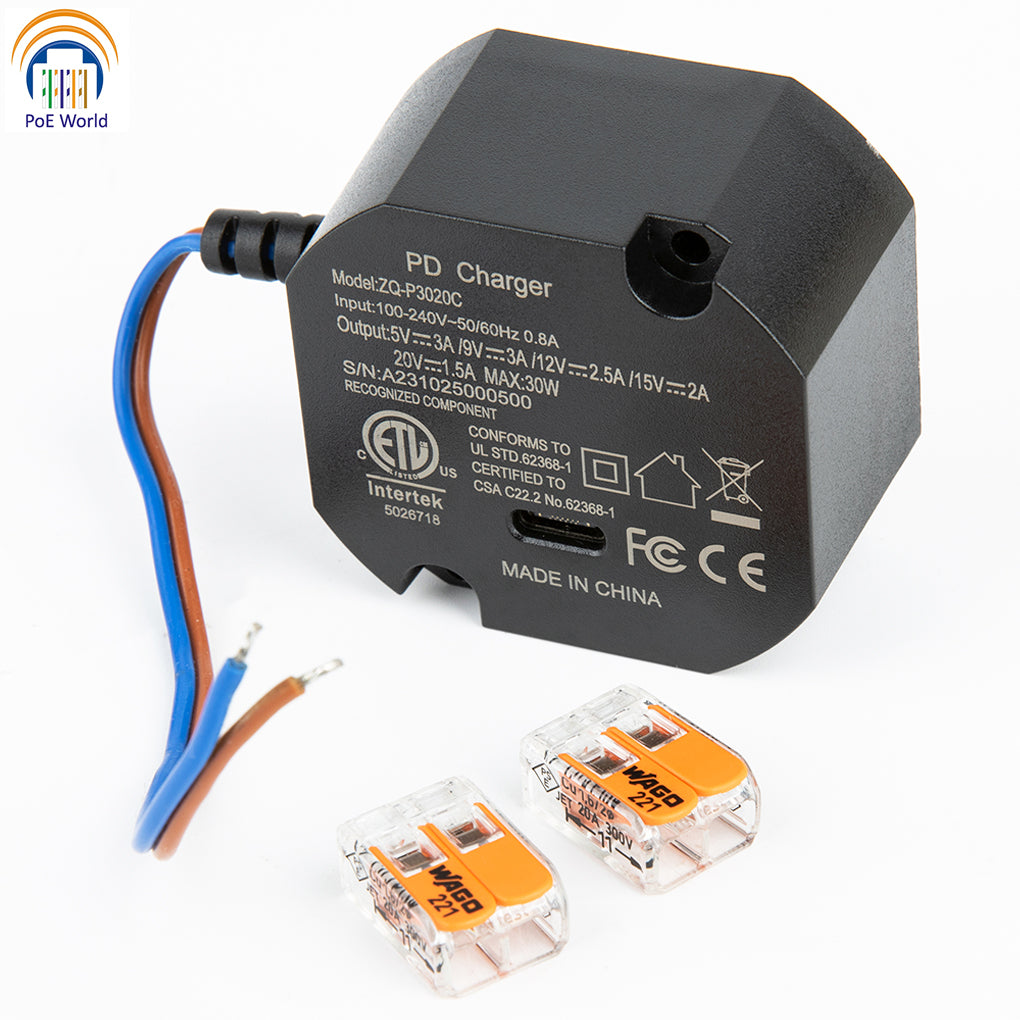

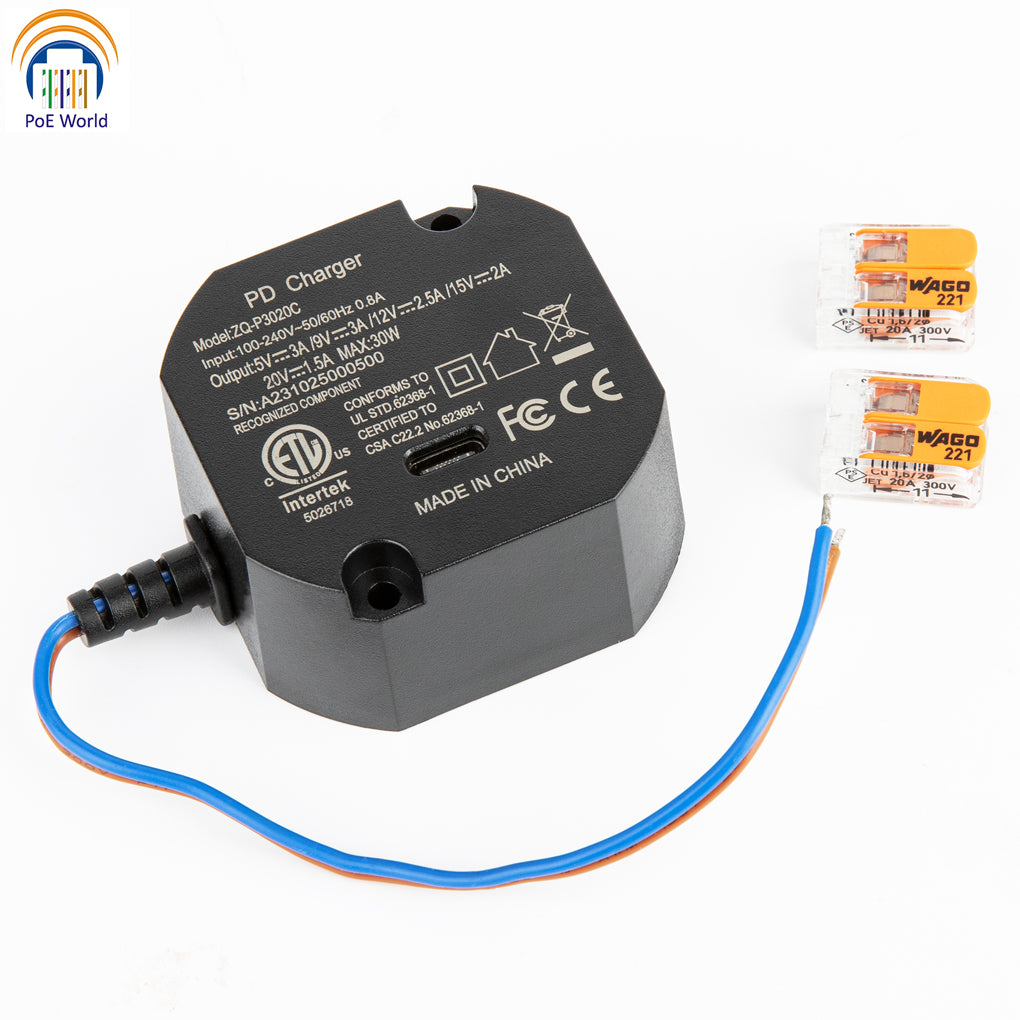

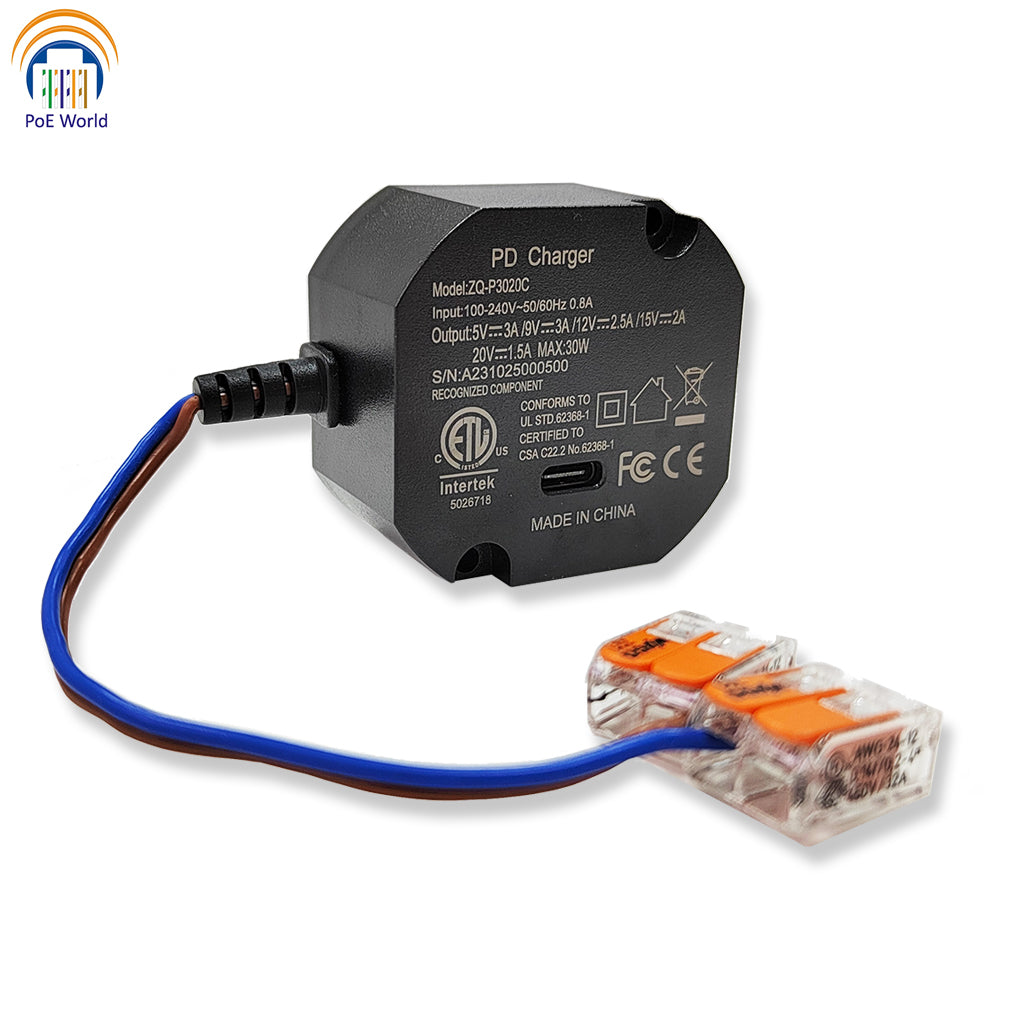

AC to USBC flush wall-mounted power adapter / USBC Power Supply
The ZQ-P3020C is a compact power supply for tablets with USBC flush wall-mounted installation, delivering an output power up to 30Watt. The power supply is discreetly installed in a built-in box behind the tablet. Connected with a USBC charging cable, the tablet is continuously charged while it remains in the tablet frame.

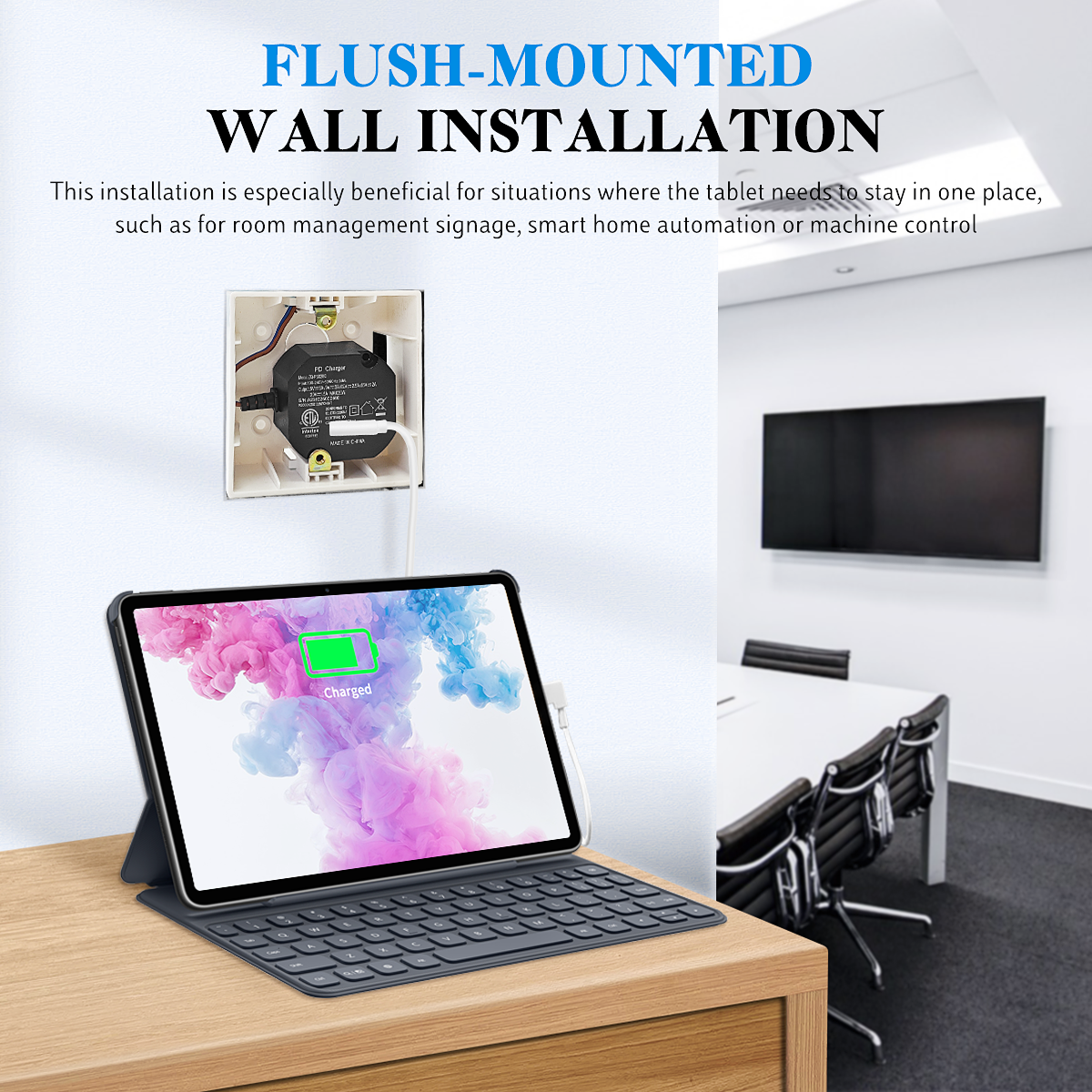

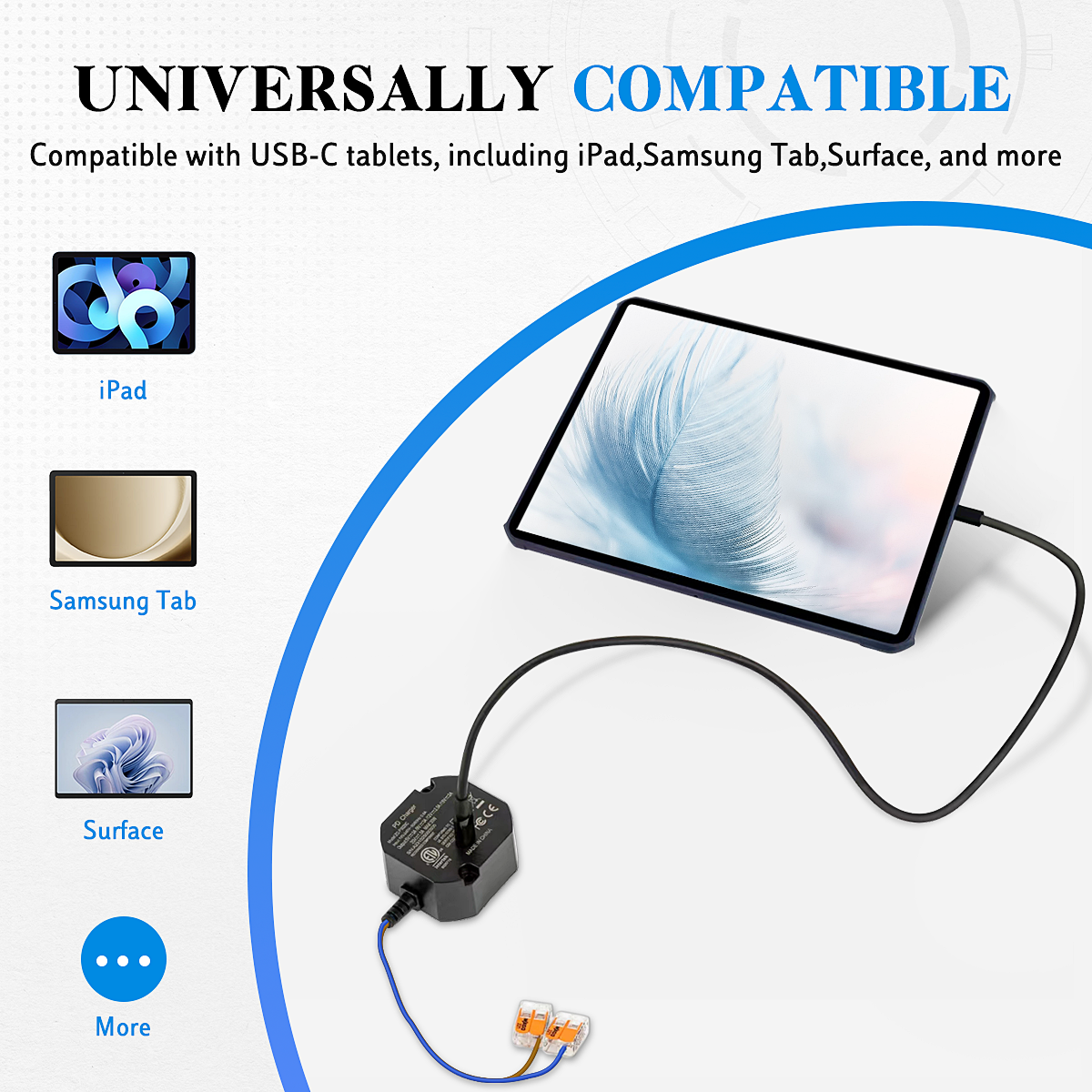

Perfect for flush wall-mounted tablets like Apple iPad, Samsung Tab, Microsoft Surface, and More. The ultra-compact form factor fits into a single US gang box or European wall box with USB-C power connectors so you can mount your tablet directly over the opening without anything exposed on the wall.
Note: The package includes only the ZQ-P3020C AC to USBC charger.
Did not included USBC to USBC cable, and the US gang box or European wall box.
Product Specifications
Color: Black

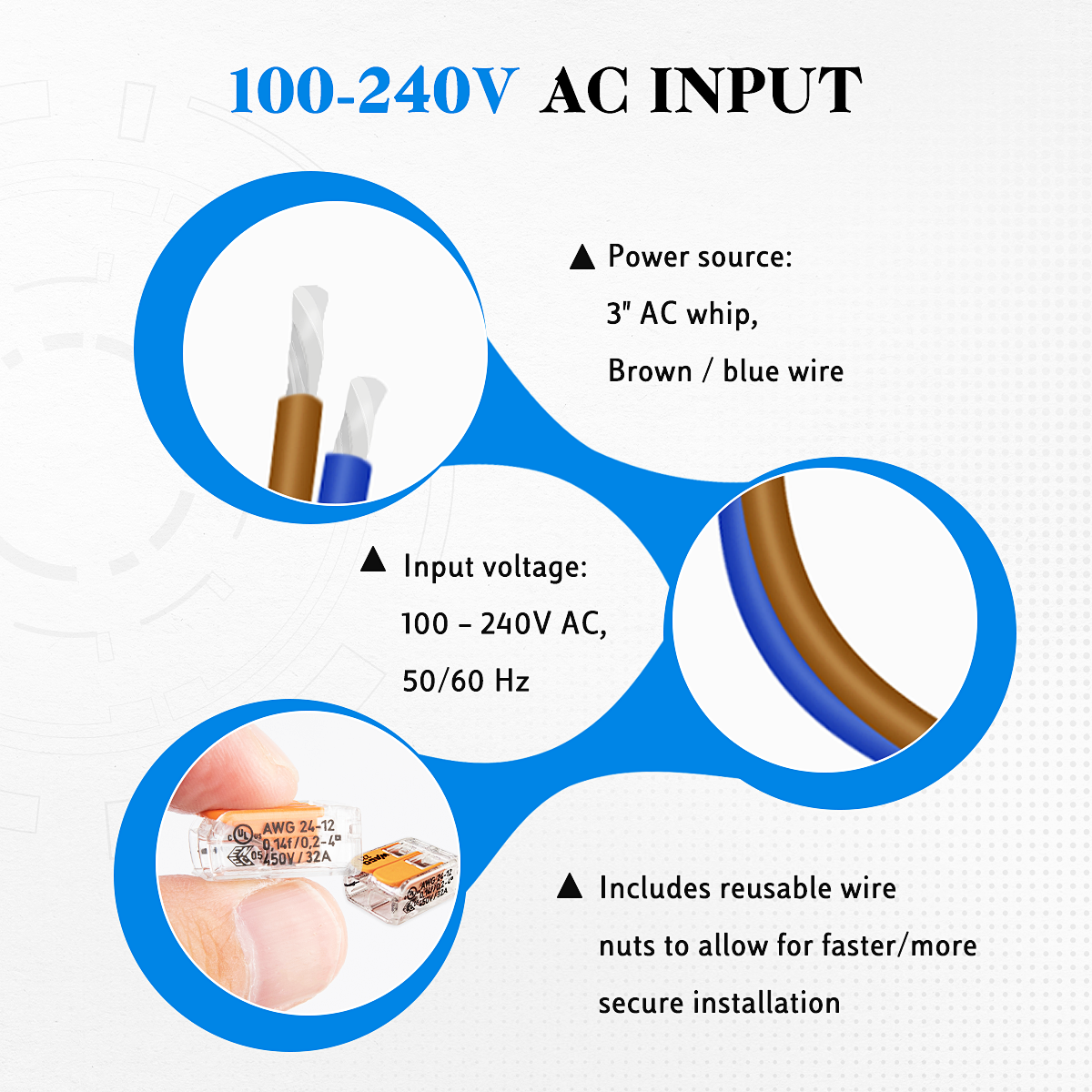

Connector: 3" AC whip, USB-C Female
Input: 100 to 240 VAC - 50/60 Hz 0.8A

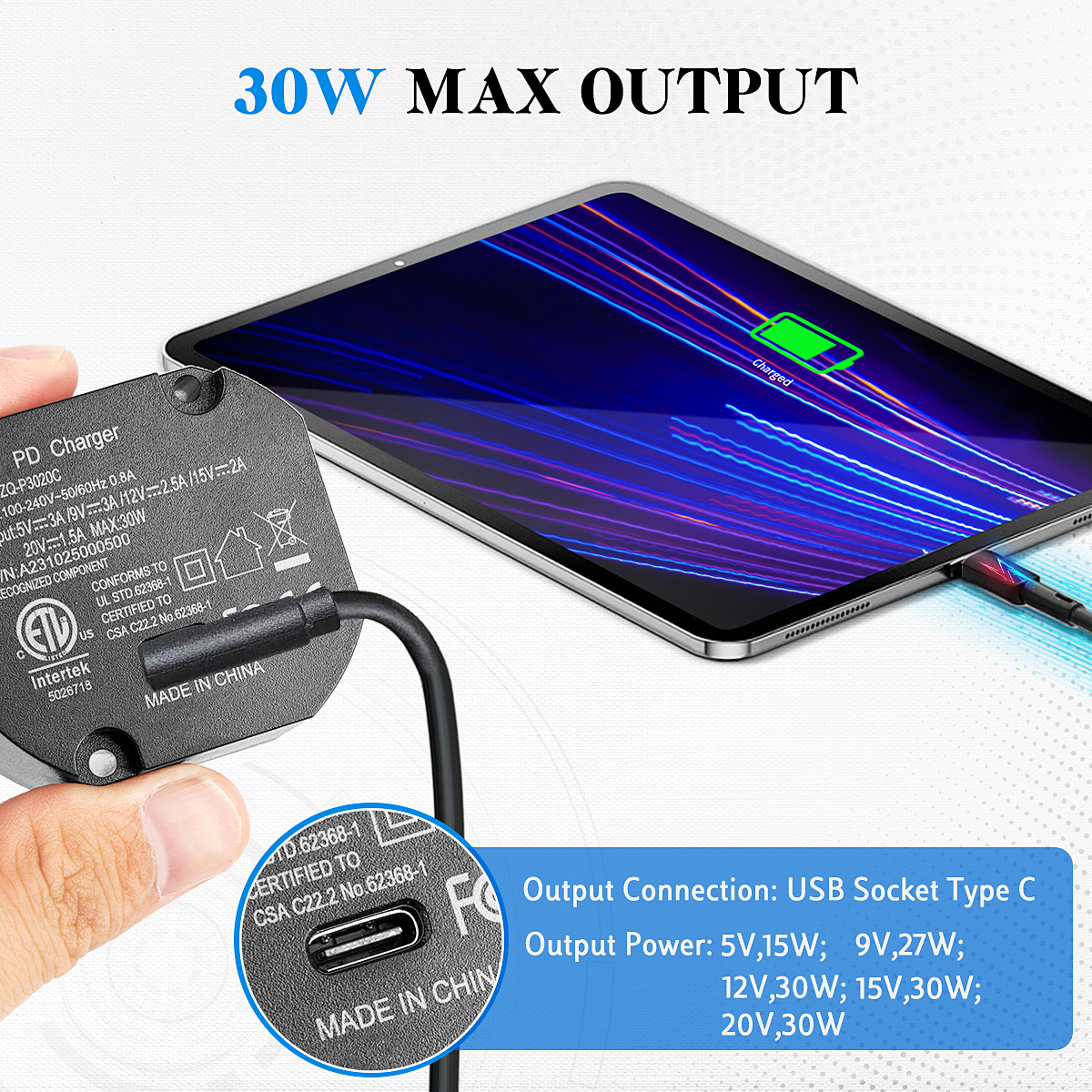

Output power: 5v 3amp, 9v 3amp, 12v 2.5amp, 15v 2 amp, 20v 1.5amp

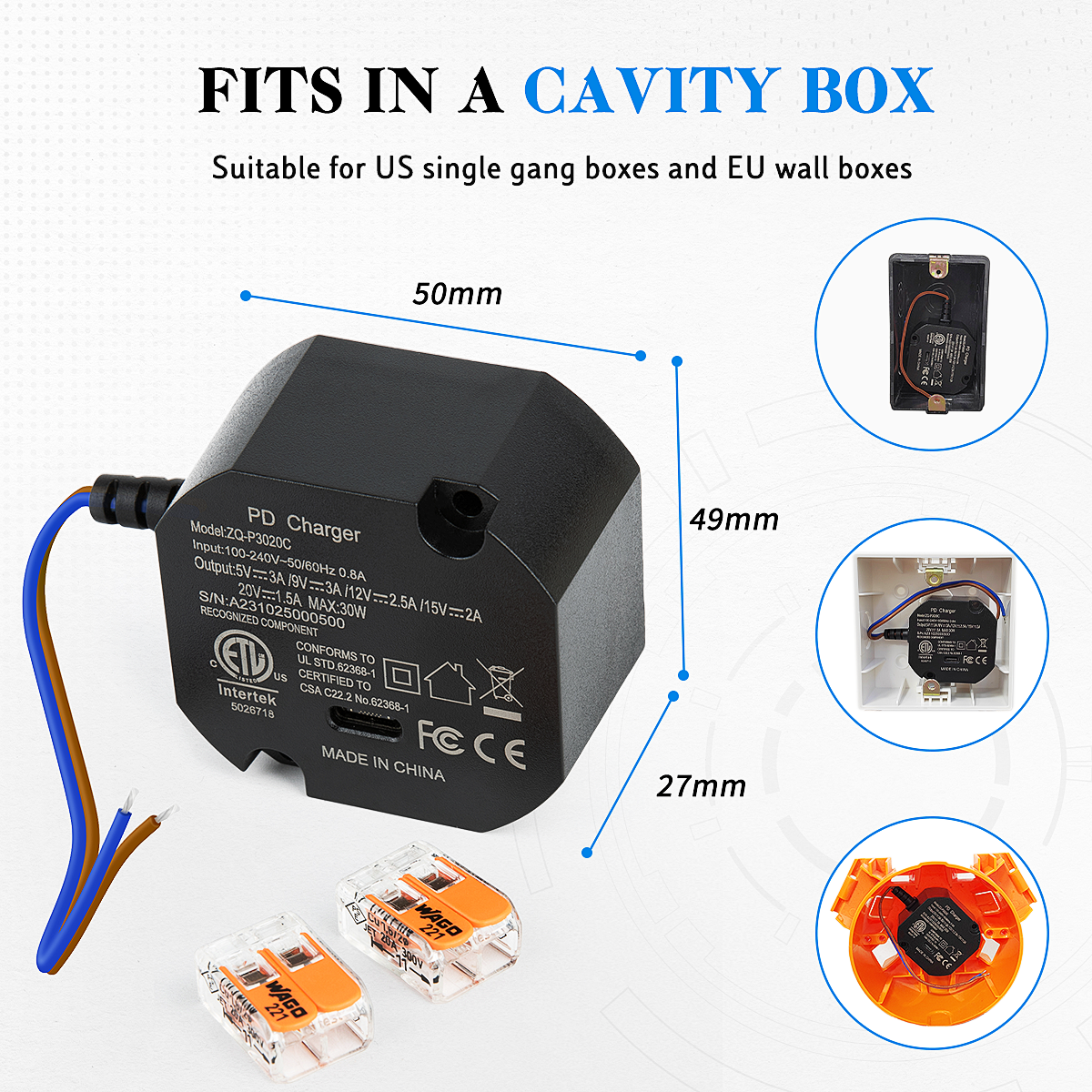

Size: 49 x 50 x 27 mm
Cable length: approx. 140mm
Fits in a cavity box, suitable for US single gang boxes and EU wall boxes
Includes reusable wire nuts to allow for faster/more secure installation
Isolation: Isolated – 1500 volt class II isolation
Need power and ethernet wired data for tablets?
One of our most often requested features is power and data to an Apple iPad through an Ethernet cable. See our full line of PoE to USB-C products.
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
