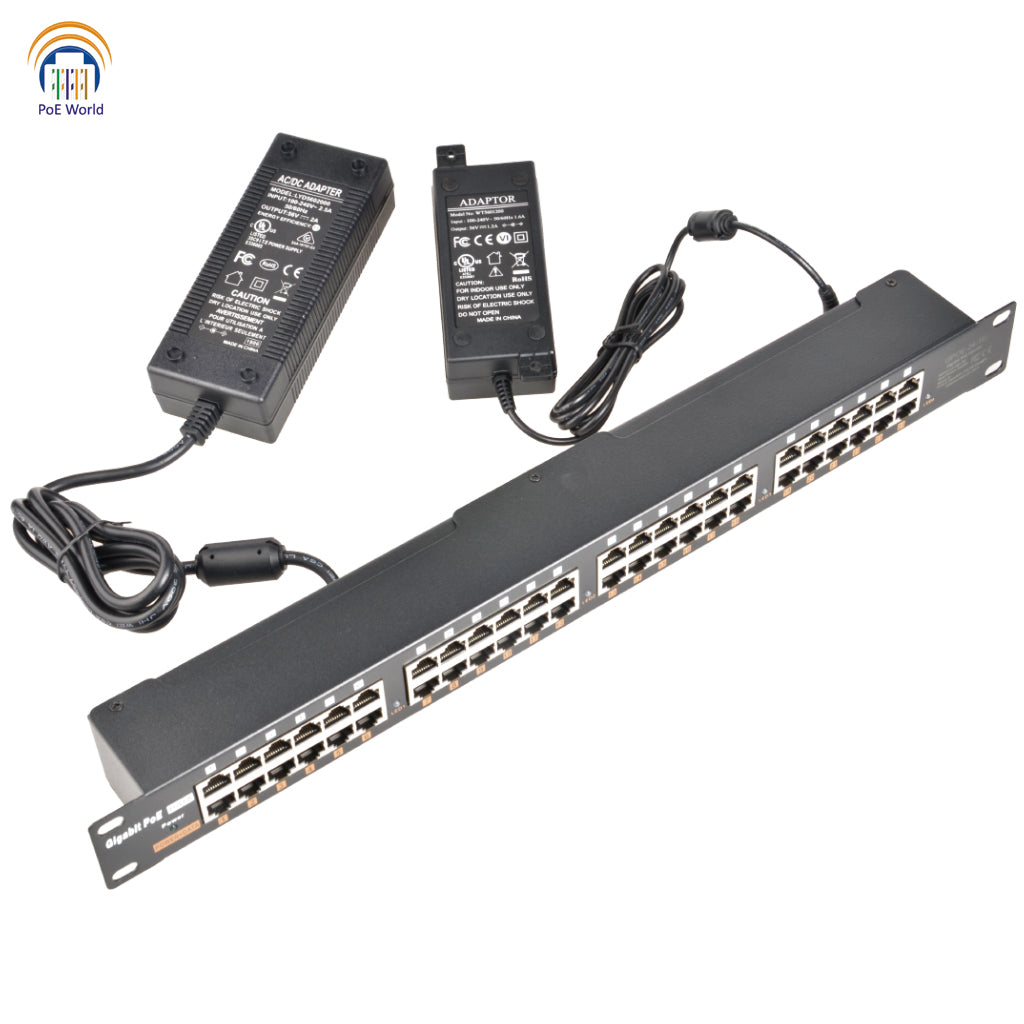

24-Port Gigabit Rack Mount PoE Injector with 240W Power Supplies, Support Mode B, IEEE802.3af/at, Dual Power Supply Inputs

24-Port Gigabit Rack Mount PoE Injector with 240W Power Supplies, Support Mode B, IEEE802.3af/at, Dual Power Supply Inputs

Regular price £199.95 GBP
Regular price Sale price £199.95 GBP
Sale Sold out
Shipping calculated at checkout.
Power Supply
The GPOE-24-1U Power over Ethernet (POE) injector allows you to power up to 24 devices remotely over ethernet wiring up to 328 ft (100 meters) away.

This PoE Injector can power up to 24 IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.

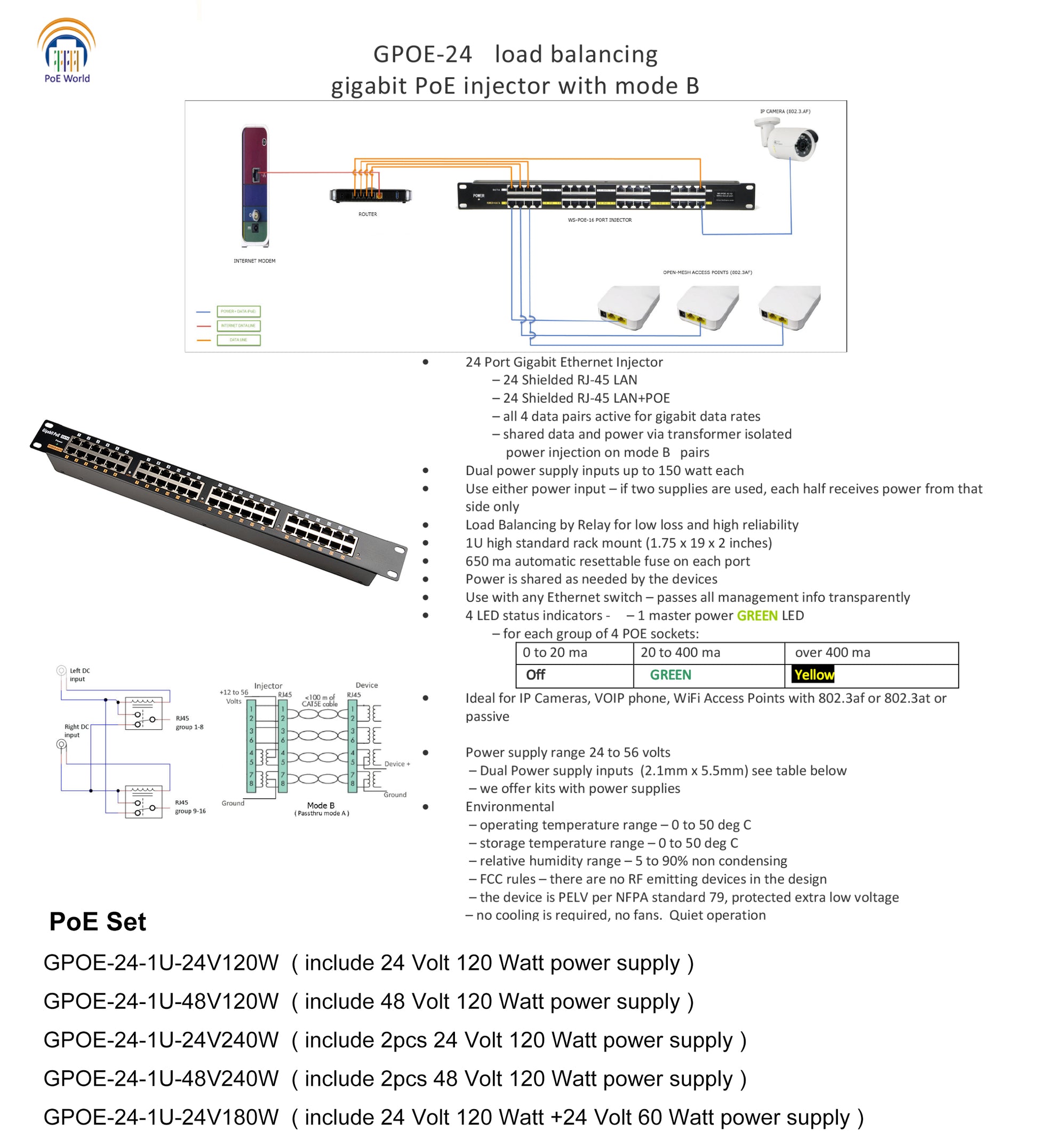

24 Port Gigabit Ethernet Injector

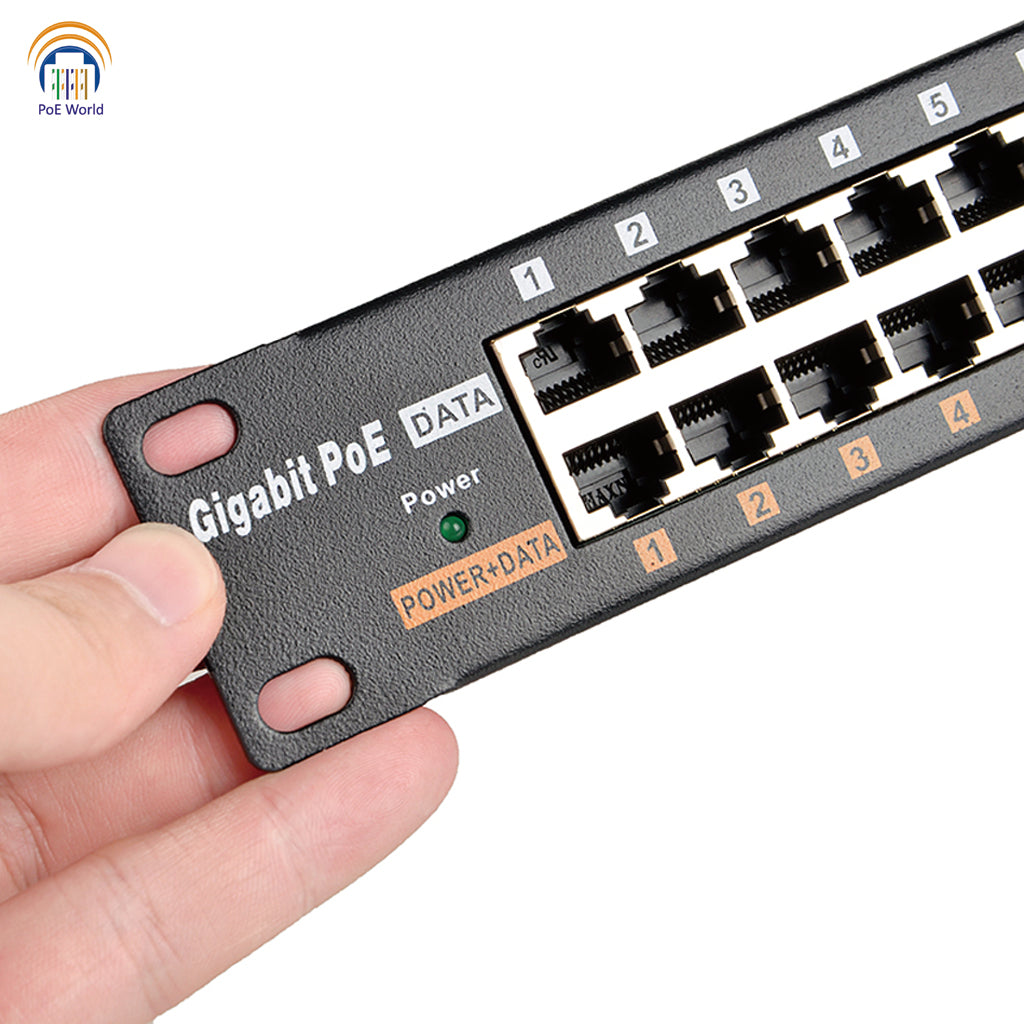

– 24 Shielded RJ-45 LAN
– 24 Shielded RJ-45 LAN+POE
– all 4 data pairs active for gigabit data rates
– shared data and power via transformer isolated
power injection on mode B pairs

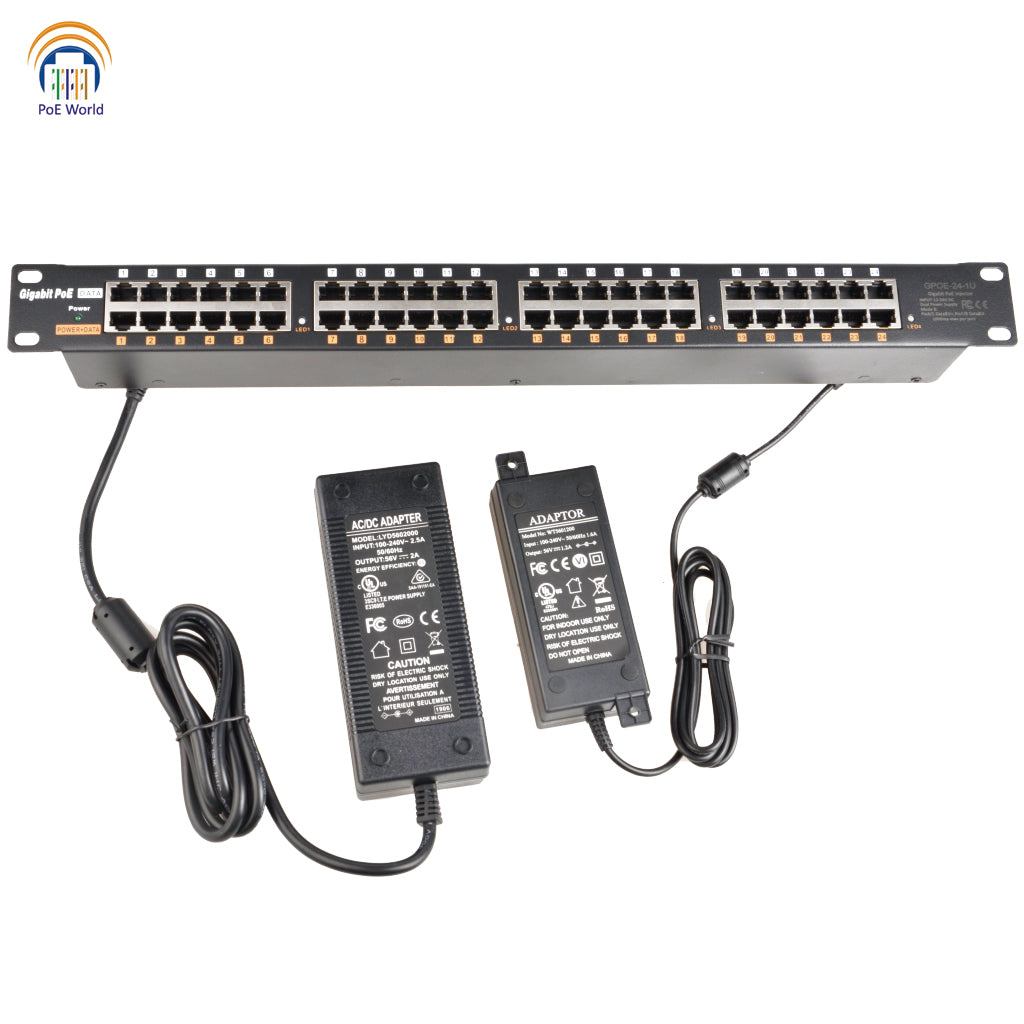

• Dual power supply inputs up to 150 watt each
• Use either power input – if two supplies are used, each half receives power from that side only
• Load Balancing by Relay for low loss and high reliability

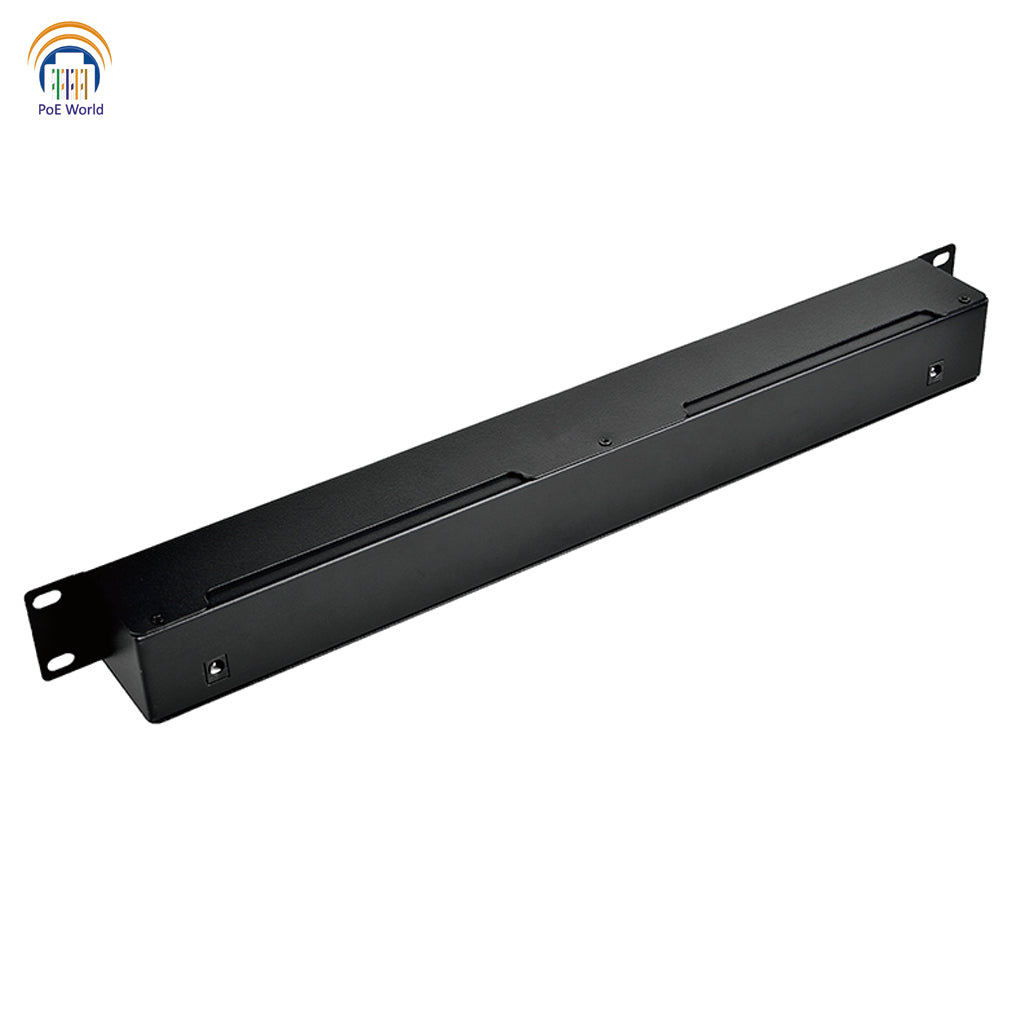

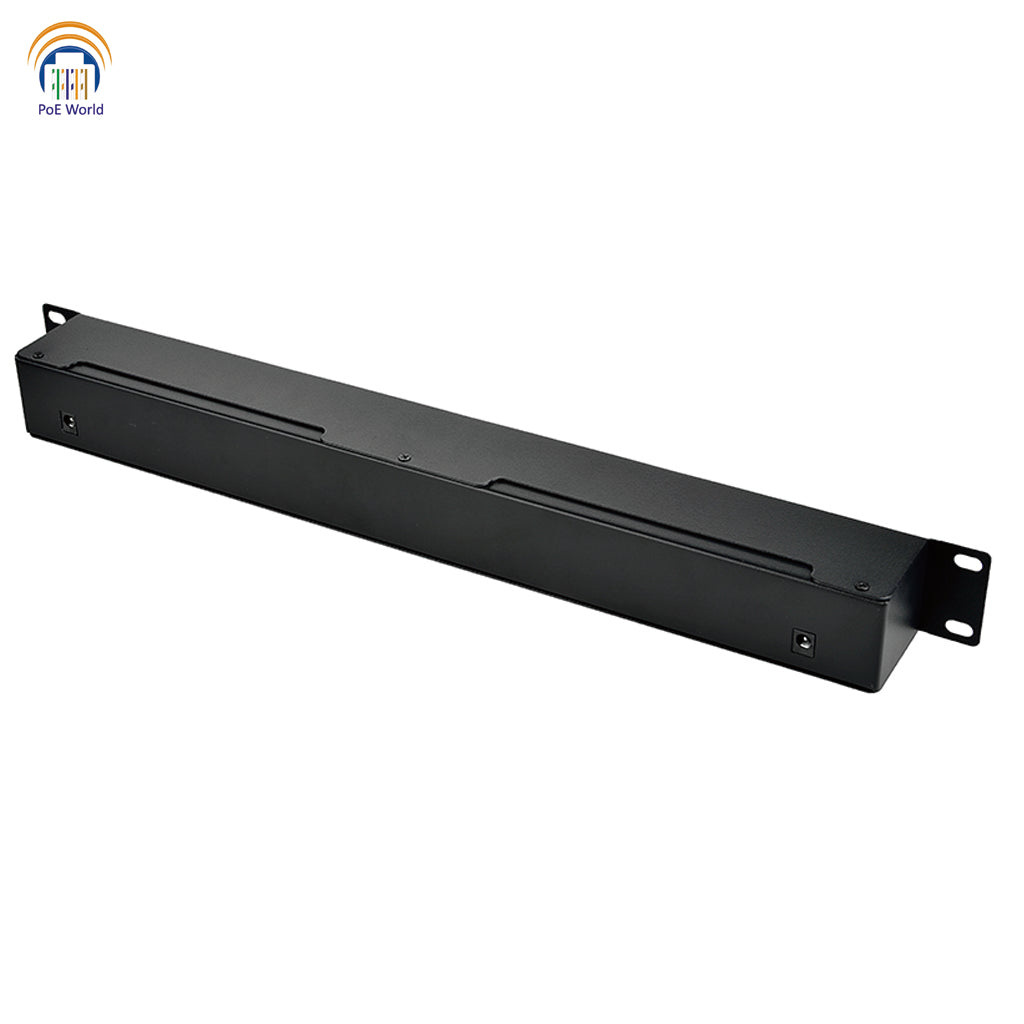

• 1U high standard rack mount (1.75 x 19 x 2 inches)
• 650 ma automatic resettable fuse on each port
• Power is shared as needed by the devices
• Power supply range 24 to 56 volts

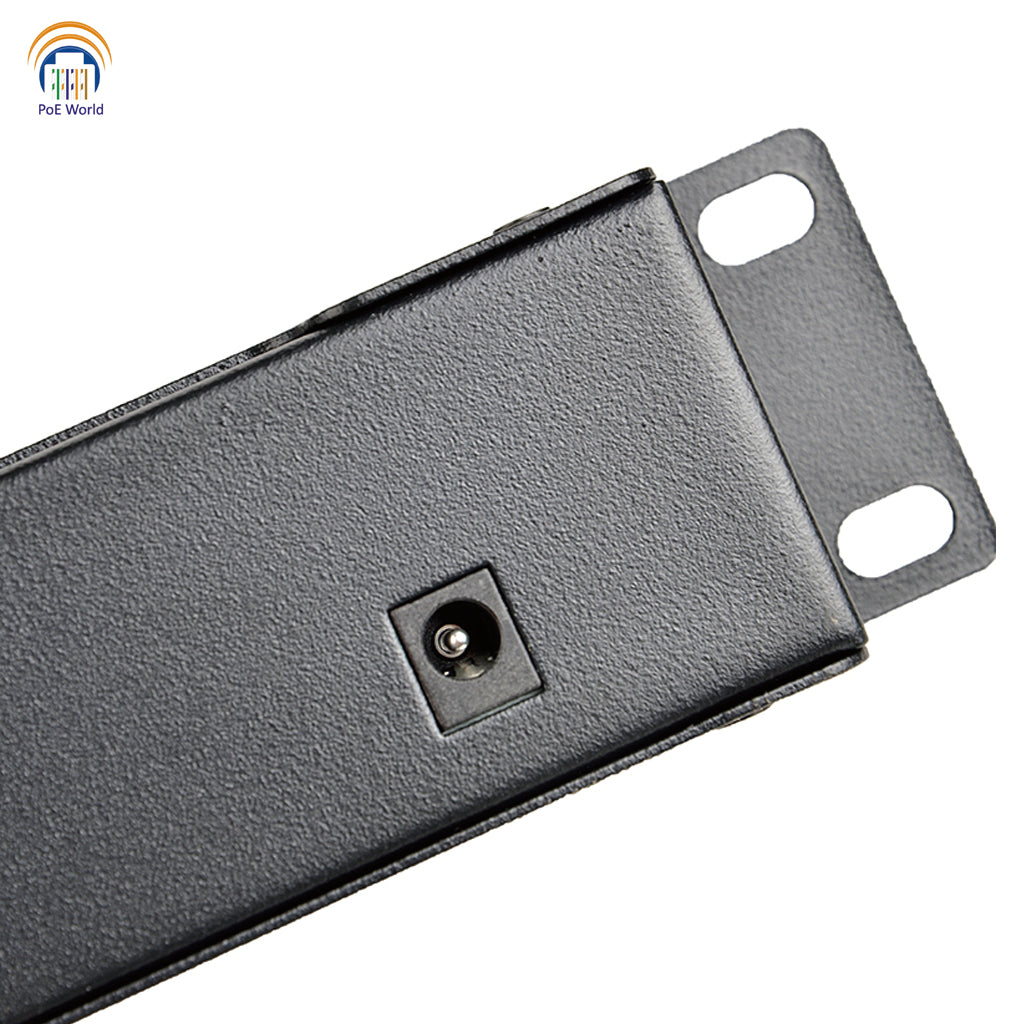

– Dual Power supply inputs (2.1mm x 5.5mm)

• Use with any Ethernet switch – passes all management info transparently

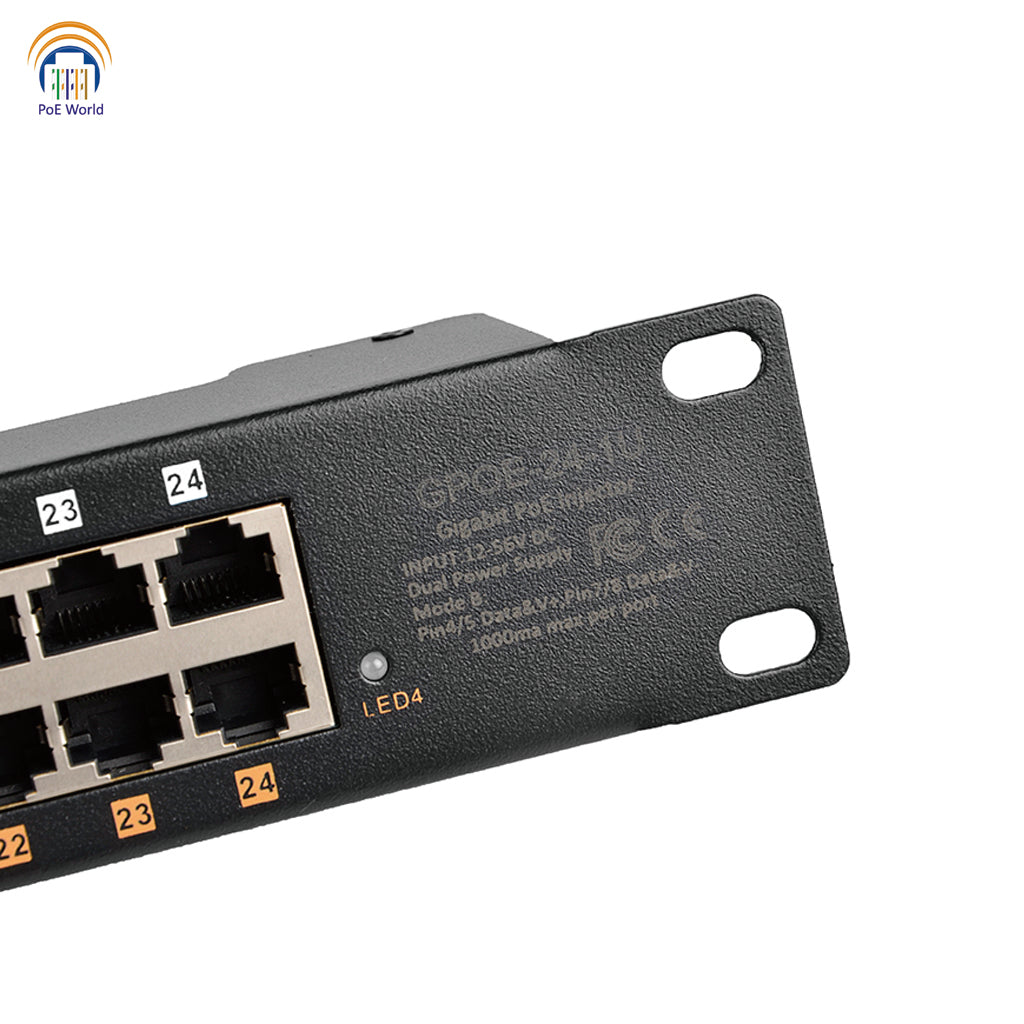

• 4 LED status indicators - – 1 master power GREEN LED
– for each group of 4 POE sockets:
0 to 20 ma 20 to 400 ma over 400 ma
Off GREEN Yellow

• Ideal for IP Cameras, VOIP phone, WiFi Access Points with 802.3af or 802.3at or passive

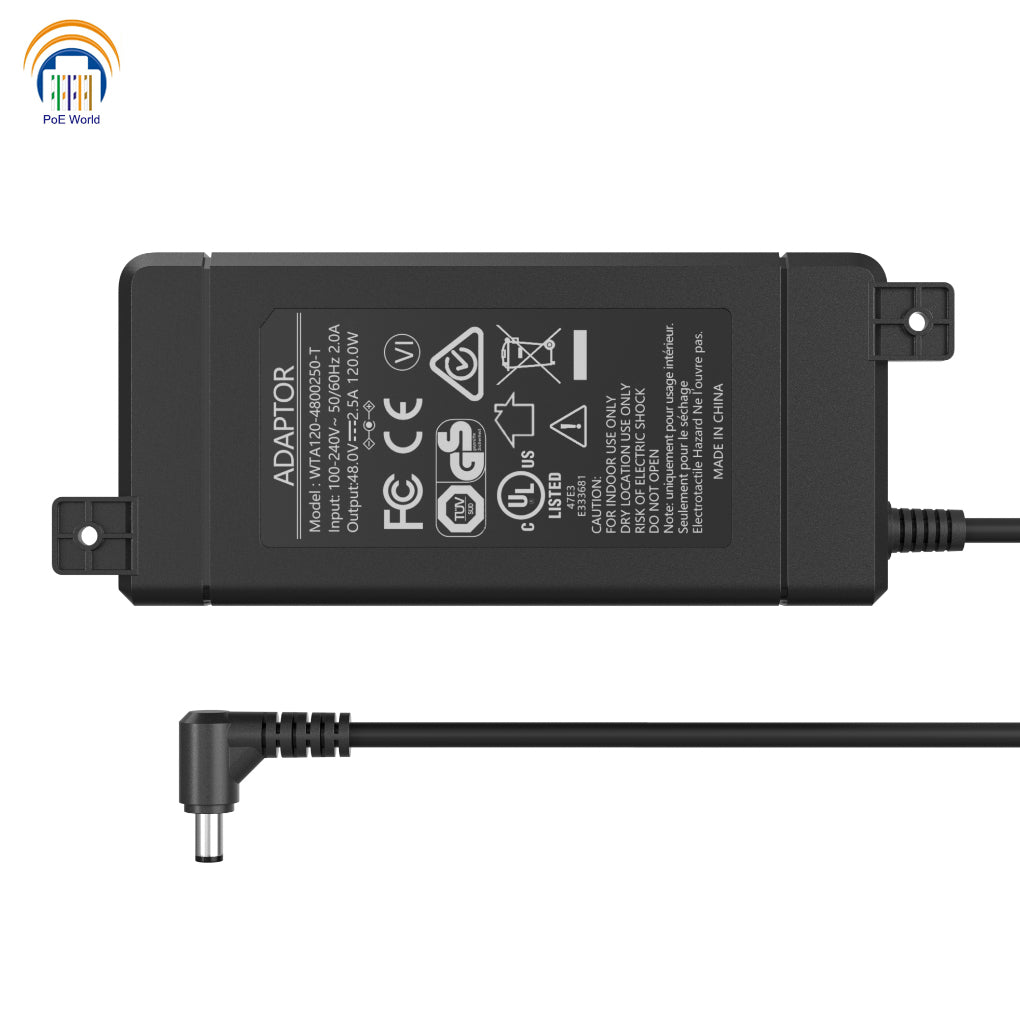

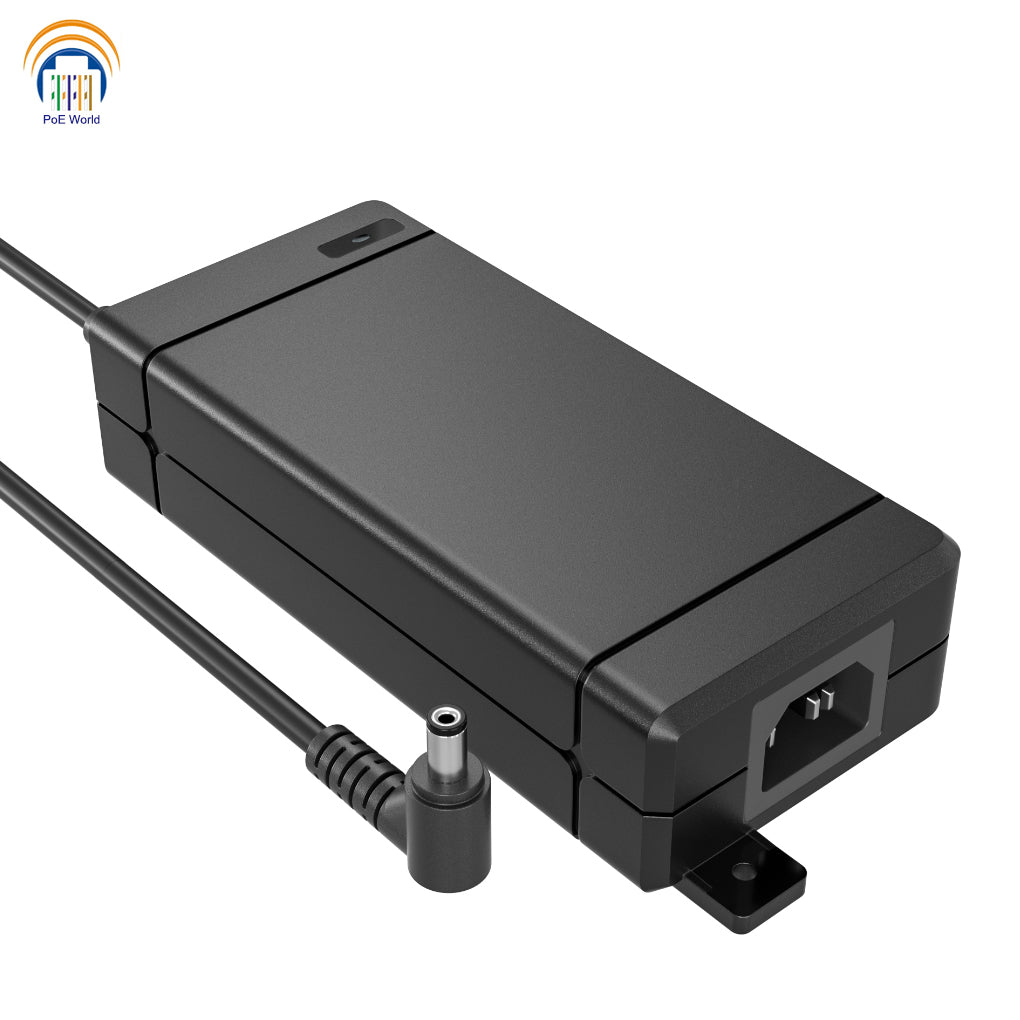

Included Two Power supply, 24 Volt or 48 Volt according to your selection

48Volt 240Watt Power Supply or 24Volt 240Watt Power Supply

• Input voltage range: AC 90V ~ 264V 47-63Hz

• Rated output rating: Load regulation: 3-48v±5% 48W Max.

• Output no-load voltage: 105% output voltage Max(Nom.)

• safety Agency approved: UL/CUL/CE/GS/FCC/CCC/SAA

• Normal operating environment: 0°C ~ 40°C 20% ~ 80% R.H

• Storage environment: -20°C ~ 70°C 20% ~ 90% R.H
View full details

Frequently Questions About POE

What is "POE"?

PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

What is the difference between Mode A and Mode B?

Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

What does passive POE mean?

Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

Which power supply do I need?

The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
