10GBT-1-WM Single Port 10 Gigabit 802.3bt PoE++ Injector | 90W Max Output | IEEE 802.3af/at/bt | Wall & DIN Mount
10GBT-1-WM Single Port 10 Gigabit 802.3bt PoE++ Injector | 90W Max Output | IEEE 802.3af/at/bt | Wall & DIN Mount
Couldn't load pickup availability

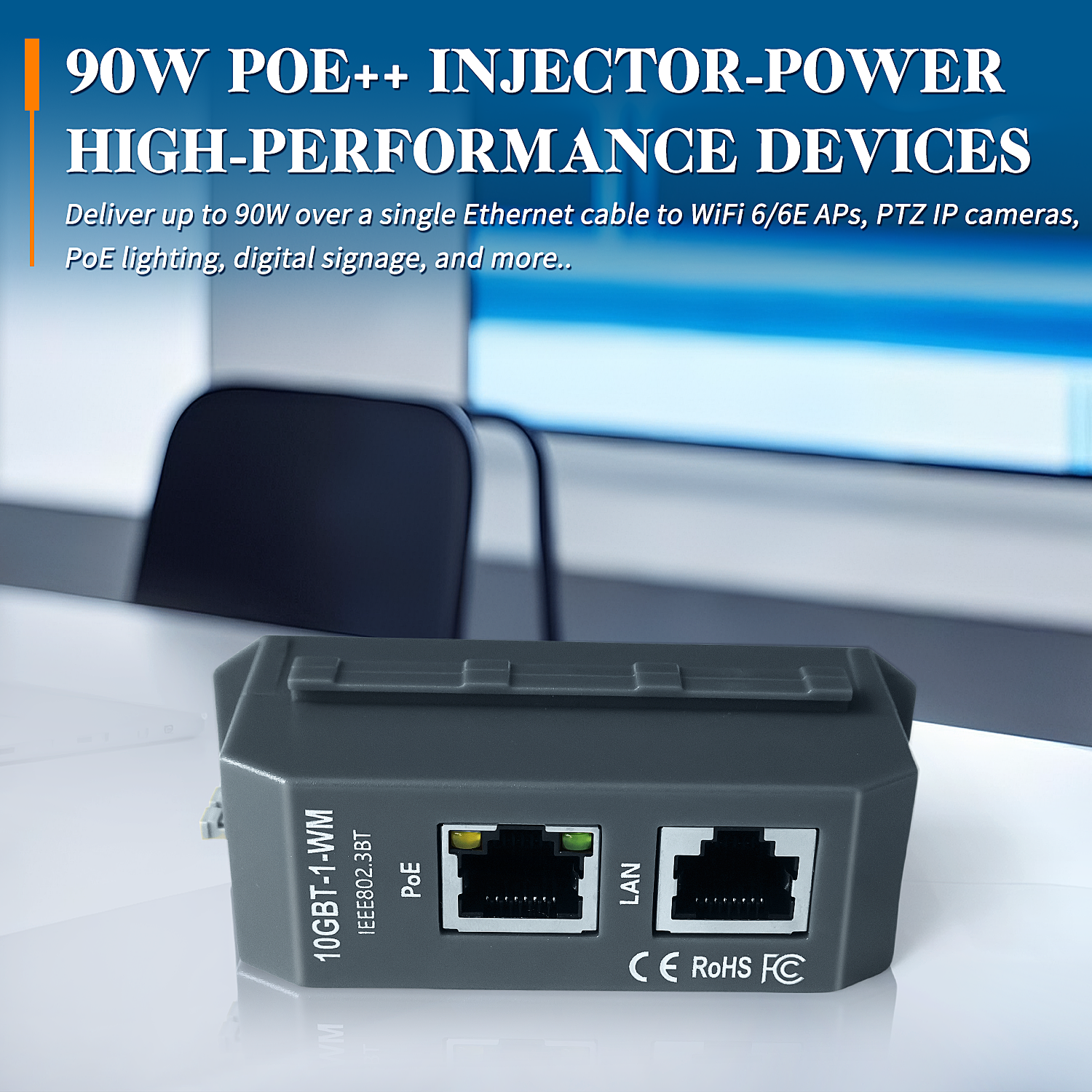

The 10GBT-1-WM is a high-speed 10 Gigabit Active PoE++ injector that delivers up to 90W of power to your most demanding network devices.
Supporting IEEE 802.3af/at/bt standards, this unit ensures safe and efficient power delivery through intelligent handshake negotiation.
Engineered with a modular and stackable design, the 10GBT-1-WM fits neatly into industrial and commercial network environments.
Its wall and DIN rail mounting options make it easy to deploy in virtually any location, providing seamless integration and high-speed data throughput for applications such as HD IP cameras, high-end wireless APs, LED lighting, and more.
Product Features:
10G High-Speed PoE++ Injector for next-gen network applications
Complies with IEEE 802.3af/at/bt (Type 3 & Type 4)
Active PoE with negotiation ensures device safety
Up to 90W per port, suitable for high-power devices

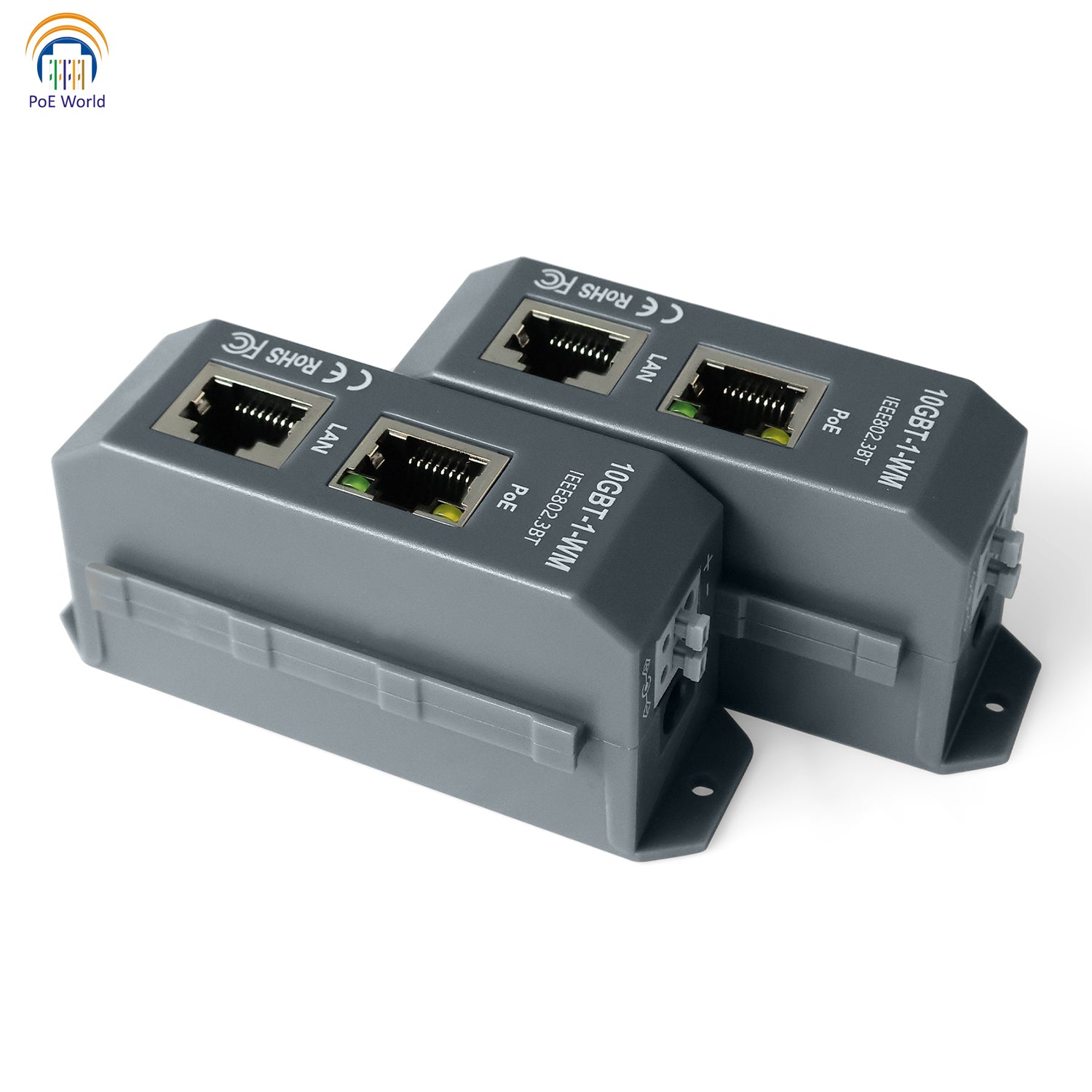

Modular, stackable casing for efficient expansion

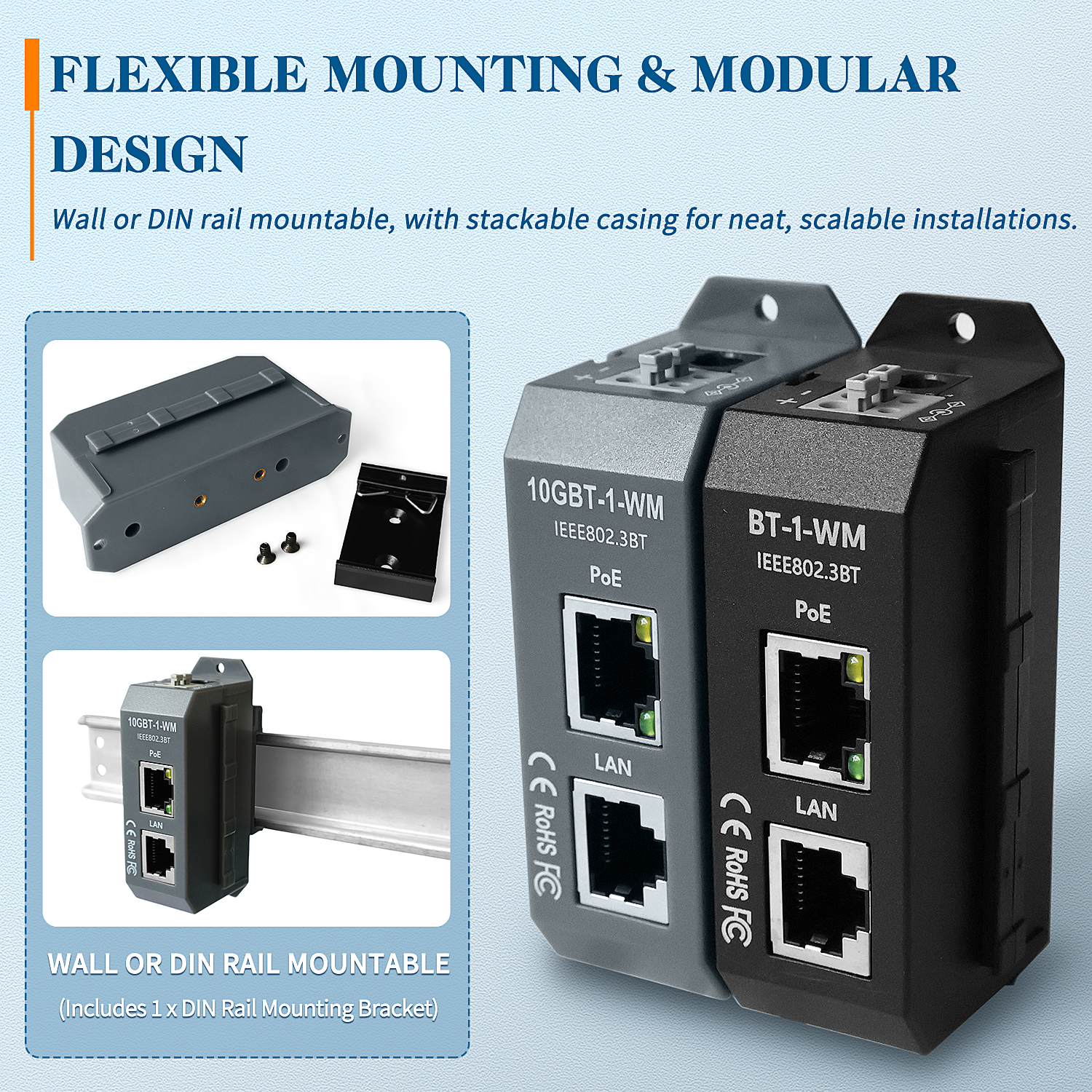

Wall and DIN rail mount options included
Supports 4-pair and 2-pair PoE modes
Ideal for WiFi 6/6E APs, PTZ cameras, digital signage, and more
Product Specifications
Certifications: CE, FCC, RoHS

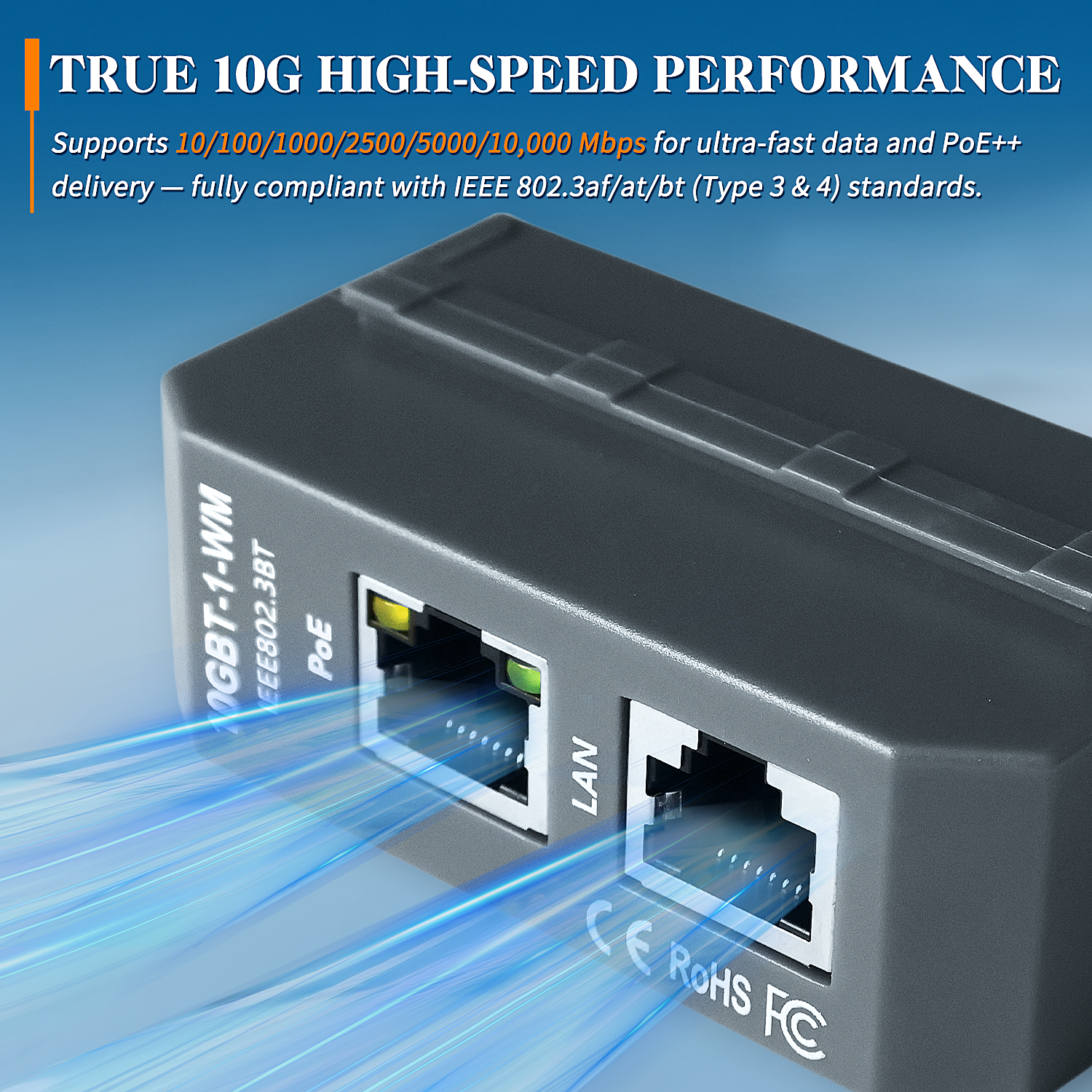

Data Rate: 10/100/1000/2500/5000/10,000 Mbps
Data + PoE Ports: 1 Shielded RJ-45
Data Ports: 1 Shielded RJ-45

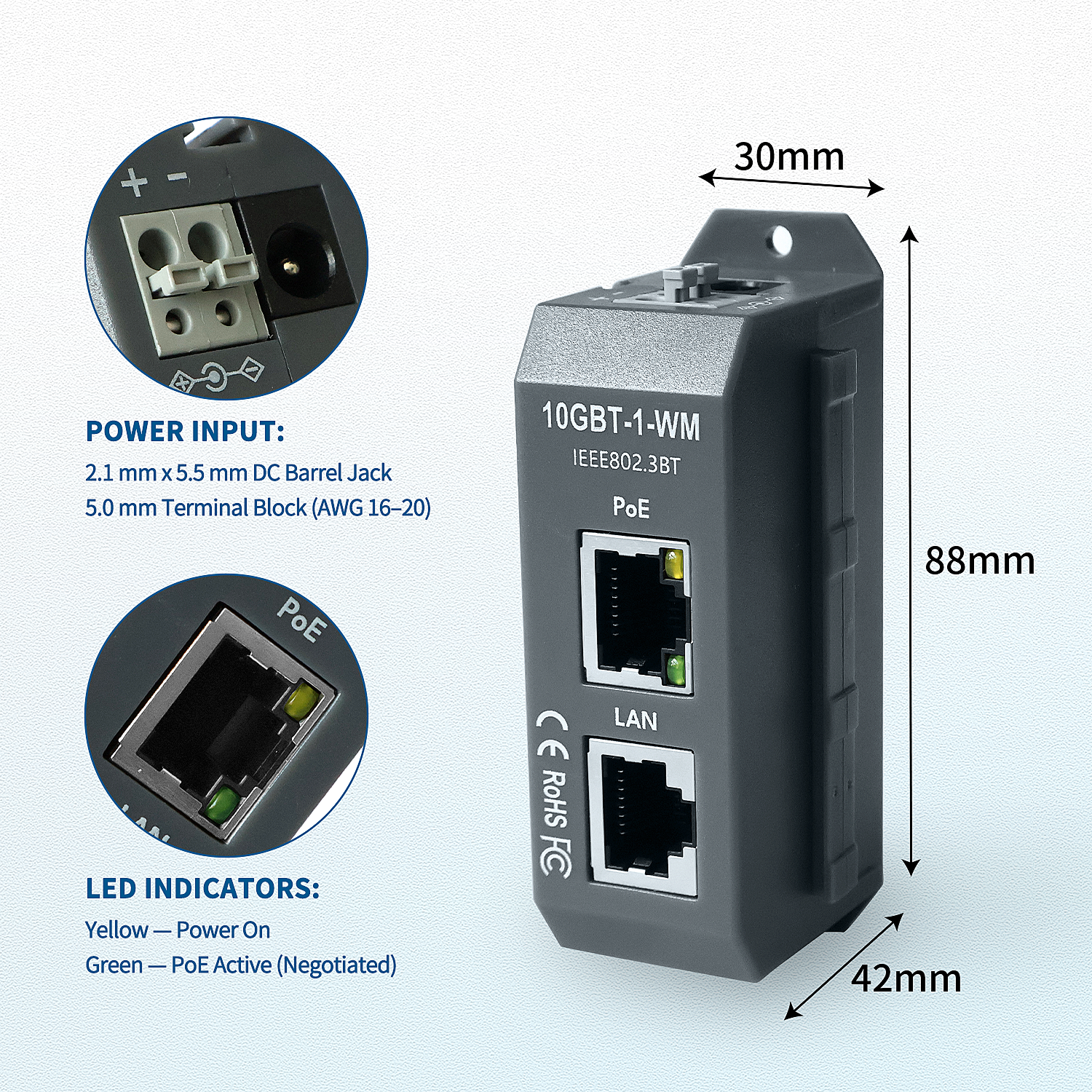

Dimensions: 88*30*42mm
Input voltage: 48-57 Volts DC
Max. Amps Per Port: 1.61 Amps
Output Voltage: 48-57 Volts
PoE Method: Active
PoE Standard: IEEE 802.3af/at/bt
PoE Mode: 4 pair PoE operation ( type 4 )
2 pair PoE supported ( type 3 ) and 802.3at/af

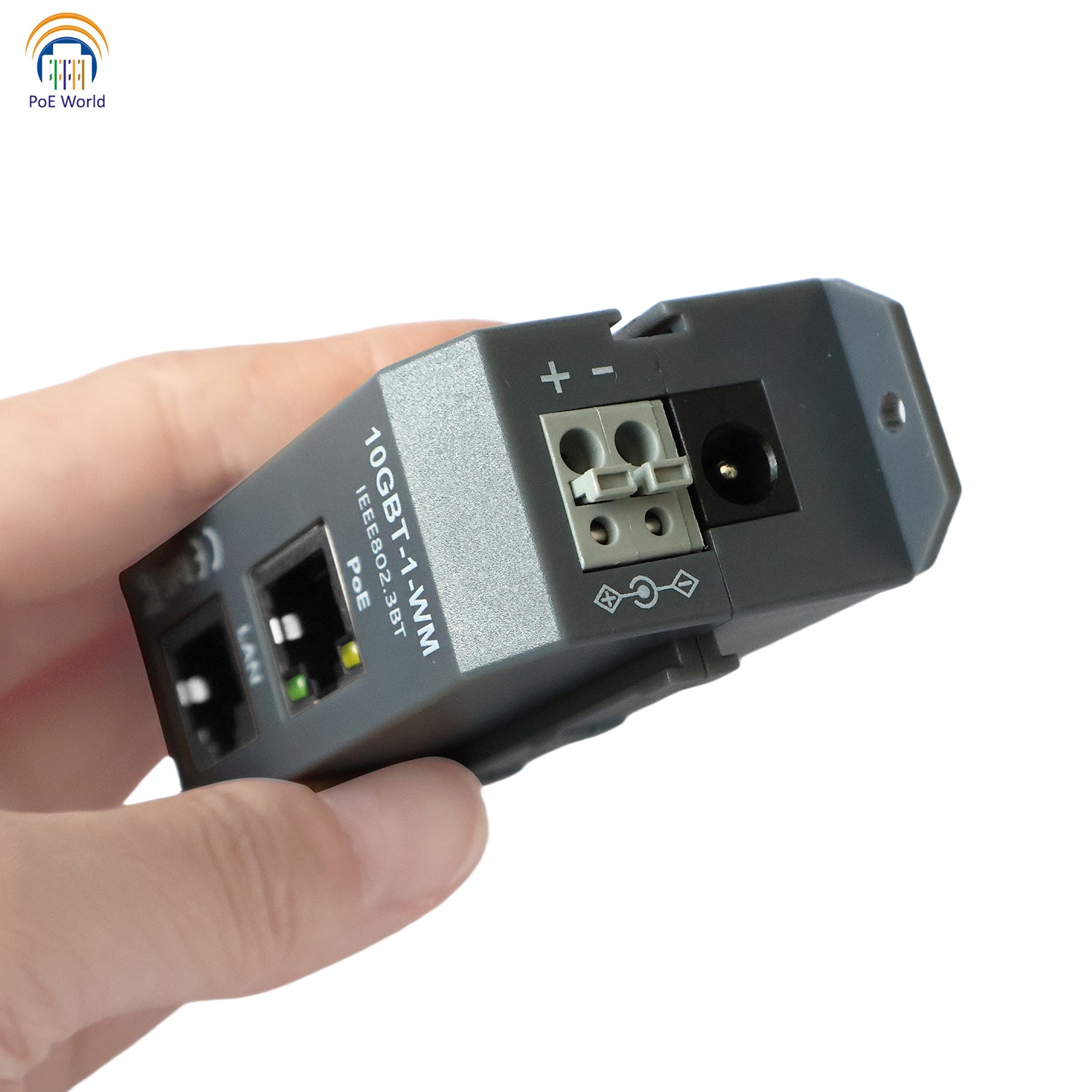

Power Input: Standard power connector - 2.1mm x 5.5mm
5.0 mm connector for awg 16-20 wire

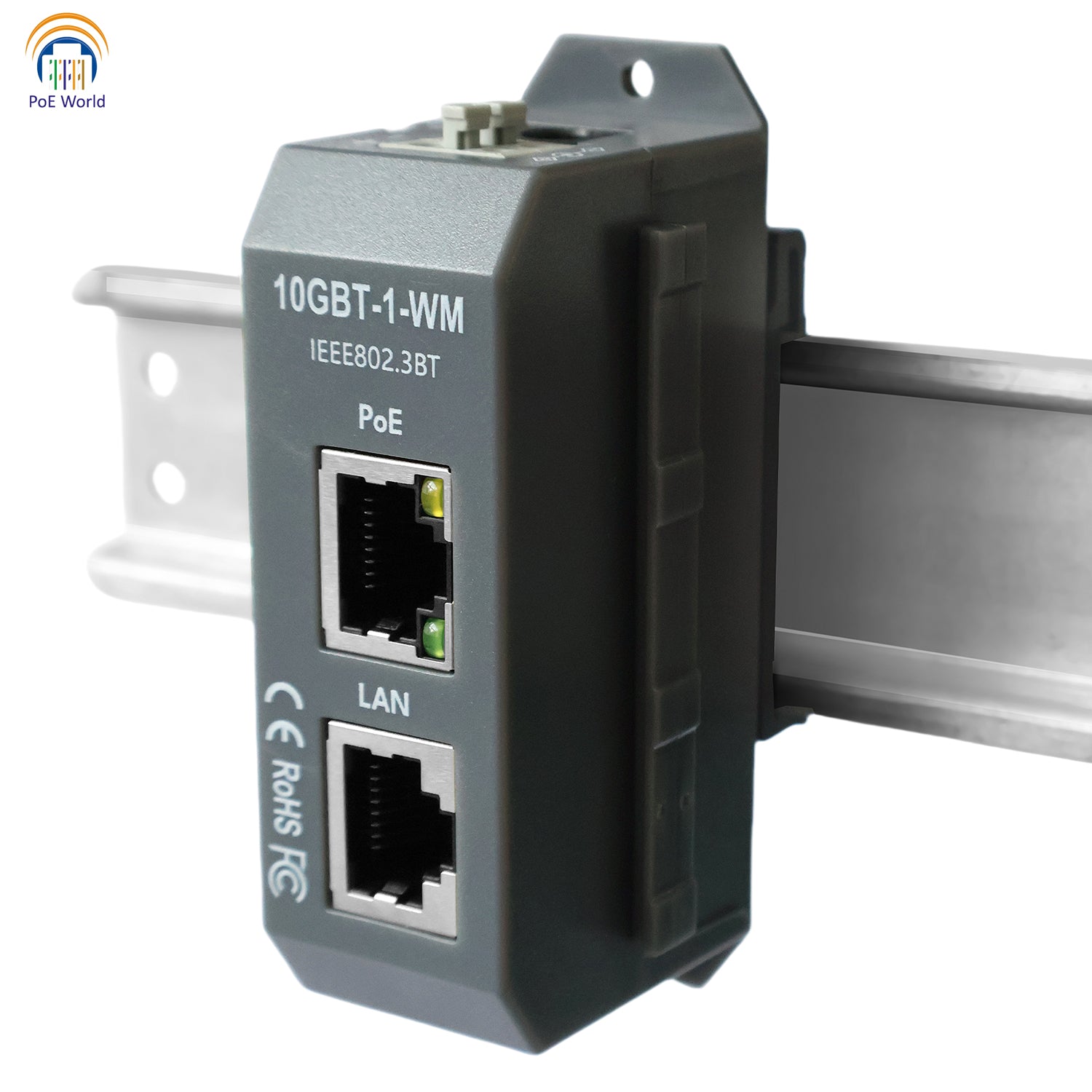

Mount Type: wall or DIN rail mounting
Operating Humidity: 5% to 90%
Operating Temperature Range: 0 - 50 Deg C
Weight:100g
Power Supply: Not included – use with 48–57V DC adapters
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
