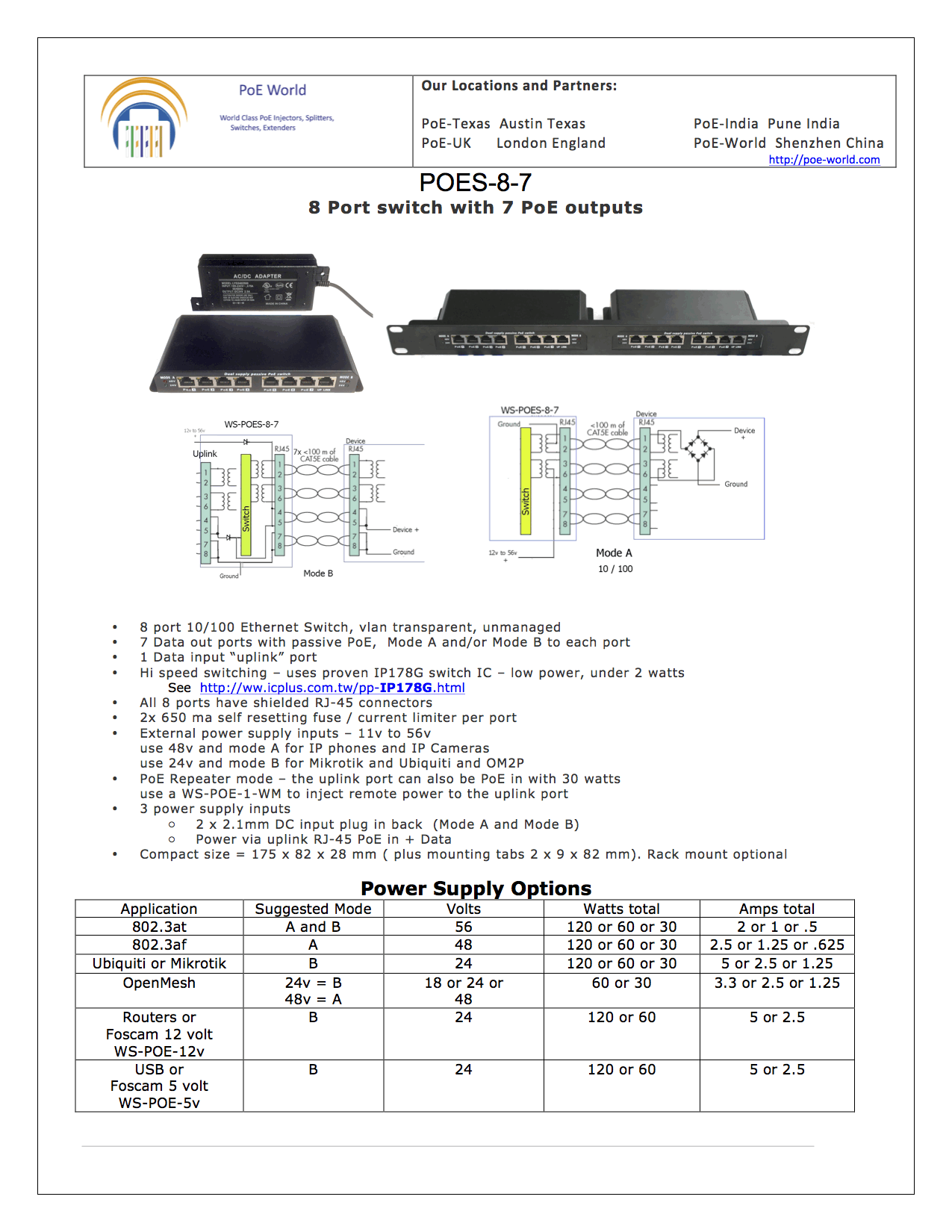

POES-8-7 Passive PoE Switch 100mbps Data Speed with 1 Uplink and 7 PoE Port - Power Supply Not Included
POES-8-7 Passive PoE Switch 100mbps Data Speed with 1 Uplink and 7 PoE Port - Power Supply Not Included
Couldn't load pickup availability

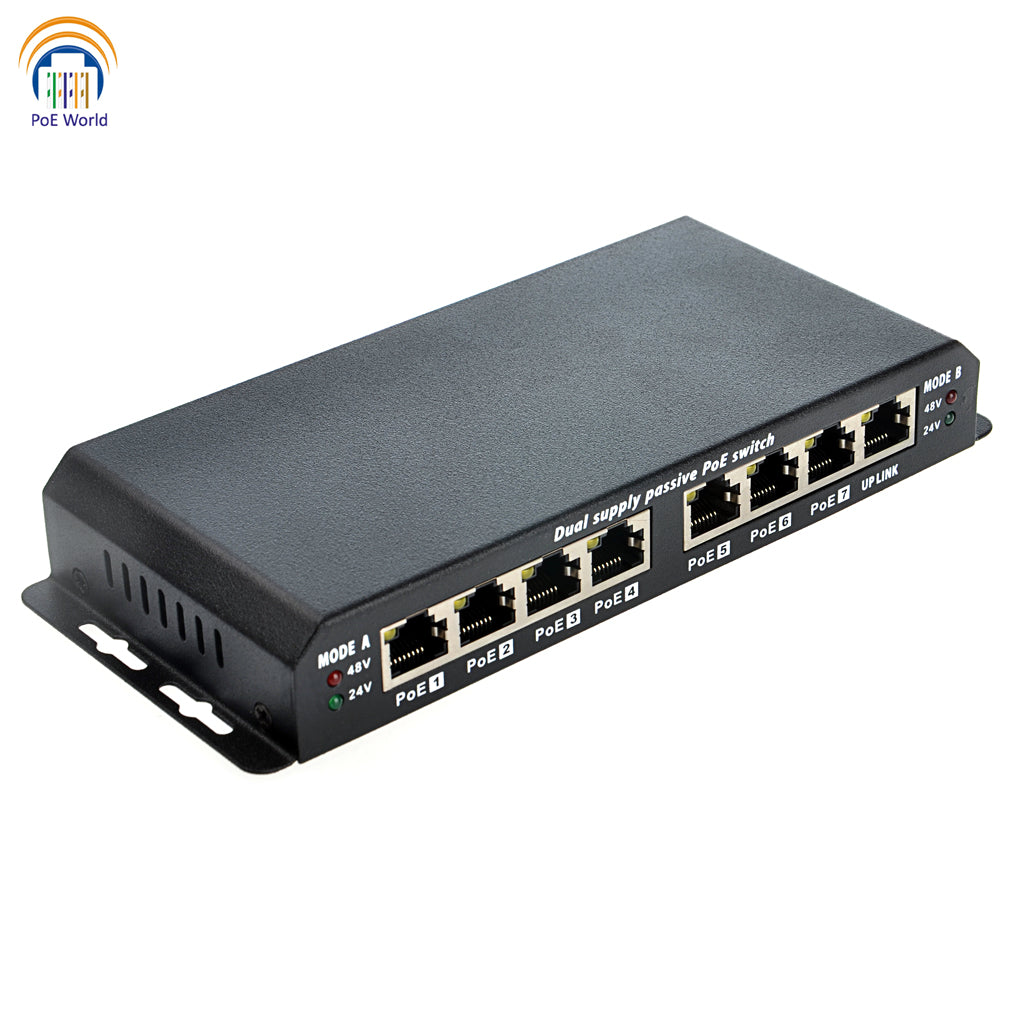

8 port unmanaged PoE switch for 802.3af or any 24 volt device - power supply NOT included

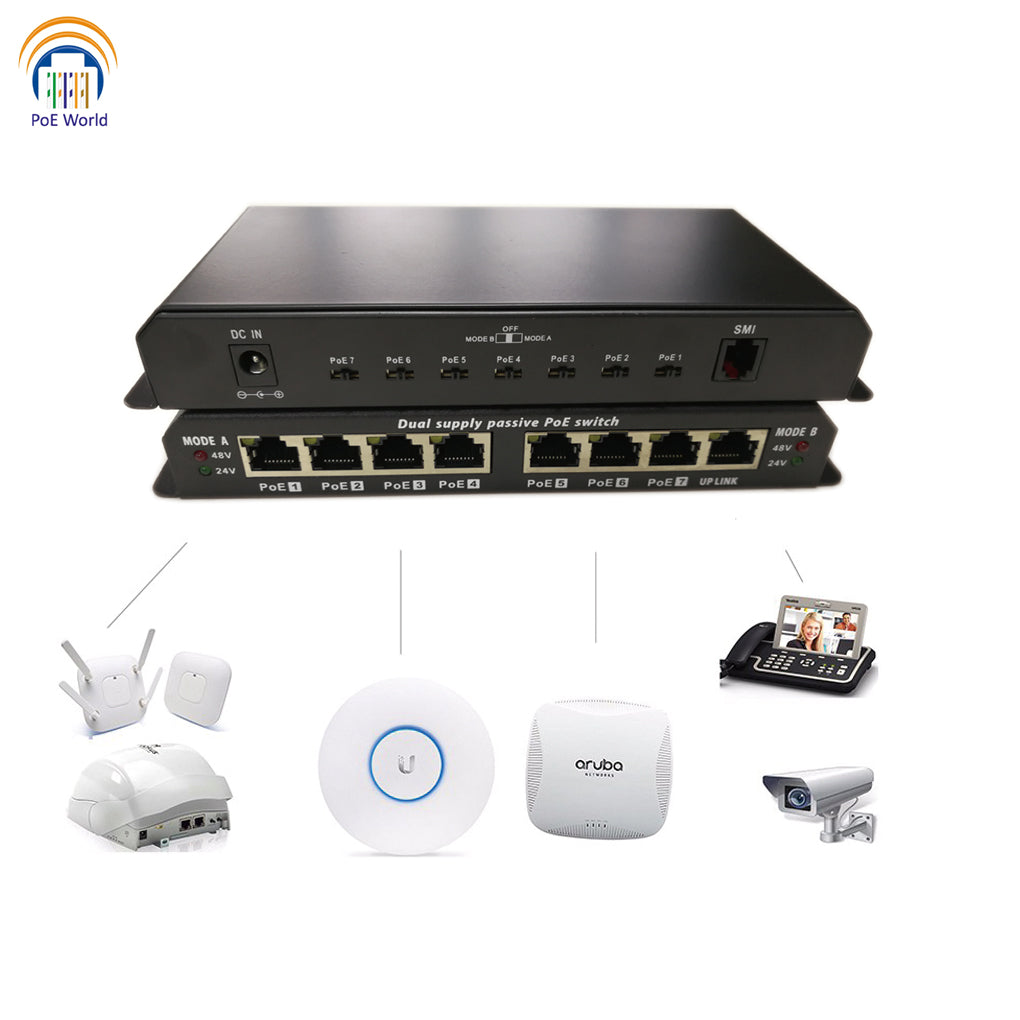

This 8 port unmanaged PoE switch that allows for 10/100 data speed. This switch operates on mode A or B and can be used to power PoE cameras, IP phones, and access points. This device powers 802.3af devices passively and power is “always on”.
Features:
- Wall mount
- 802.3af/at compatible - use with either 48v or 56v power supply
- To power 24v devices (Mikrotik and Ubiquiti) use 12v, 18v, or 24v power supply
- Provides Power over Ethernet to any device (standard and non-standard)
- 10/100 data speed
- 1 data input "uplink" port
- Shielded RJ45 connectors on each port
- Hi speed switching
- LED status indicator

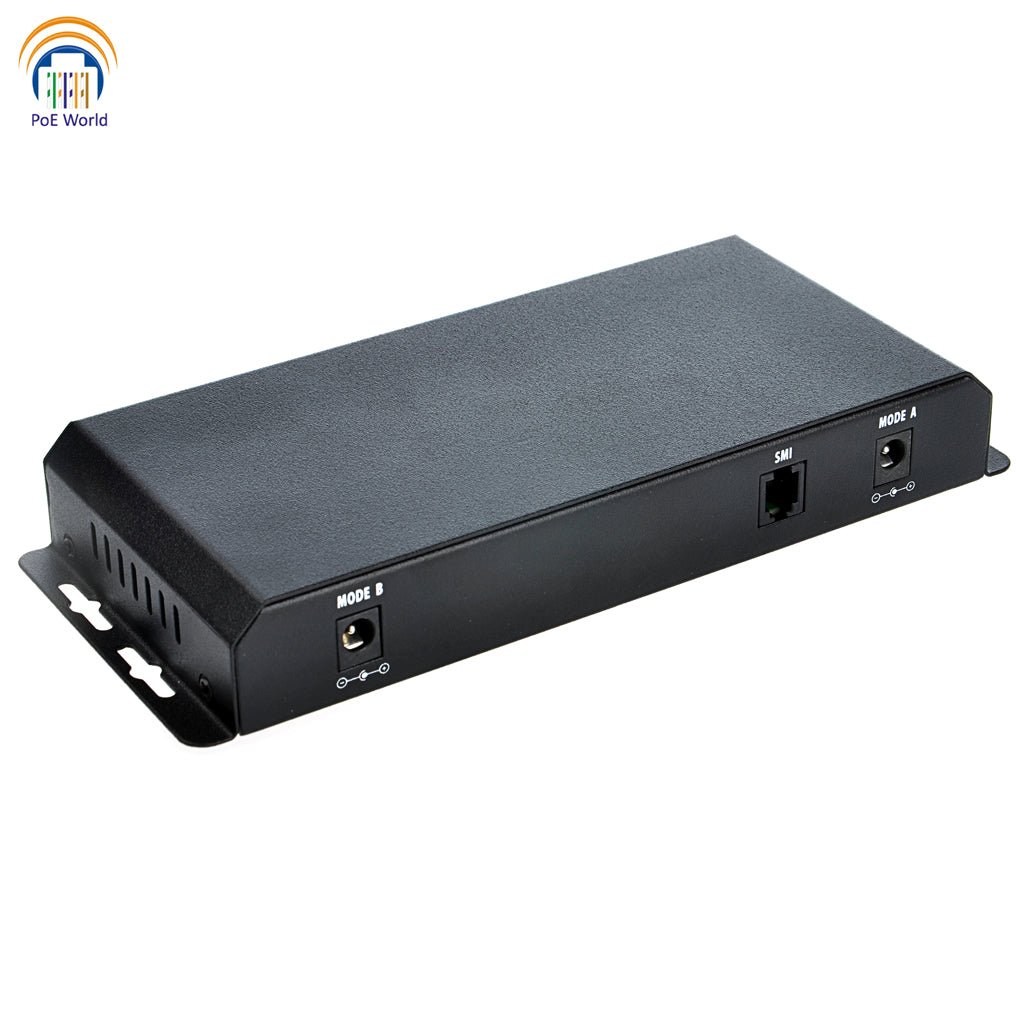

- 2 x 2.1mm DC plug
- Mode A operation: 1&2 (-) and 3&6 (+)
- Mode B operation (use with Mode B only): 4&5 (+) and 7&8 (-)
- 650 ma automatic resettable fuses on each port
- Operating temperature: 0°C ~ 65°C
Product Specifications:
- Size: 95 x 82 x 26 mm
- Weight: 15 ounces
Lean about the Rack-Mount Case for 2pcs poe switch: POES-Rack-Mount
Other Options:
- Gigabit option available
- Use with any 30, 60, or 120 watt power supply
Similar Products:
- GPOE-8-7
- GPOE-8-7-24v60w
- GPOE-8-7-24v120w
- GPOE-8-7-48v60w
- GPOE-8-7-48v120w
- GPOE-8-7-56v120w
- POE-8-7-19.5v60w
- POE-8-7-24v60w
- POE-8-7-24v120w
- POE-8-7-48v60w
- POE-8-7-48v120w
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
