POE-8-48v60w 8 Port 10/100, Passive Mode B PoE Injector, Rack Mount POE Midspan Injector with 48 Volt 60 Watt Power Supply

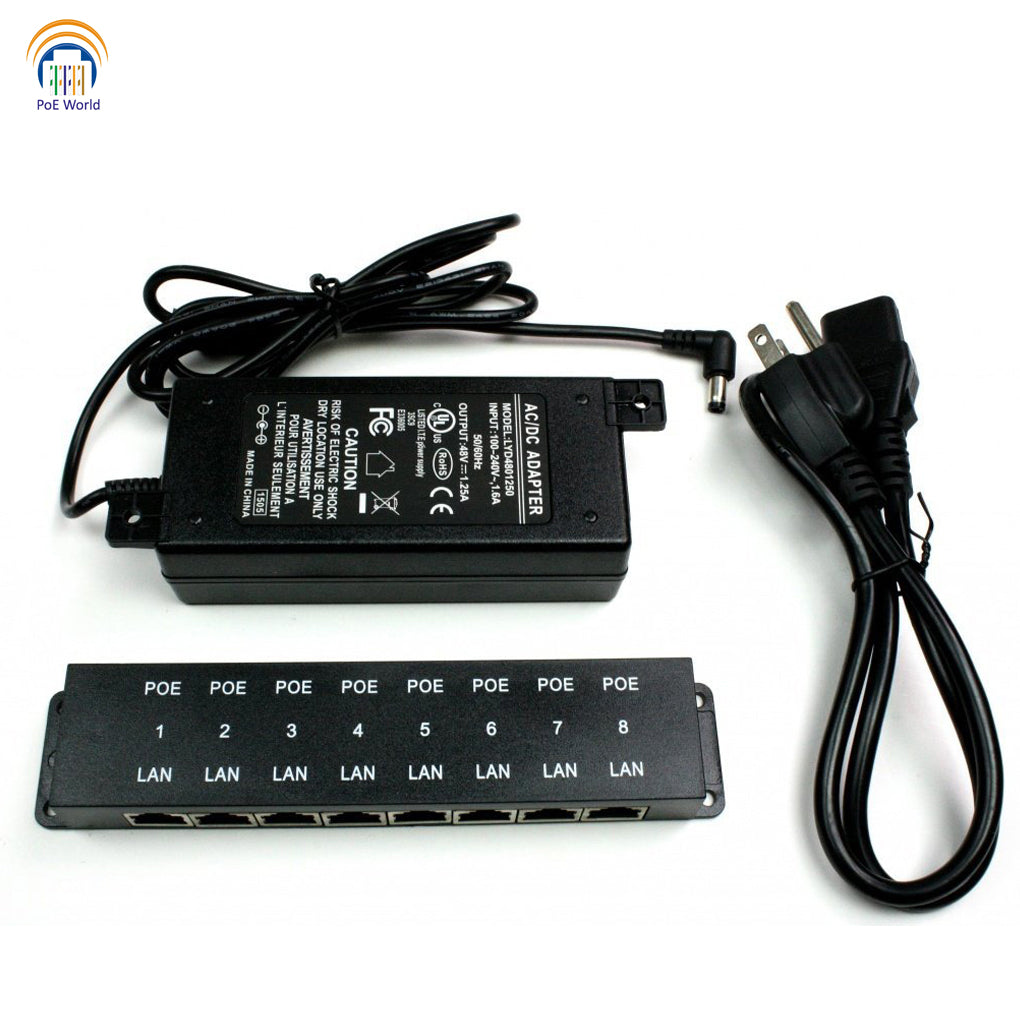

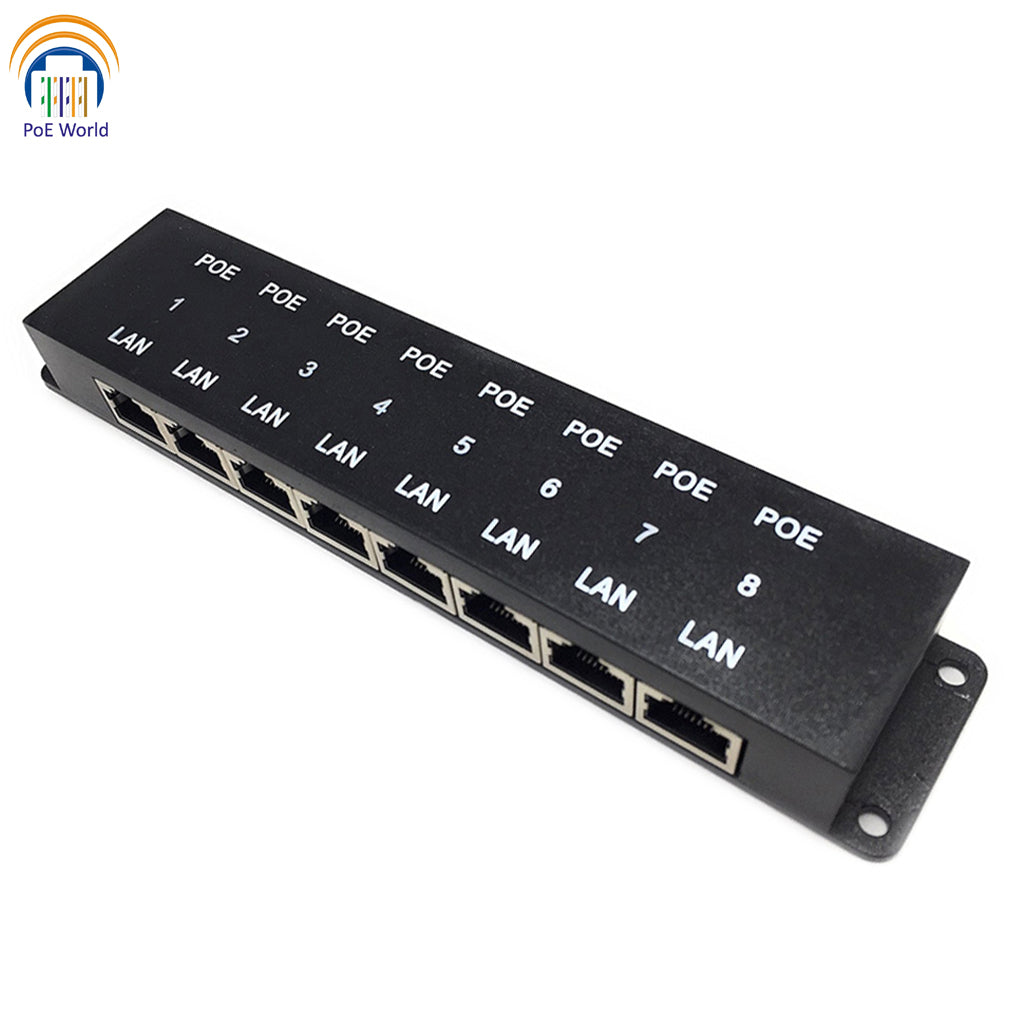

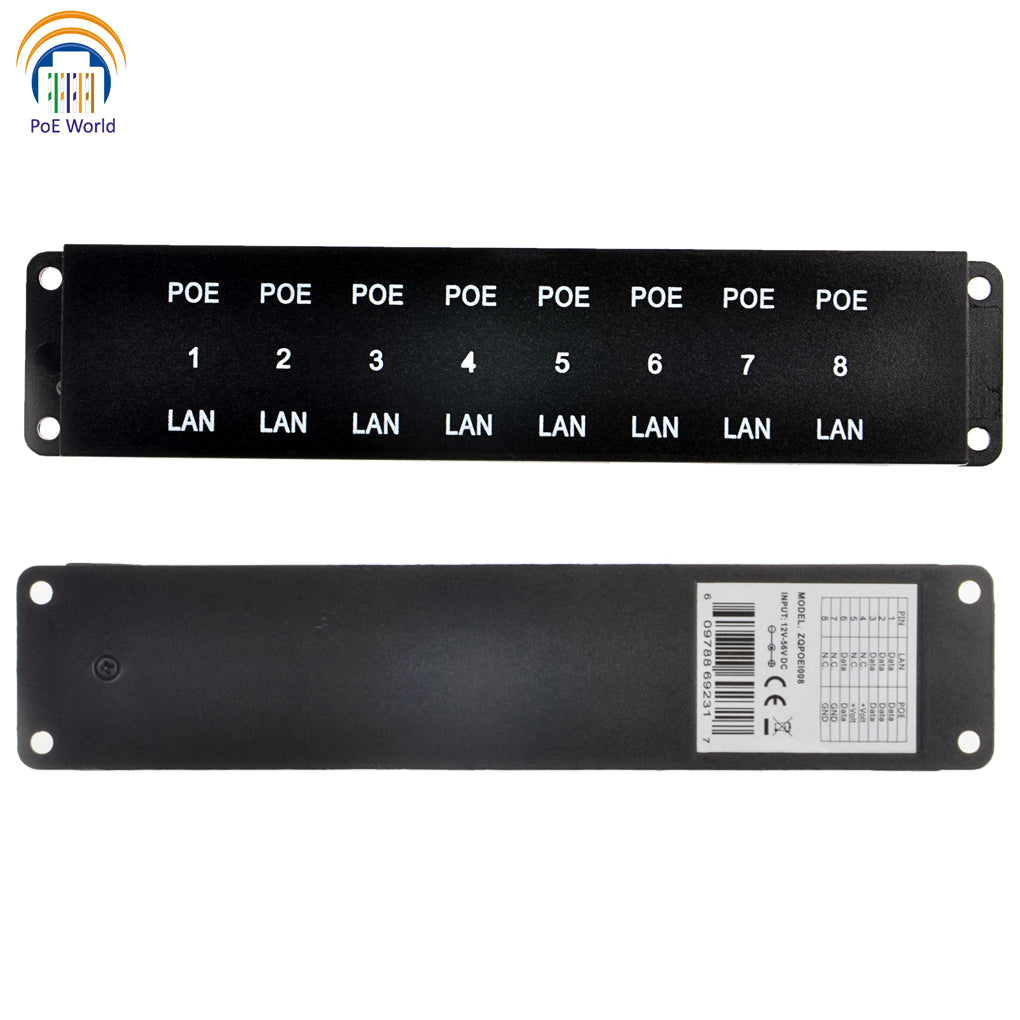

8 port wall mount PoE injector with 48 volt 60 watt power supply

This midspan injector allows you to remotely power up to 8 devices up to 100 meters via a single ethernet cable. This injector comes with a 48 volt DC power supply to power 802.3af PoE devices. This injector operates on mode B and power is “always on”.

Features:

• Use with any PoE or non-PoE switch
• 802.3af compatible
• LED power display - green for 45 (+) and 78 (-) and red for reverse polarity
• Wall mount
• 10/100 data speed
• 48 volts and 60 watts power supply
• Power is distributed equally among each port
• 2.1mm x 5.5mm DC plug
• Quiet operation - no fan or cooling required
• Operating temperature: 0°C ~ 50°C
• Humidity range: 5% to 90% non-condensing

Product Specifications:

• Size: 177.8 x 38.1 x 25.4 mm
• Weight: 19 ounces

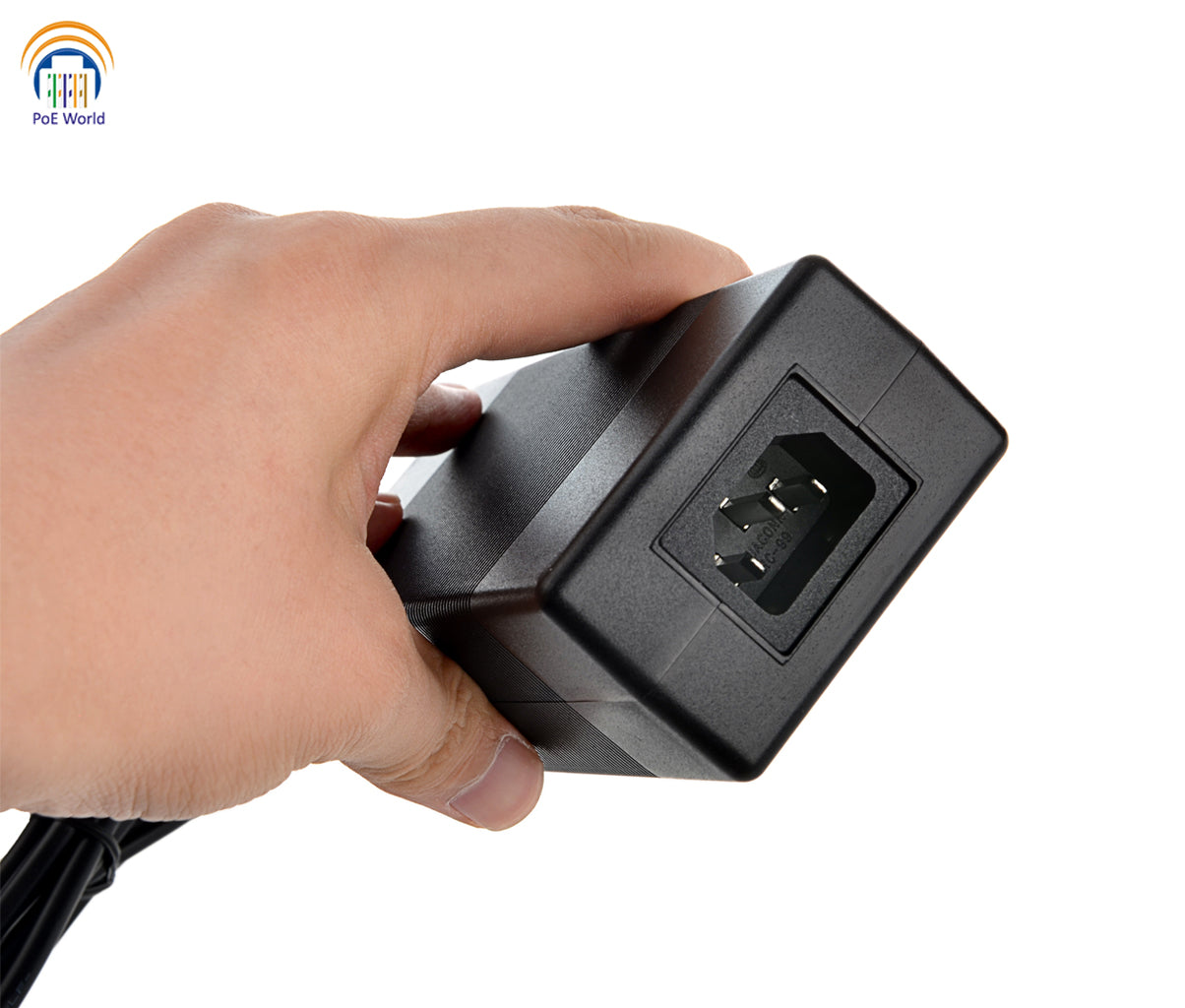

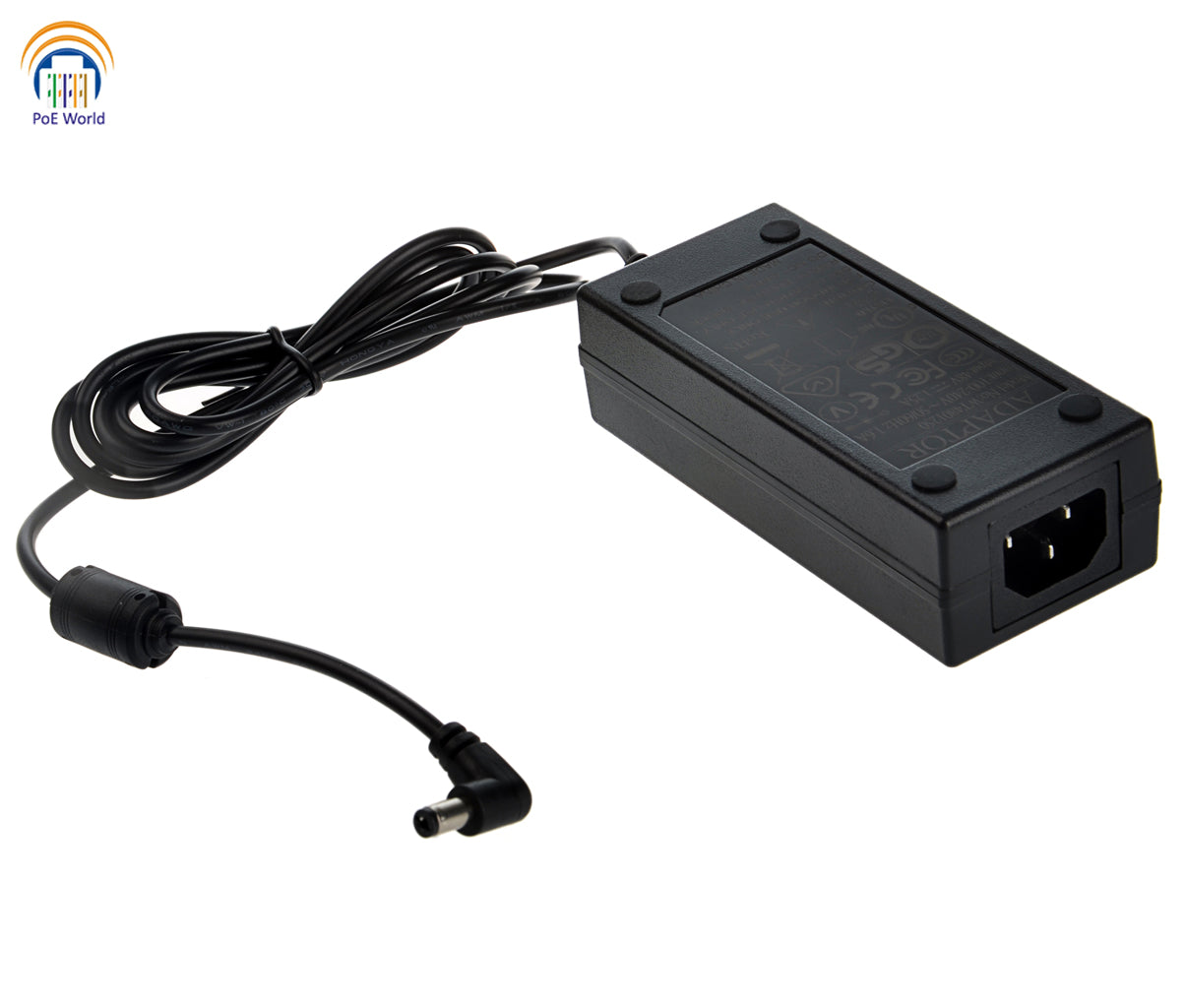

Power Supply Specifications:

• 48 Volt 1.25 Amps 60 Watt
• Operating temperature: -10°C ~ 60°C
• Storage temperature: -20°C ~ 85°C
• Operating humidity: 5% to 90% non-condensing
• UL, FCC, DoE listed
• C13 prong grounded AC connector
• AC input: 50/60h
• Class II - fully isolated

Other Options:

• Gigabit options available
• 4, 6, and 12 port Gigabit injectors
• 8 and 12 port 100mb/s injectors

Similar Products:

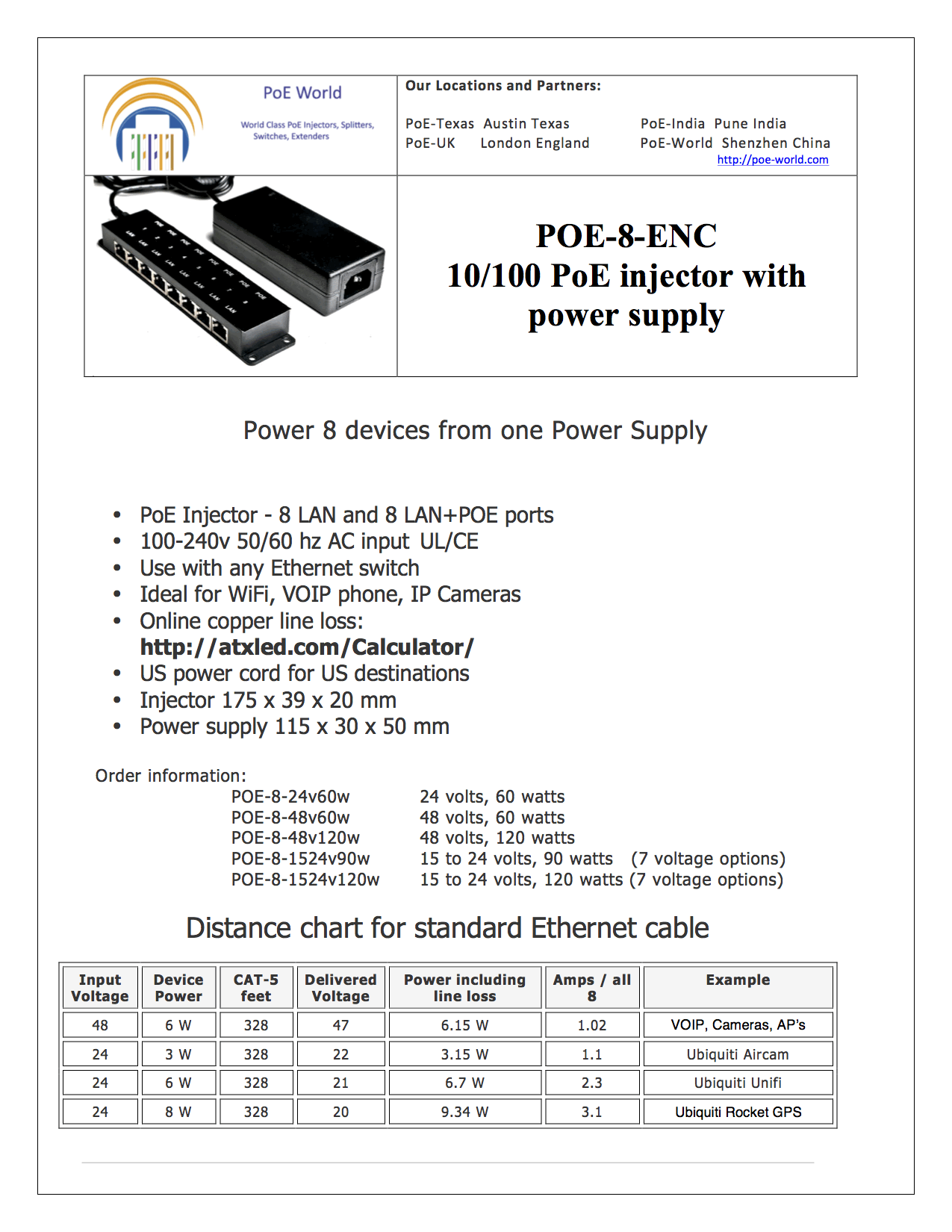

• POE-8-ENC
