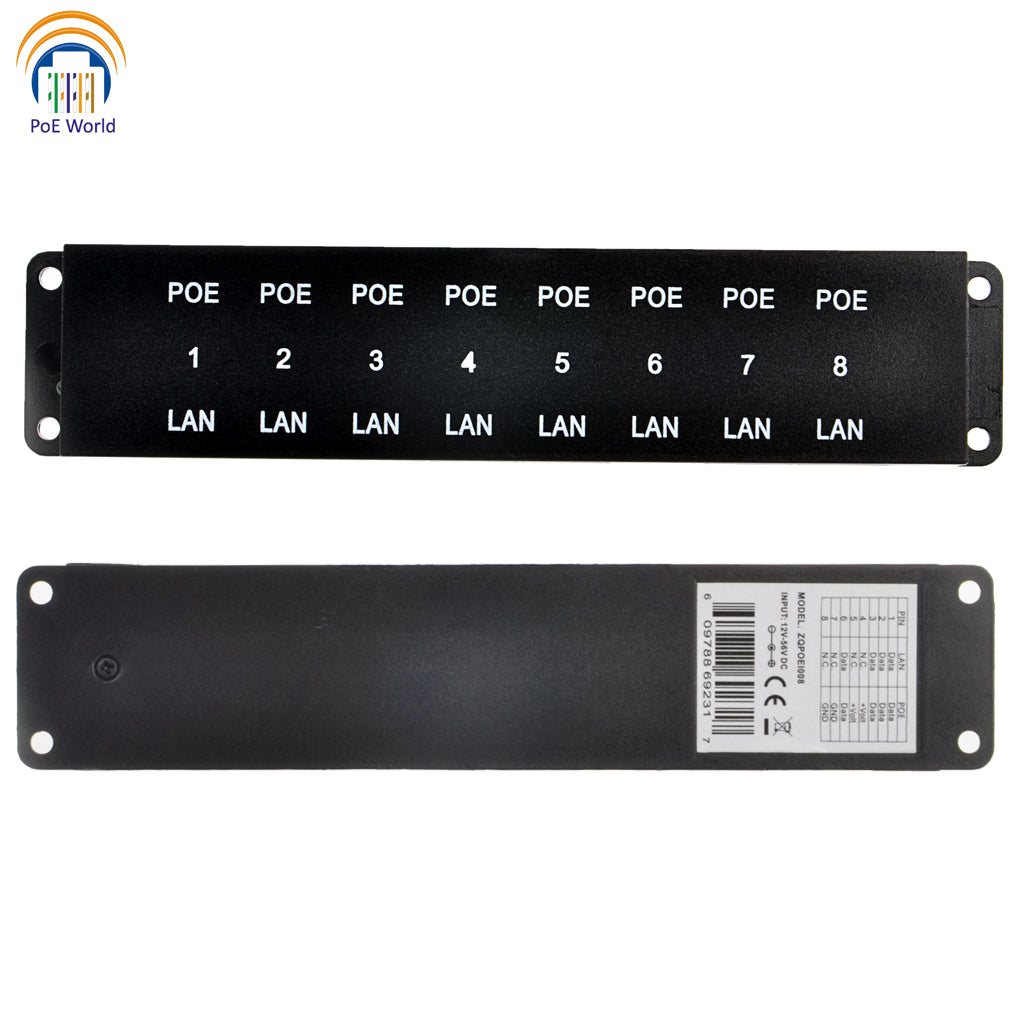

POE-8-48v120w 8 Port PoE Injector, 10/100mbps Data Speed, Mode B Operation, with 48 Volt 2.5 Amps 120 Watt Power Supply

POE-8-48v120w 8 Port PoE Injector, 10/100mbps Data Speed, Mode B Operation, with 48 Volt 2.5 Amps 120 Watt Power Supply

Regular price €66,95 EUR
Regular price Sale price €66,95 EUR
Sale Sold out
Shipping calculated at checkout.

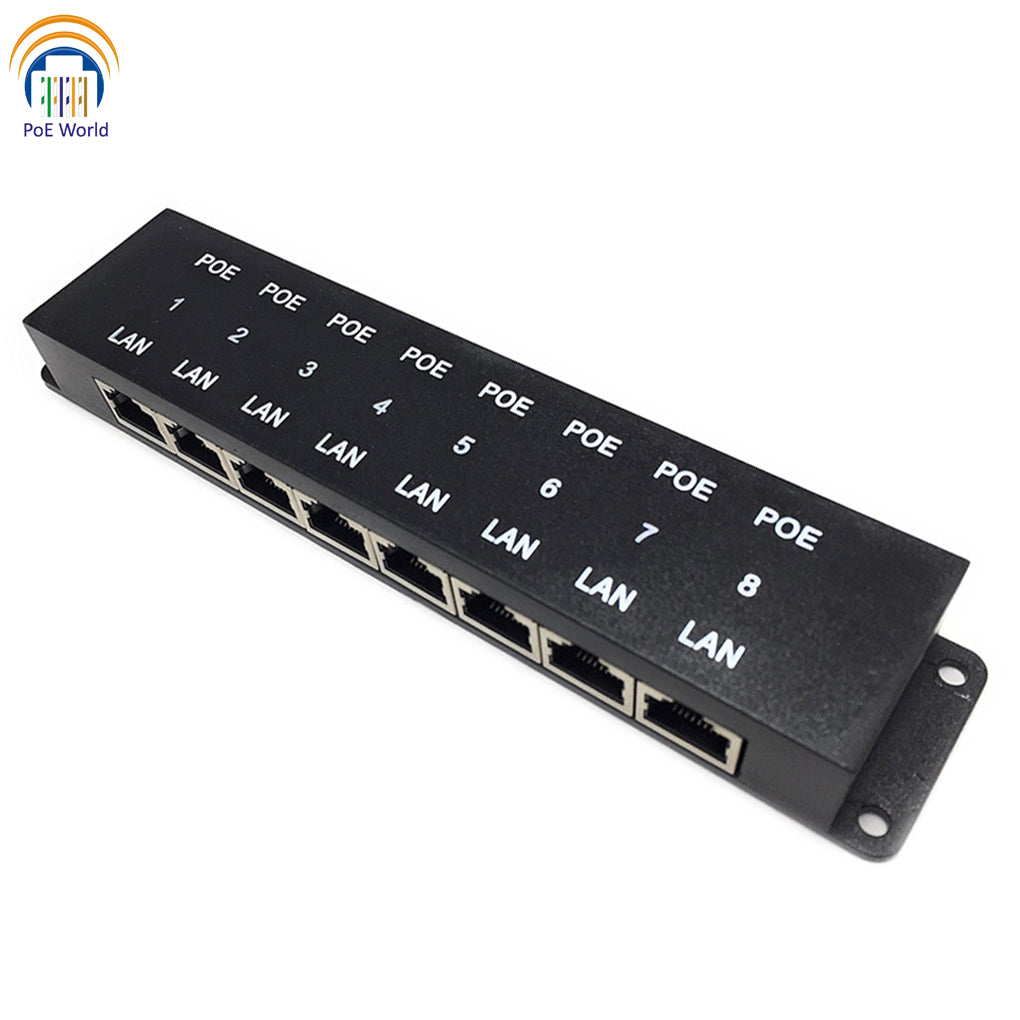

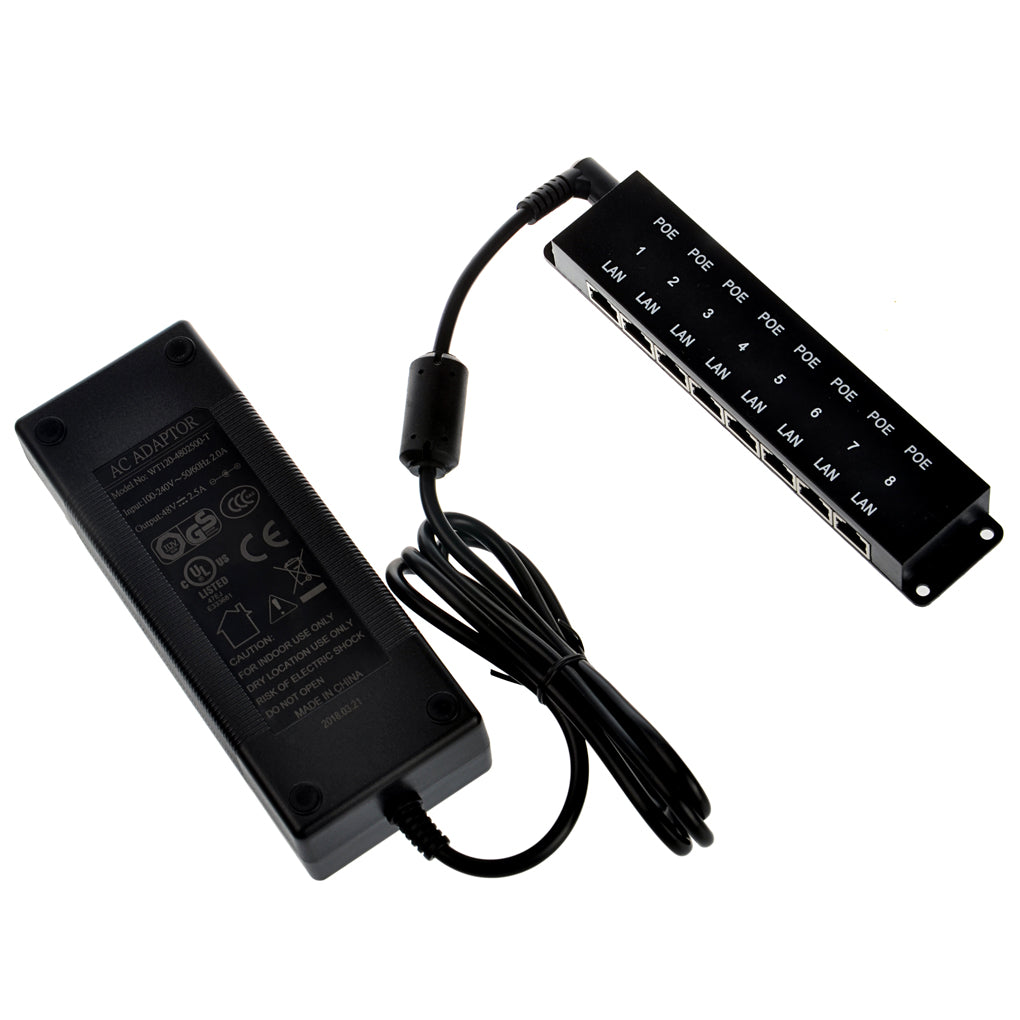

8 port wall mount PoE injector with 48 volt 120 watt power supply

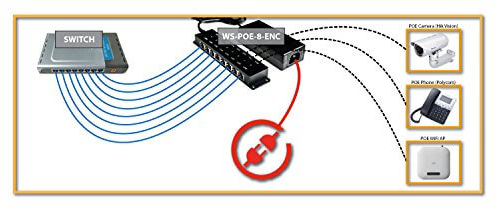

This midspan injector allows you to remotely power up to 8 devices up to 100 meters via a single ethernet cable. This injector comes with a 48 volt DC power supply to power 802.3af PoE devices, such as IP security cameras, phones, wireless access points and other devices. This injector operates on mode B and power is “always on”.

Features:

  • Use with any PoE or non-PoE switch
  • 802.3af compatible
  • LED power display - green for 45 (+) and 78 (-) and red for reverse polarity
  • Wall mount
  • 10/100 data speed
  • Use with 30, 60, or 120 watt power supply
  • 48 volts and 120 watts of power
  • Power is distributed equally among each port
  • 2.1mm x 5.5mm DC plug
  • Quiet operation - no fan or cooling required
  • Operating temperature: 0°C ~ 50°C
  • Humidity range: 5% to 90% non-condensing

Product Specifications:

  • Size: 177.8 x 38.1 x 25.4 mm
  • Weight: 31 ounces

Power Supply Specifications:

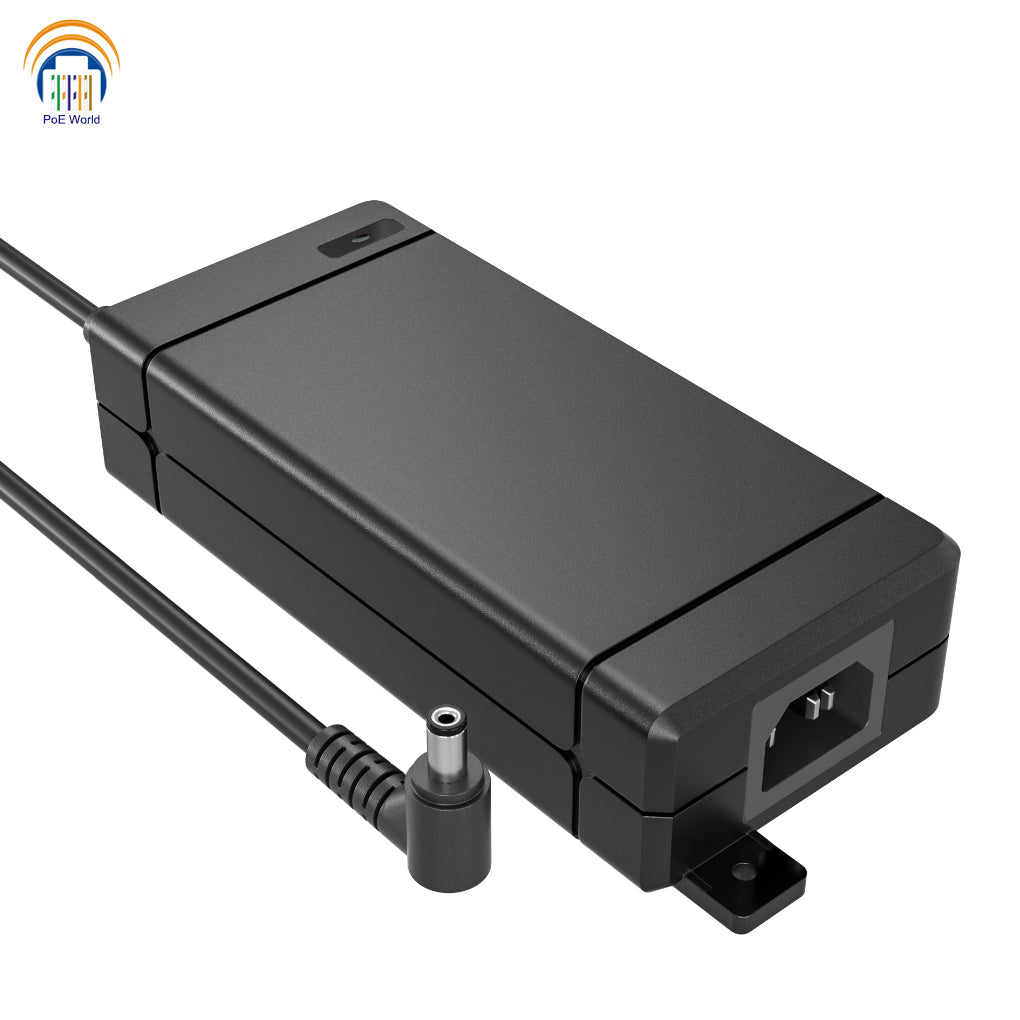

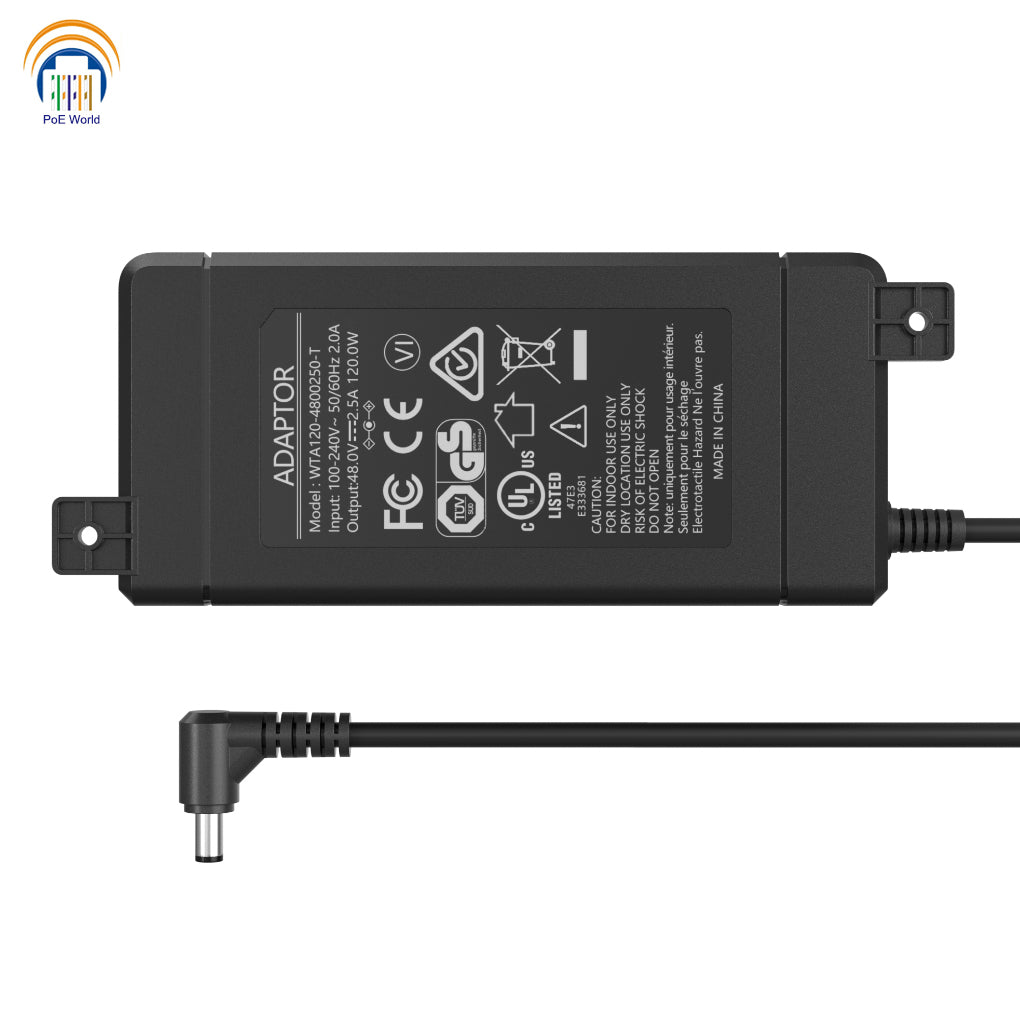

  •  48 Volt 2.5 Amps 120 Watt Power Supply
  • Operating temperature: -10°C ~ 60°C
  • Storage temperature: -20°C ~ 85°C
  • Operating humidity: 5% to 90% non-condensing
  • UL, FCC, DoE listed
  • C13 prong grounded AC connector
  • AC input: 50/60h
  • Class II - fully isolated

Other Options:

  • Gigabit options available
  • 4, 6, and 12 port Gigabit injectors
  • 8 and 12 port 100mb/s injectors

Similar Products:

  • POE-8-ENC
  • POE-12v-60w
  • POE-24v30w
  • POE-24v60w
  • POE-24v120w
  • POE-48v30w
  • POE-48v60w
