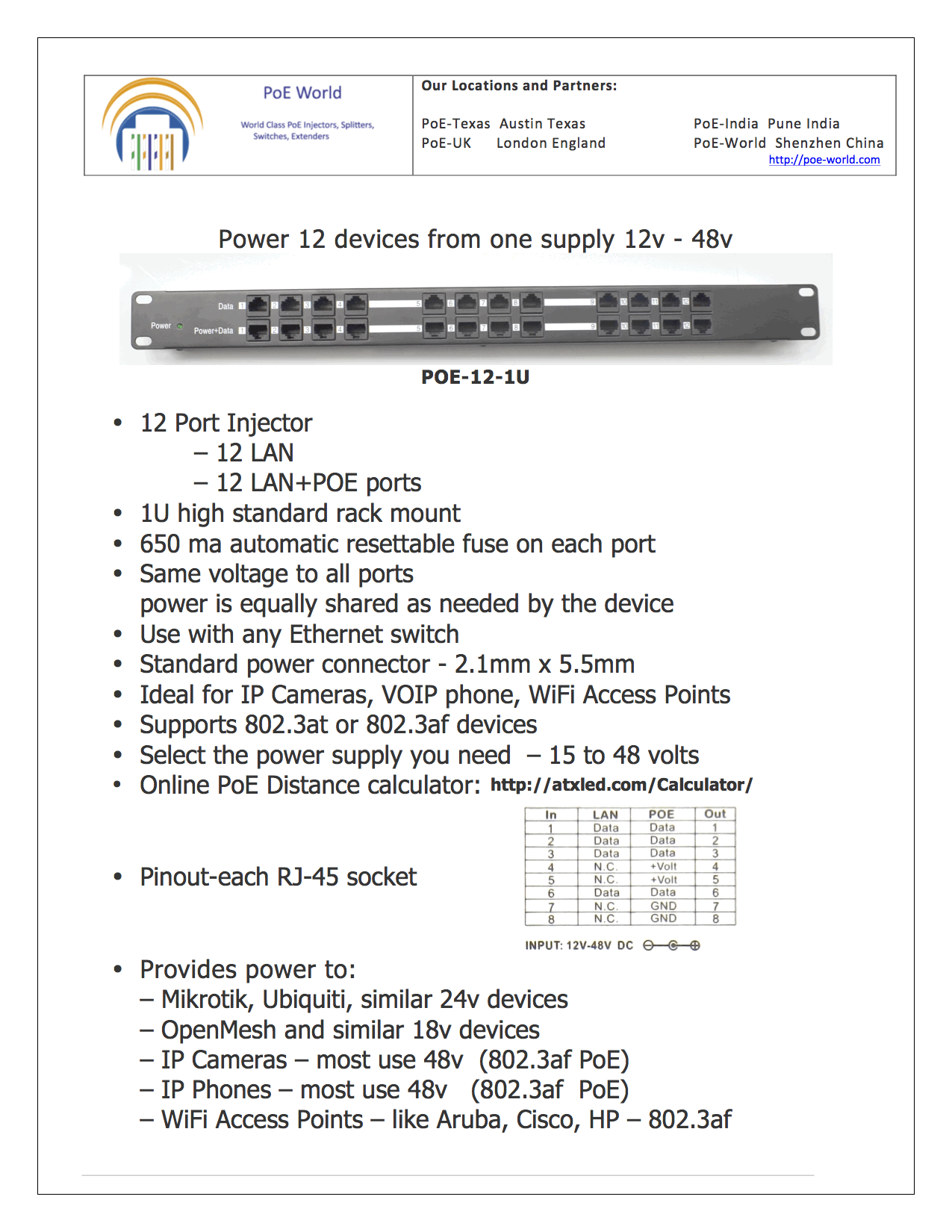

POE-12-1U 12 Port Passive PoE Injector 100mmbps Data Speed 802.3af Power Over Etherenet Patch Panel-Power Supply Not Included

POE-12-1U 12 Port Passive PoE Injector 100mmbps Data Speed 802.3af Power Over Etherenet Patch Panel-Power Supply Not Included

Regular price €58,95 EUR
Regular price Sale price €58,95 EUR
Sale Sold out
Shipping calculated at checkout.

12 port PoE injector for 802.3af devices- power supply NOT included

This 12 port PoE injector that allows for 10/100 data speed on a switch. This injector operates on mode B and can be used to power PoE cameras, IP phones, and access points. This device powers 802.3af devices passively and power is “always on”.

This product is equivalent to the WS-POE-12-1U device.

Features:

  • Rack mount
  • Use with any PoE or non-PoE switch
  • 802.3af/at compatible
  • LED power display
  • 10/100 data speed
  • 2.1mm x 5.5mm DC plug
  • Mode B operation: 7&8 (-) and 4&5 (+)
  • 650 ma automatic resettable fuses on each port
  • Operating temperature: 0°C ~ 65°C

Product Specifications:

  • Size: 508 x 101.6 x 50.8 mm
  • Weight: 26 ounces

    Other Options:

    • 60 and 120 watt power supply
    • 24 and 48 volt power supply option available
    • 10/100/1000 option available
    • Injector kits also available

    Similar Products:

    • POE-12-24v60w
    • POE-12-24v120w
    • POE-12048v60w
    • POE-12-48v120w
    • GPOE-B-12-24v120w
    • GPOE-12-48v60w
    • GPOE-12-48v120w
      View full details

      Frequently Questions About POE

      What is "POE"?

      PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

      What is the difference between Mode A and Mode B?

      Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

      Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

      If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

      What does passive POE mean?

      Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

      Which power supply do I need?

      The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
