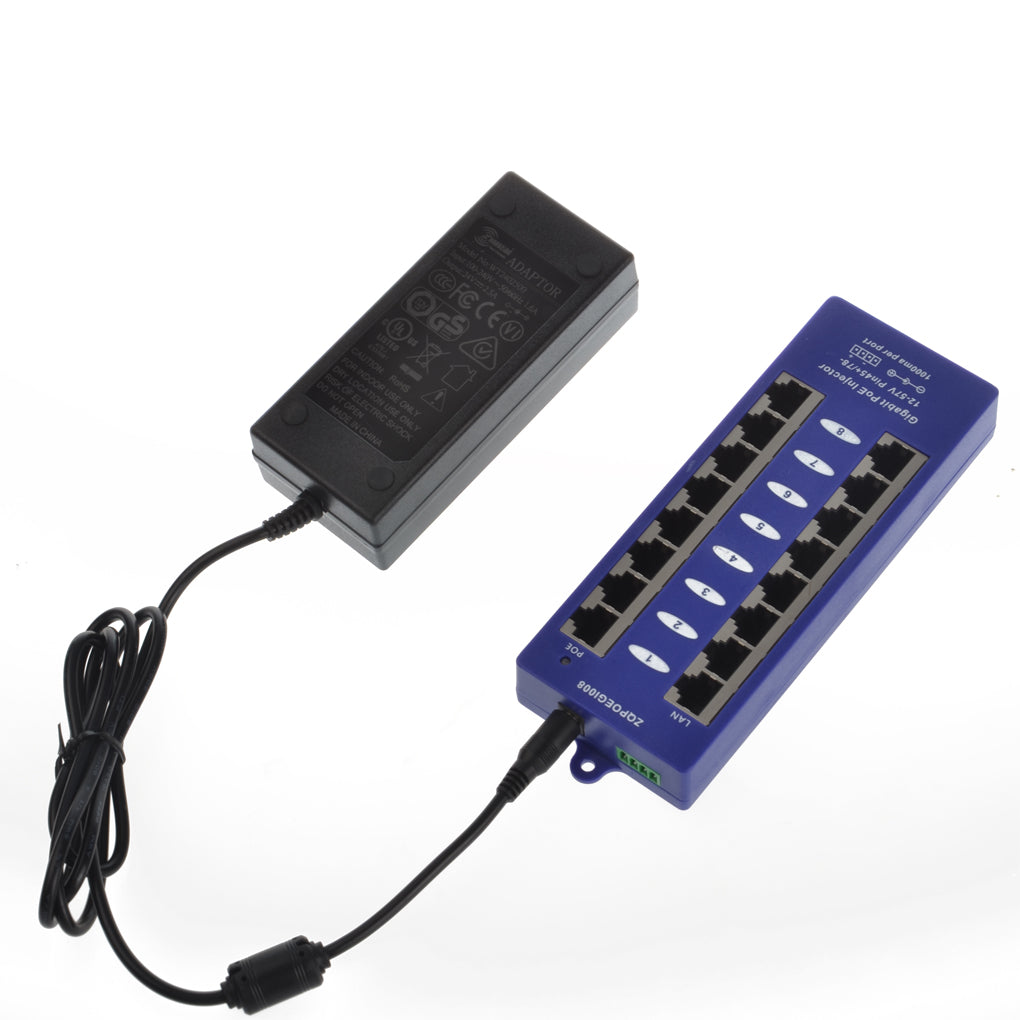

GPOE-8B Wall Mount 8 Port Gigabit PoE Injector Mode B Midspan Patch Panel with 24 Volt 60 Watt Power Supply for Option
GPOE-8B Wall Mount 8 Port Gigabit PoE Injector Mode B Midspan Patch Panel with 24 Volt 60 Watt Power Supply for Option
Couldn't load pickup availability

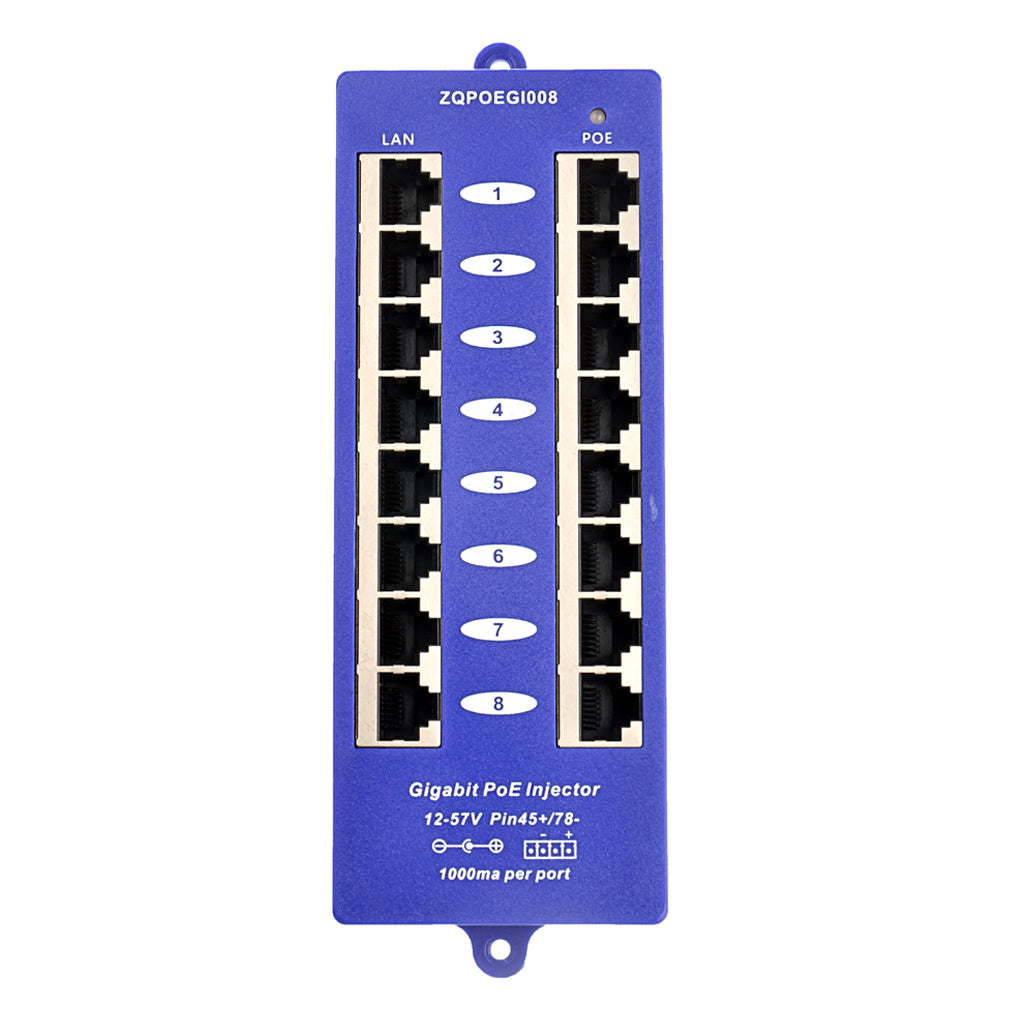

8 Port Gigabit PoE injector for 24 volt Mikrotik and Ubiquiti devices - see power supply option

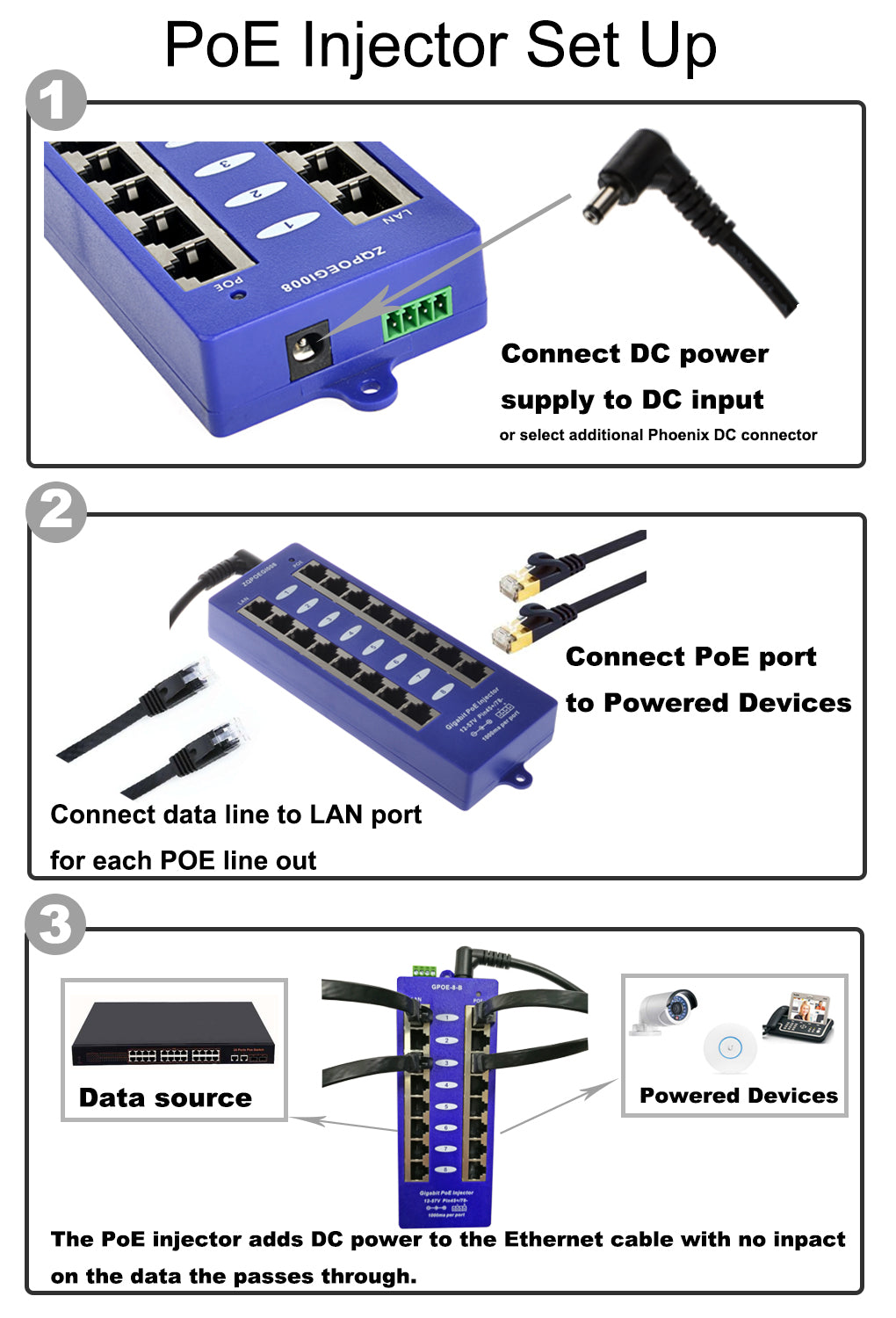

This 8 port Gigabit PoE injector allows for 10/100/1000 data speeds. Use with 24 volt power supply for Mikrotik and Ubiquiti devices. Power up to eight IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source.
Features:

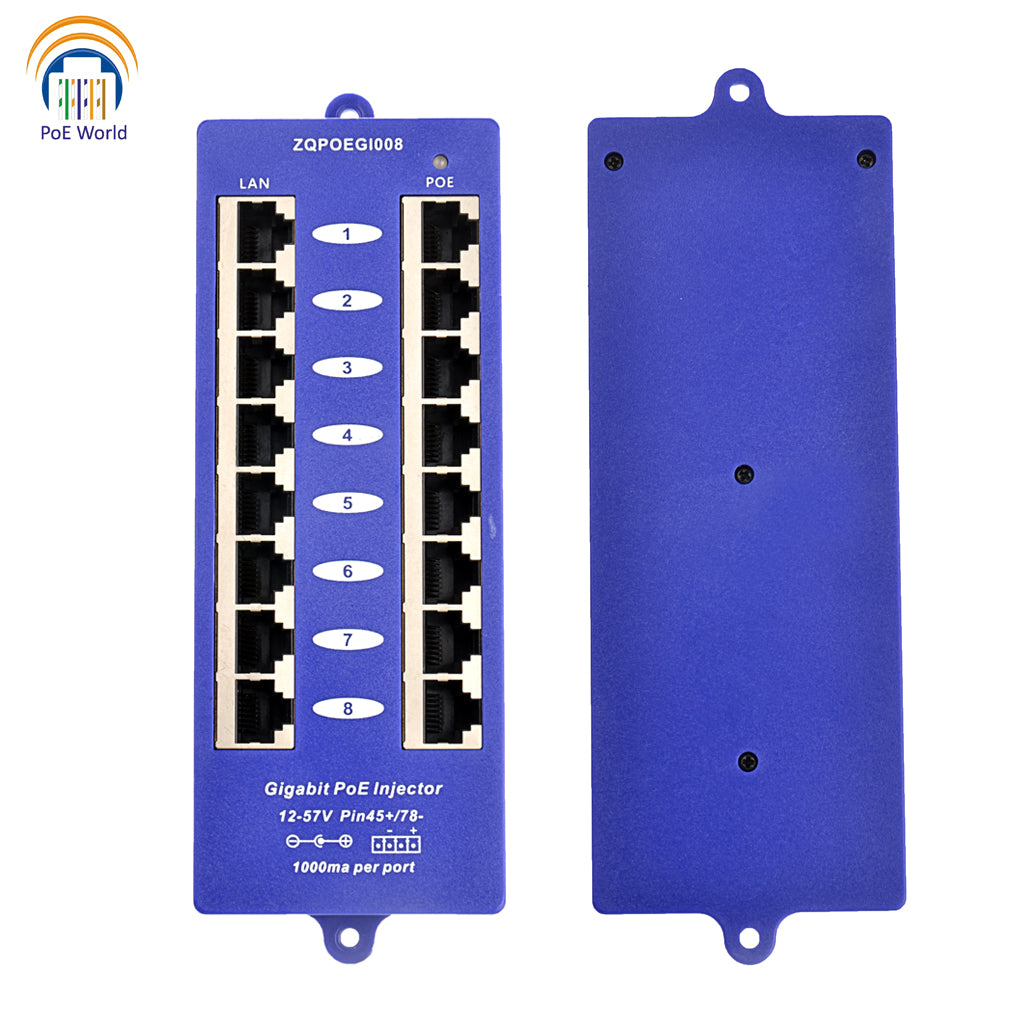

- Wall mount - stackable
- Use with any non-PoE switch
- 802.3af compatible
- LED power display - green for normal voltage and red for reverse polarity

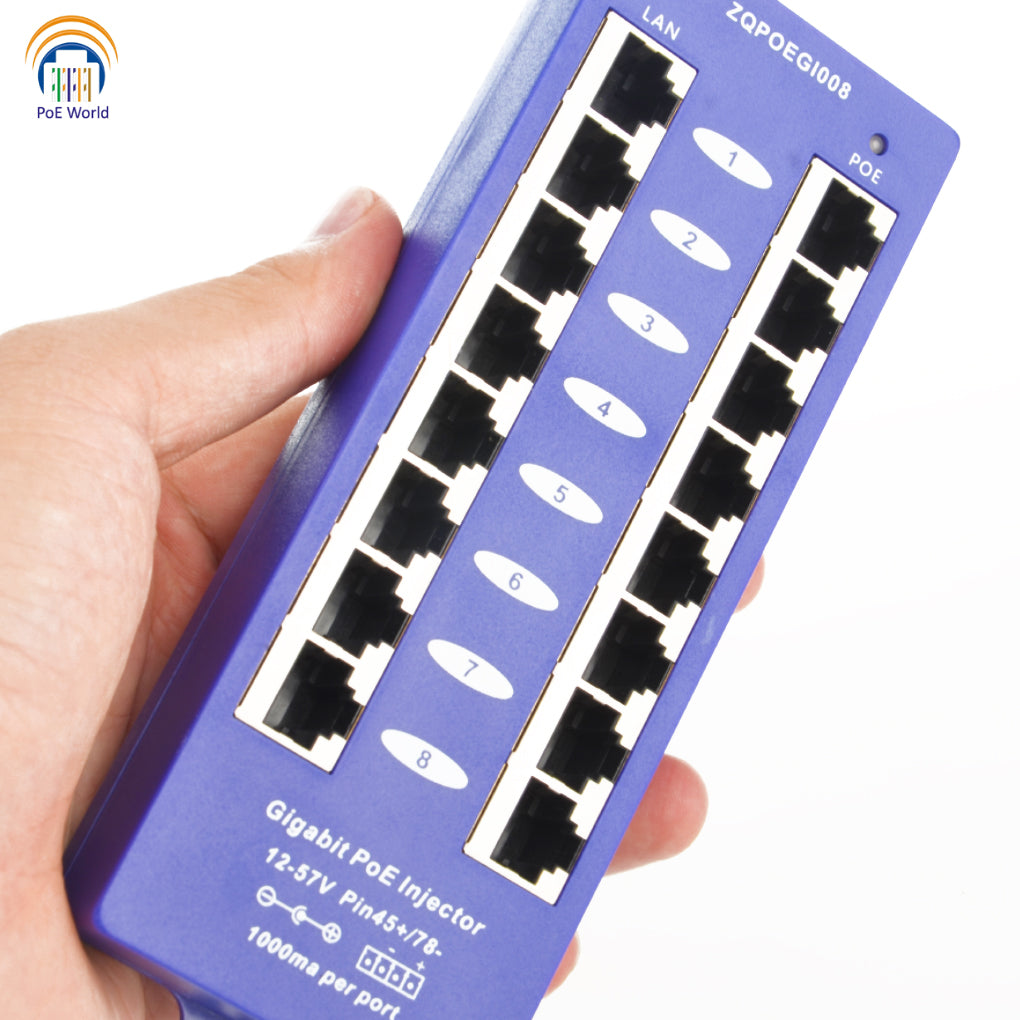

- 8 RJ45 jacks with data + power out
- 8 RJ45 jacks for data to the switch
- Each port is limited to 1 Amps
- 10/100/1000 data speed

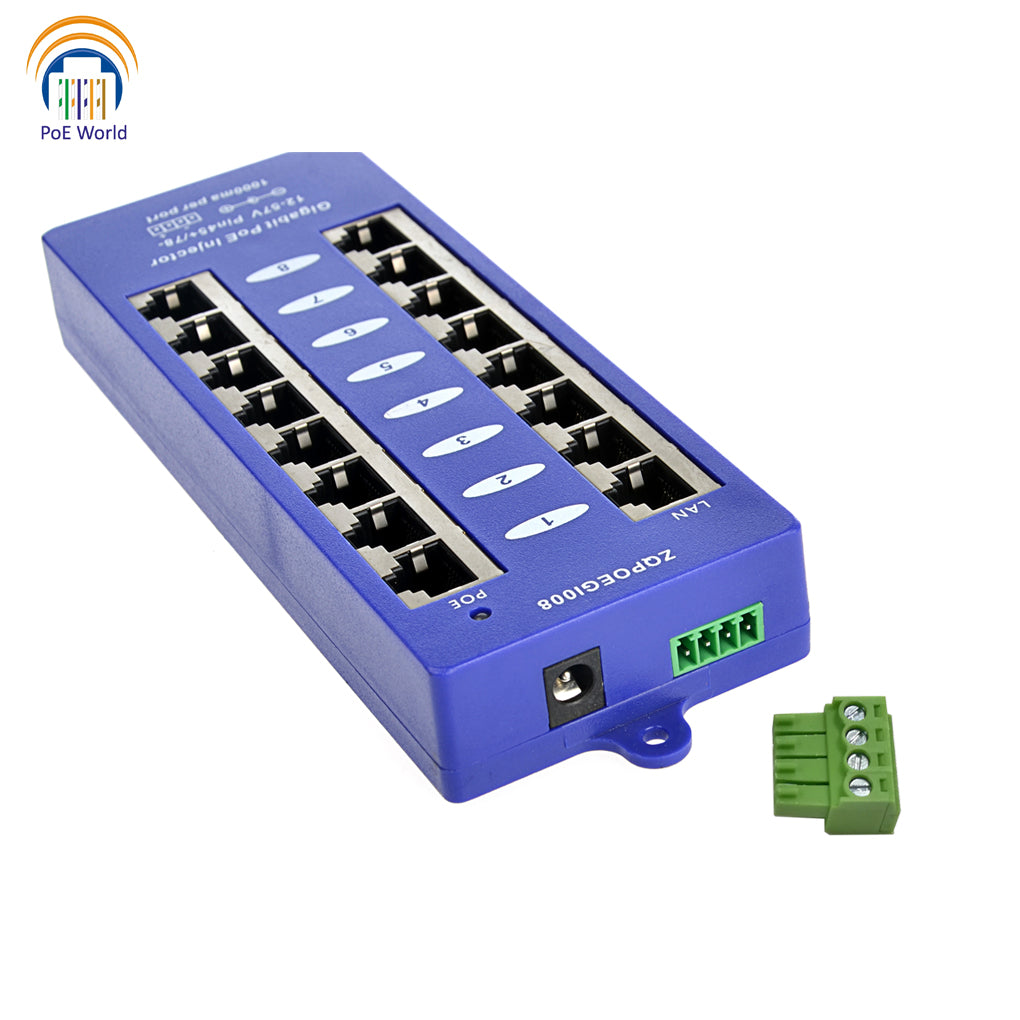

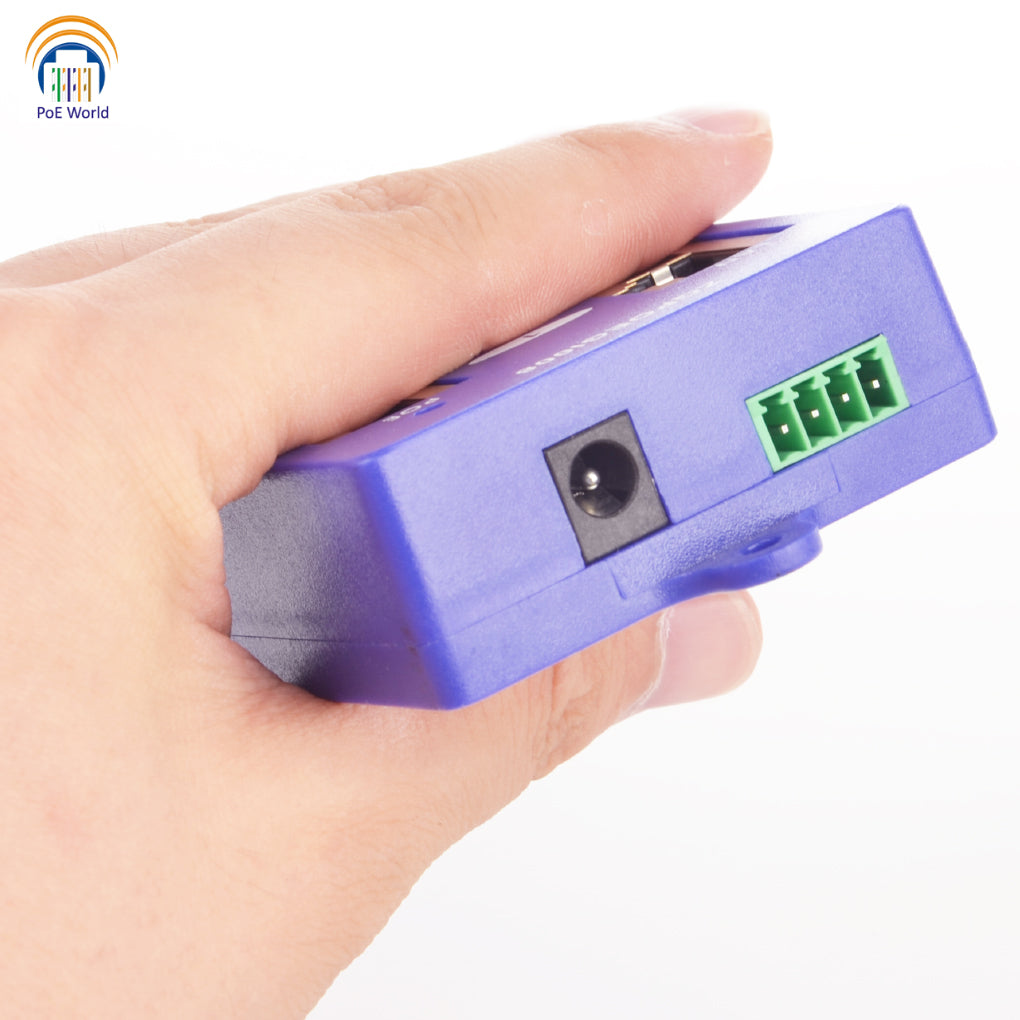

- 2.1mm x 5.5mm DC plug
- Mode B input pins: 4&5 (+) and 7&8 (-)
- Quiet operation - no fan or cooling required
- Operating temperature: 0°C ~ 65°C
Product Specifications:
- Size: 115 x 45 x 25 mm includes 10 mm tabs

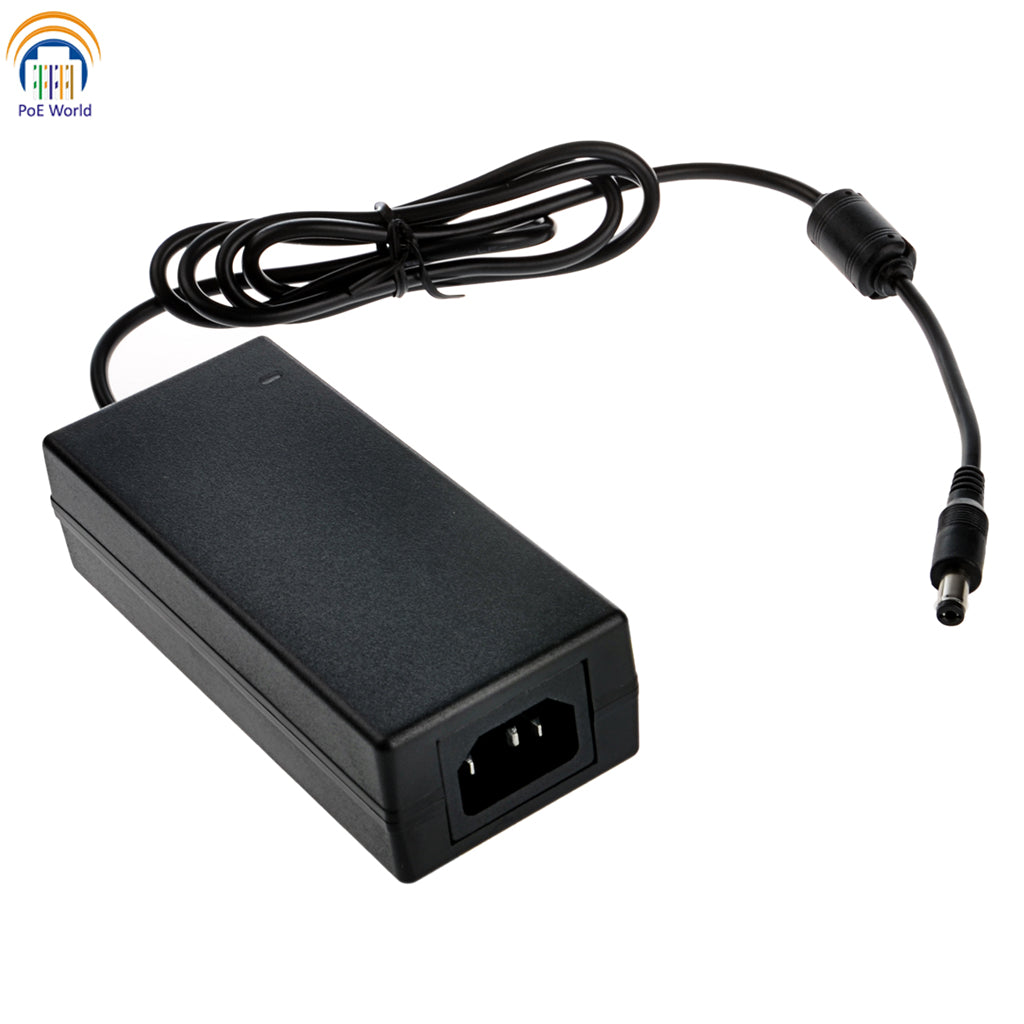

- Power supply size (not included): 122 x 53 x 34 mm
- Weight: 5 ounces
Other Options:
- 4 port option available
Similar Products:
- GPOE-4
- GPOE-4B-24v30w
- GPOE-4-48v48w
- GPOE-8B-24v60w
- GPOE-8-48v60w
- GPOE-8-48v120w
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
