802.3af Passive Gigabit 8 Port PoE Injector with Power Supply, Mode A Operation, 60 Watt 120 Watt Power Supply for Option
802.3af Passive Gigabit 8 Port PoE Injector with Power Supply, Mode A Operation, 60 Watt 120 Watt Power Supply for Option
Couldn't load pickup availability

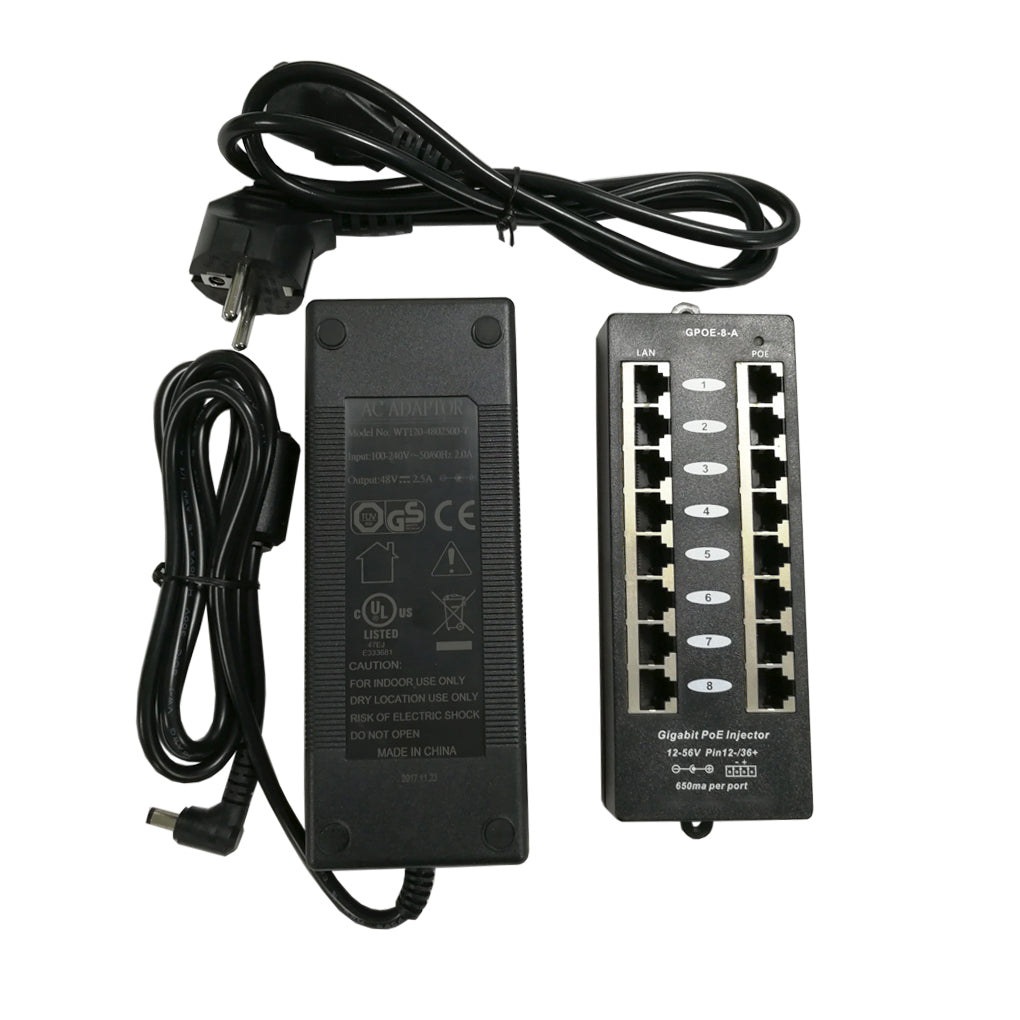

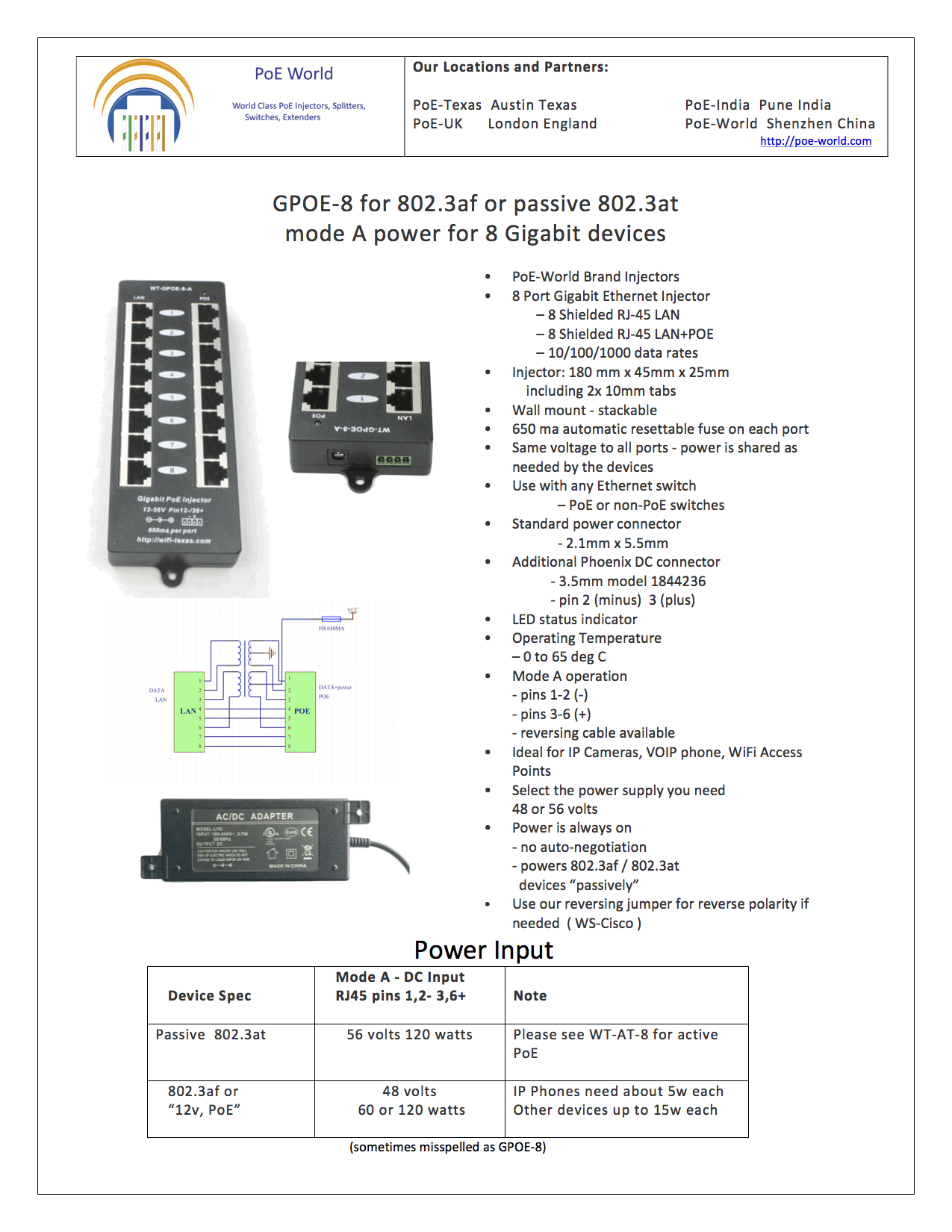

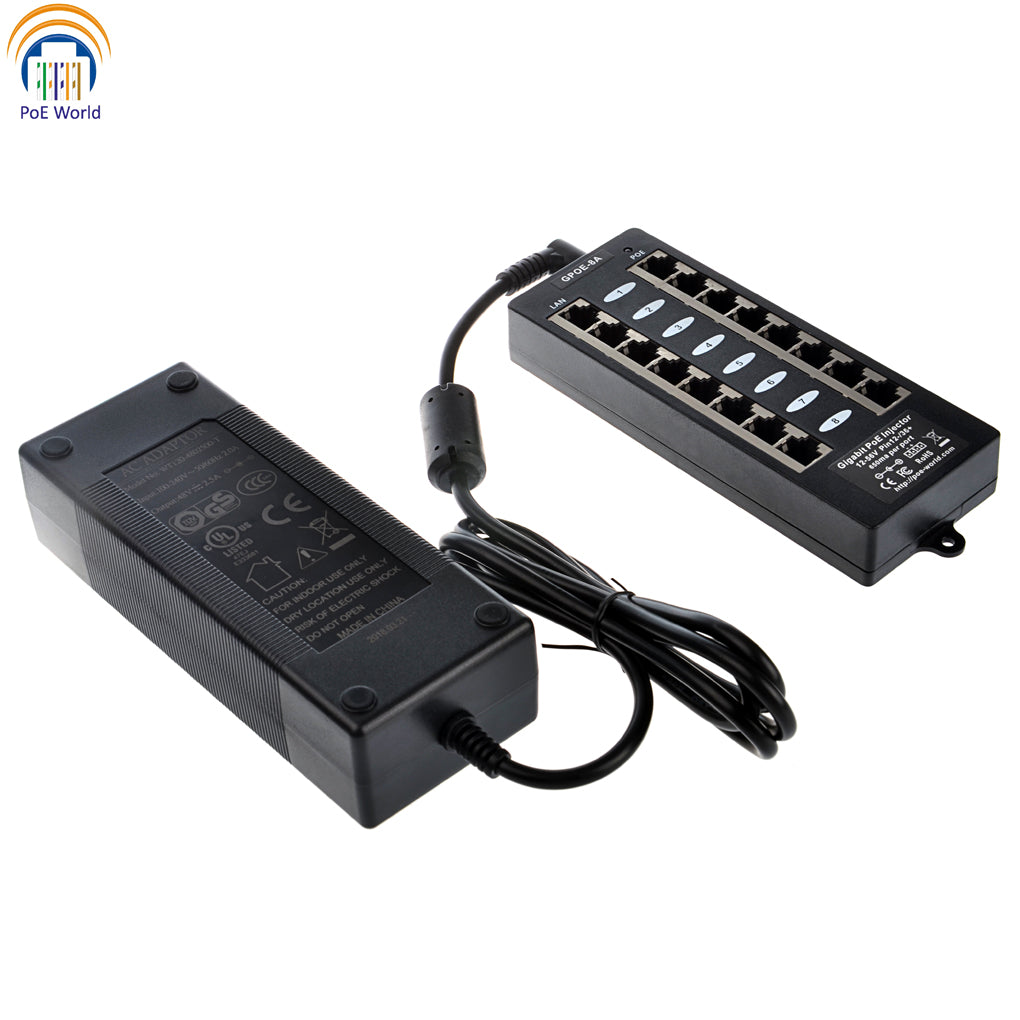

8 port Gigabit PoE injector for 802.3af or passive 802.3at devices - see power supply options

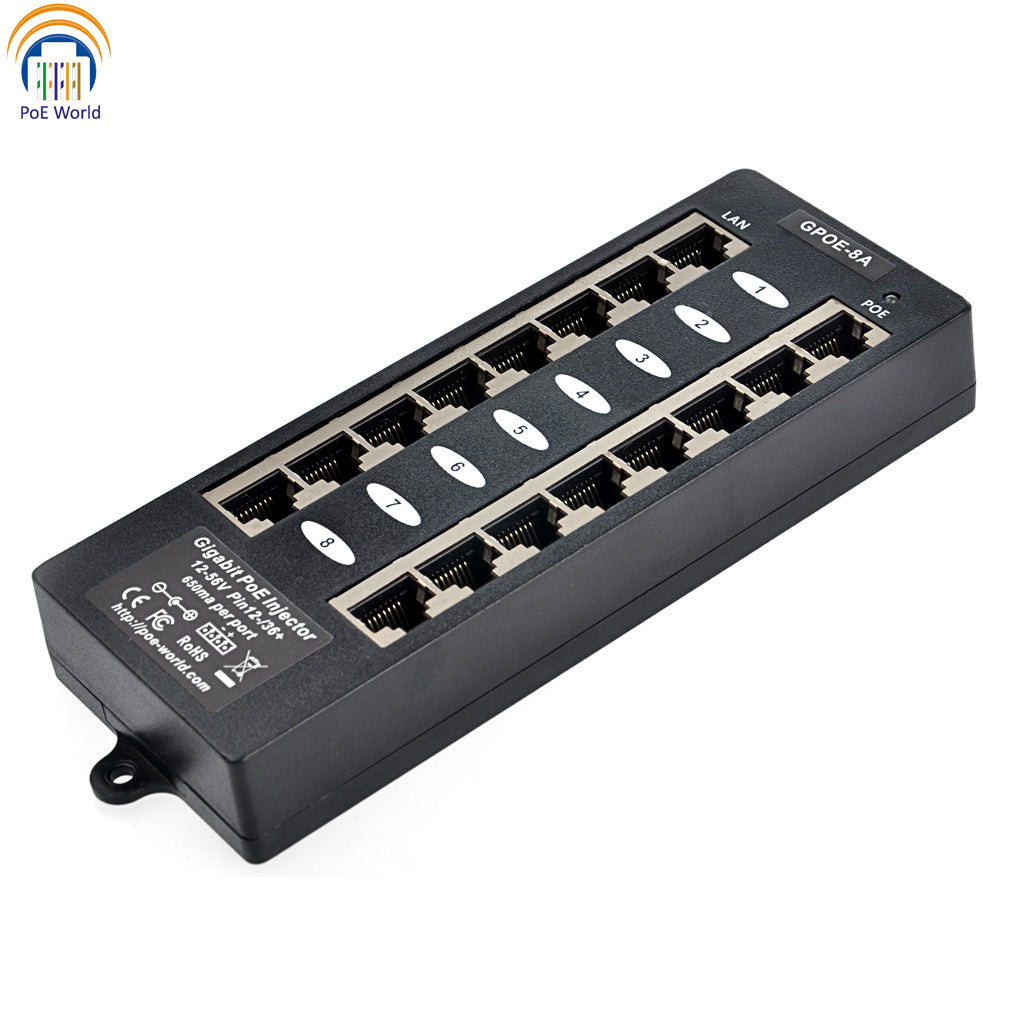

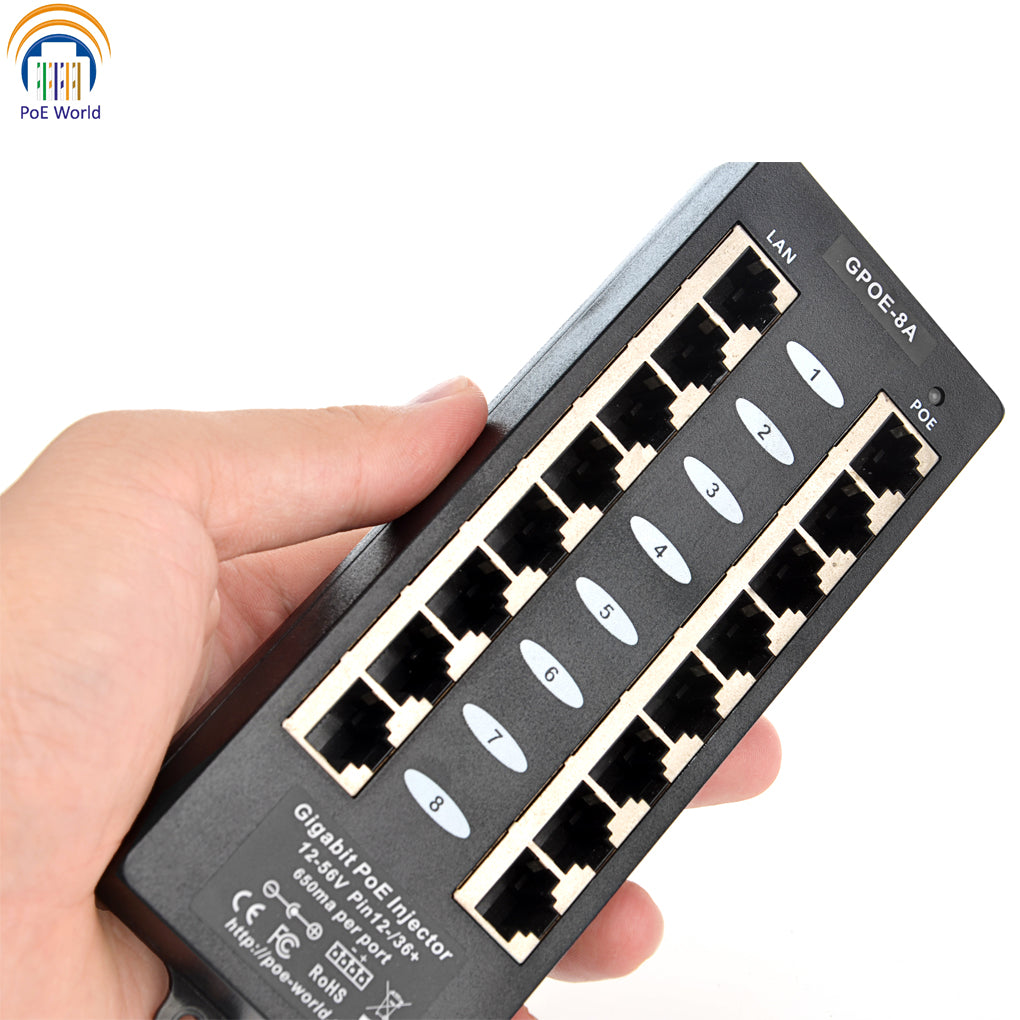

This 8 port Gigabit PoE injector that allows for 10/100/1000 data speed on a switch. This injector operates on mode A and can be used to power PoE cameras, IP phones, and access points. This device powers 802.3af/at devices passively and power is “always on”.
Features:
- Wall mount
- Use with any PoE or non-PoE switch
- 802.3af compatible
- LED power display
- 10/100/1000 data speed
- 2.1mm x 5.5mm DC plug
- Mode A operation: 1&2 (-) and 3&6 (+)
- 650 ma automatic resettable fuses on each port
- Operating temperature: 0°C ~ 65°C
Product Specifications:
- Size: 180 x 45 x 25 mm
- Weight: 5 ounces

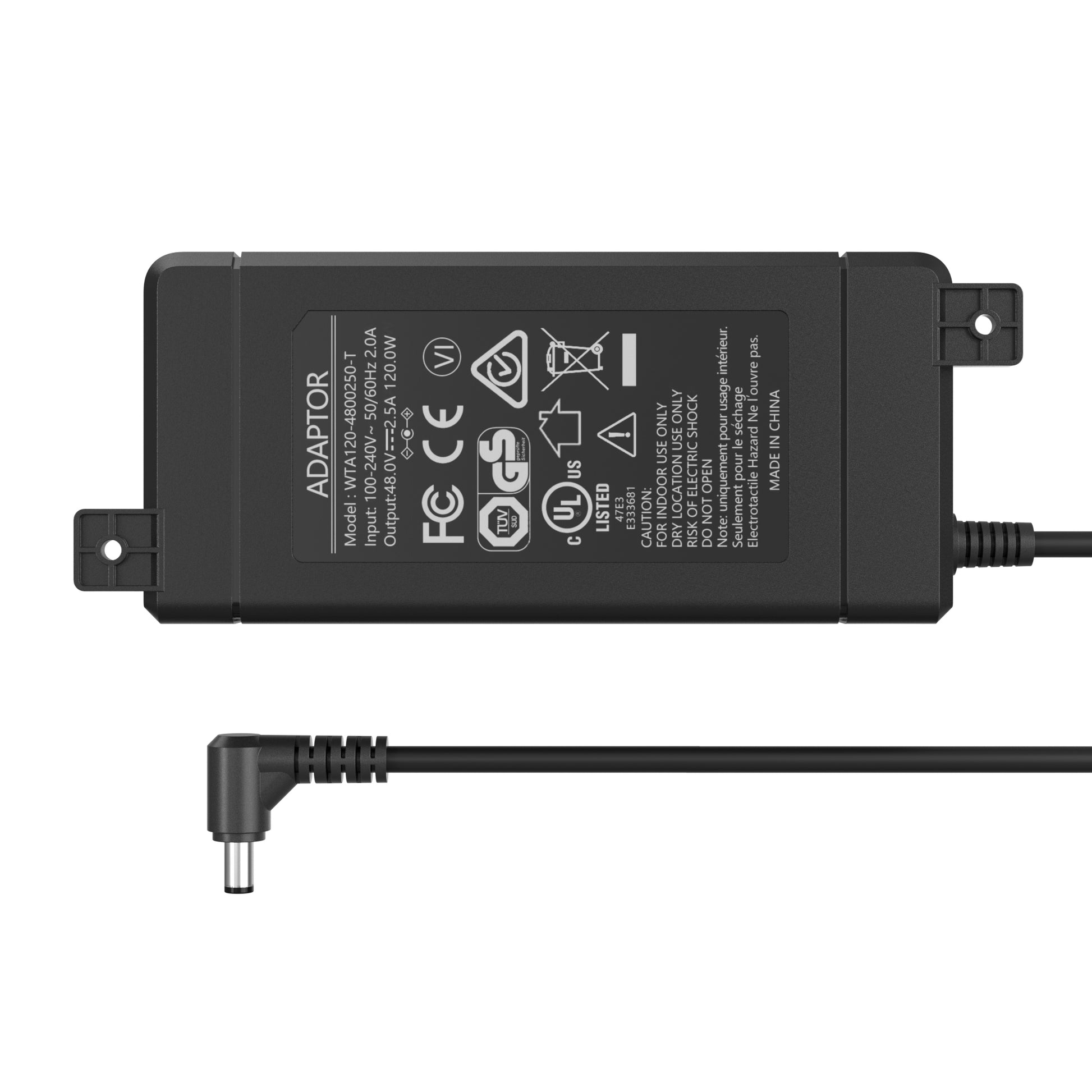

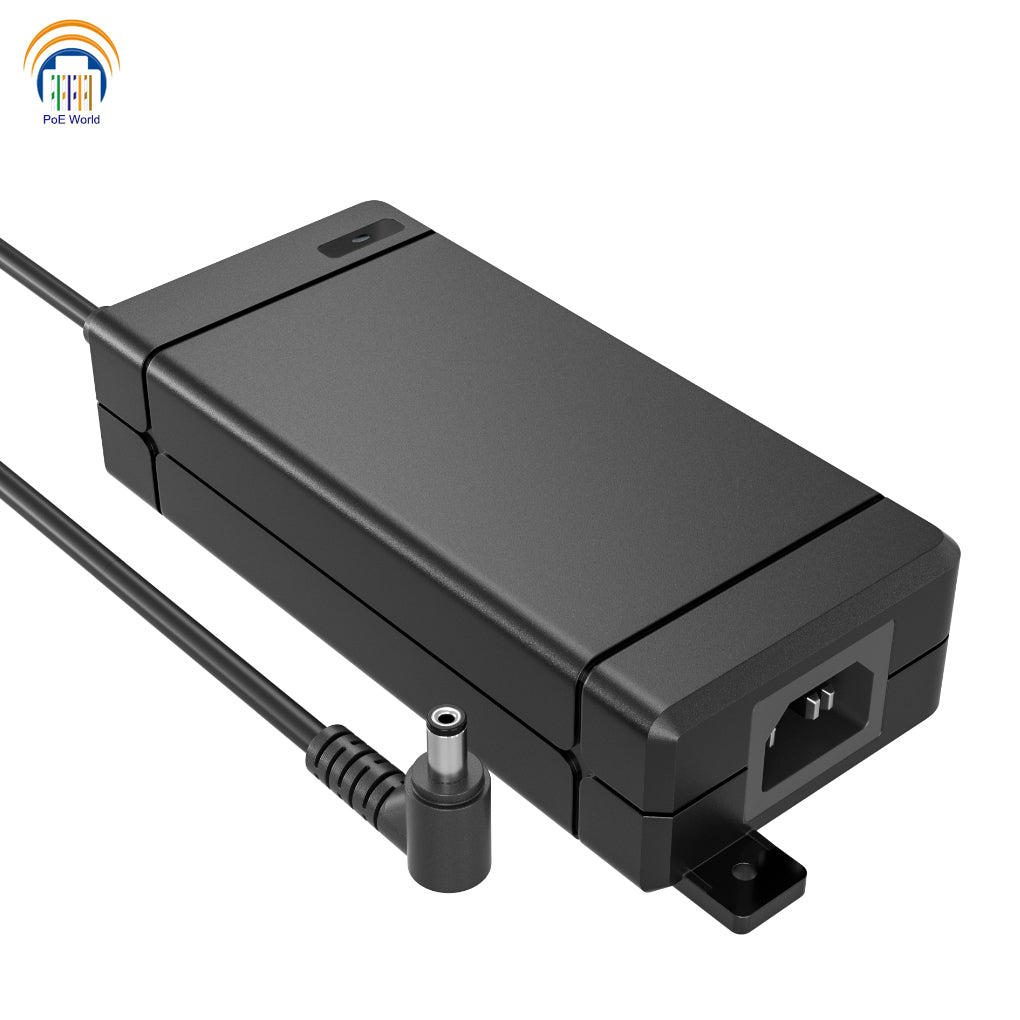

Power Supply Specifications:
- UL, DoE, CE, and FCC approved
- AC operation: 110 to 220 volt
- Operating temperature: -10°C ~ 60°C
- Storage temperature: -20°C ~ 85°C
- Operating humidity: 5% to 90% non-condensing
- 90% efficient
- C13 style prong
Other Options:
- 4 port option available
- 4 and 12 port non-Gigabit option available
- 16 port rack mount
Similar Products:
- GPOE-4B-24v30w
- GPOE-4
- GPOE-4-48v48w
- POE-8-48v60w
- POE-12-48v120w
- GPOE-16-48v120w
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
