GPOE-8-48V60W 8 Port Gigabit Passive Power over Ethernet Injector for Ubiquiti Mikrotik Include 48 Volt 60 Watt Power Adapter
GPOE-8-48V60W 8 Port Gigabit Passive Power over Ethernet Injector for Ubiquiti Mikrotik Include 48 Volt 60 Watt Power Adapter
Couldn't load pickup availability

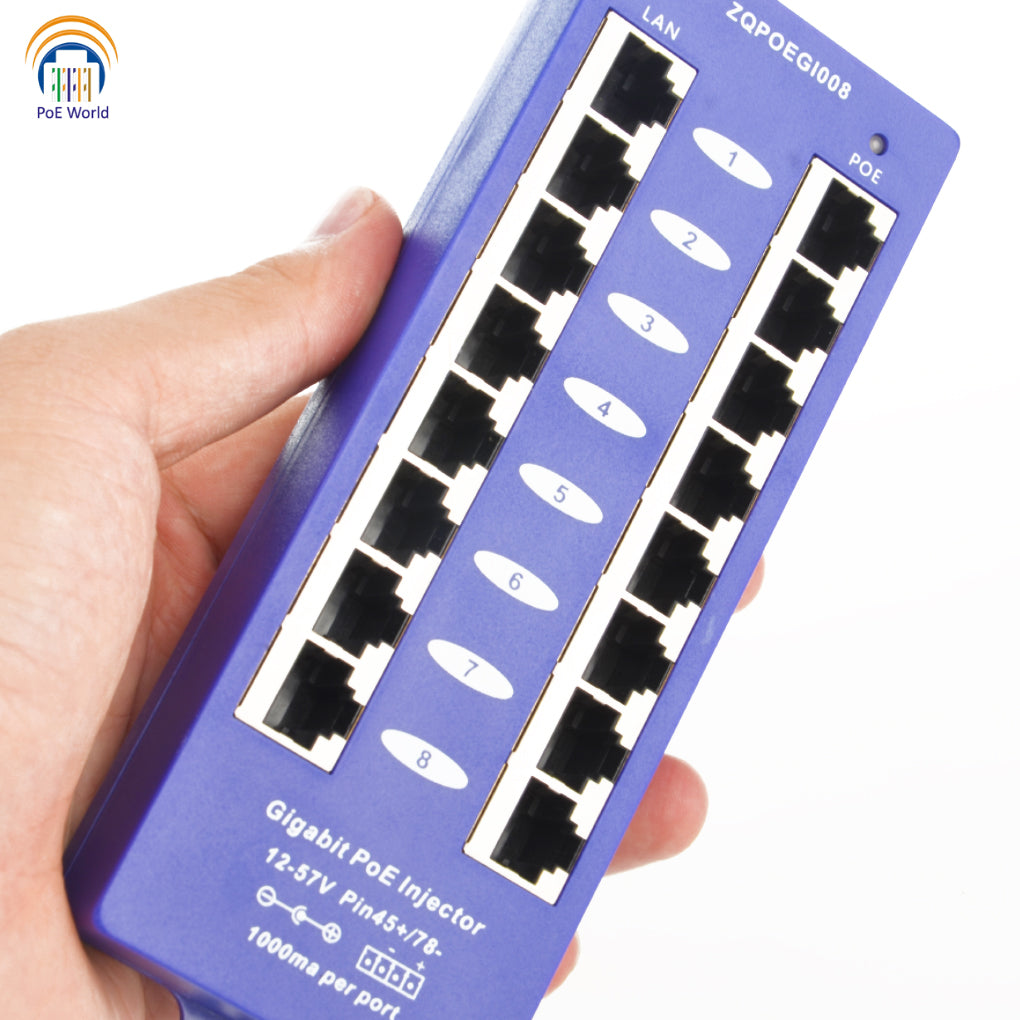

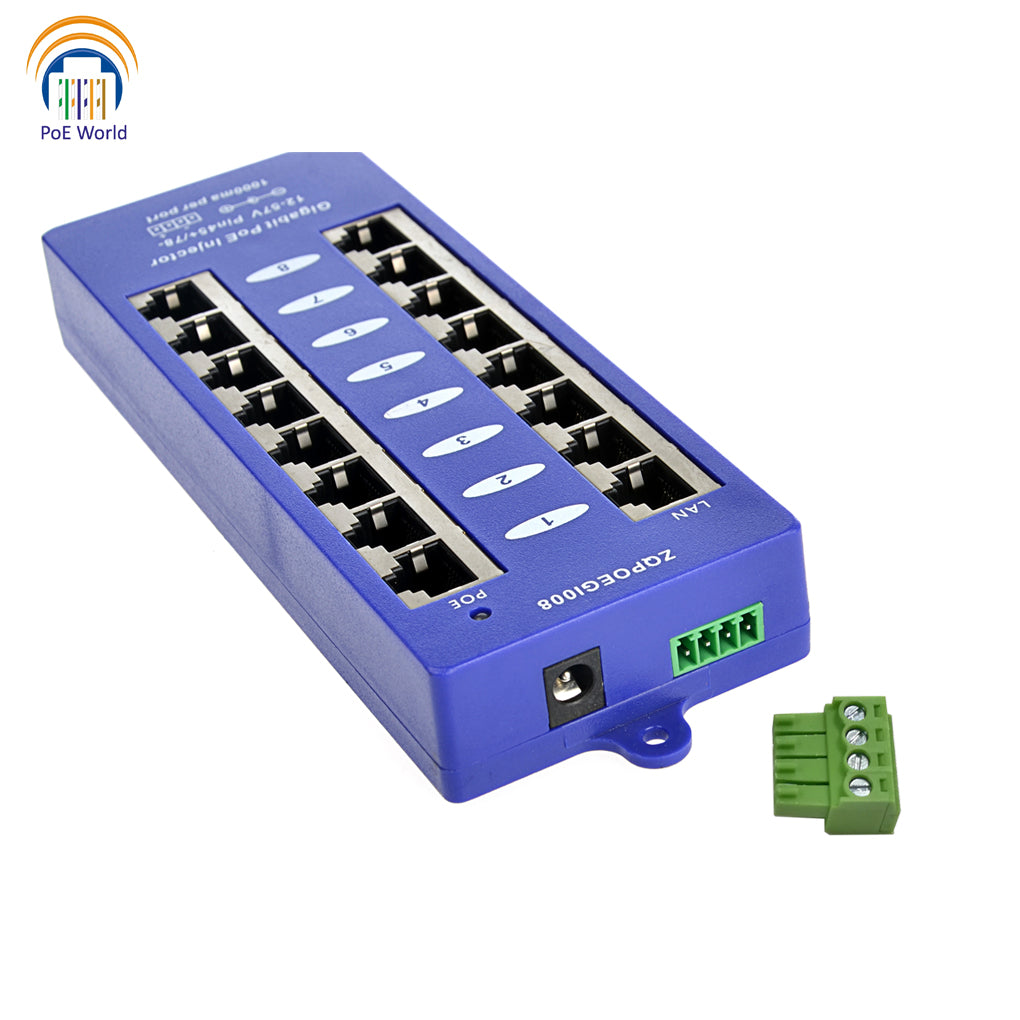

The GPOE-8 Power over Ethernet (POE) injector allows you to power up to 8 devices remotely over ethernet wiring up to 328 ft (100 meters) away.
Add PoE ability to any Ethernet switch or router. Use this device to inject power into the CAT-5, CAT-6 or CAT-7 cable and power devices such as cameras, VOIP phones, and WiFi access points.
Connect the power supply you need and reduce the mess of cables. Reboot all 8 devices from one central location. We use these in our own installations and are making them available for others.
Use with OpenMesh,Wiligear, LigoWave, Mikrotik-routerboard, WRAP, ALIX, UBNT, UniFi.

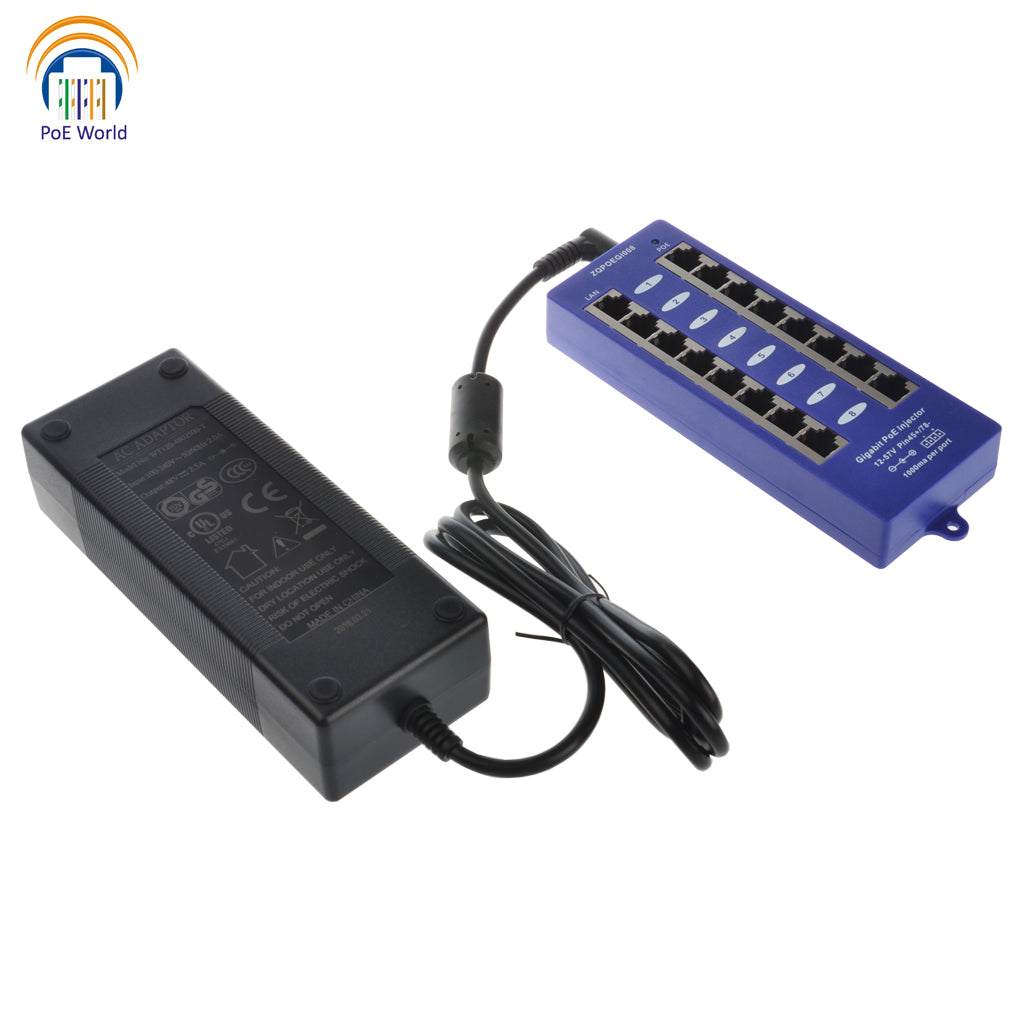

8 Port Gigabit Ethernet Injector with 48volts 60watts power supply
– 8 Shielded RJ-45 LAN
– 8 Shielded RJ-45 LAN+POE
– 10/100/1000 data rates
• Injector: 180 mm x 45mm x 25mm ( including 2x 10mm tabs )
• Wall mount - stackable
• 1000 ma automatic resettable fuse on each port
• Same voltage to all ports power is shared as needed by the devices
• Use with any Ethernet switch – PoE or non-PoE switches

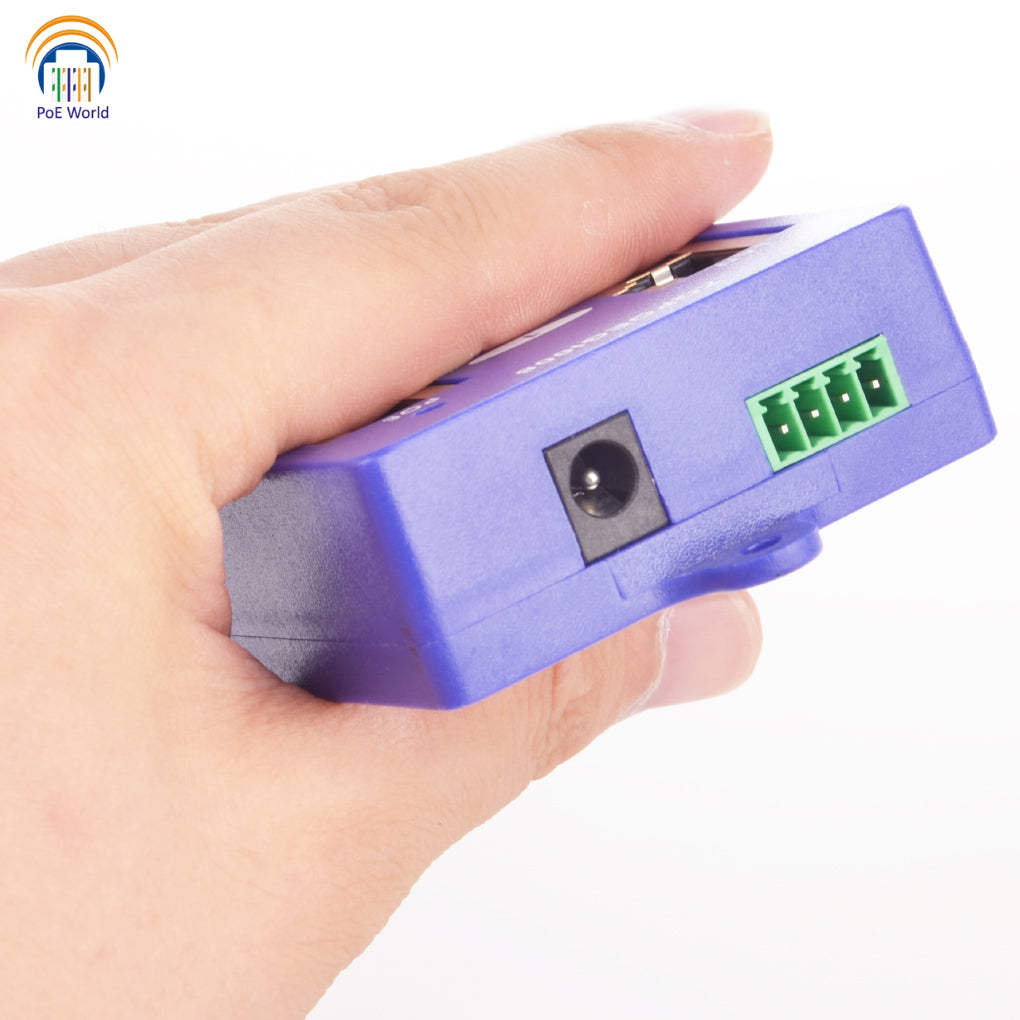

• Standard power connector – 2.1mm x 5.5mm
• Mode B operation - pins 7,8 (-) - pins 4,5 (+)

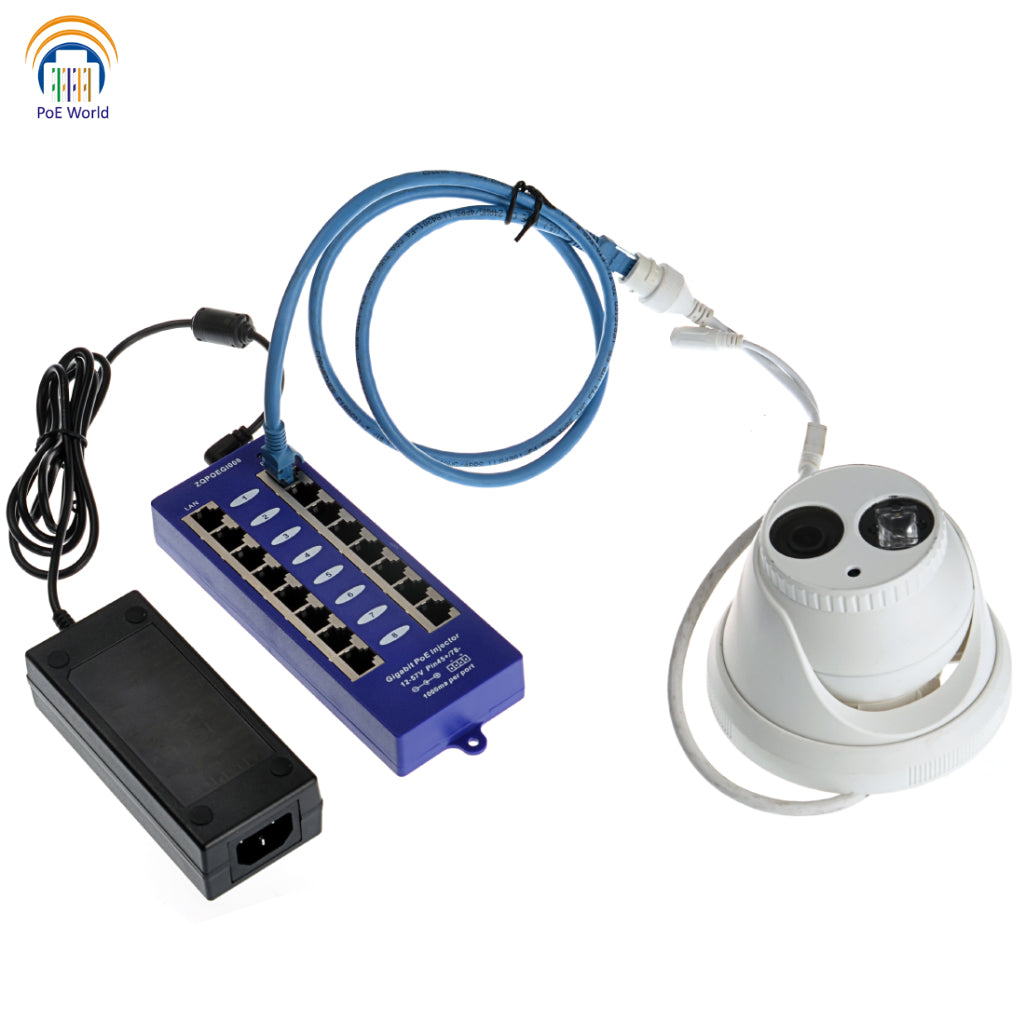

• Ideal for IP Cameras, VOIP phone, WiFi Access Points
•48 volts DC, 1.25 amps, 60 watts
• 110 to 220 volt AC operation
• 90% efficient
• UL, CE and FCC approved
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
