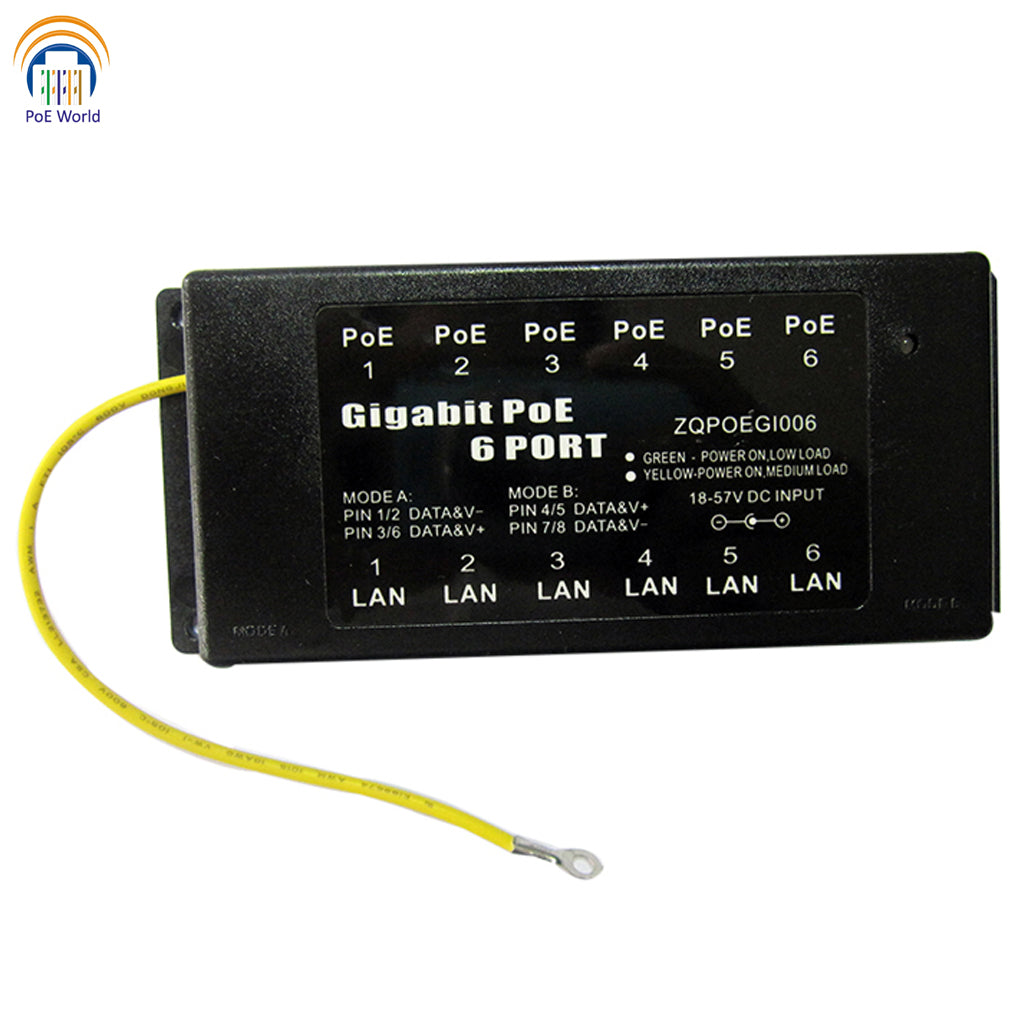

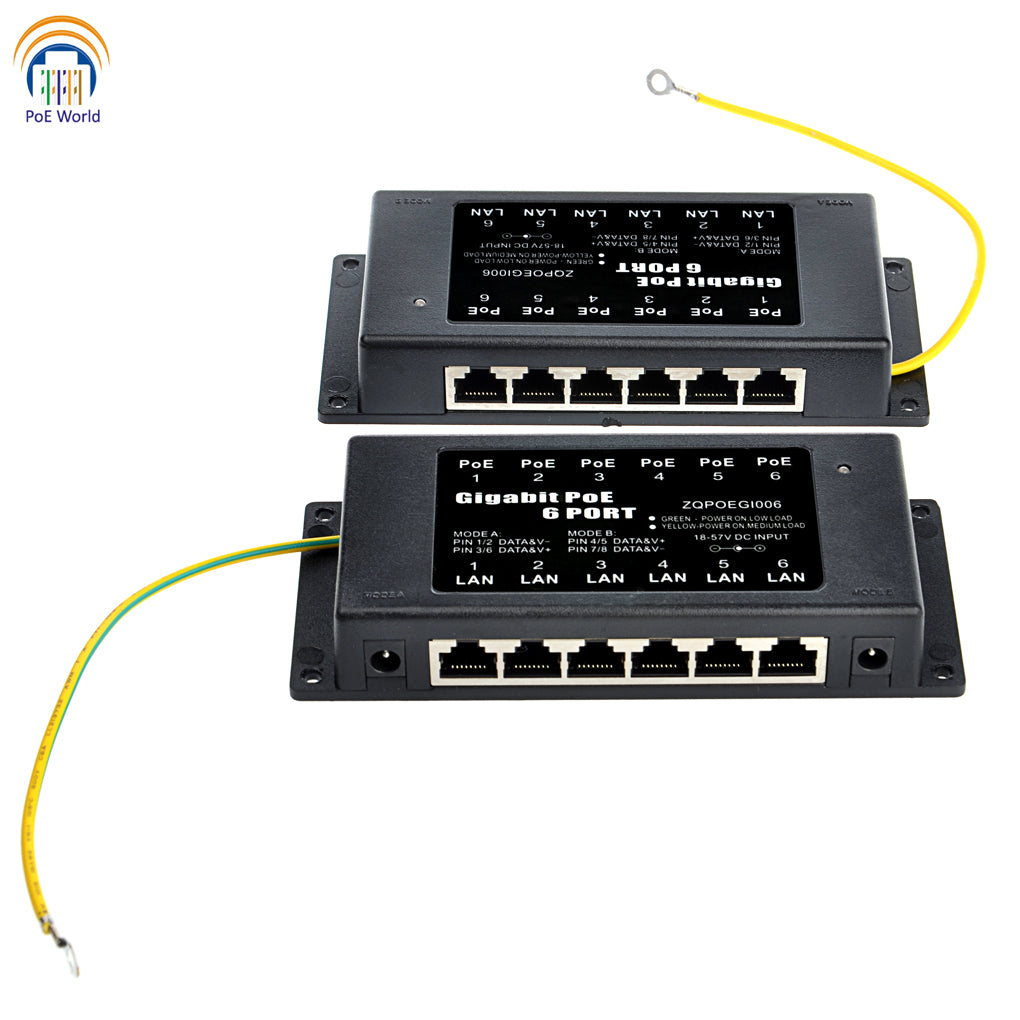

GPOE-6-AB-Y 6 Port Gigabit PoE Injector 802.3af Passive POE Standard Ethernet Connector with 2 DC Input for UBNT Camera-Power Supply Not Included

GPOE-6-AB-Y 6 Port Gigabit PoE Injector 802.3af Passive POE Standard Ethernet Connector with 2 DC Input for UBNT Camera-Power Supply Not Included

€30,95 EUR
€30,95 EUR
Sale Sold out
Shipping calculated at checkout.

The 6 port Gigabit PoE Panel is used 10/100/1000M Ethernet,The RJ45(LAN)sockets is for“LAN/Switch/PC” Pin1/2&3/6&4/5&7/8 are transmitting data.
The RJ45(POE) socket is to deliver data and power :Mode A--1/2&3/6 Mode B--4/5&7/8.
Passive POE is composed of 6 set of Rj45 sockets and two DC power jack.

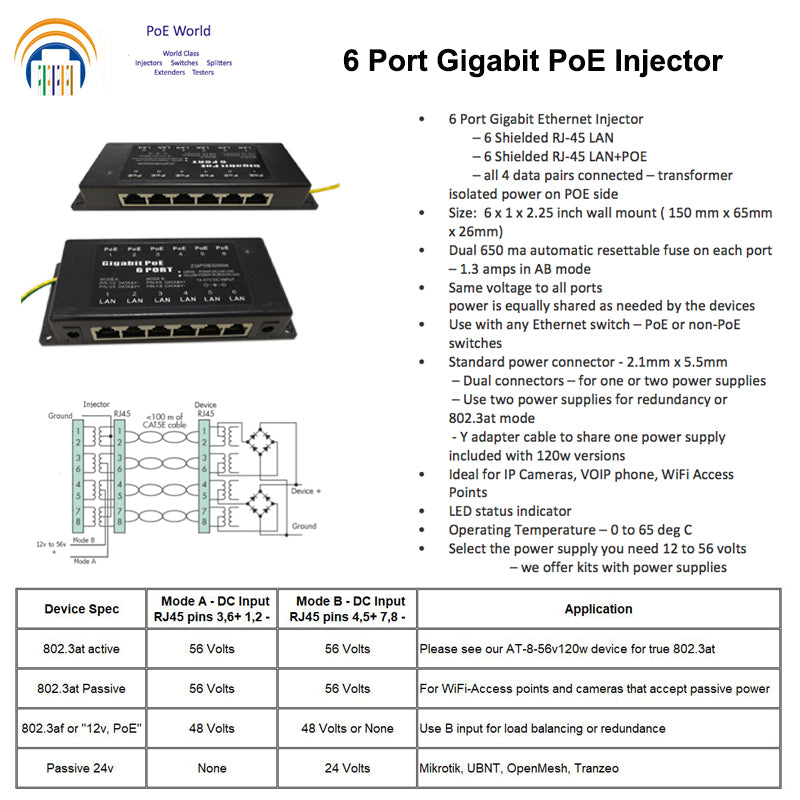

Features

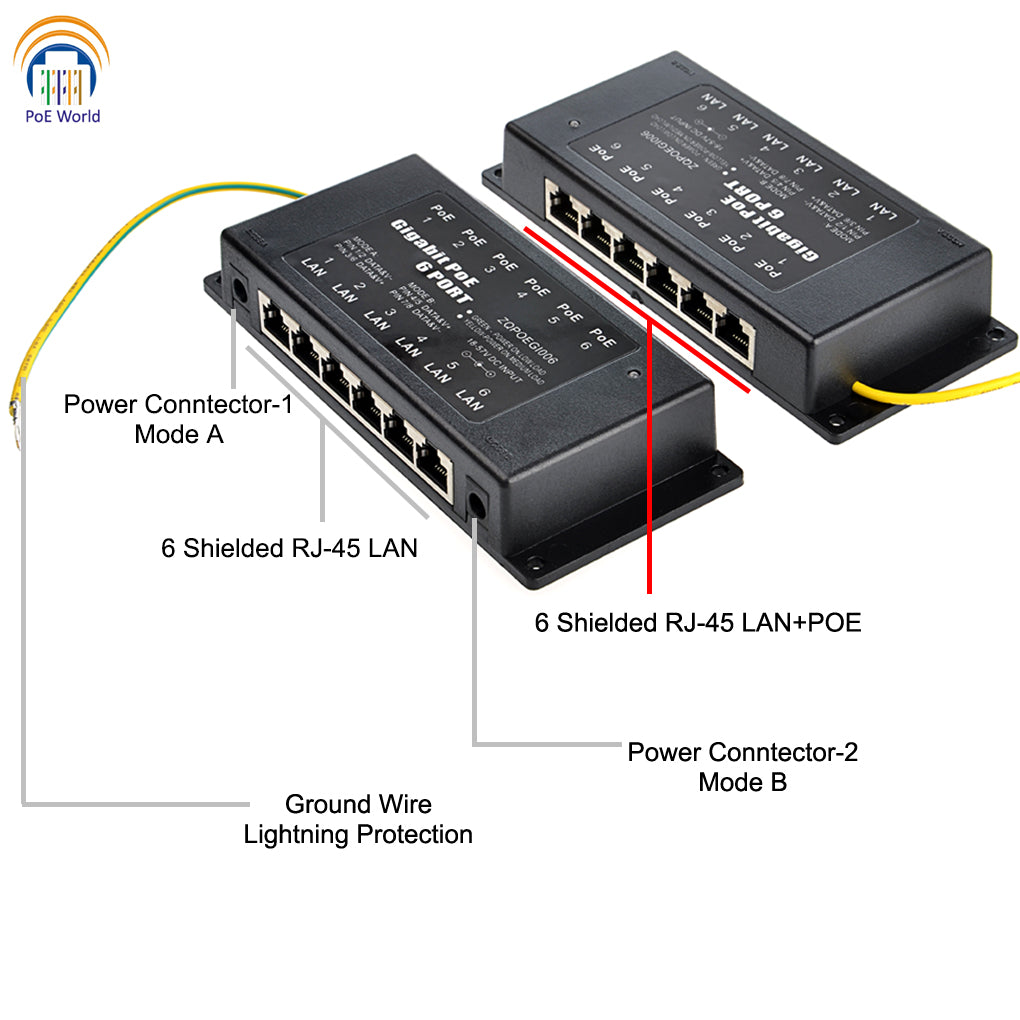

6 Port Gigabit Ethernet Injector
– 6 Shielded RJ-45 LAN
– 6 Shielded RJ-45 LAN+POE
– all 4 data pairs connected
– transformer isolated power on POE side
• 10/100/1000Mbps operation

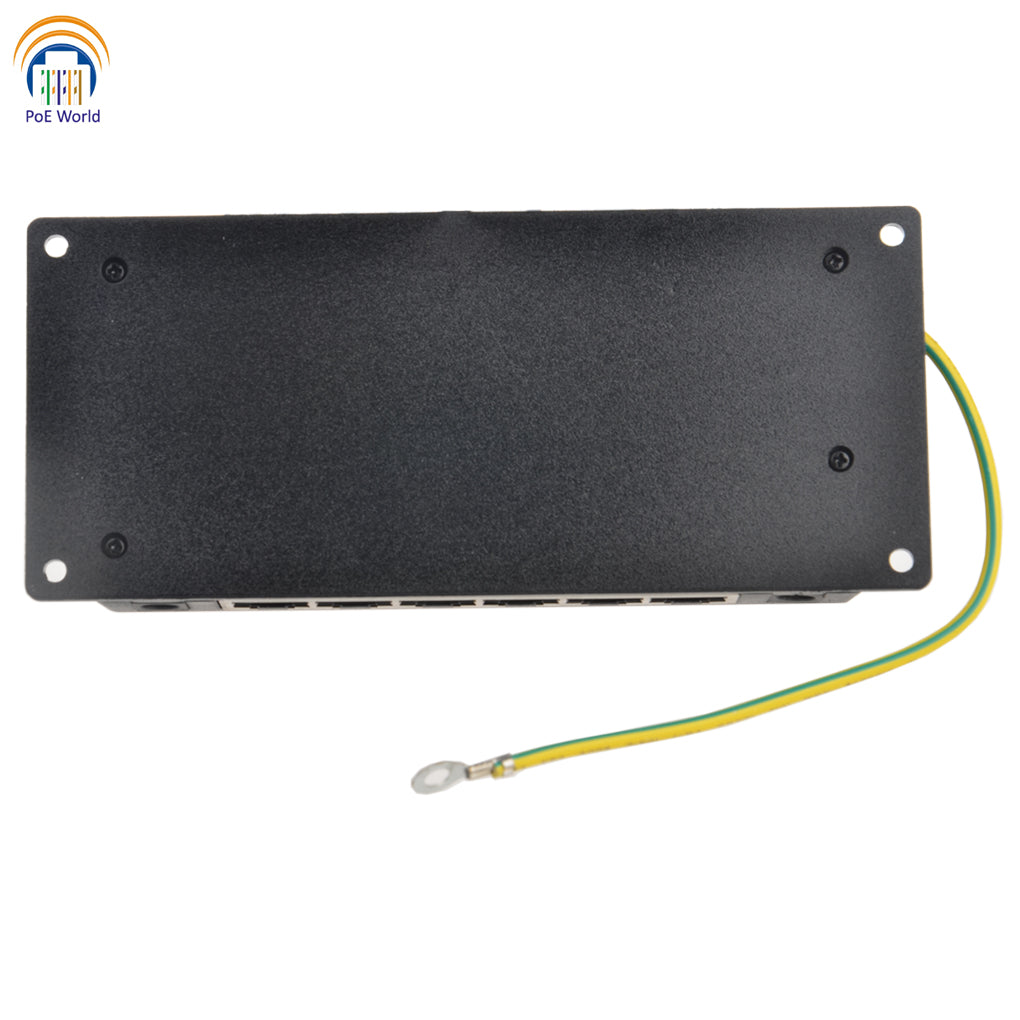

• Ground wire (for outdoor installations)

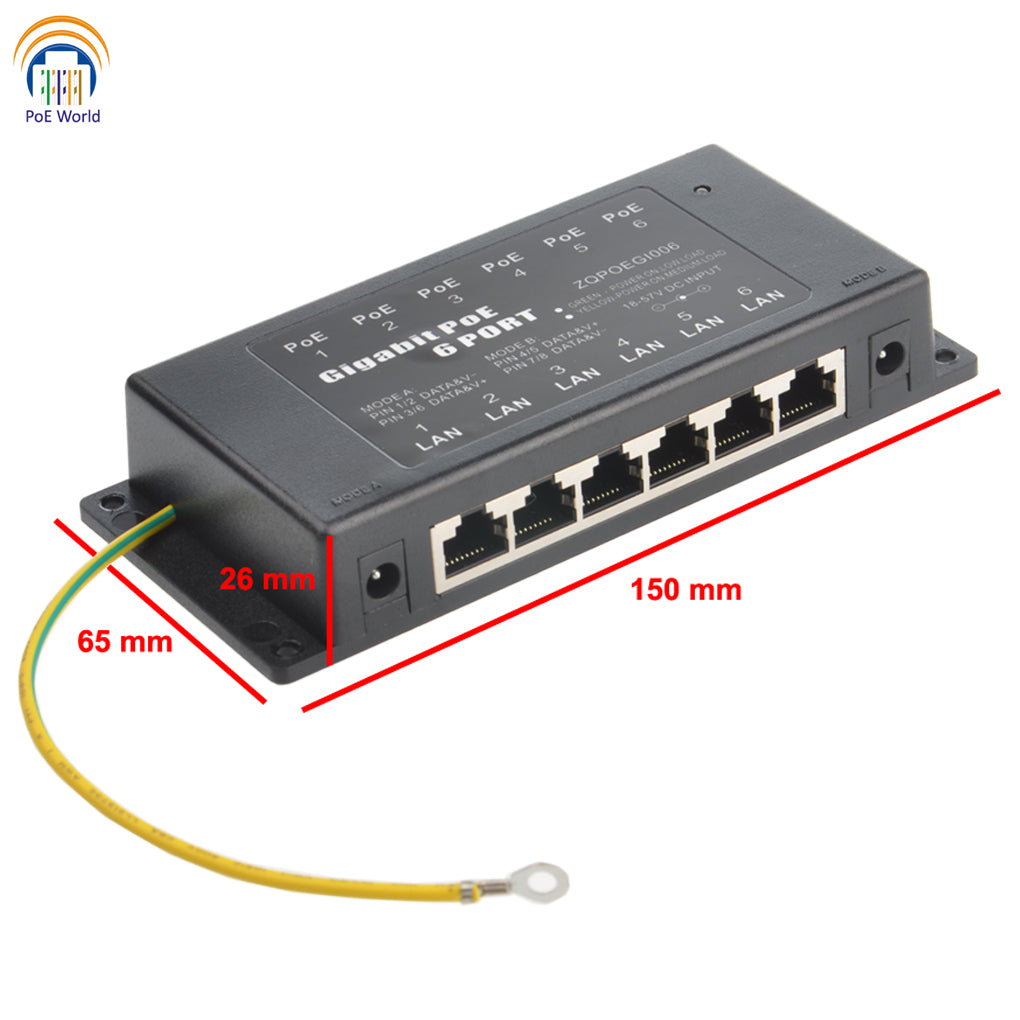

• Size:  6 x 1 x 2.25 inch wall mount ( 150 mm x 65mm x 26mm)
• Dual 650 ma automatic resettable fuse on each port – 1.3 amps in AB mode
• Same voltage to all ports power is equally shared as needed by the devices
• Use with any Ethernet switch – PoE or non-PoE switches
• Standard power connector- 2.1mm x 5.5mm
– Dual connectors
– for one or two power supplies
– Use two power supplies for redundancy or 802.3at mode

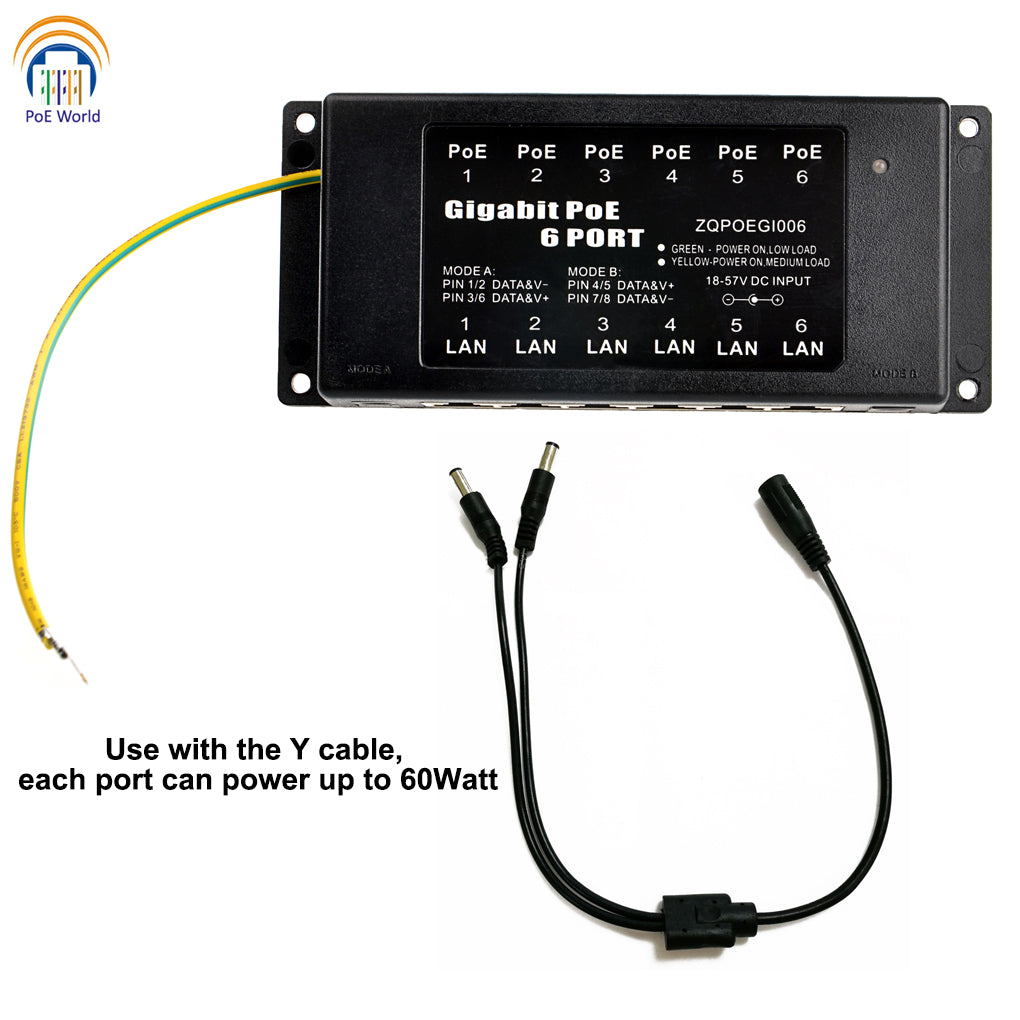

- Y adapter cable to share one power supply included with 120w versions
• Ideal for IP Cameras, VOIP phone, WiFi Access Points
• LED status indicator
• Operating Temperature – 0 to 65 deg C
• Select the power supply you need 12 to 56 volts

Package: 6 port gigabit poe injector ModeA&B *1 + Y Cable *1



View full details

Frequently Questions About POE

What is "POE"?

PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

What is the difference between Mode A and Mode B?

Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

What does passive POE mean?

Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

Which power supply do I need?

The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
