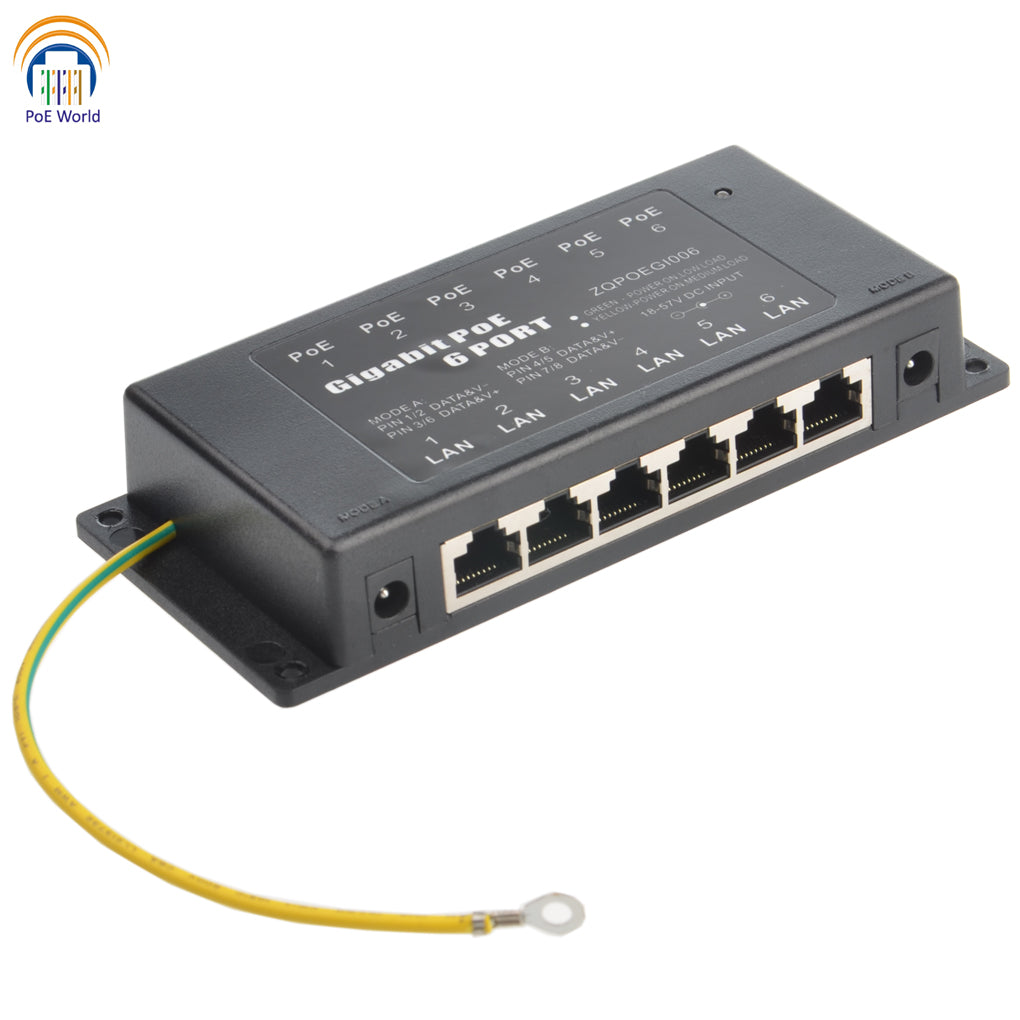

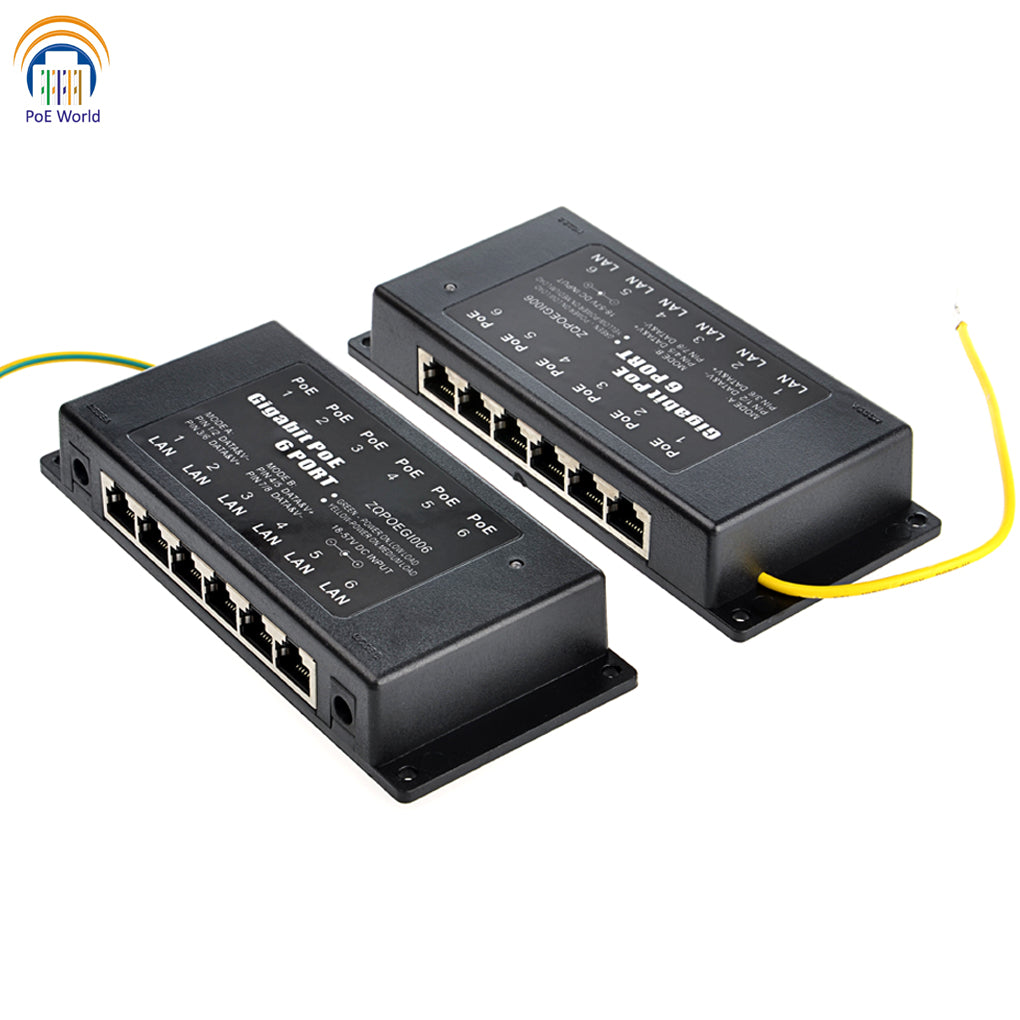

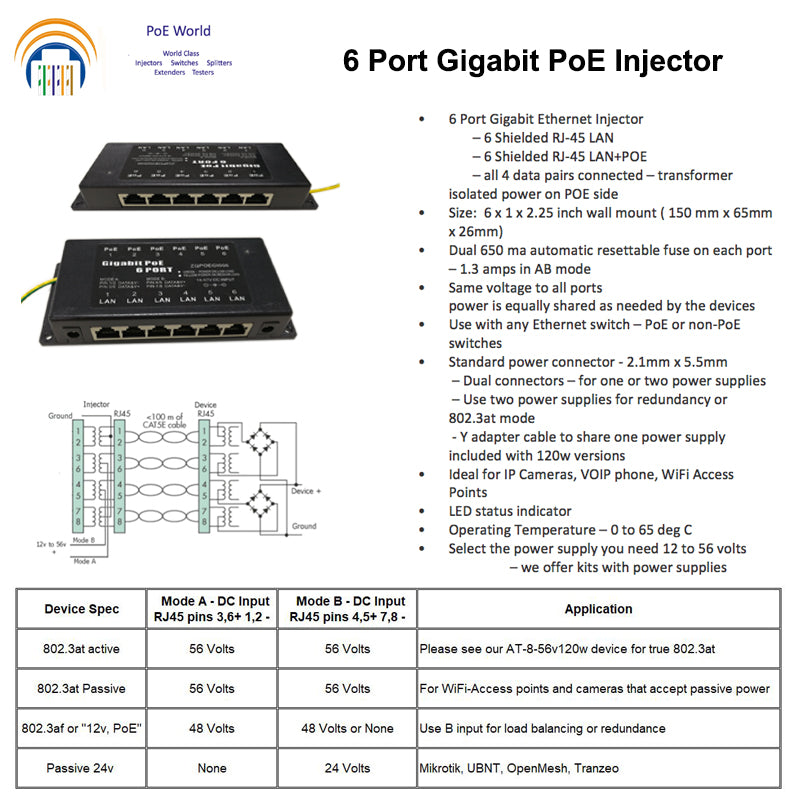

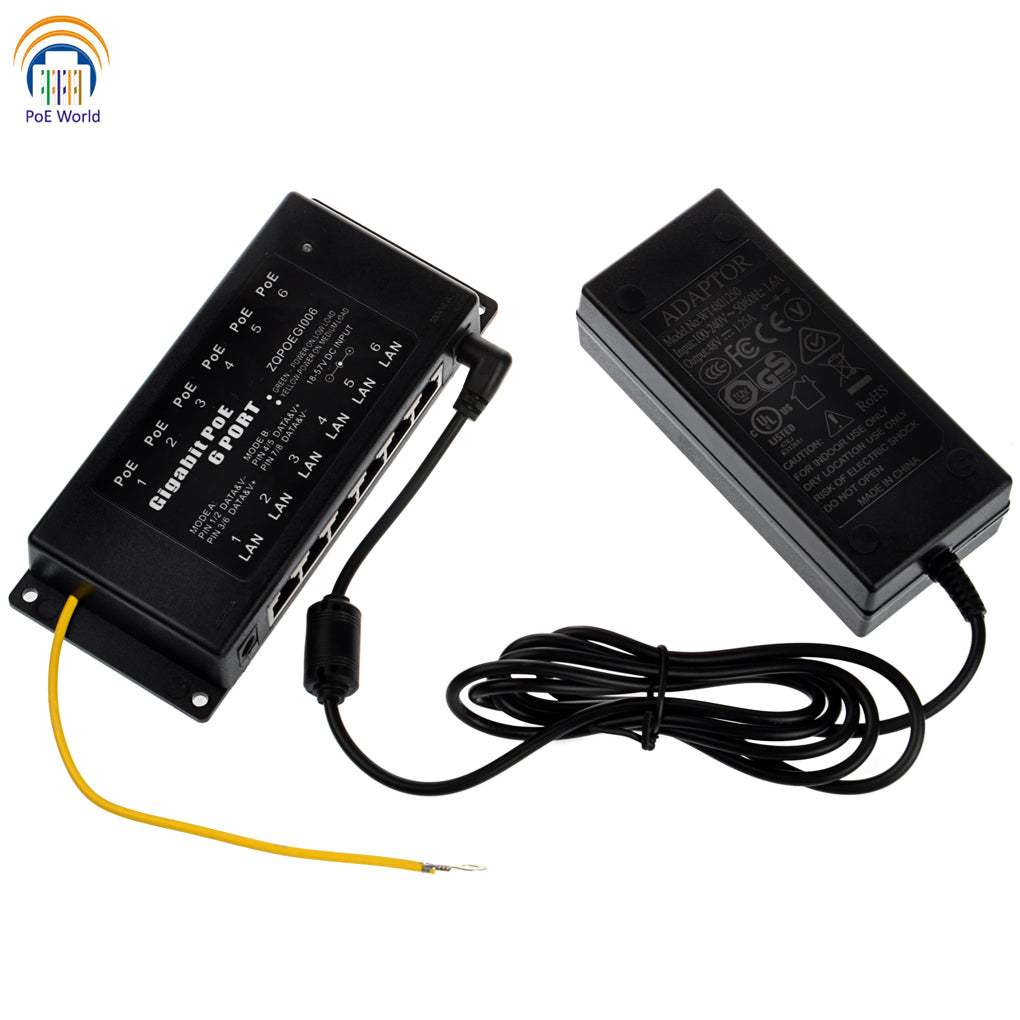

GPOE-6-AB-48v60w 6 Port Passive Gigabit Security PoE Injector 1000Mbps 802.3af With 48V 60W Power Supply for 48Volt IP Camera

6 port gigabit poe injector with 48 volt 60 watt power adapter

• 10/100/1000Mbps operation

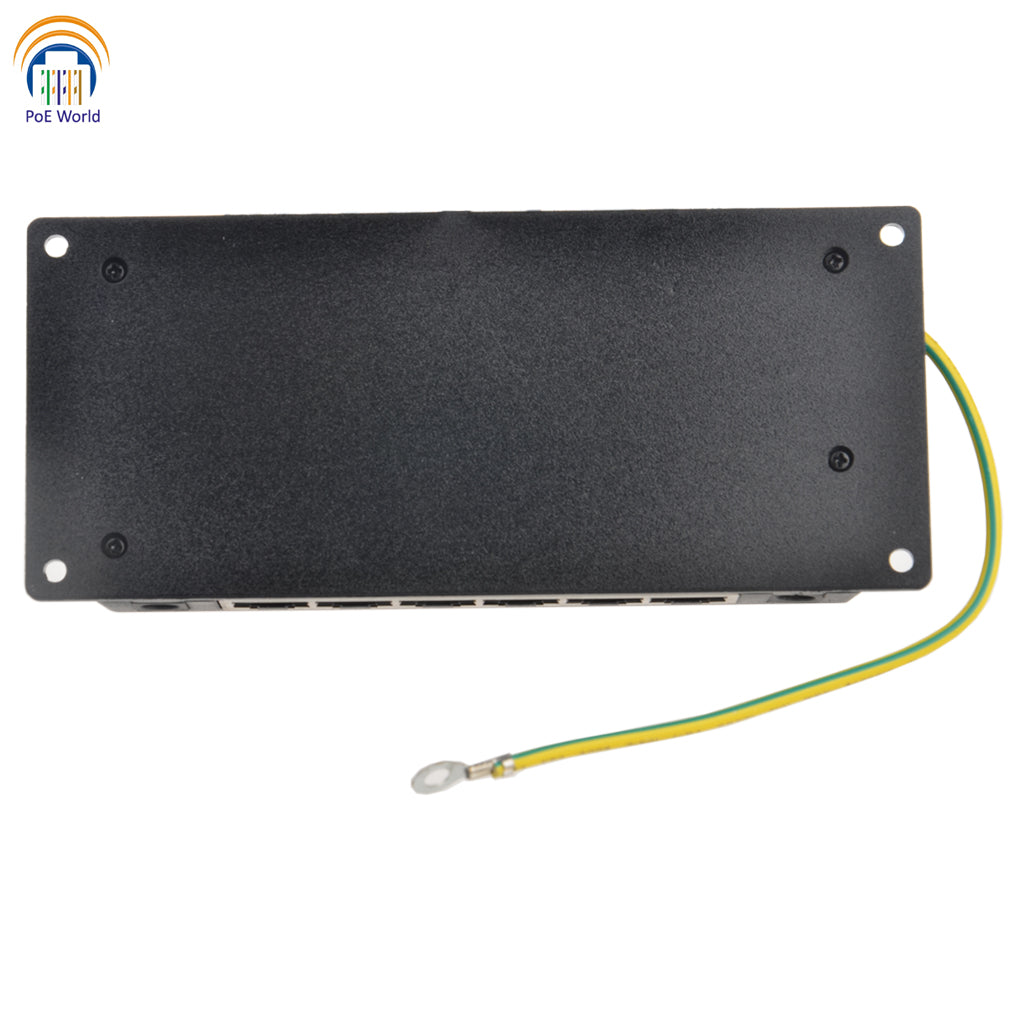

• Ground wire (for outdoor installations)

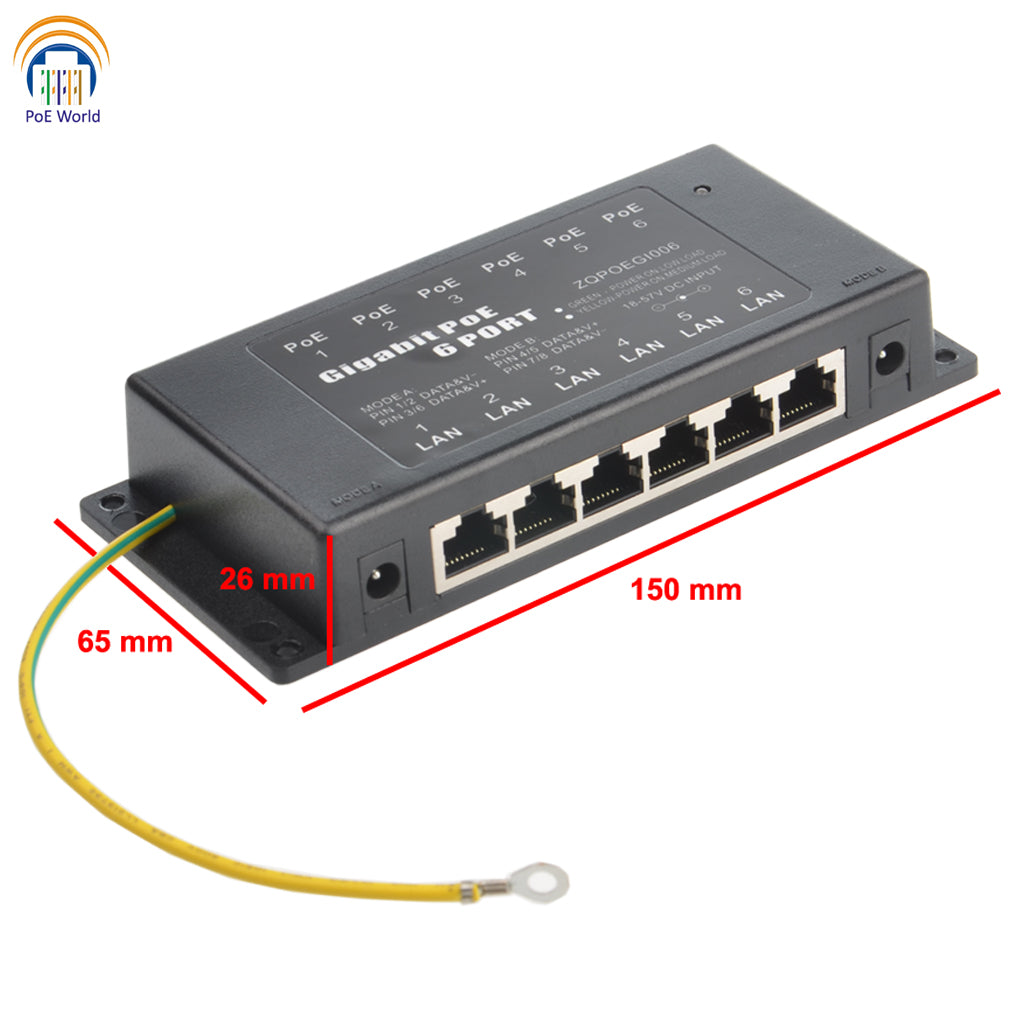

• Size: 6 x 1 x 2.25 inch wall mount ( 150 mm x 65mm x 26mm)
• Dual 650 ma automatic resettable fuse on each port – 1.3 amps in AB mode
• Same voltage to all ports power is equally shared as needed by the devices
• Use with any Ethernet switch – PoE or non-PoE switches

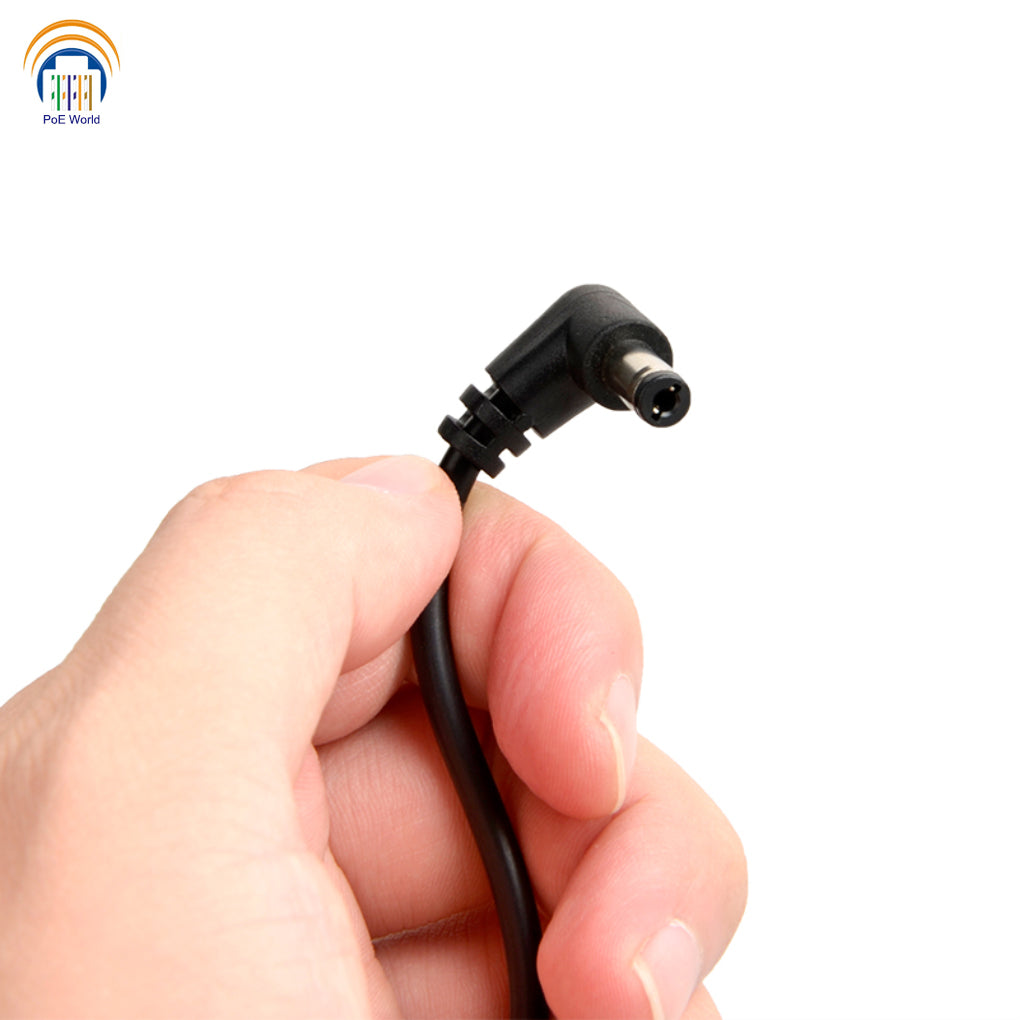

• Standard power connector- 2.1mm x 5.5mm

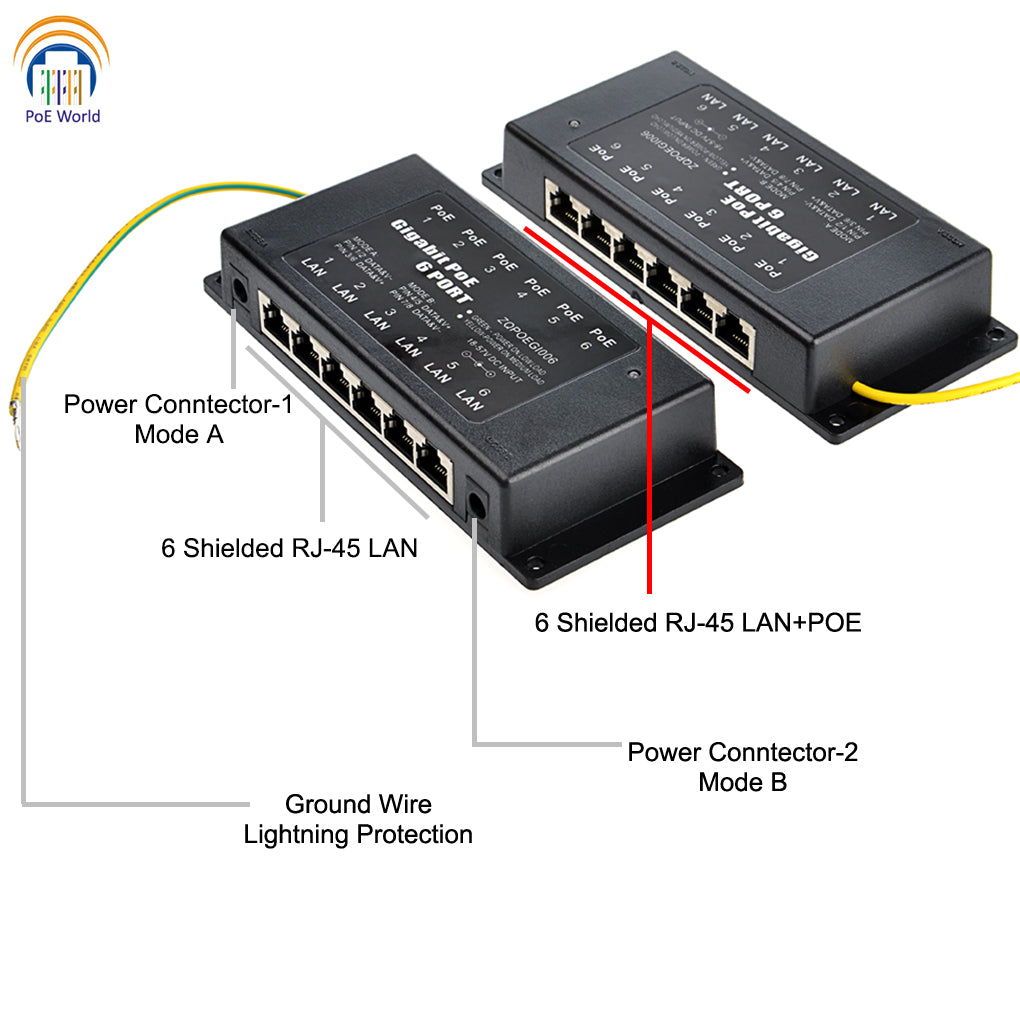

– Dual connectors
– for one or two power supplies
– Use two power supplies for redundancy or 802.3at mode
- Y adapter cable to share one power supply included with 120w versions
• Ideal for IP Cameras, VOIP phone, WiFi Access Points
• LED status indicator
• Operating Temperature – 0 to 65 deg C
• Select the power supply you need 12 to 56 volts

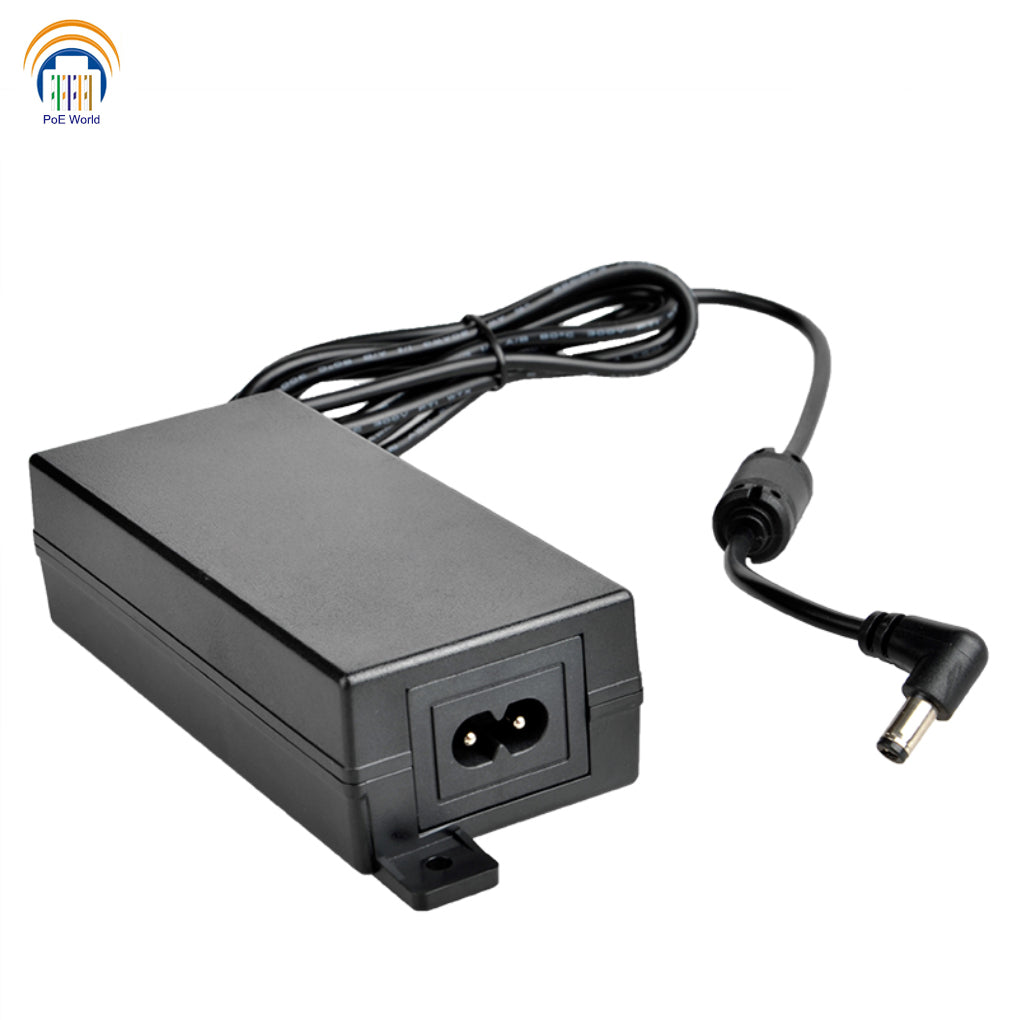

Power supply included
•48 volts DC, 1.25 amps, 60 watts
• 110 to 220 volt AC operation
• 90% efficient
• UL, CE and FCC approved

Applications:
• IP phones like Polycom, Cisco, Yealink
• WiFi Access points
• IP Cameras like Hikvision
• any 802.3af Device
• 12 volt, poe devices
• 5v and 12v , non-poe devices - please see our active splitters

Package:
6 port gigabit poe injector* 1
48Volt 60Watt power supply* 1
