GPOE-48V25W POE Converter for 48V Passive PoE Devices Convert Active 802.3af/at PoE to Passive 48V (44–54V) PoE for Ubiquiti Wave products and More

GPOE-48V25W PoE Converter

Overview:
The GPOE-48V25W PoE Converter is a compact and cost-effective solution designed to convert Active 802.3af/at PoE input into Passive 48V (44–54V) PoE output.
It delivers up to 25 watts of peak power to Ubiquiti and other 48V passive PoE devices over network cables up to 100 meters in length.
Compatible with existing Cisco or similar 802.3af/at standard PoE switches.

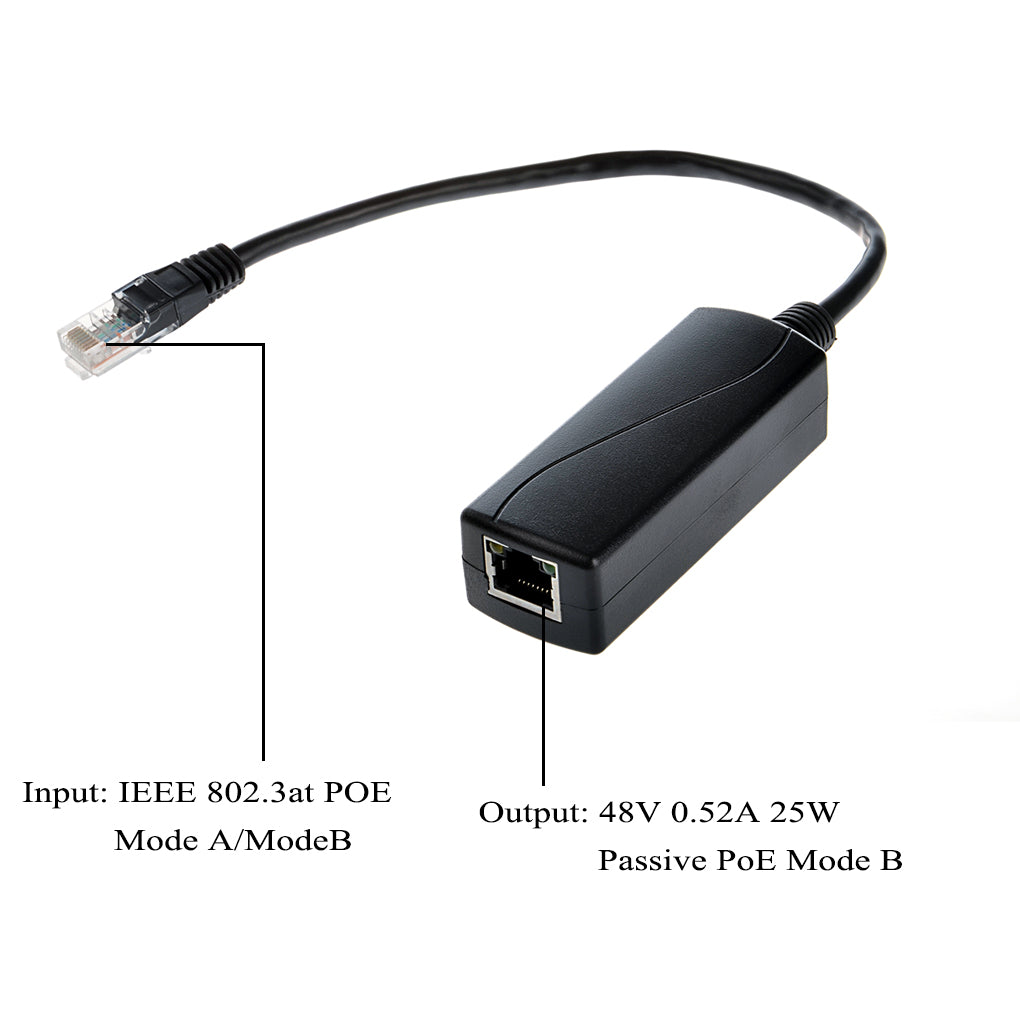

Input:
Standard: IEEE 802.3af/at PoE
Modes Supported: Mode A (1&2, 3&6) and Mode B (4&5, 7&8)
Input Voltage Range: 44V to 57V

Output:
Output Voltage: 48V Passive PoE
Output Current: 0.52A
Maximum Output Power: 25W
Output Mode: Mode B (4&5 positive, 7&8 negative)

Data Speed: 10/100/1000 Mbps (Gigabit)

Size: 22 × 22 × 100 mm
Weight: 1.5 ounces
Operating Temperature: 0°C ~ 50°C

Applications:
Perfect for Ubiquiti Wave and other devices that require passive 48V PoE input but are powered from an 802.3af/at active PoE network.
