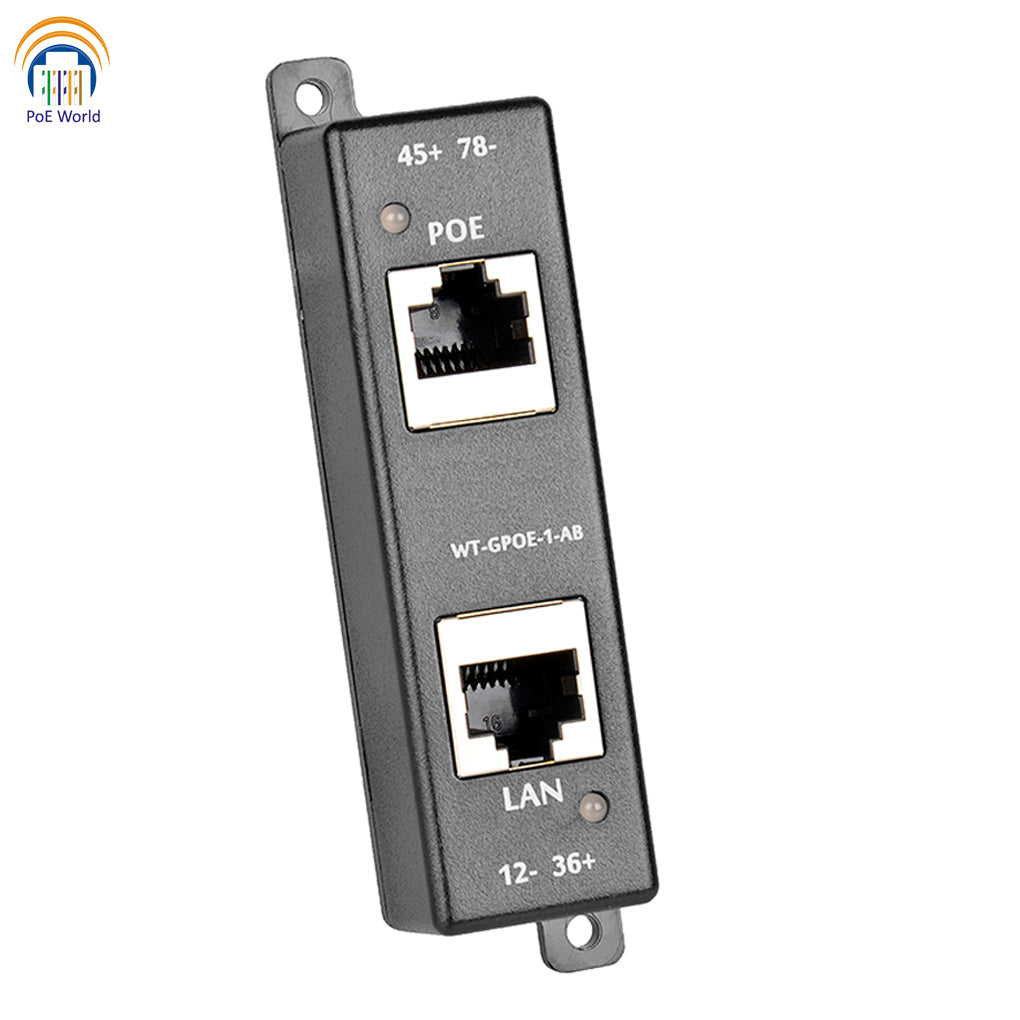

GPOE-1-AB-Y Single Port Gigabit Mode A/B Passive PoE Injector PoE Plus Linker for 802.3at PoE+ low cost solution for 4 Pair PoE

GPOE-1-AB-Y Single Port Gigabit Mode A/B Passive PoE Injector PoE Plus Linker for 802.3at PoE+ low cost solution for 4 Pair PoE

Regular price €7,95 EUR
Regular price Sale price €7,95 EUR
Sale Sold out
Shipping calculated at checkout.

Overview

This device is a very cost effective injector at gigabit rates. When used as an injector it inserts the DC voltage at the source location.
The DC voltage is then carried over the active data pairs in the network cable.
The same device can be used as a passive splitter to extract two voltages from the ethernet cable while operating at gigabit speeds.

Gigabit PoE injector or splitter, dual mode A and B, power on all 4 pairs, reversable polarity, polarity indicator LED.

Didn't Included Power supply (SOLD SEPARATELY):
Use any of our power supplies up to 56 volts, power supply not included, for up to 60 watts total

Use with IP security cameras, phones, wireless access points and other devices that accept passive 802.3af or PoE+

Specification

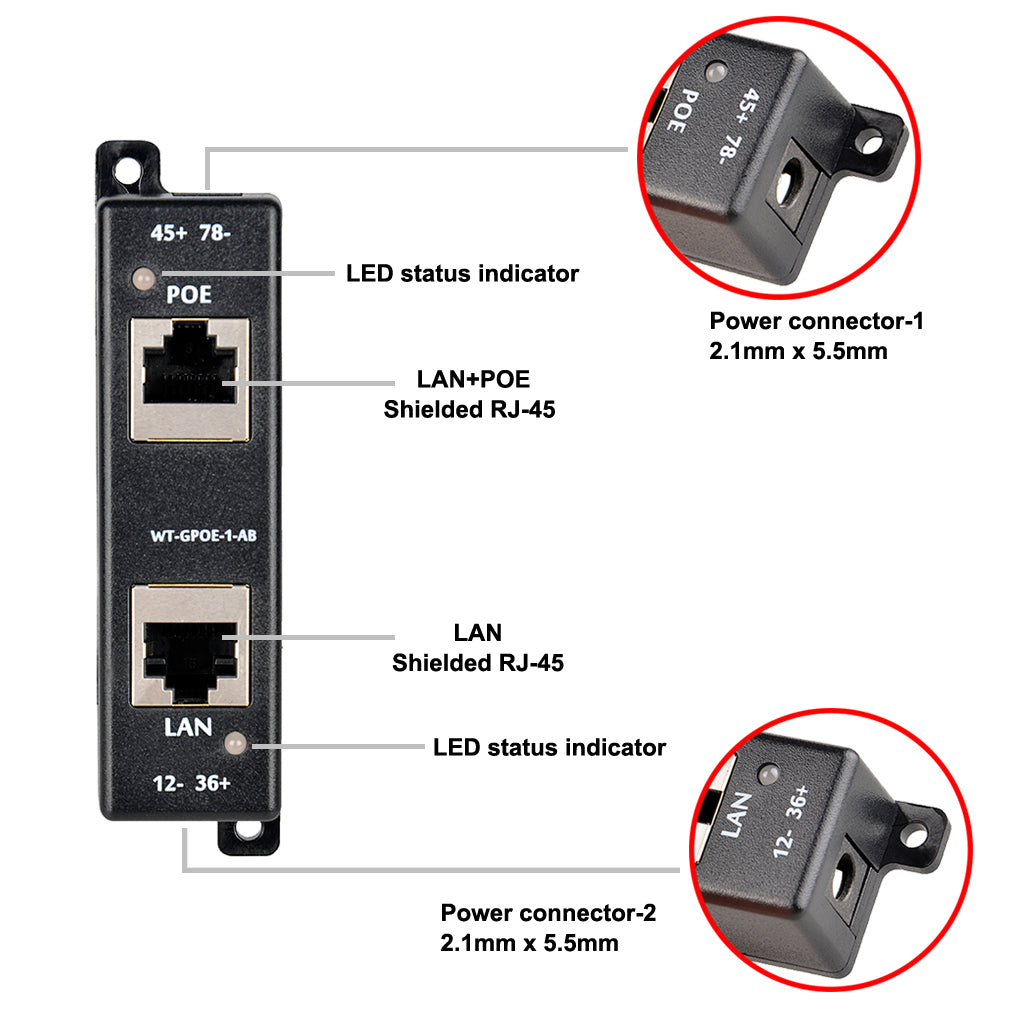

> 1 Port Gigabit Ethernet

-Injector or Splitter

- 1 Shielded RJ-45 LAN

-1 Shielded RJ-45 Lan+PoE

-10/100/1000 data rates

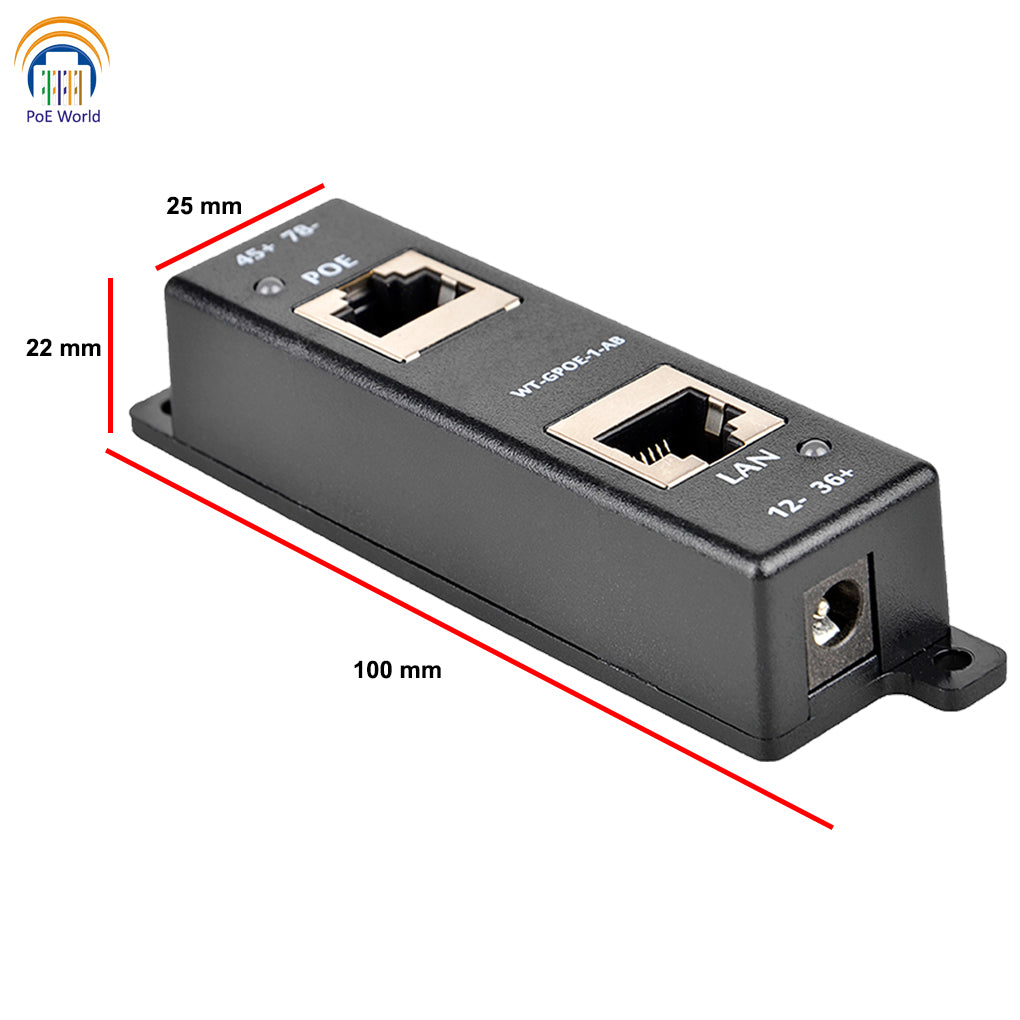

> Size: 100*25*22mm

> Wall Mount-Stackable

> Dual 650 ma automatic resettable fuses

-one for each mode

> use with any ethernet switch-PoE or Non-PoE switches

> Mode A operation

-pin1-2(-)

-pins 3-6(+)

> Mode B Operation

-pins 4-5(+)

-pins7-8(-)

> Power is always on

-no auto-negotiation

-powers 802.3af/802.3at devices "passively"

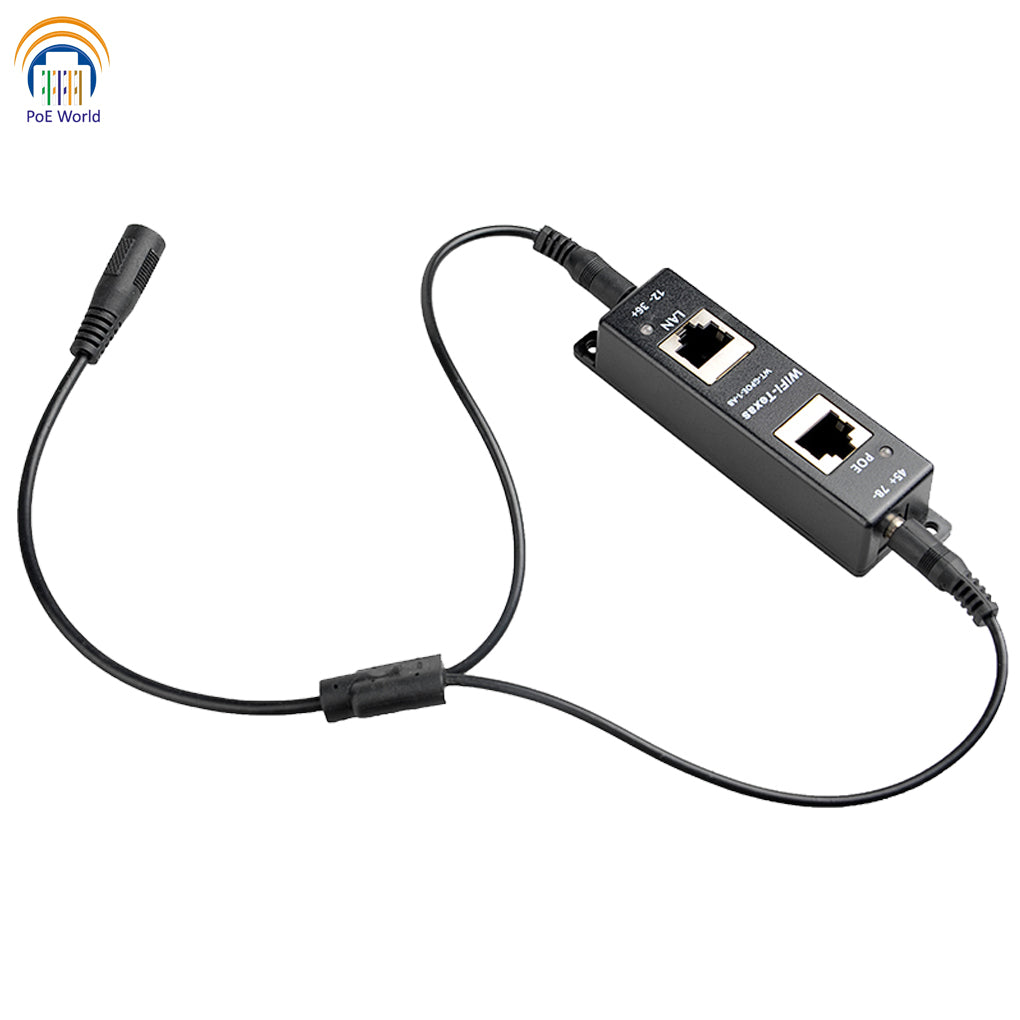

Package: 1 port gigabit poe injector Mode A &B * 1 + 1 pcs Y cable

View full details

Frequently Questions About POE

What is "POE"?

PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

What is the difference between Mode A and Mode B?

Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

What does passive POE mean?

Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

Which power supply do I need?

The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
