Gigabit POE Injector Splitter Cable Use as Poe Splitter or Poe Injector, 12V -56V Input for MikroTik, Powering any Router BOARD over Gigabit Ethernet
Gigabit POE Injector Splitter Cable Use as Poe Splitter or Poe Injector, 12V -56V Input for MikroTik, Powering any Router BOARD over Gigabit Ethernet
Couldn't load pickup availability

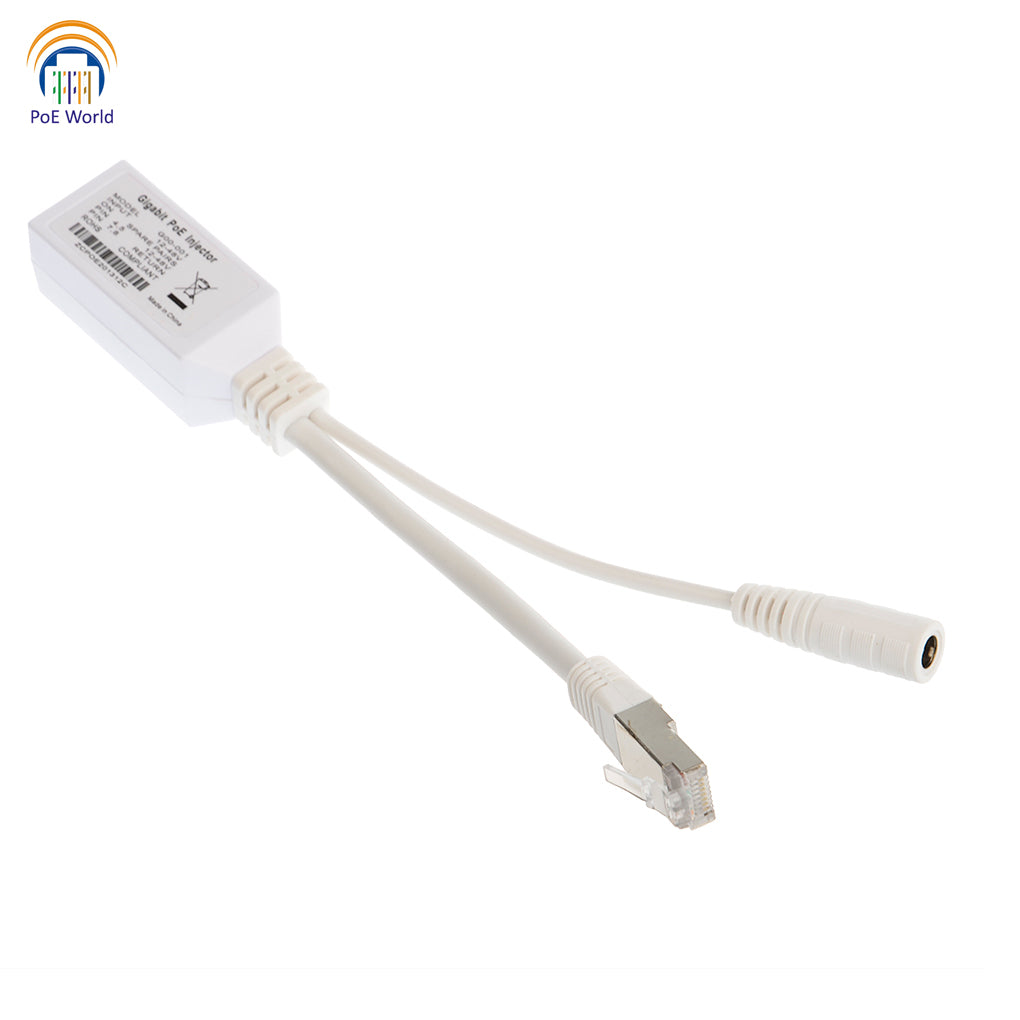

The new PoE adapter for powering any routerboard over Gigabit Ethernet.
Simply connect your power source and then use an ethernet cable to connect the injector to the Routerrouterboard device.
Helps reducing number of wires that lead up the tower.
The GPOE has shielded connectors.

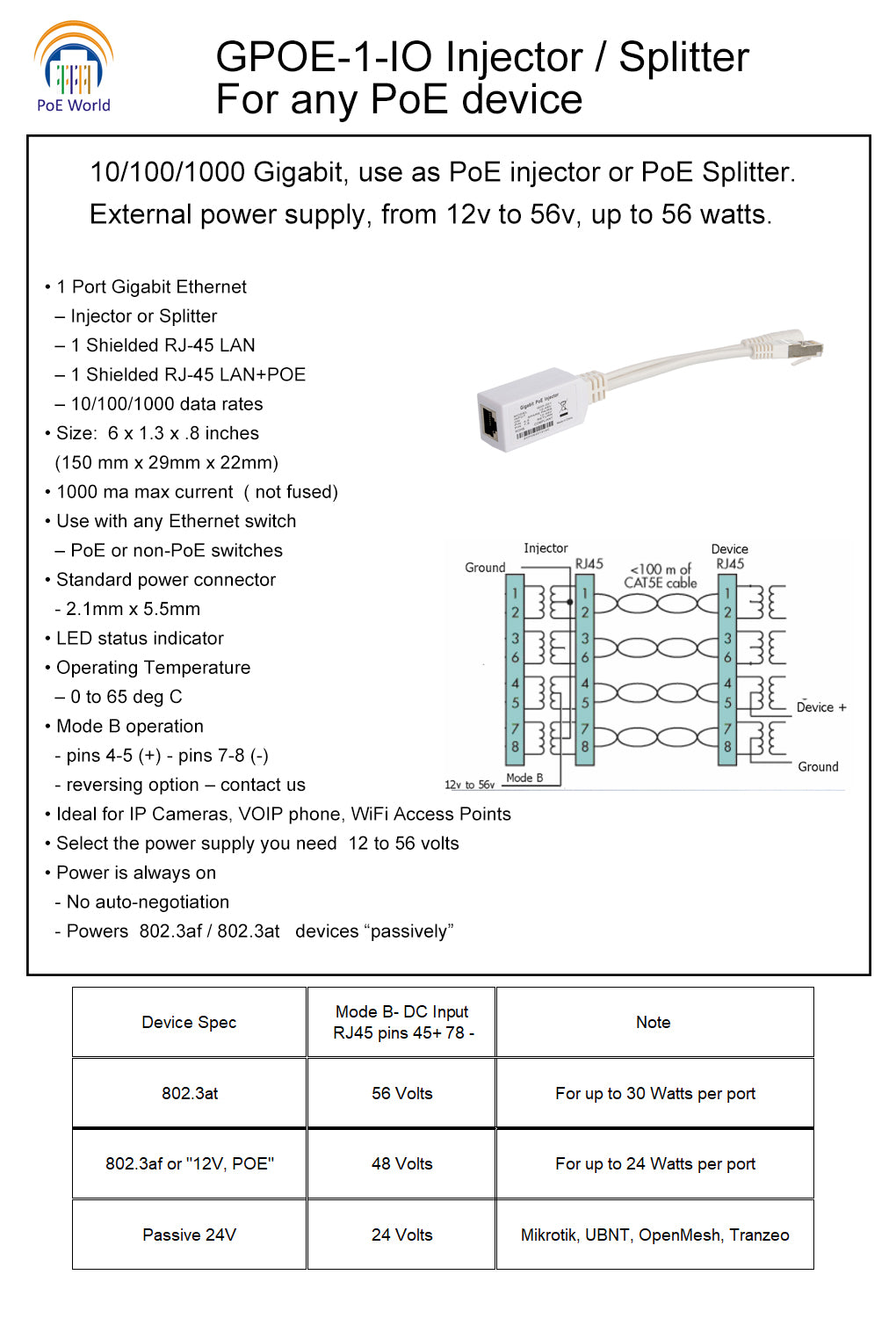

Specification :
1 Port Gigabit Ethernet
– Injector or Splitter

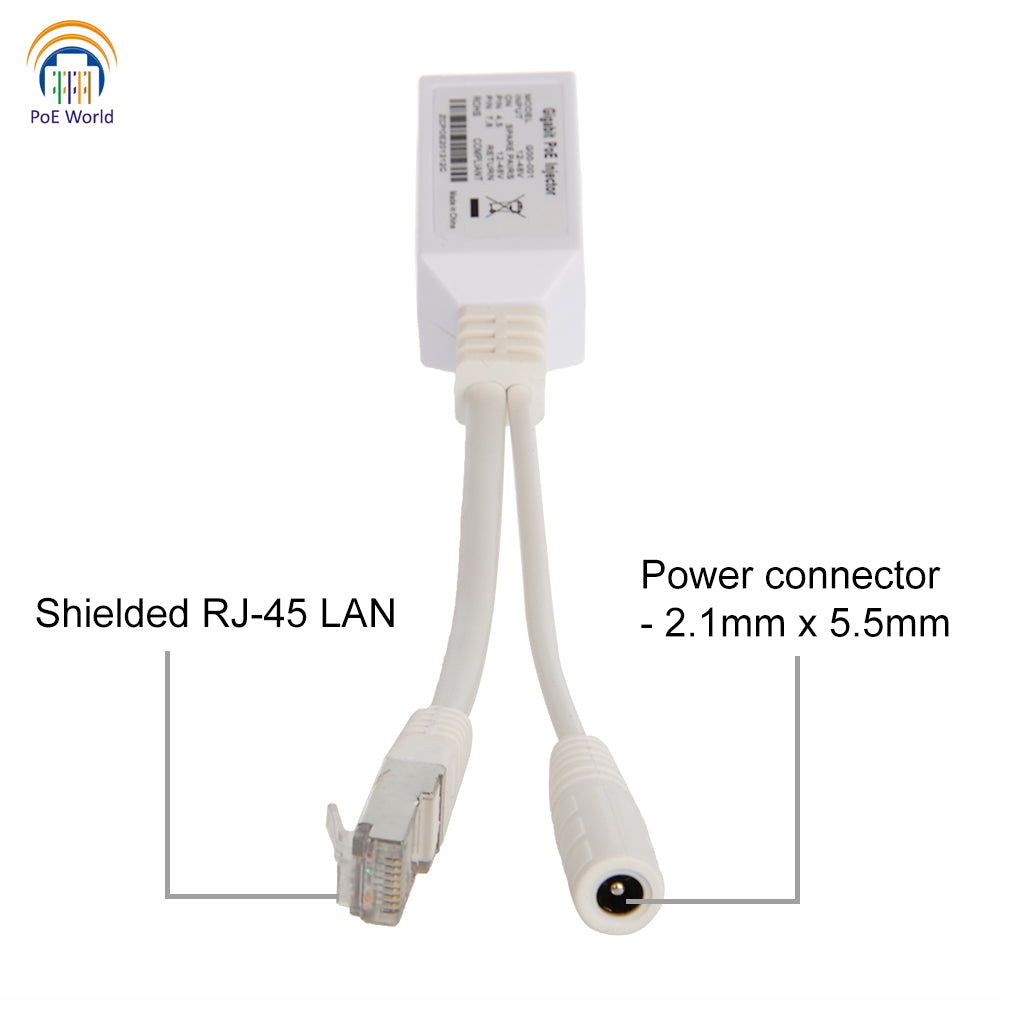

– 1 Shielded RJ-45 LAN

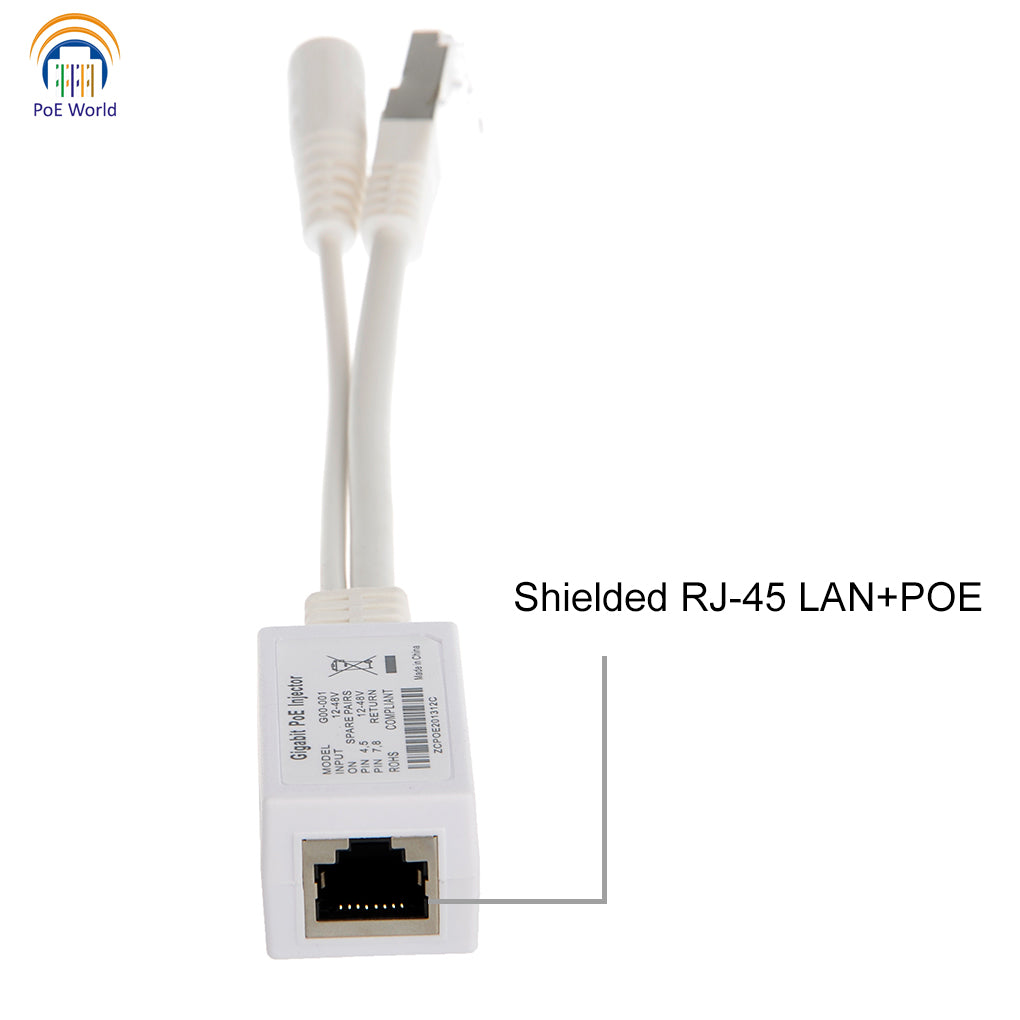

– 1 Shielded RJ-45
LAN+POE – 10/100/1000 data rates
• Size: 6 x 1.3 x .8 inches
(150 mm x 29mm x 22mm)
• 1000 ma max current ( not fused)
• Use with any Ethernet switch – PoE or non-PoE switches

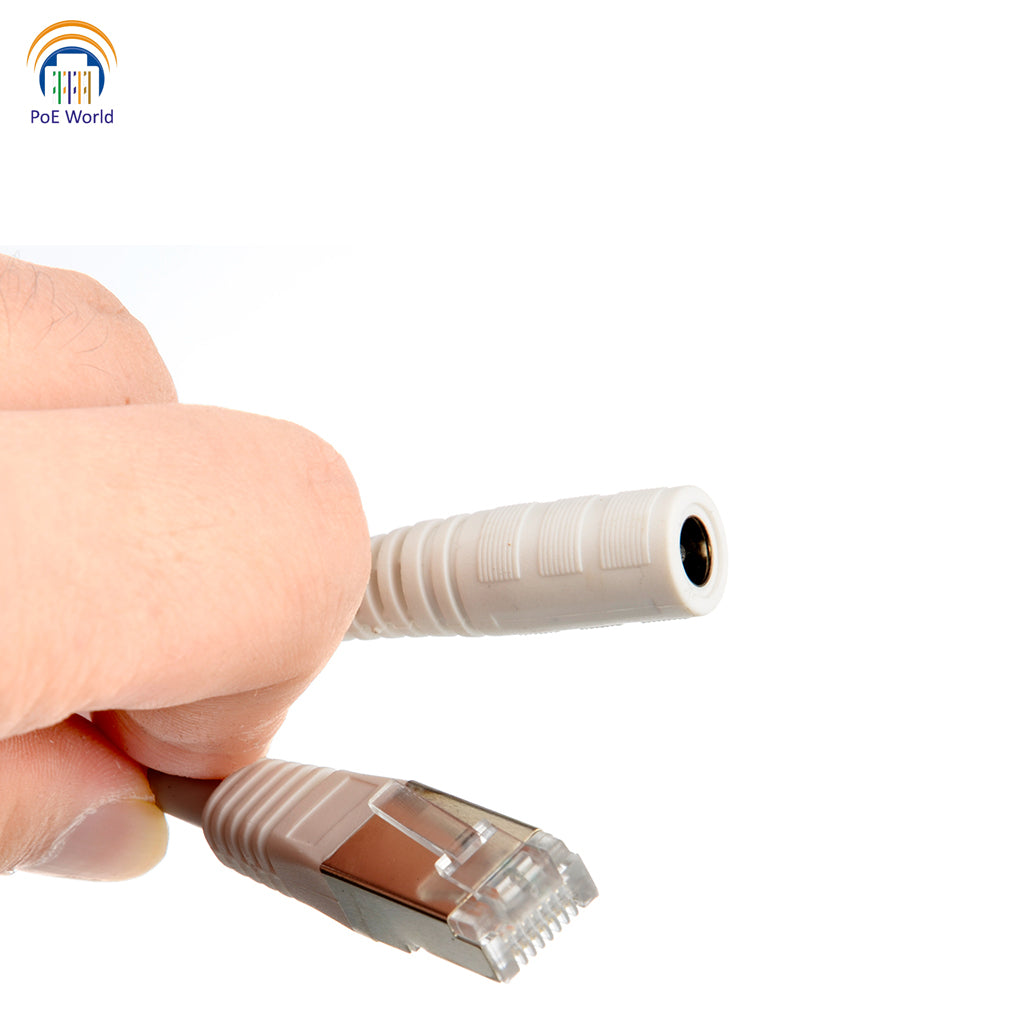

• Standard power connector
- 2.1mm x 5.5mm

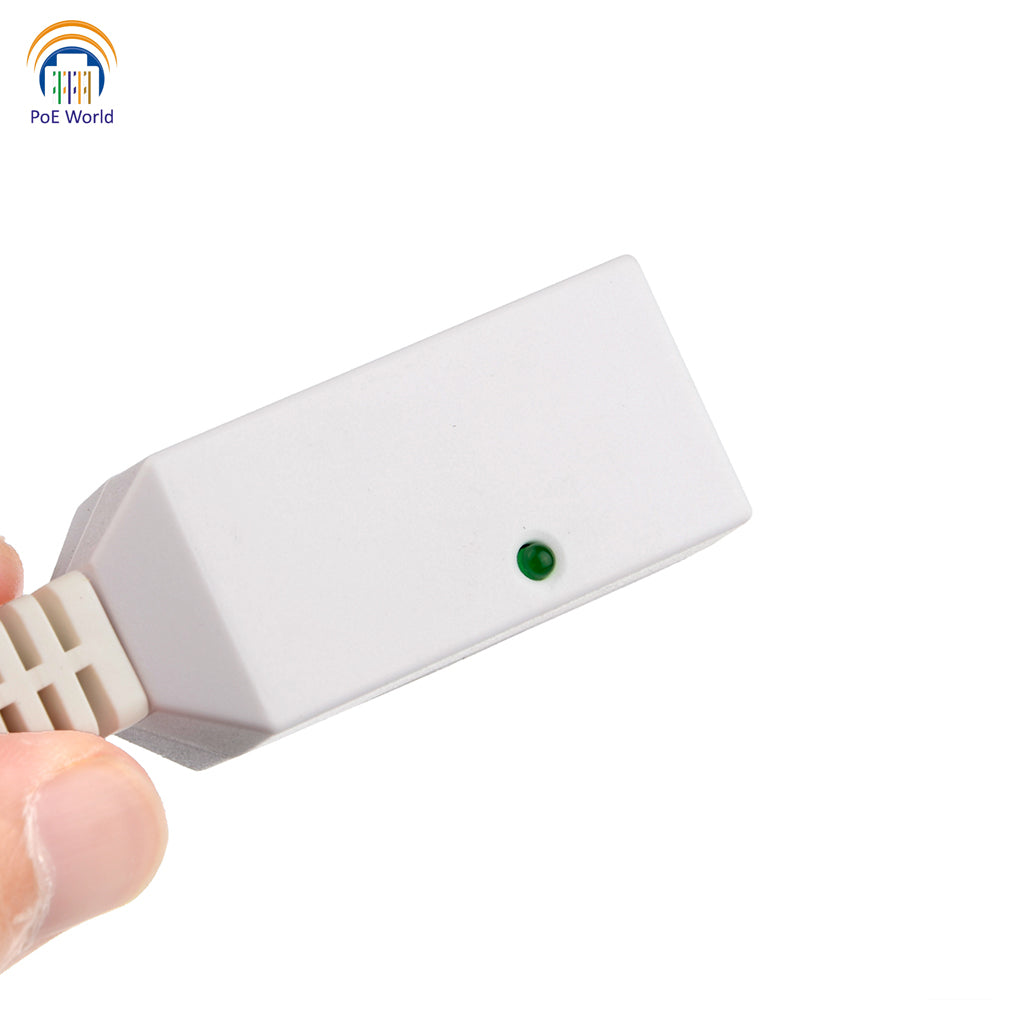

• LED status indicator
• Operating Temperature
– 0 to 65 deg C

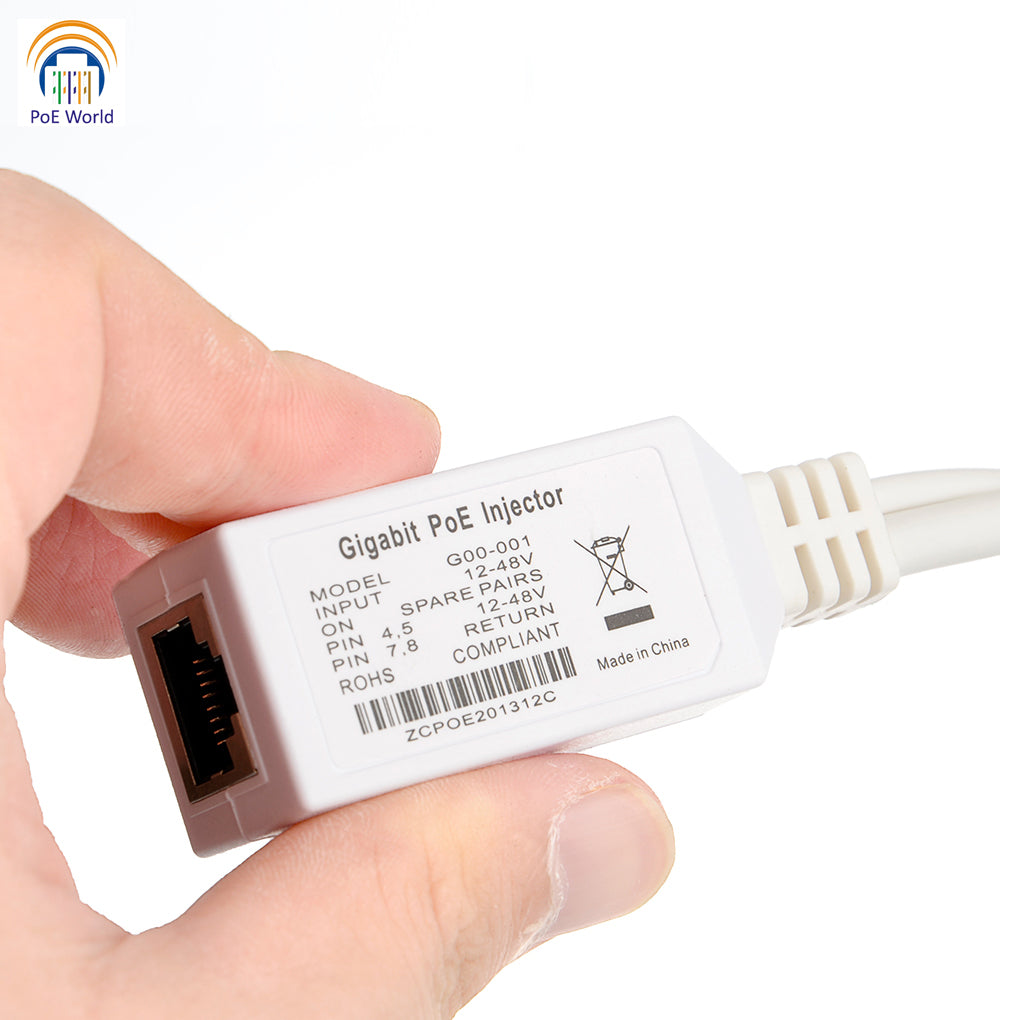

• Mode B operation- pins 4-5 (+) - pins 7-8 (-)
• Ideal for IP Cameras, VOIP phone, WiFi Access Points
• Select the power supply you need 12 to 56 volts.
• Power is always on
- No auto-negotiation
- Powers 802.3af / 802.3at devices “passively”
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
