New Arrival !! GAT-USBC-PD-V3 Gigabit PoE+ (802.3at) to USB-C Power + Data Delivery with 23 Watt Output
New Arrival !! GAT-USBC-PD-V3 Gigabit PoE+ (802.3at) to USB-C Power + Data Delivery with 23 Watt Output
Couldn't load pickup availability

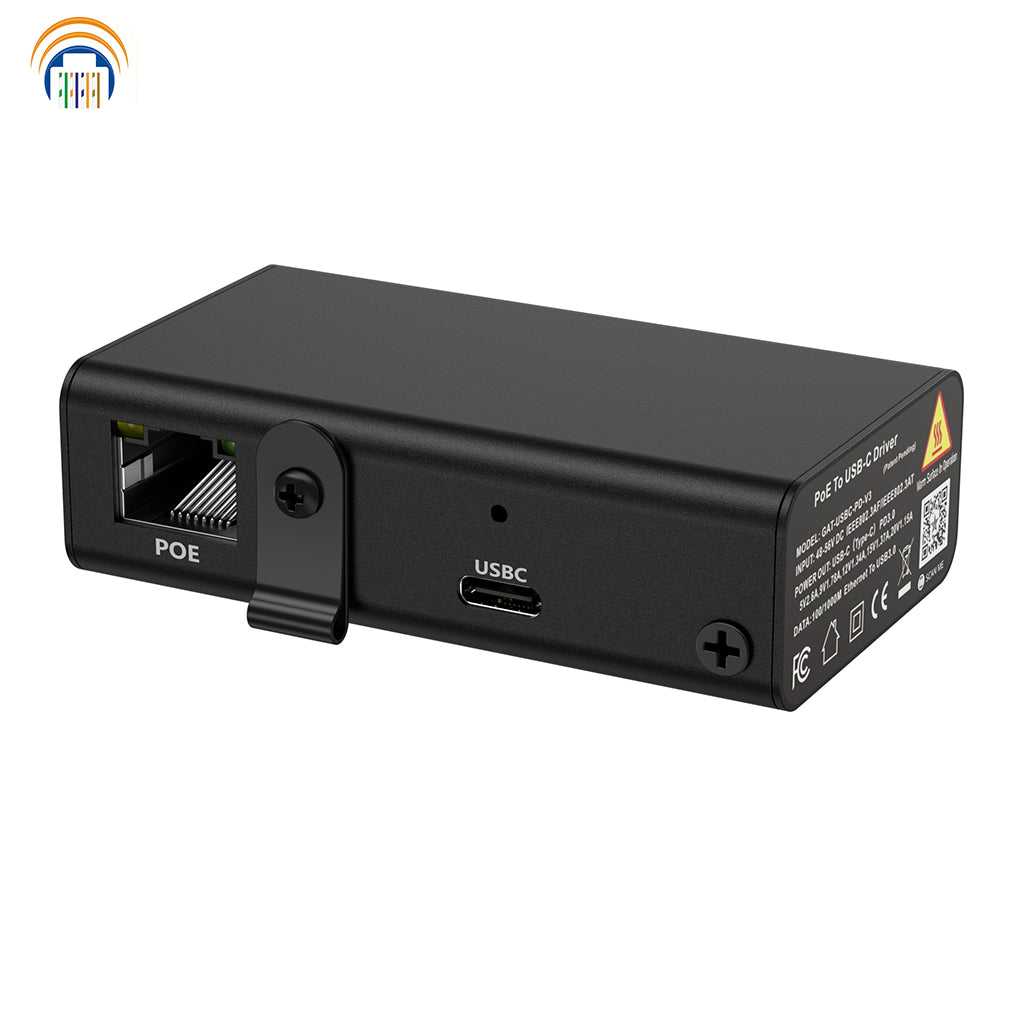

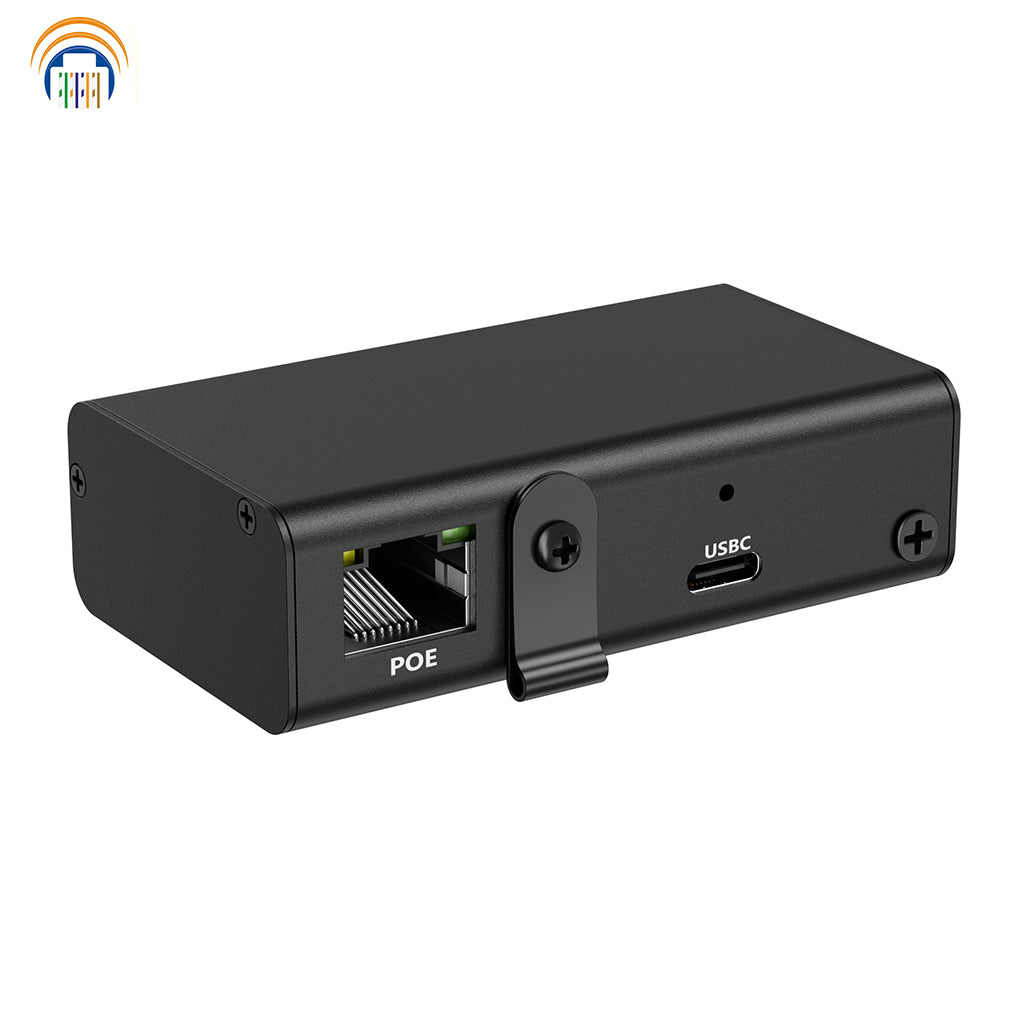

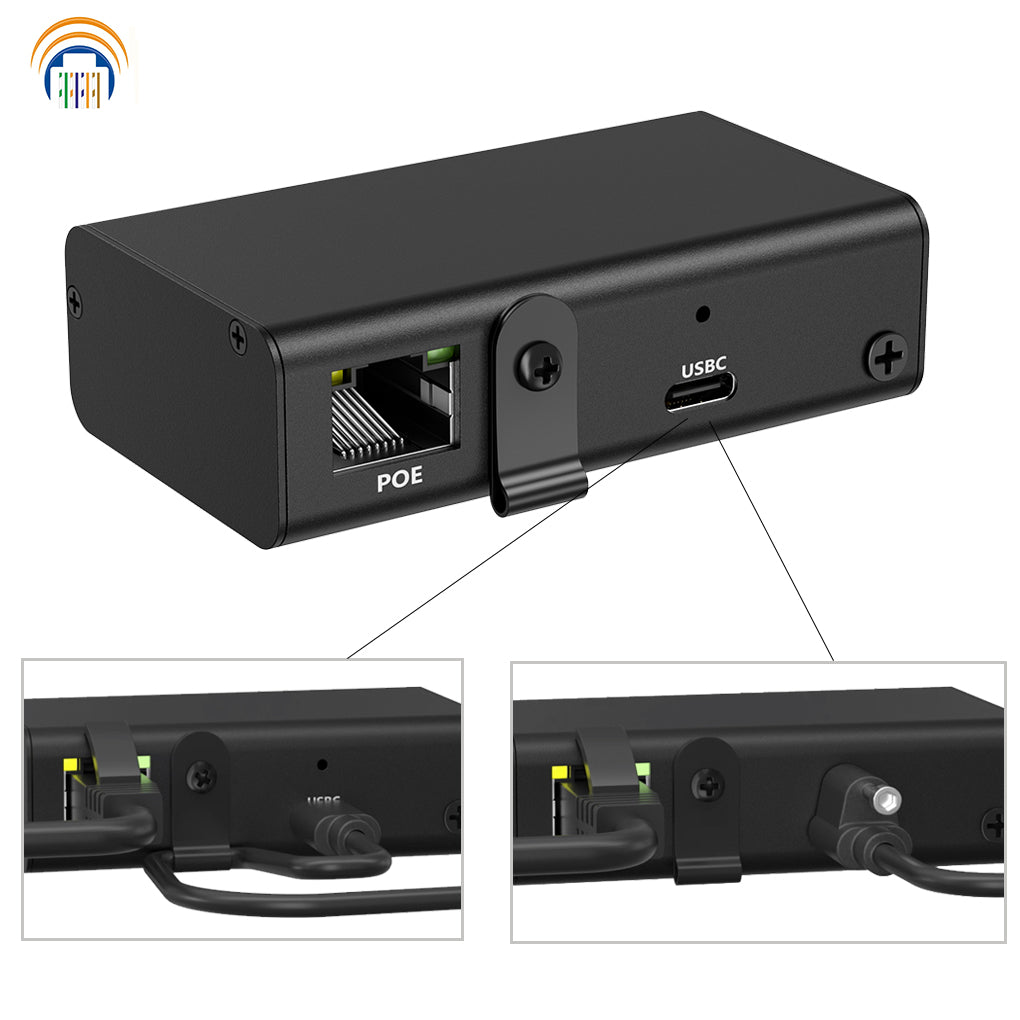

GAT-USBC-PD-V3 PoE to USB-C-PD Power + Gigabit Data

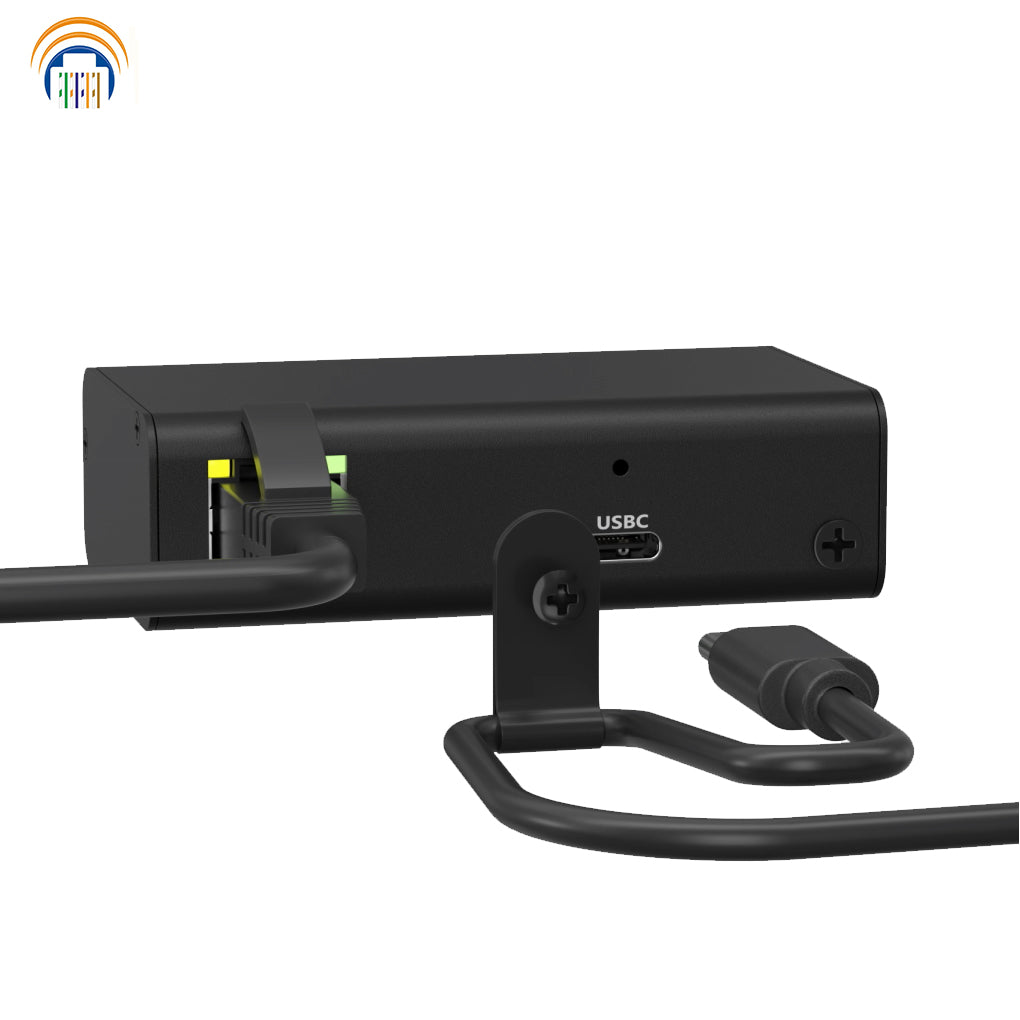

-Delivers Both USB Type C Power and Data on one cable to your tablet
-Extends Power and data up to 328 feet from the source

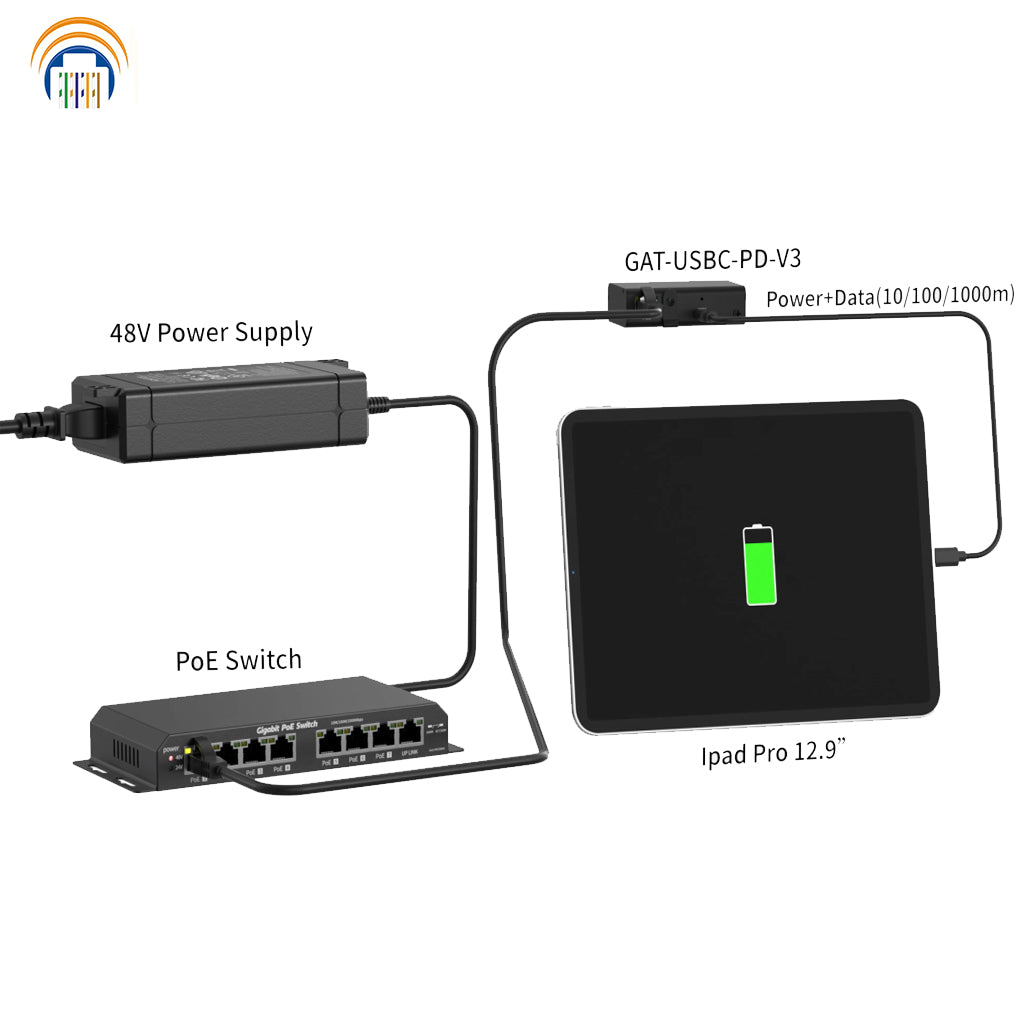

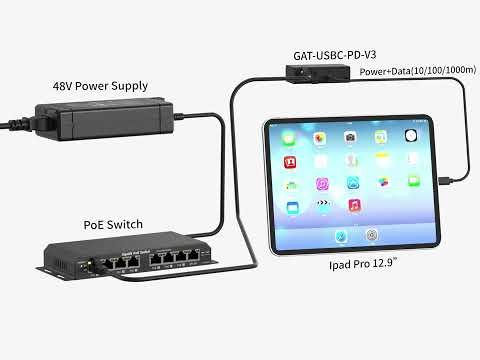

-Offers a working solution for installing tablets, kiosks and schedulers where you need them using PoE technology
-10/100/1000mbps Data Capability
-3.0 USB Data Standard Output
-Plug-and-play design for easy installation
-23 Watt Output - (5V,2.6A; 9V,1.78A; 12V,1.34A; 15V,1.37A; 20V,1.15A)
-Compatible with IEEE 802.3at PoE+ Switch or Injector

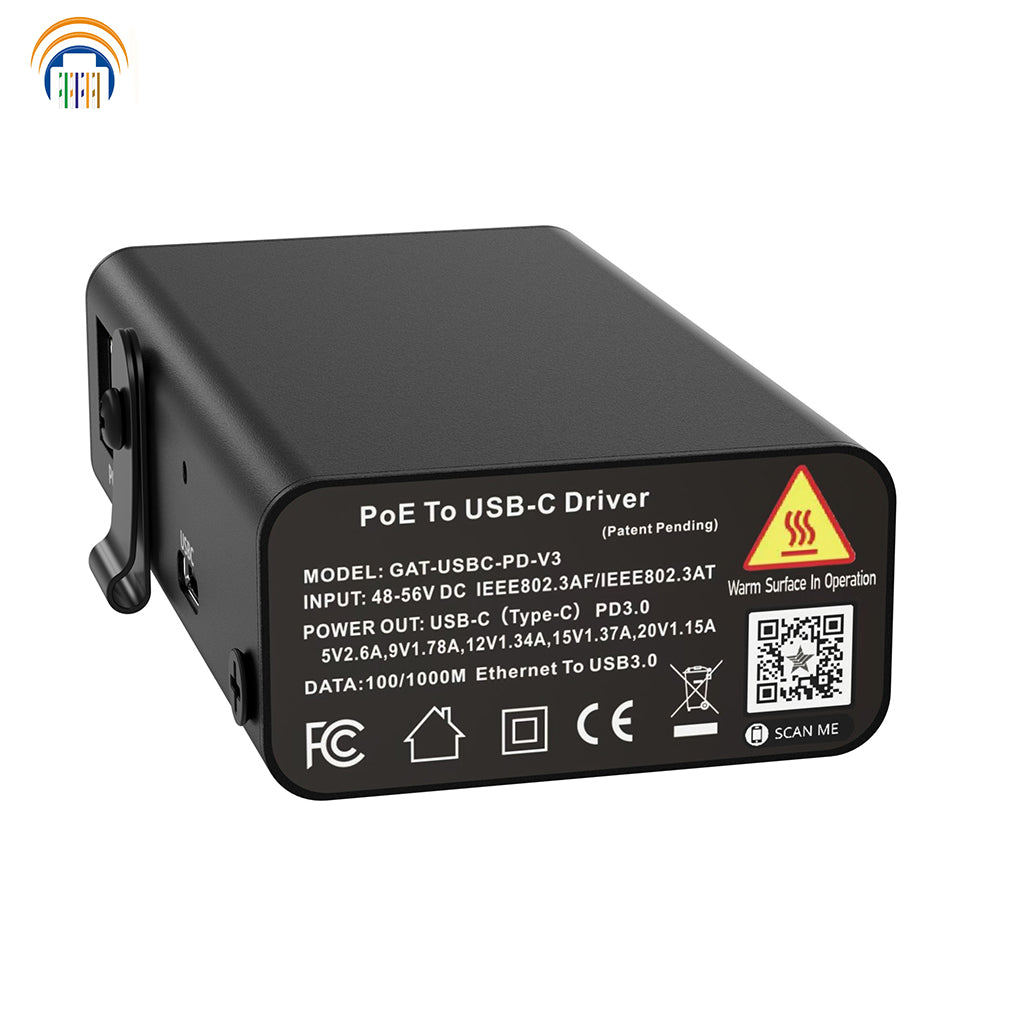

PRODUCT SPECIFICATIONS

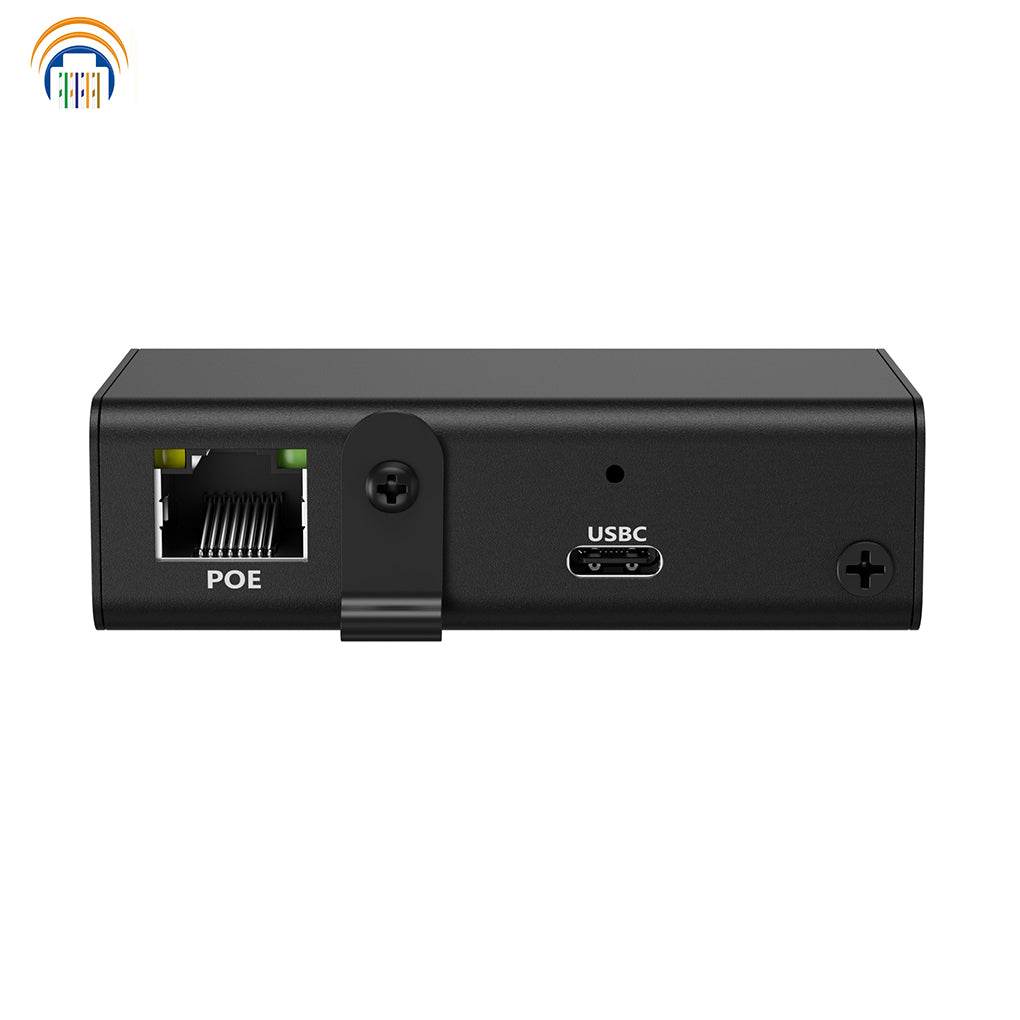

Connector Types: USB-C (Female) 1x RJ45 Input (Female) 1
Data Rate: Input 10/100/100mbps, Output 10/100/100mbps
Input Voltage Range: 48-56 Volts (IEEE 802.3at Compliant)
LEDs Per Port: Green (POE) / Yellow (USB-C)
Max Power Output: 23 Watts
Operating Temperature: -10 to 60C
Operating Humidity: 5% to 90%
Output Voltage: 5V,2.6A; 9V,1.78A; 12V,1.34A; 15V,1.37A; 20V,1.15A
POE Method: IEEE 802.3at / PoE+ / Passive 30 watt
POE Mode/Pinout: Mode A (1,2 3,6) / Mode B (4,5 7,8)

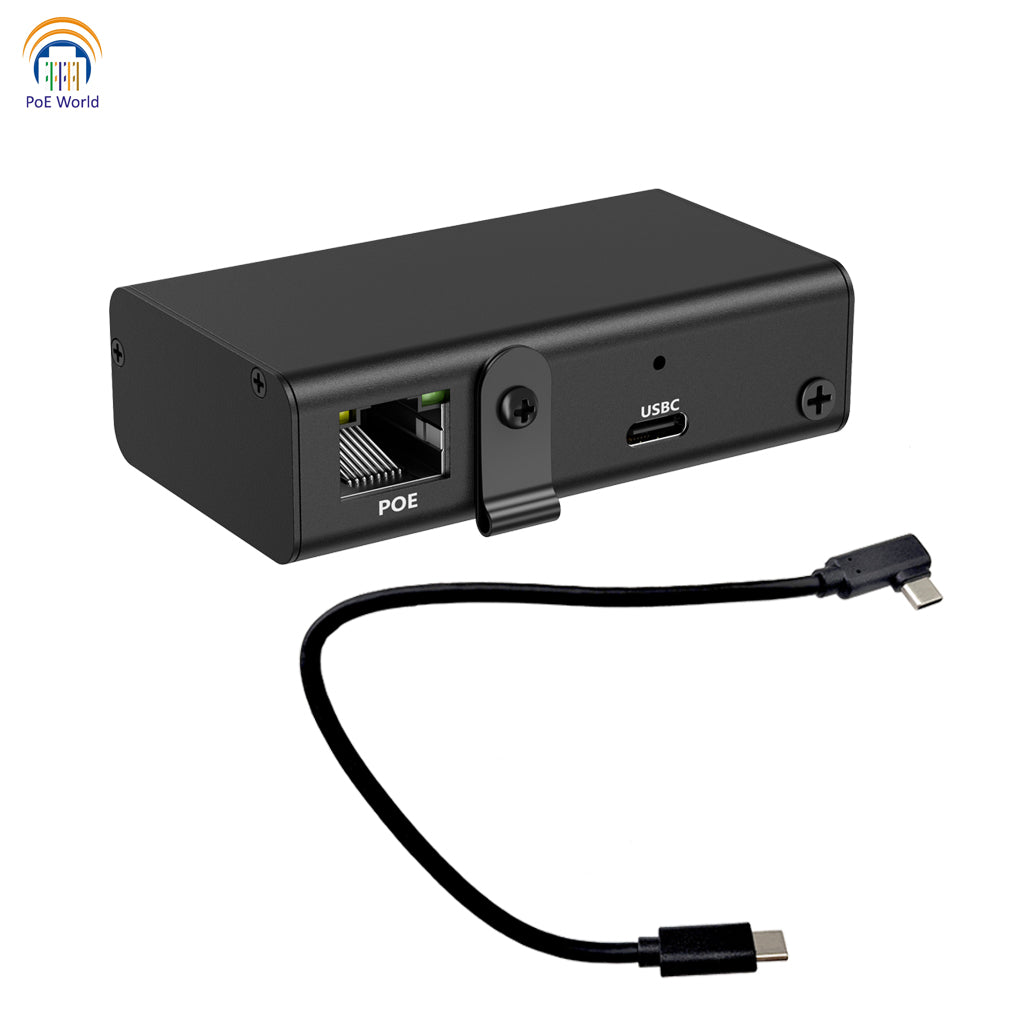

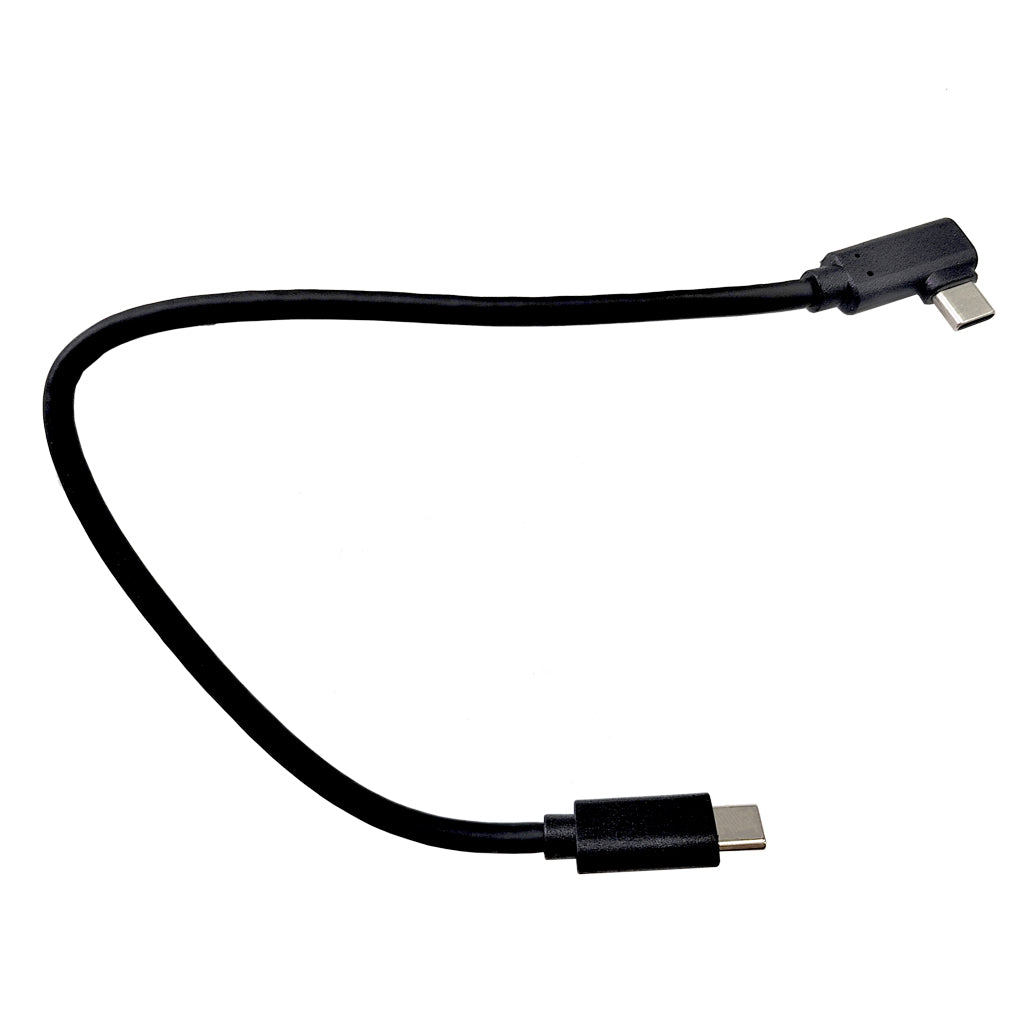

* USB-C to USB-C Right Angle Bi-directional cable for your option
Compatibility
For Apple iPad Pro, Air, Mini, and 10.2 -
Designed specifically for USB-C iPads
For Microsoft Surface Go
Works with Microsoft Surface Go, Google Pixel & Samsung Galaxy Tab Active 2
*Samsung Tab compatibility may vary. 2020 Tab A7 SMT500 models no longer have the ability to do concurrent power and data connections, though SMT510 and SMT515 still do have compatibility. Please check your specific model for compatibility with USB-C data transfer.
Frequently Questions About POE
What is "POE"?
PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.
What is the difference between Mode A and Mode B?
Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).
Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.
If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.
What does passive POE mean?
Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.
Which power supply do I need?
The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
