GAF-Pihat Active Power Over Ethernet (PoE) HAT for Raspberry Pi Pi3B+ Pi4, Gigabit Data Speed, 44-56V PoE Input 10 watt Output PoE Hat board

GAF-Pihat Active Power Over Ethernet (PoE) HAT for Raspberry Pi Pi3B+ Pi4, Gigabit Data Speed, 44-56V PoE Input 10 watt Output PoE Hat board

Regular price €20,95 EUR
Regular price Sale price €20,95 EUR
Sale Sold out
Shipping calculated at checkout.

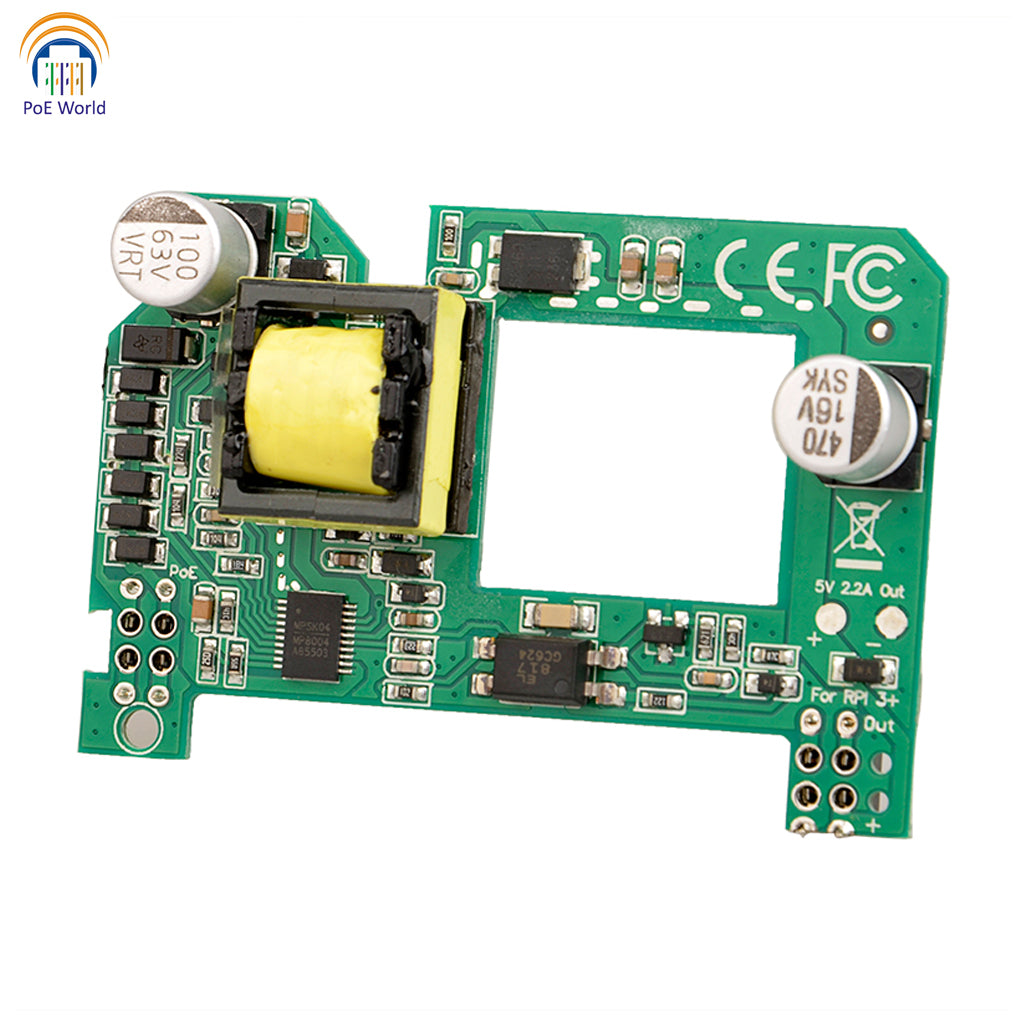

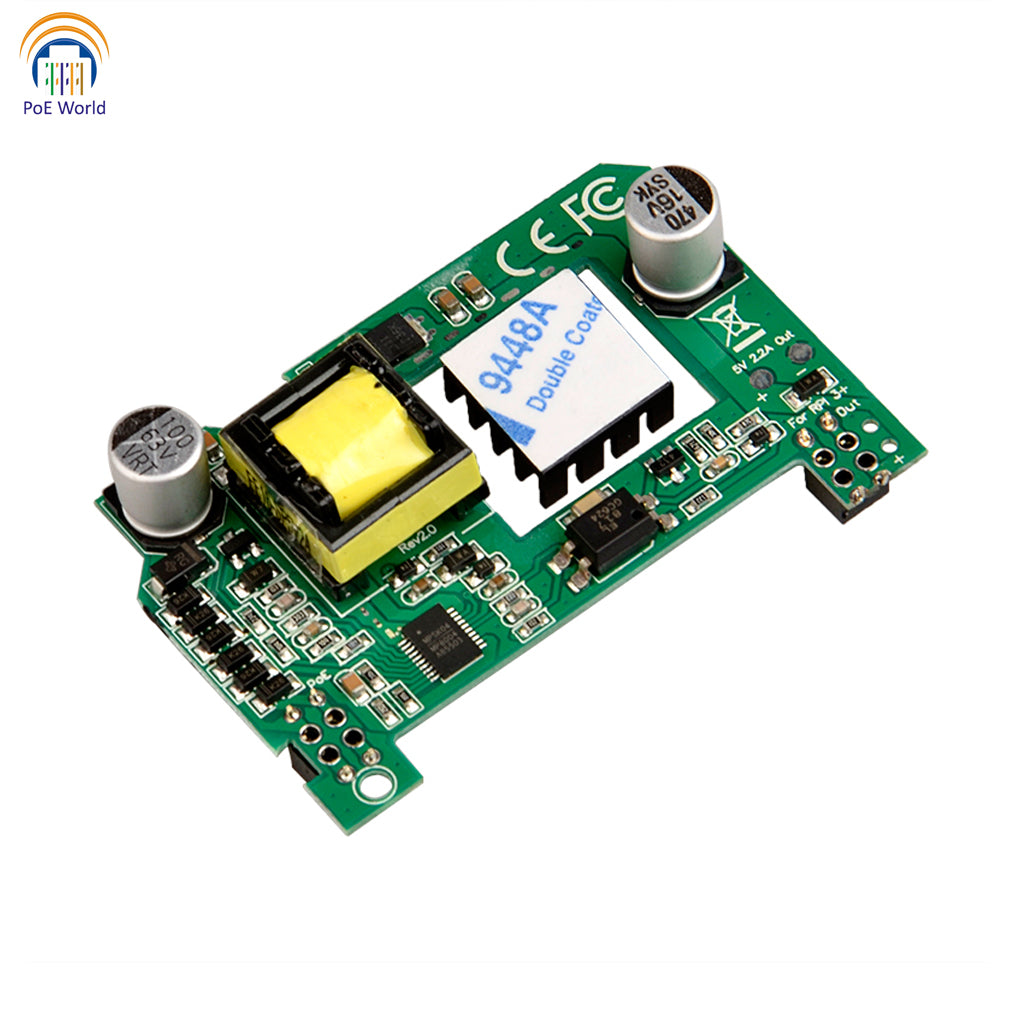

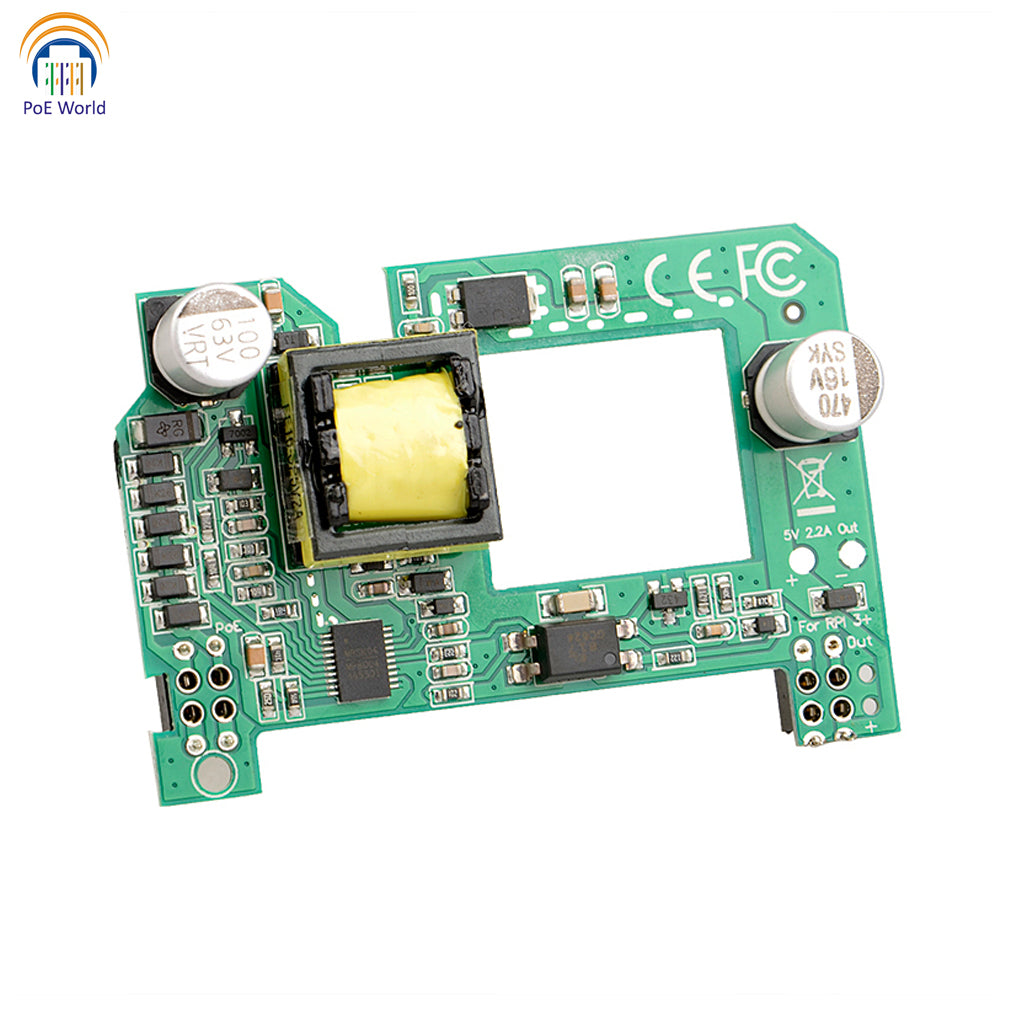

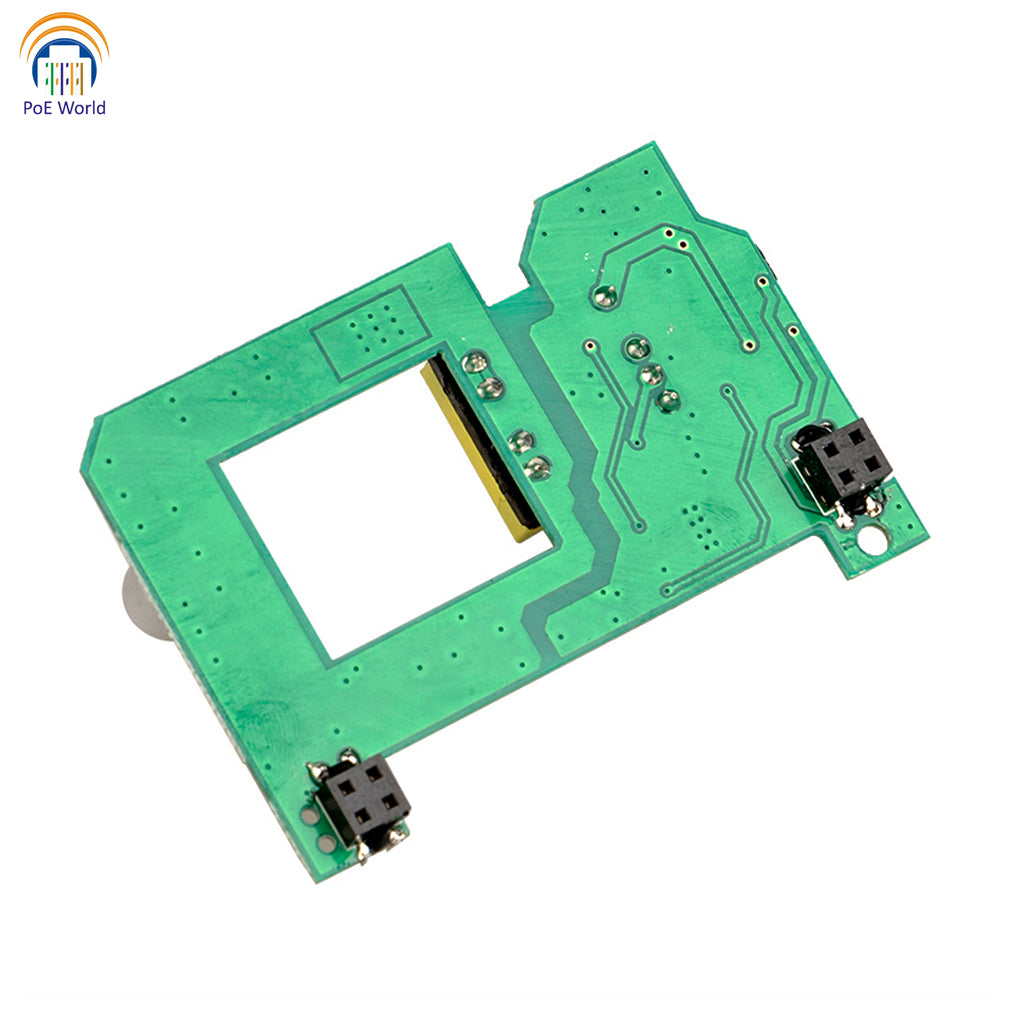

GAF-PiHat Isolated 802.3af 10 watt PoE Hat board for Raspberry Pi

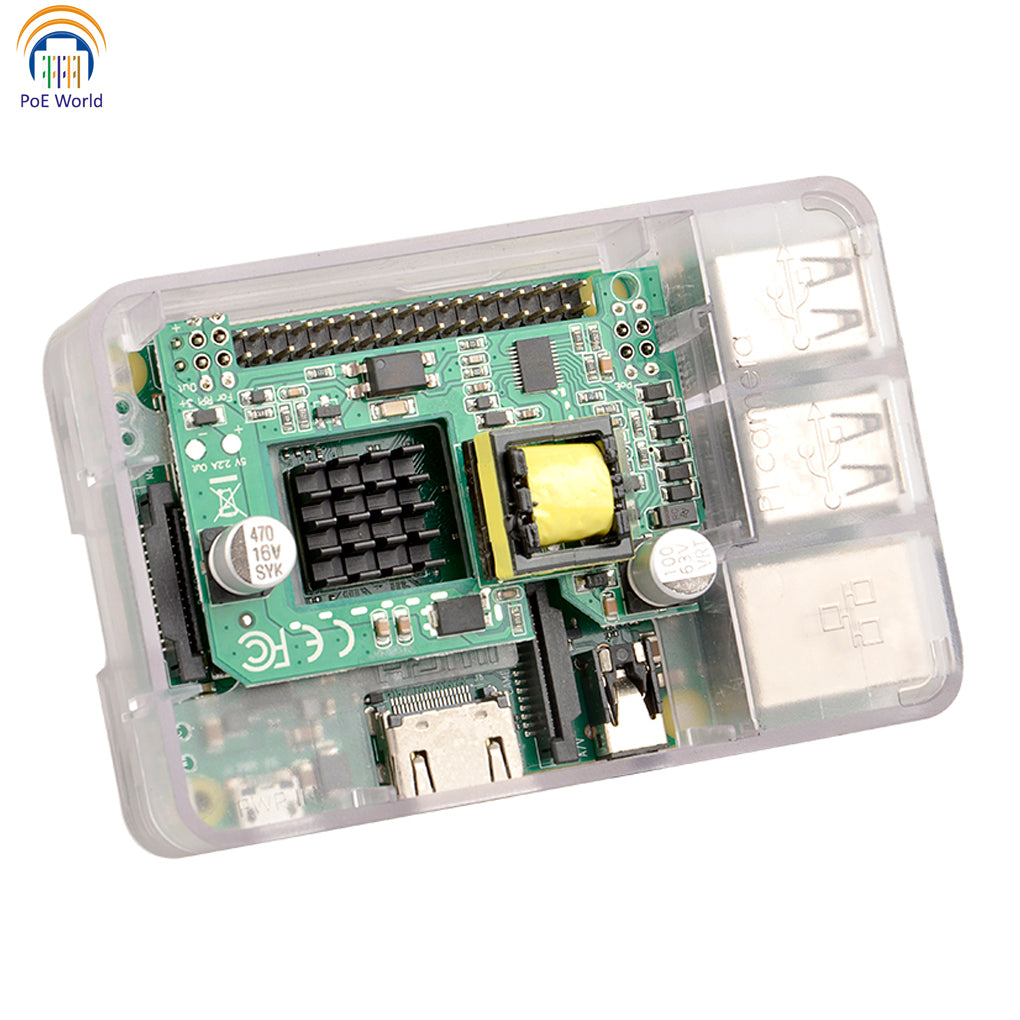

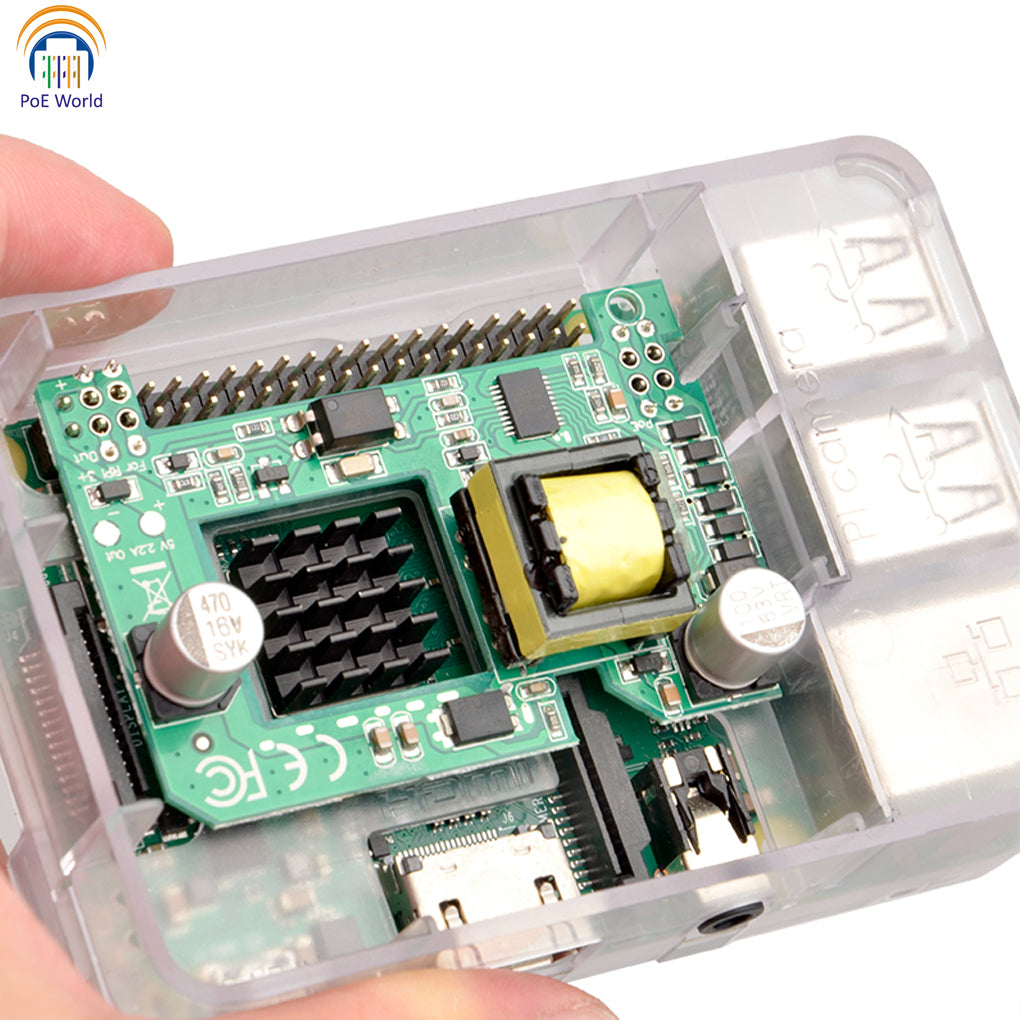

This PoE-World device provides an efficient solution for delivering power to a Raspberry Pi 3B+ or 4 over 328ft of network cable.
This device allows power to be carried on 10/100/1000 networks with either 802.3af or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable.

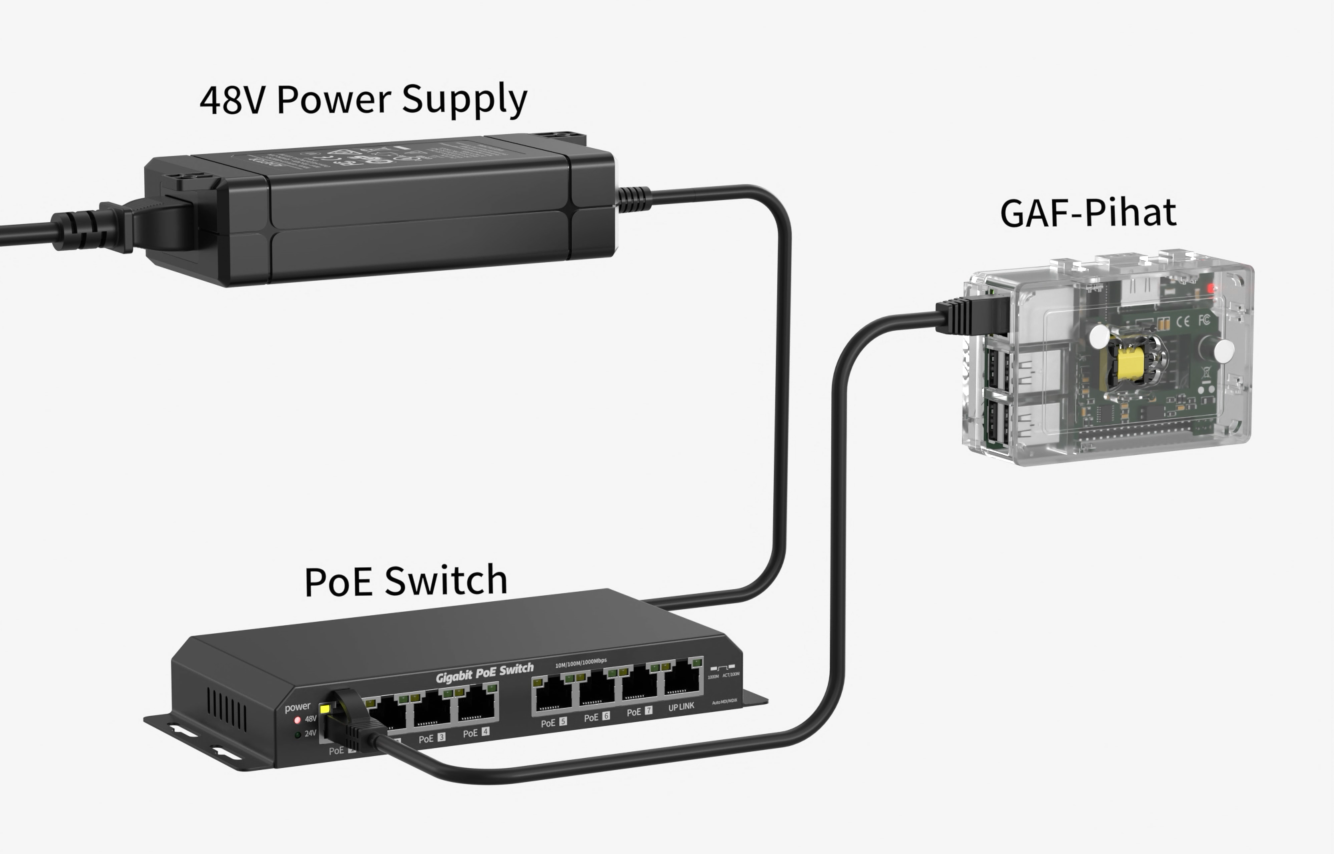

Intended for use with Cisco or similar PoE switches – this active PoE solution negotiates with the switch to activate power and provide it to the Pi. It is a compact and cost effective power solution.

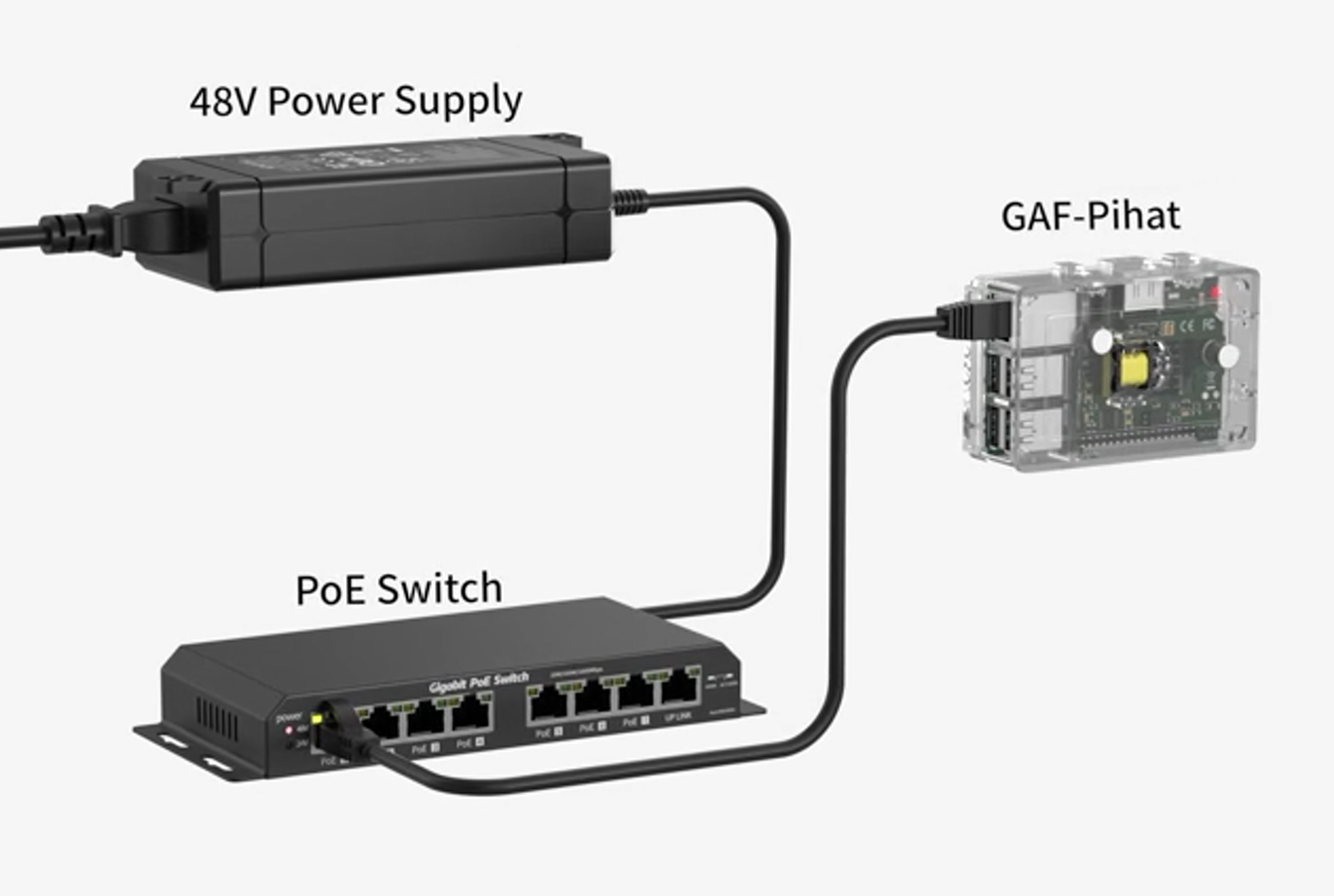

The PoE switch supplies 48 or 56 volts DC at the source location.The higher DC voltage means the current is reduced by a factor of 9, and then carried with less loss over the cable.
This PoE to 5 volt converter allows you to operate the Pi up to 328ft or 100 meters from a power source.

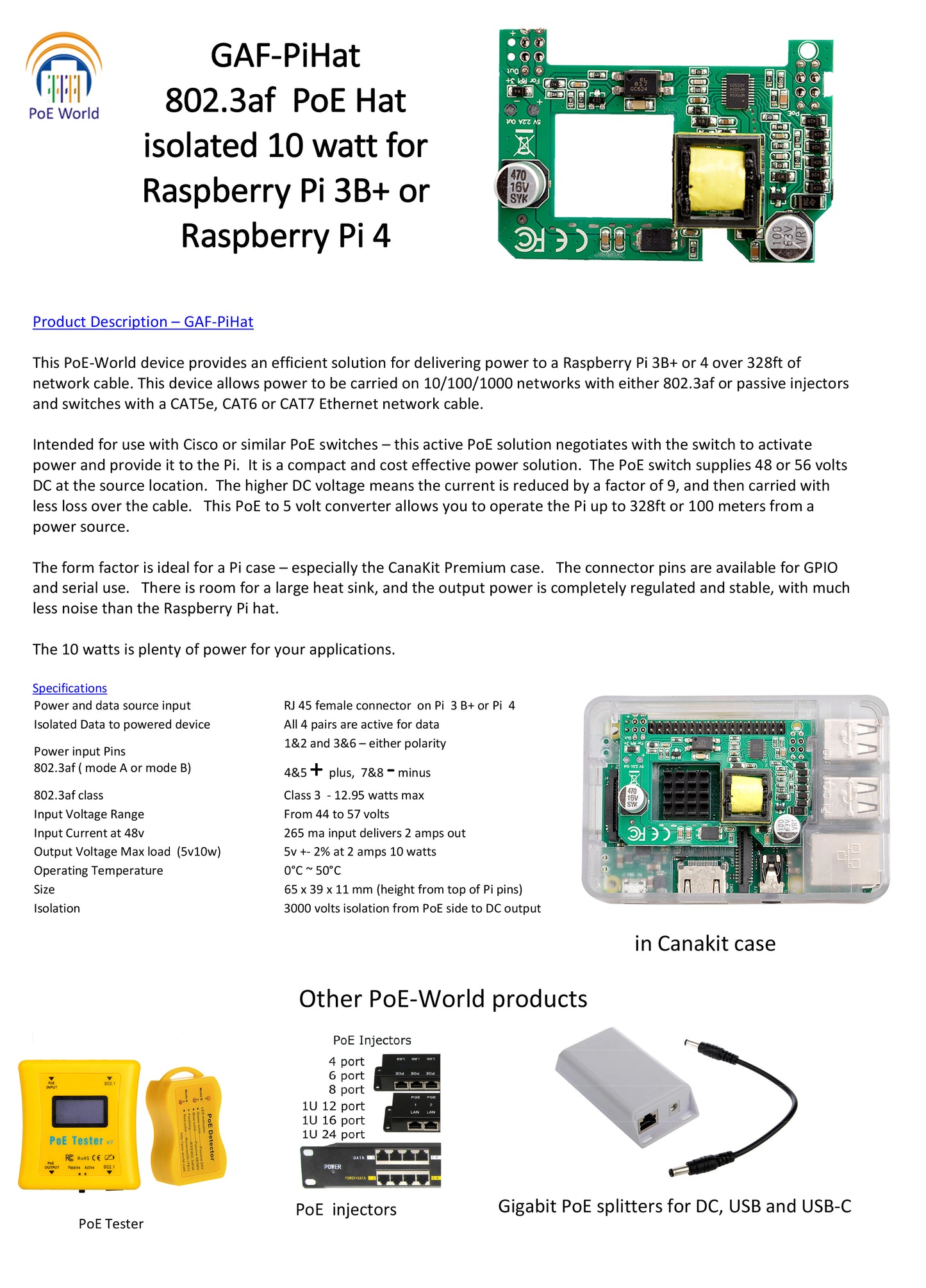

Specifications

Power and data source input :RJ 45 female connector on Pi 3 B+ or Pi 4

Data to powered device :All 4 pairs are active for data at 10/100/1000

Power input Pins 802.3af ( mode A or mode B):1&2 and 3&6 – either polarity ; 4&5 + plus, 7&8 - minus

802.3af class:Class 3 - 12.95 watts max

Input Voltage Range :From 44 to 57 volts --Active PoE Standard.

Input Current at 48v :265 ma input delivers 2 amps out

Output Voltage Max load (5v10w) :5v +- 2% at 2 amps 10 watts

Operating Temperature :0°C ~ 50°C

Size :65 x 39 x 11 mm (height from top of Pi pins)

Isolation :Not isolated

Note: The Raspberry Pi was not included.
