GAF-5v10w-USB 802.3af POE Splitter Gigabit Splitter Separator, 5V10W Output with Female USB Adapter for 5V USB devices

GAF-5v10w-USB 802.3af POE Splitter Gigabit Splitter Separator, 5V10W Output with Female USB Adapter for 5V USB devices

Regular price €21,95 EUR
Regular price Sale price €21,95 EUR
Sale Sold out
Shipping calculated at checkout.
Type

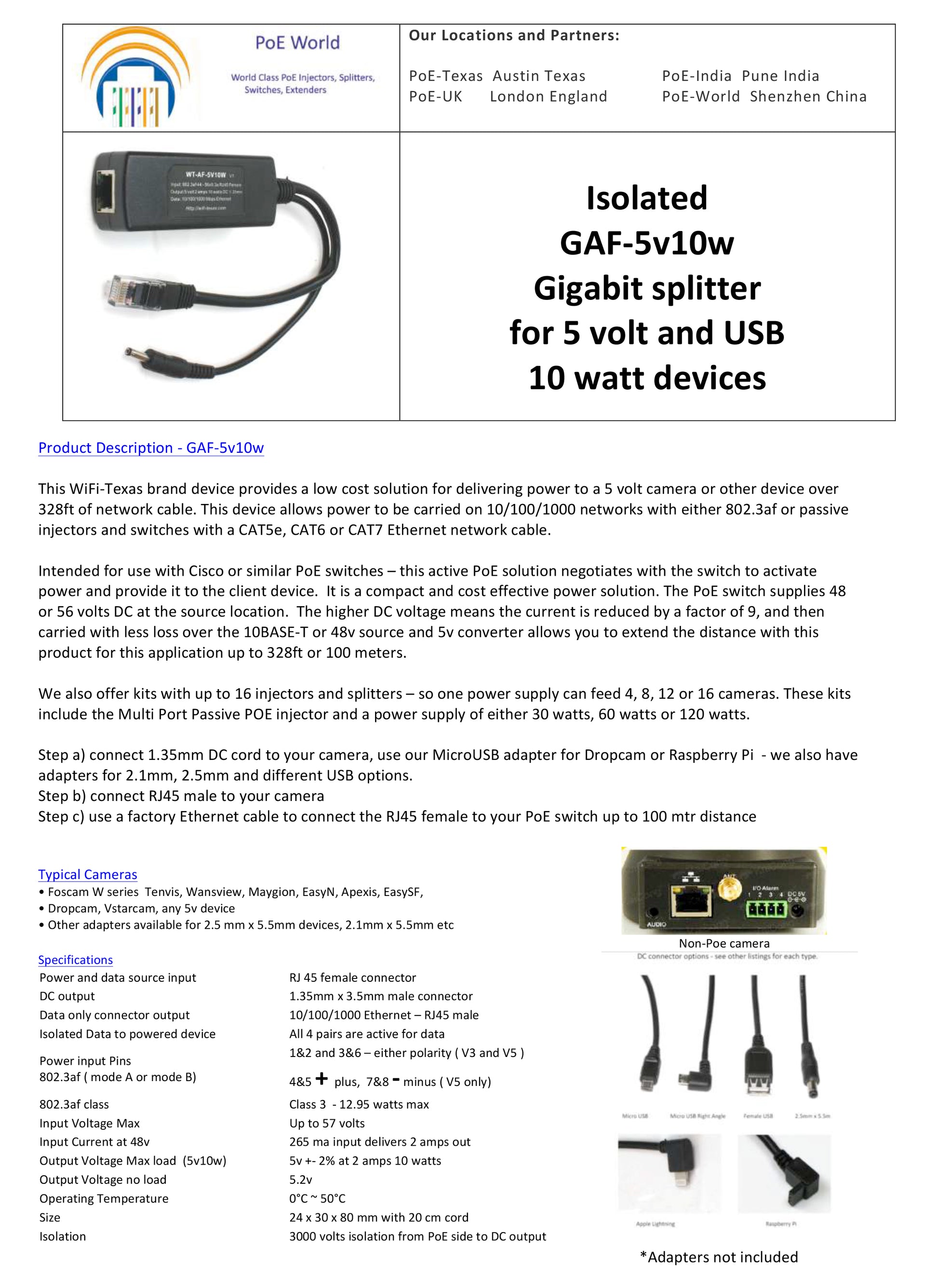

Product Description - GAF-5v10w with USB adapter for option

This device provides a low cost solution for delivering power to a USB device over 328ft or network cable. This device allows power to be carried on 10/100/1000 network cables with either 802.3af ir or passive injectors or switches with any CAT5e, CAT6 or CAT7 Ethernet network cable.

Intended for use with Cisco or similar PoE Switches - this active PoE solution negotiates with the switch to activate poer and provide it to the client device. It is a compact and cost effective power solution. The PoE switch supplies 48 or 56 volts DC at teh source location. The higher DC voltage means the current is reduced by a factor of 9, and then carried with less loss over the Ethernet cable from the source, the 5v converter at the remote end allows you to extend the distance with this product for this application up to 328ft or 100 meters.

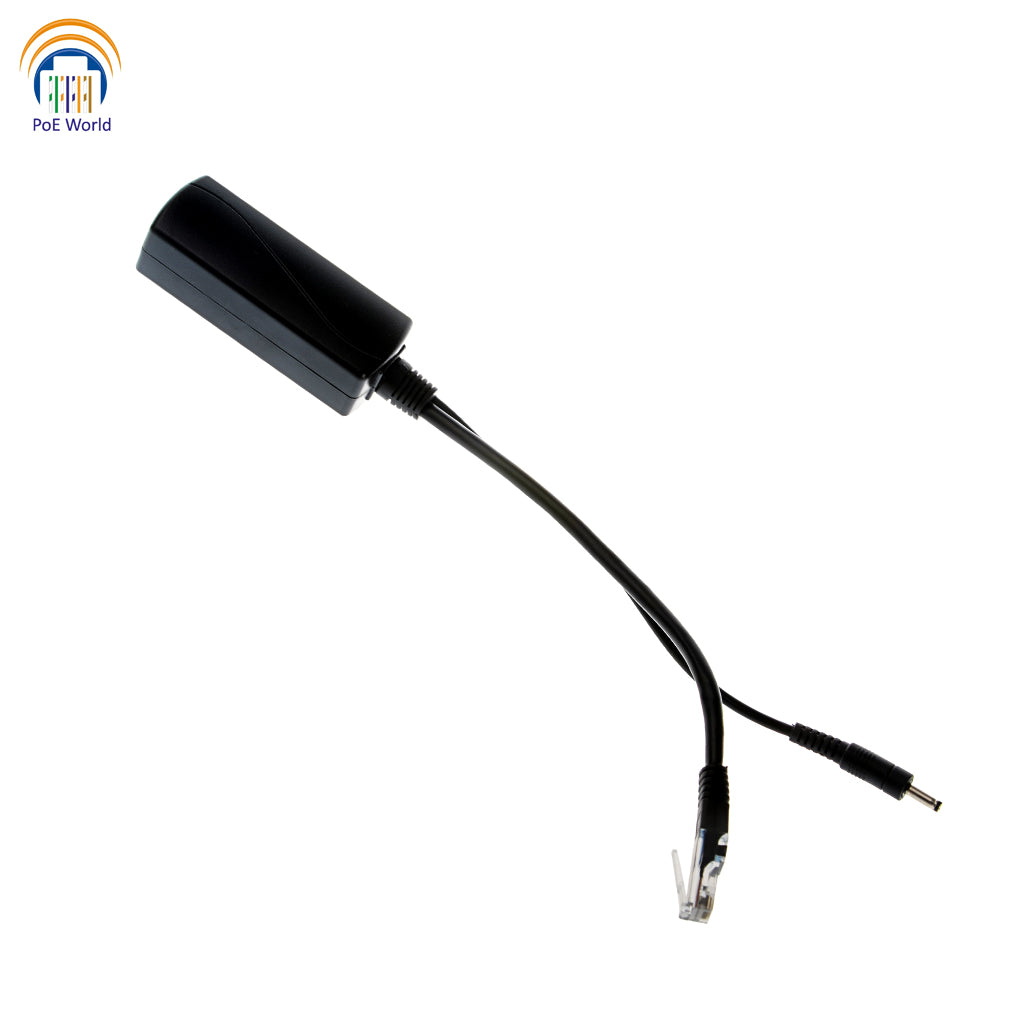

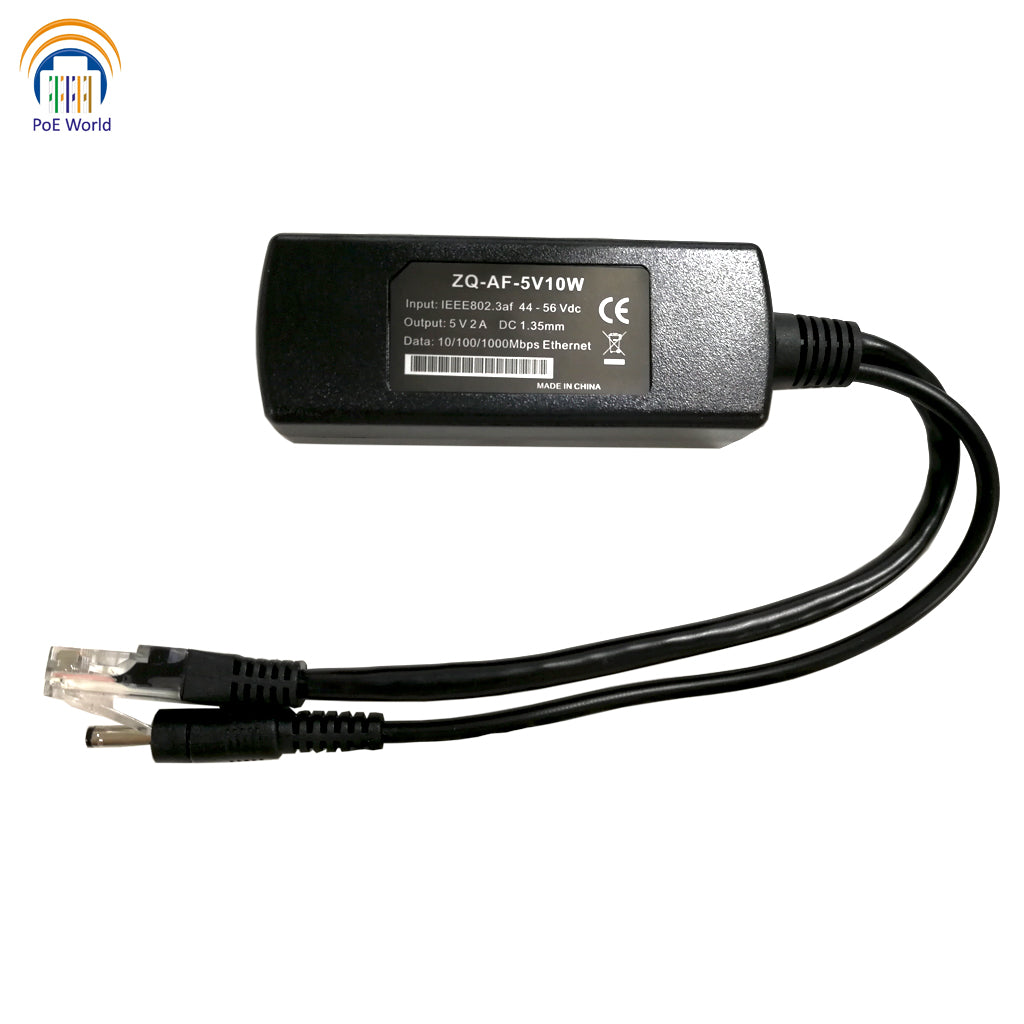

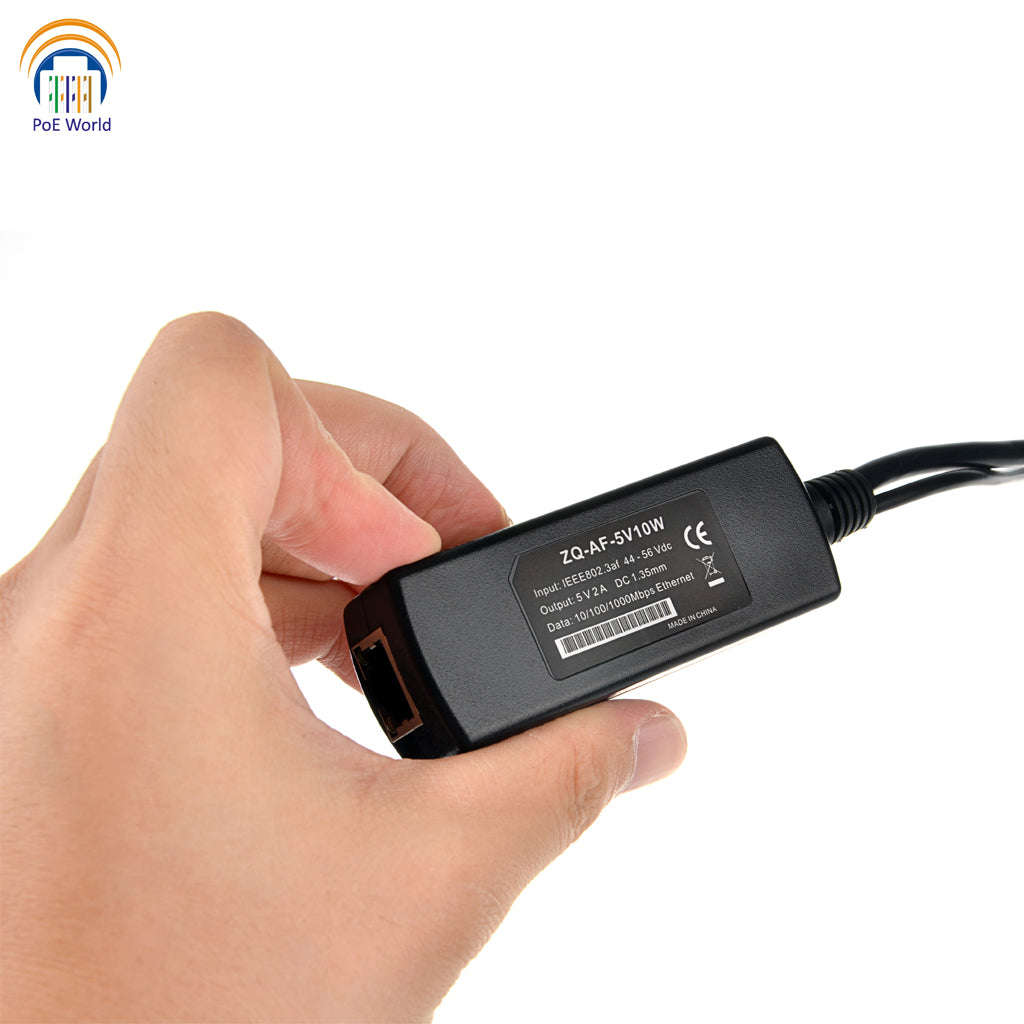

 5 volt 10 watt 2 amp POE Splitter

power source:                                           RJ-45 female connector

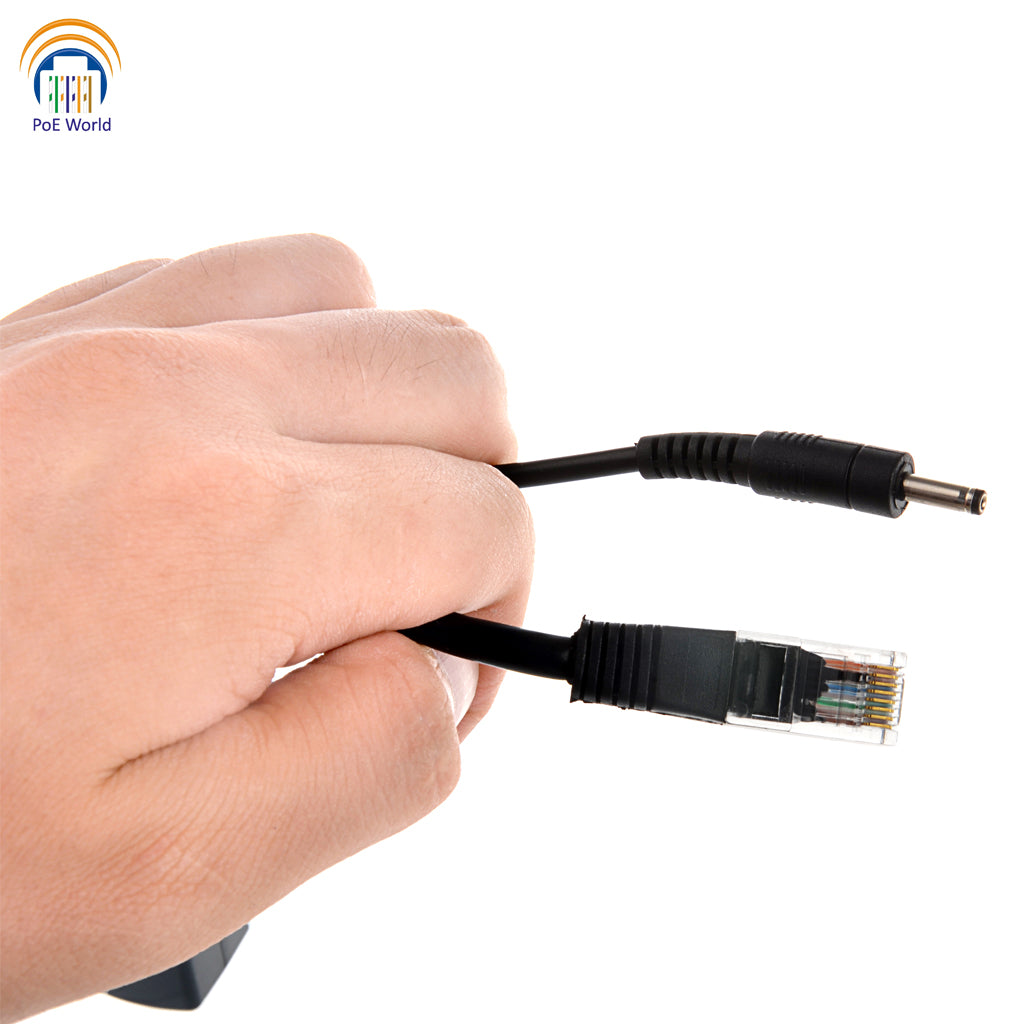

DC Output:                                               1.35mm x 3.5mm male connector or female USB Connector

Data only connector:                                10/100/1000 RJ-45 male

Data+ Power Input Pins                           1&2 and 3&6 - either ploarity (V3 or V5)

(802.3af mode A or mode B )                    4&5 plus and 7&8 minus-V5

input Voltage Max:                                    up to 57 Volts

input Current at 48V:                                 265 ma input delivers 2 amps out

output voltage Max load (5v10w):             5v+-2% at 2amps 10 watts

output voltage no load:                              5.2v

operating Temperature:                             0°C~50°C

Isolation:                                                    3000 volt isolation between PoE and Power out


Package:

5V2A Gigabit PoE Splitter X 1

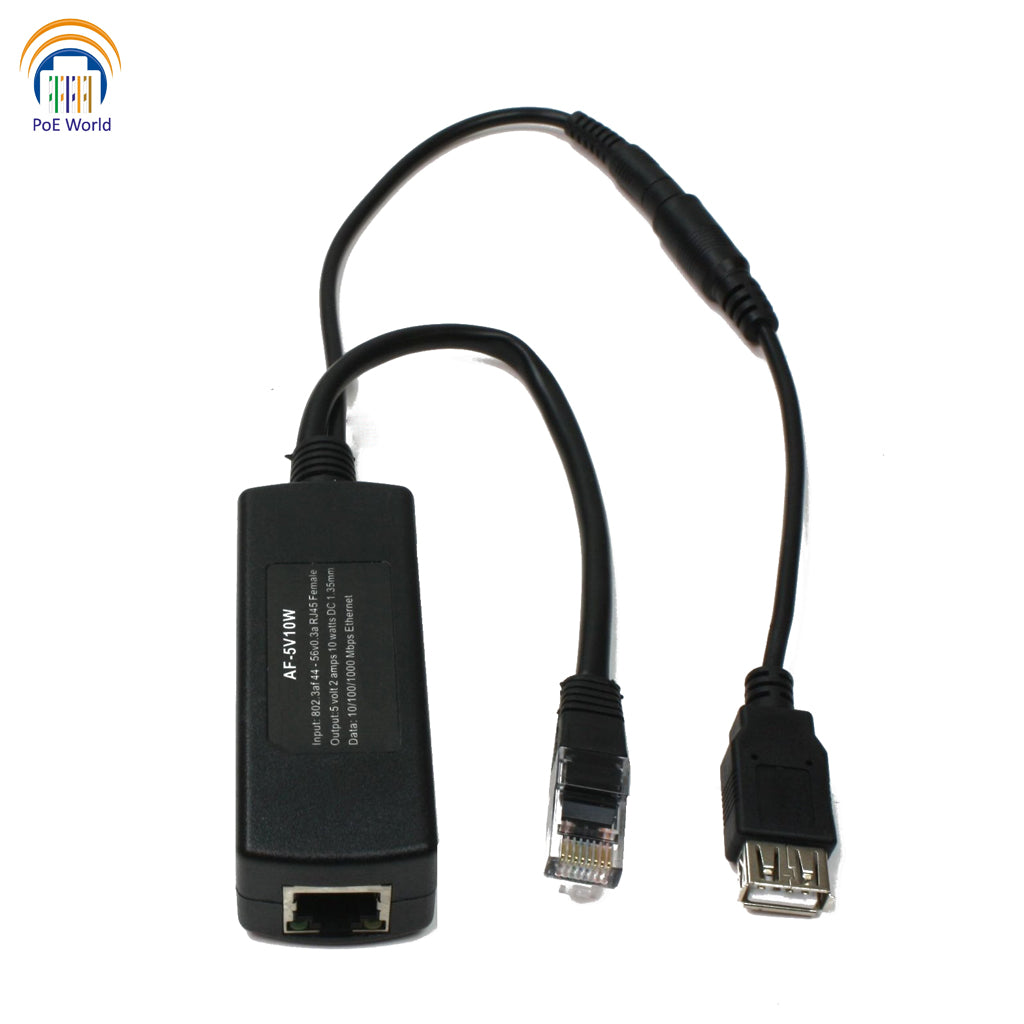

1.35*3.5mm to Female USB cable X 1
