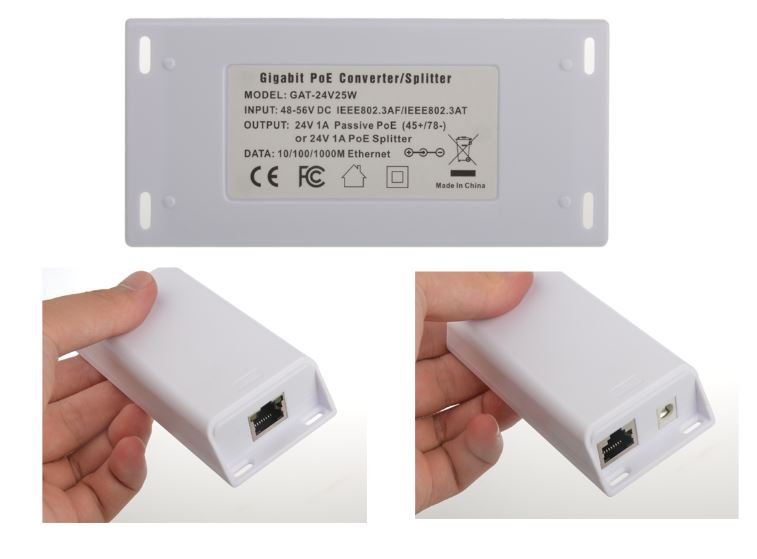

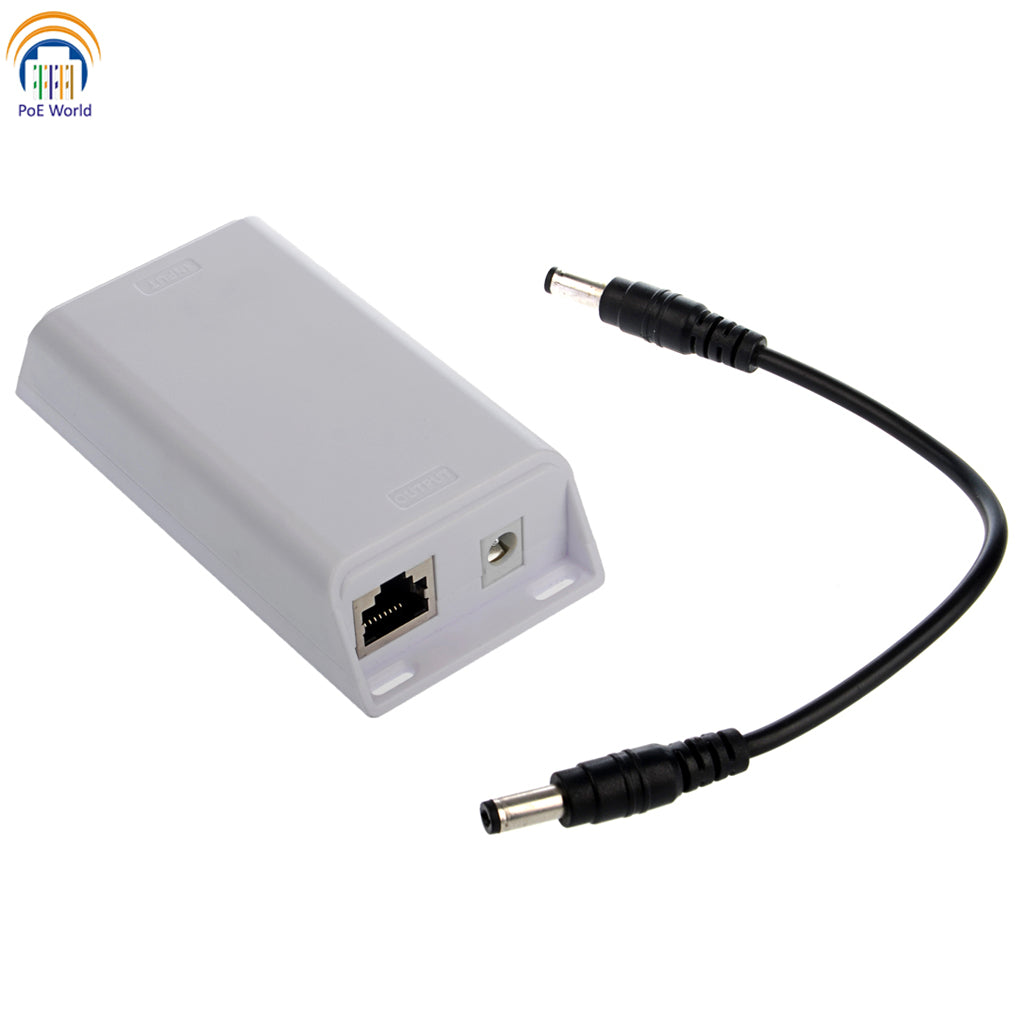

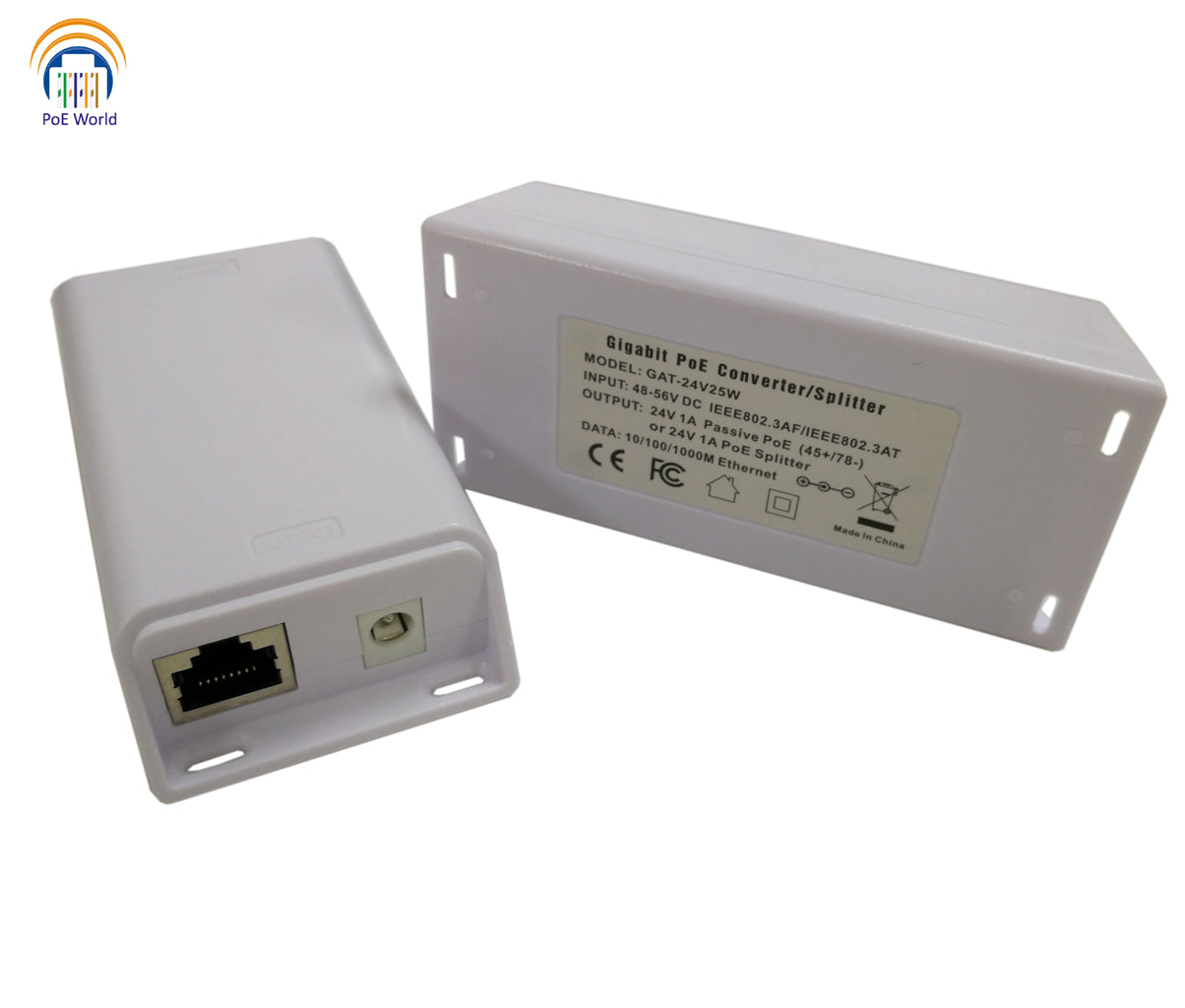

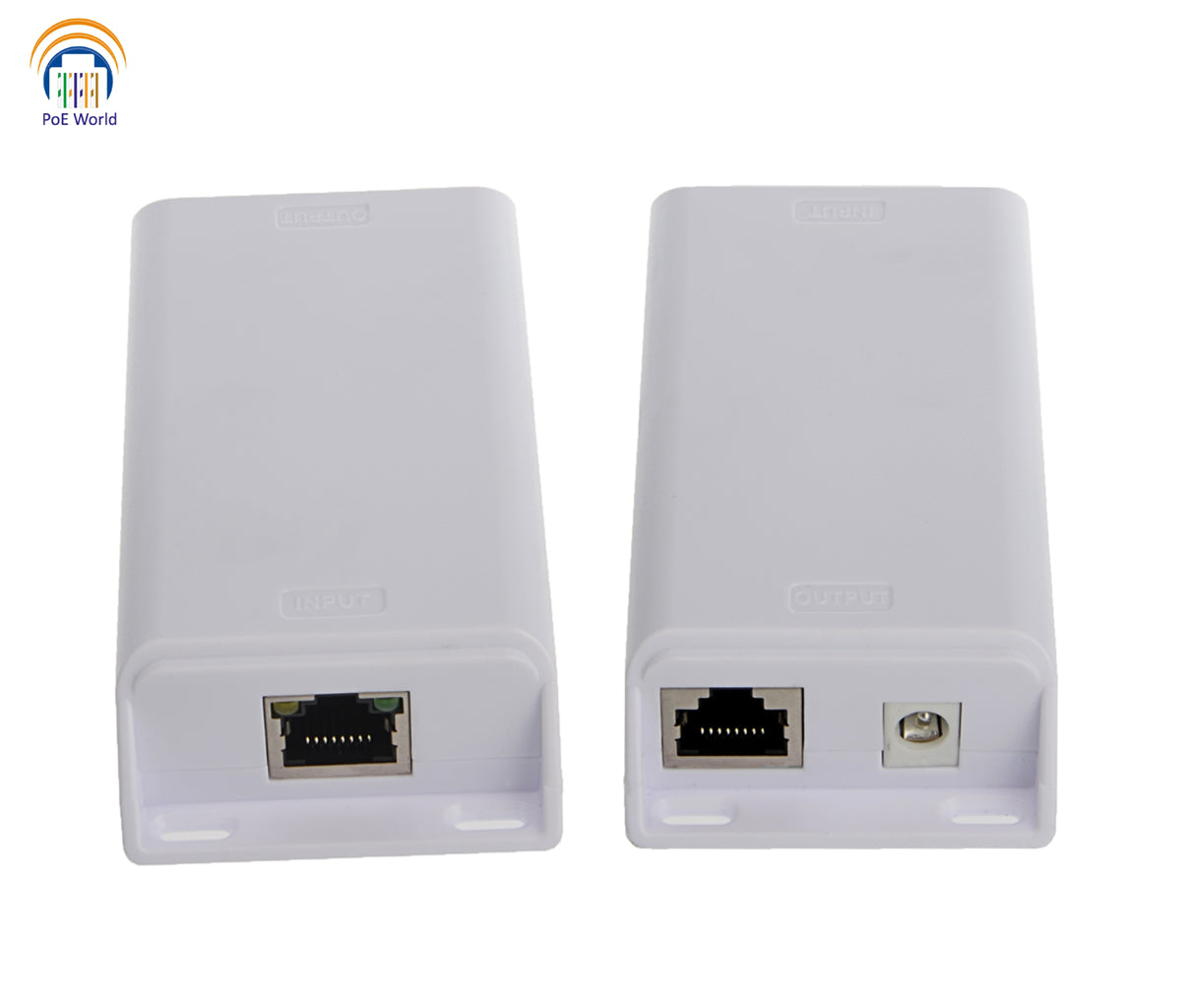

GAF-24v25w 48V to 24V POE Converter, 24 Volt 25 Watt Gigaibt POE Splitter, 802.3af/at to 24Volt, 25W Output Max Inverter Unit for 24V UBNT Mikrotik

Product Features:

• Perfect for adding a single 24v device to your 802.3at switch

• Acts as two devices in one: Use it to convert IEEE 802.3at PoE+ standard to 24 volt passive PoE OR Connect a 2.1 mm adapter and convert PoE+ power to 24 volt DC with "split" gigabit data on the RJ45 out port

• Compatible with Ubiquiti and Mikrotik

• Provides continuous 24 volts, 25 watts of power - Automatically converts

• Offers a more secure network via direct Ethernet

• Compatible with an IEEE 802.3at PoE Switch or injector (sold separately)

• Mode A/B compatible

• 2.1mm x 5.5mm DC power plug standard output

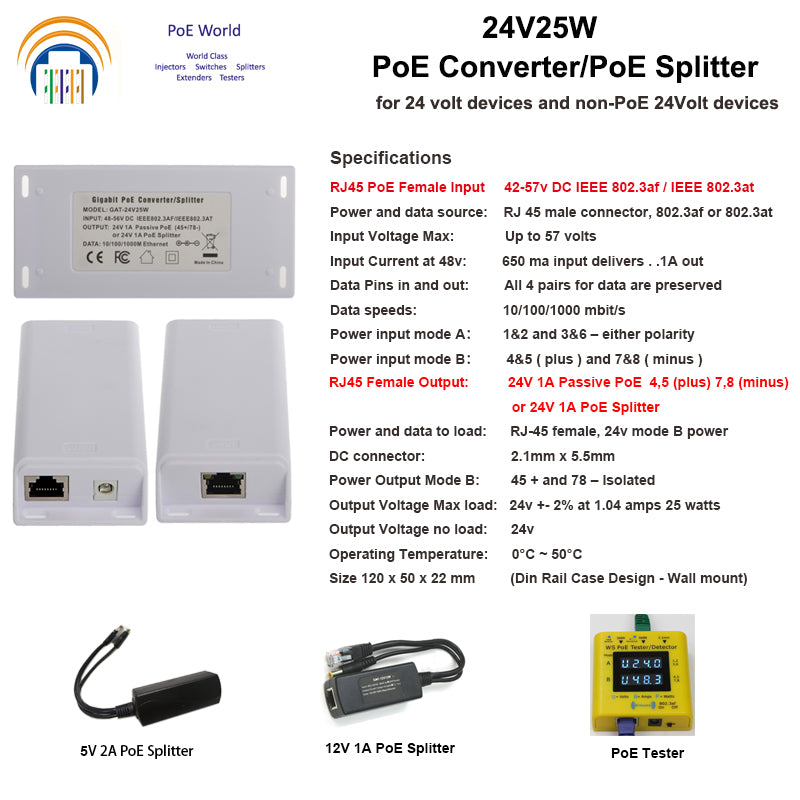

24V 25W PoE Converter/ 24V 25W PoE Splitter

RJ45 PoE Female Input     42-57v DC IEEE 802.3af / IEEE 802.3at

Power and data source:     RJ 45 male connector, 802.3af or 802.3at

Input Voltage Max:             Up to 57 volts

Input Current at 48v:          650 ma input delivers . .1A out

Data Pins in and out:          All 4 pairs for data are preserved

Data speeds:                     10/100/1000 mbit/s

Power input mode A：      1&2 and 3&6 – either polarity

Power input mode B：       4&5 ( plus ) and 7&8 ( minus )
