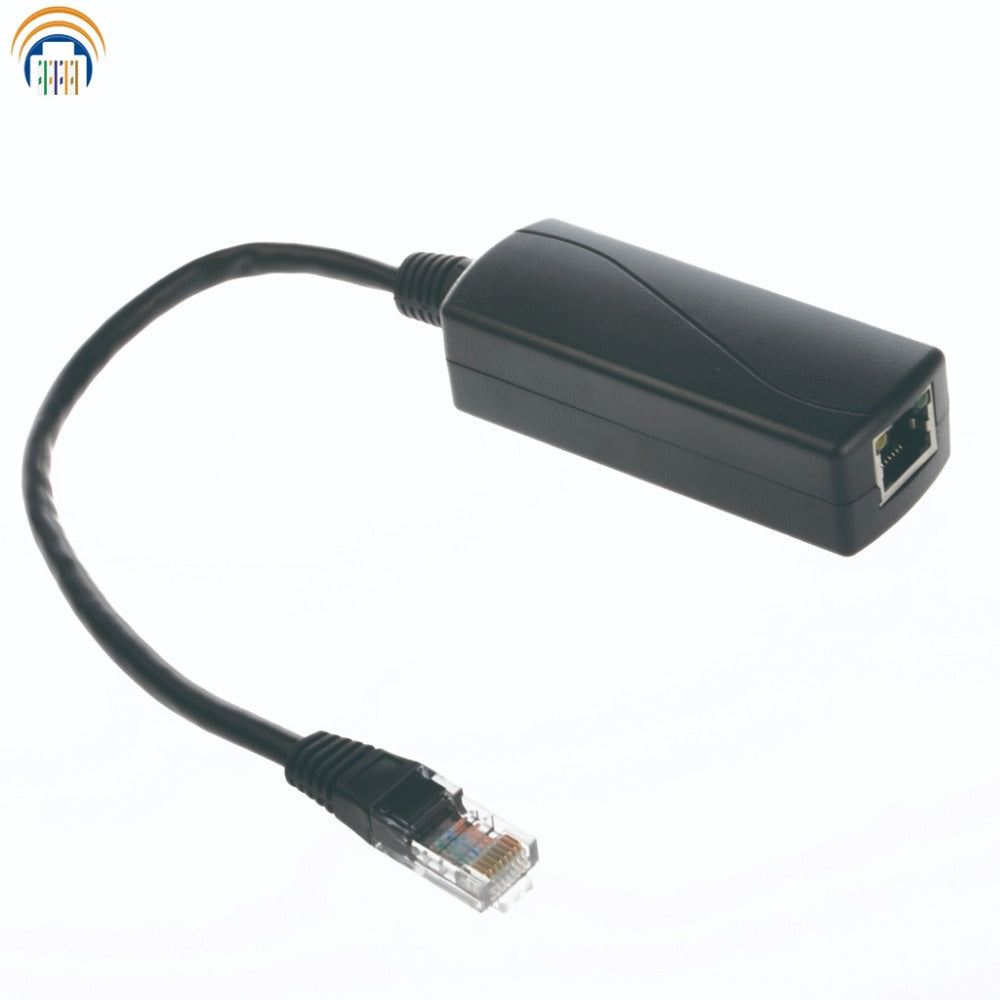

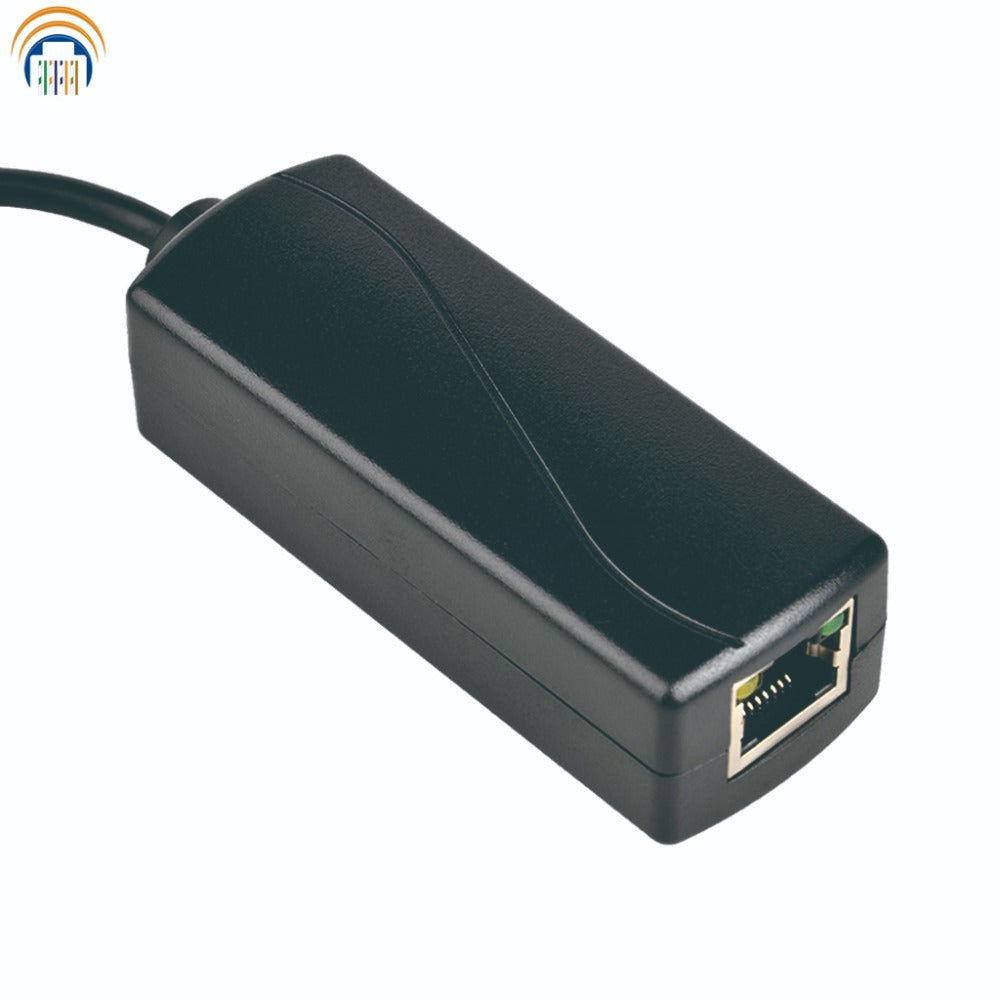

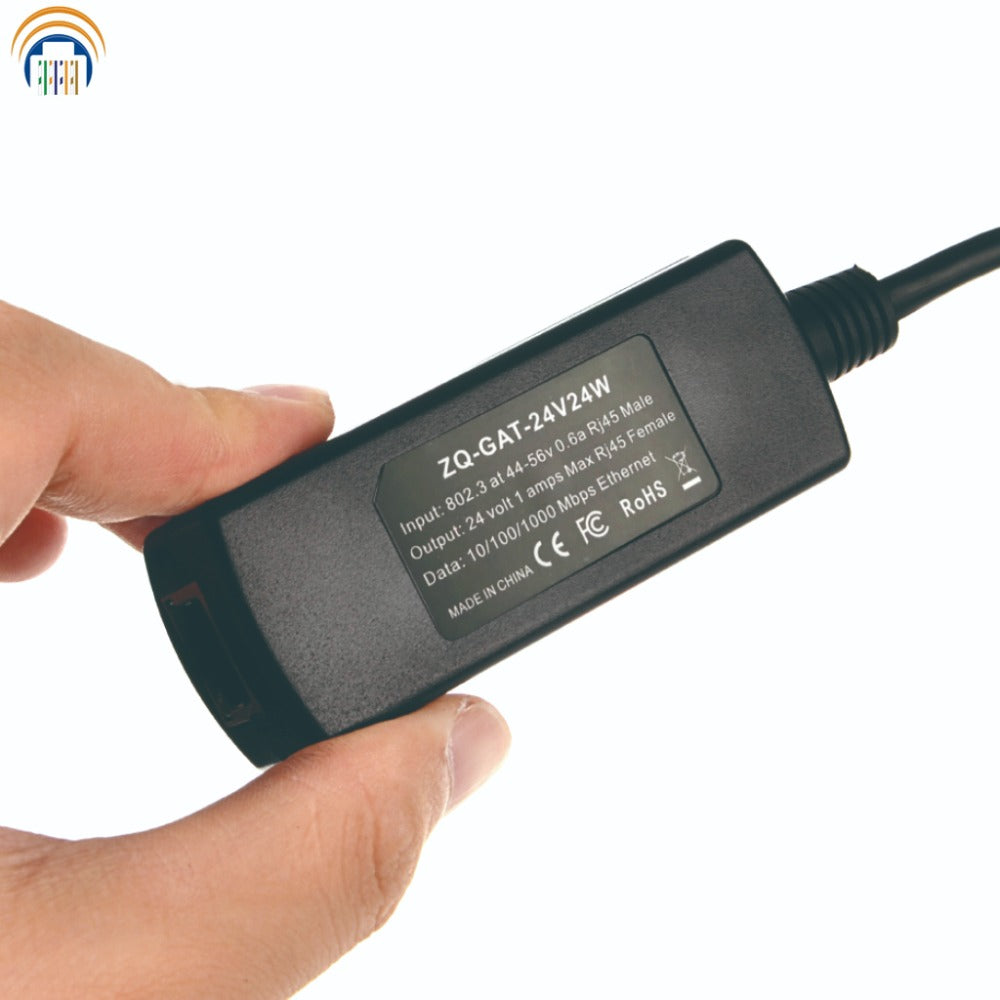

GAF-24v24w 24 volt 24 watt Gigabit PoE Converter For Ubiquiti PoE Device, From 802.3af/at to 24 Volt Devices

This compact and cost effective PoE splitter provides an affordable solution for delivering 24 volts of power with up to 24 watts peak output to Ubiquiti, Mikrotik, and other 24v devices over 100 meters of network cable. Can be used with existing Cisco or similar PoE switches and injectors.

Features RJ45 Male Input (803.af):

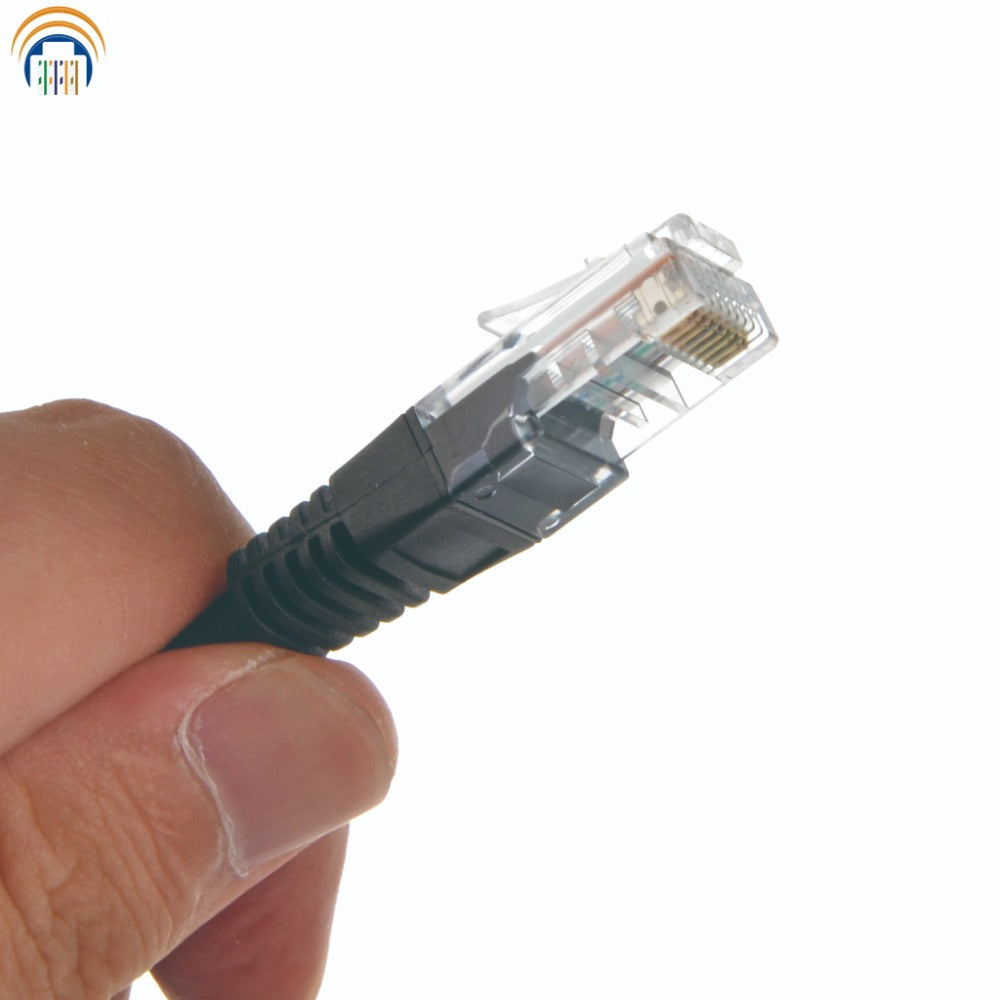

• RJ45 male connector for output data
• 10/100/1000 data rate
• Supports 802.3af
• Input voltage range: 44 volts to 57 volts
• Input current at 48 volt: 350 ma input delivers .625 amps out
• Mode A: 1&2 and 3&6
• Mode B: 4&5 and 7&8

Features RJ45 Female Output (Passive PoE):

• Use with any 48v switch or midspan injector - available separately

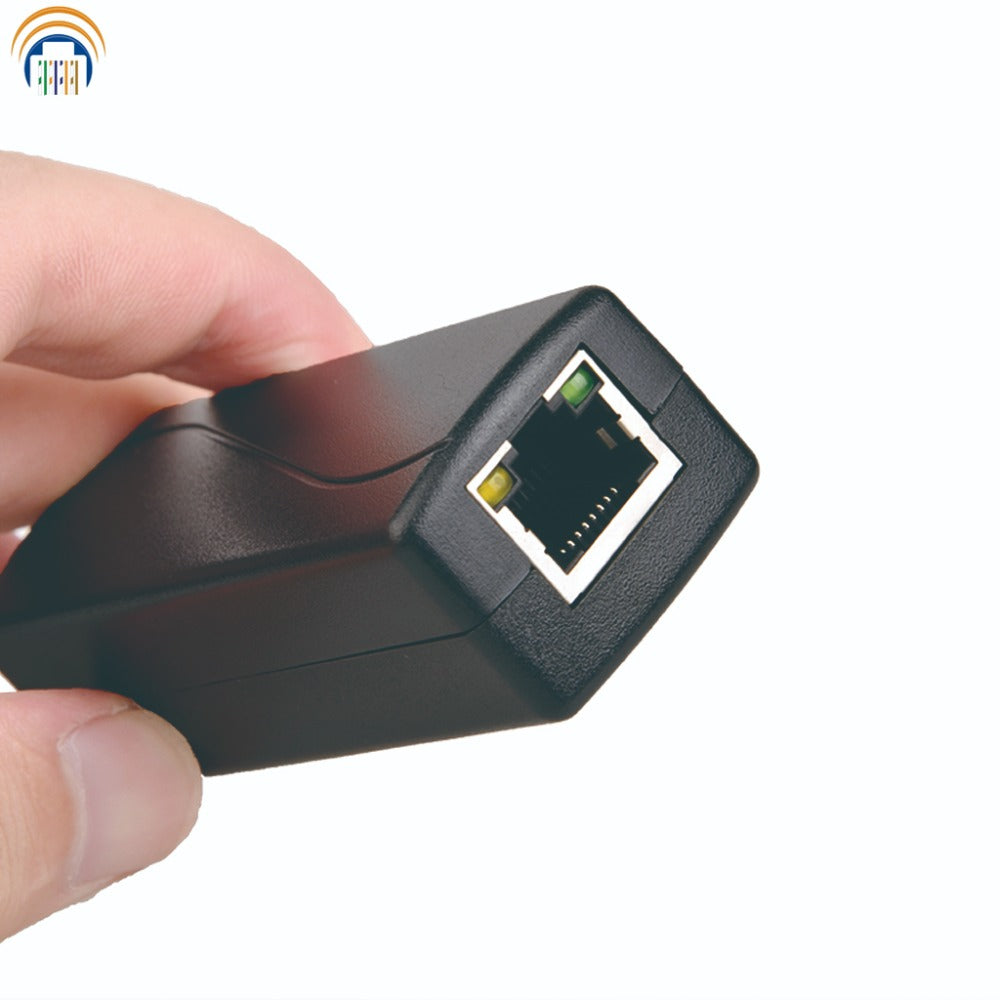

• RJ 45 female connector for power and data
• 24 volt (mode B power)
• Power output mode B: 4&5(+) and 7&8(-) non-isolated
• Output voltage max: 24 volts at 1 amps at 24 watts
• Operating temperature: 0°C ~ 50°C

Product Specifications:

• Size: 22 x 22 x 100 mm
• Weight: 1.5 ounces

Other Options:

• Power up to 16 devices from one power source, use our 4, 8, 12 or 16 port, 48v injector
• 5 volt and 12 volt splitters
