BT-1-WM Single Port Gigabit PoE Injector Auto Negotiation POE++ 802.3at/bt Standard 90W Max Output Power High Powered Devices

BT-1-WM Single Port Gigabit PoE Injector Auto Negotiation POE++ 802.3at/bt Standard 90W Max Output Power High Powered Devices

Regular price €27,95 EUR
Regular price Sale price €27,95 EUR
Sale Sold out
Shipping calculated at checkout.
Item

BT-1-WM Single port gigabit poe injector, 802.3af/at/bt auto negotiation

Power High Powered Devices like Cisco WiFi APs, PTZ Cameras, Axis Q series IP Cameras, PoE Lighting and more. This 802.3af/at/bt compliant Power over Ethernet (PoE) injector takes power from the DC power source and adds it to a Cat5, Cat5e, or Cat6 Ethernet data cable to power your PoE devices.

Upgrade your PoE network with the flexibility and features of the IEEE 802.3bt (90 watts, PoE class 4 ) for a small group of devices without the expense and hassle of installing a new PoE switch.

Active PoE means Security. Active negotiation means that this injector will negotiate with your device prior to delivering power. This feature means that you can rest assured that your end devices are safe from accidental overpowering.

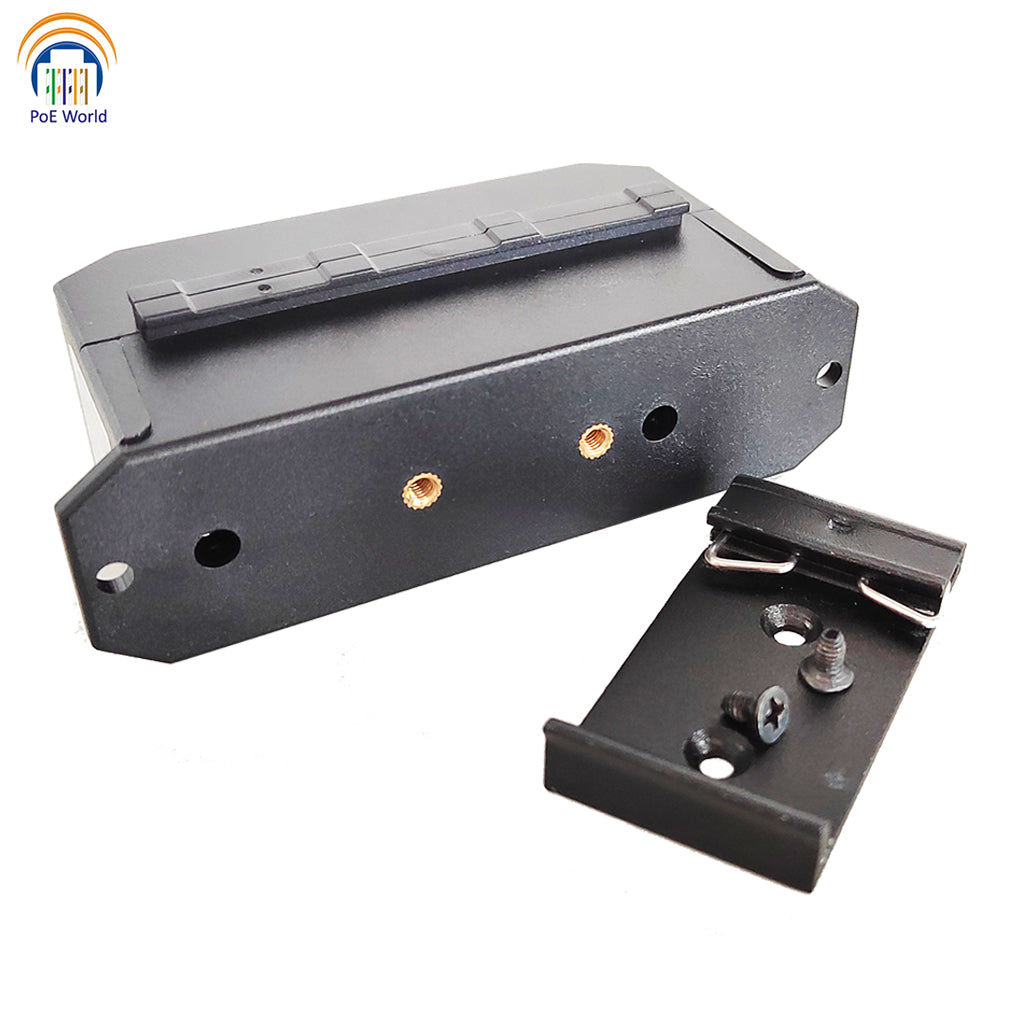

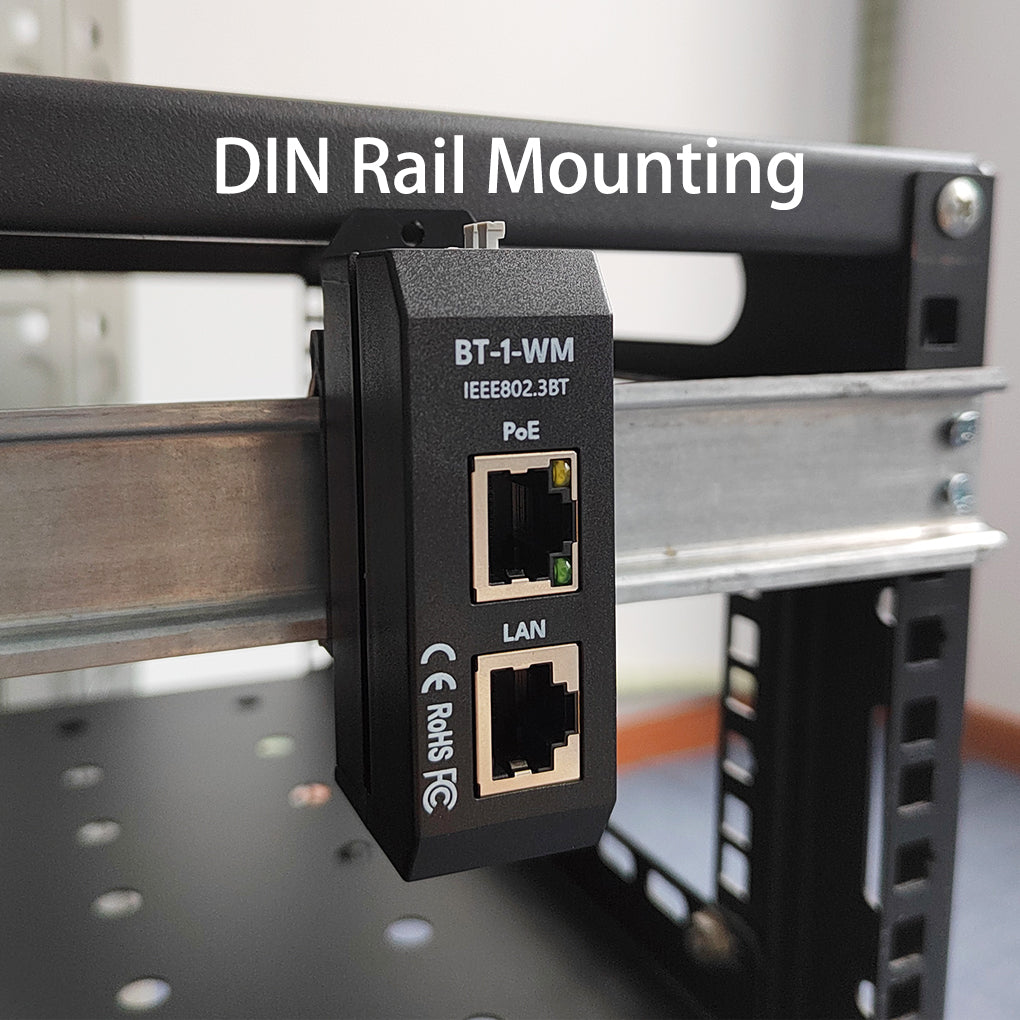

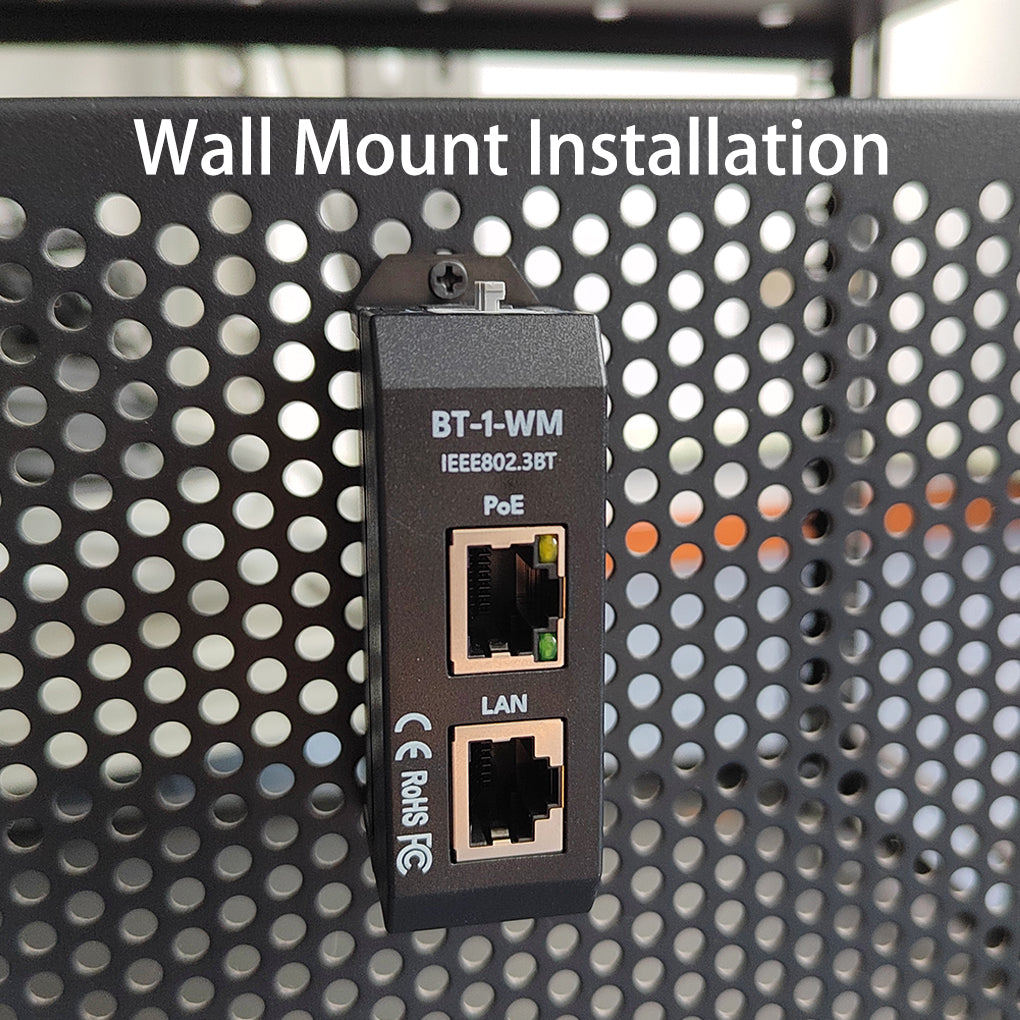

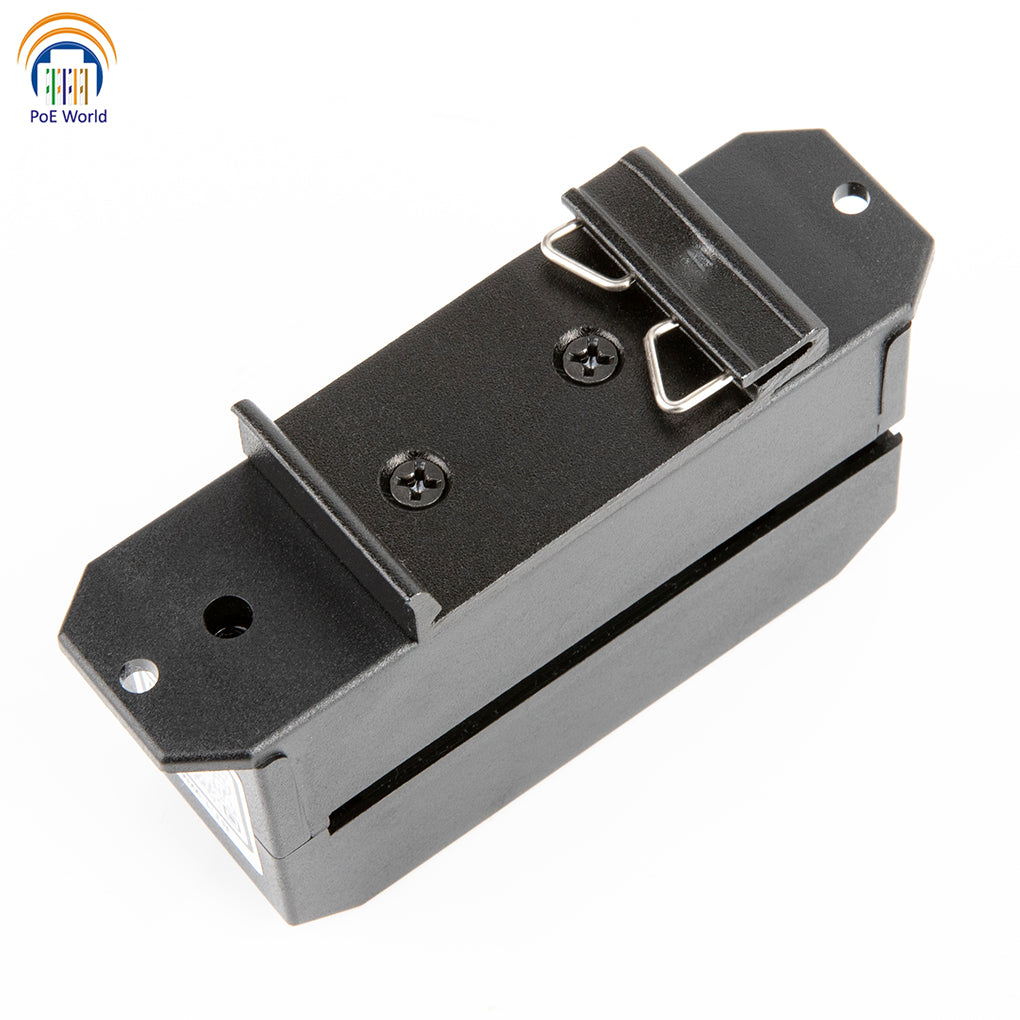

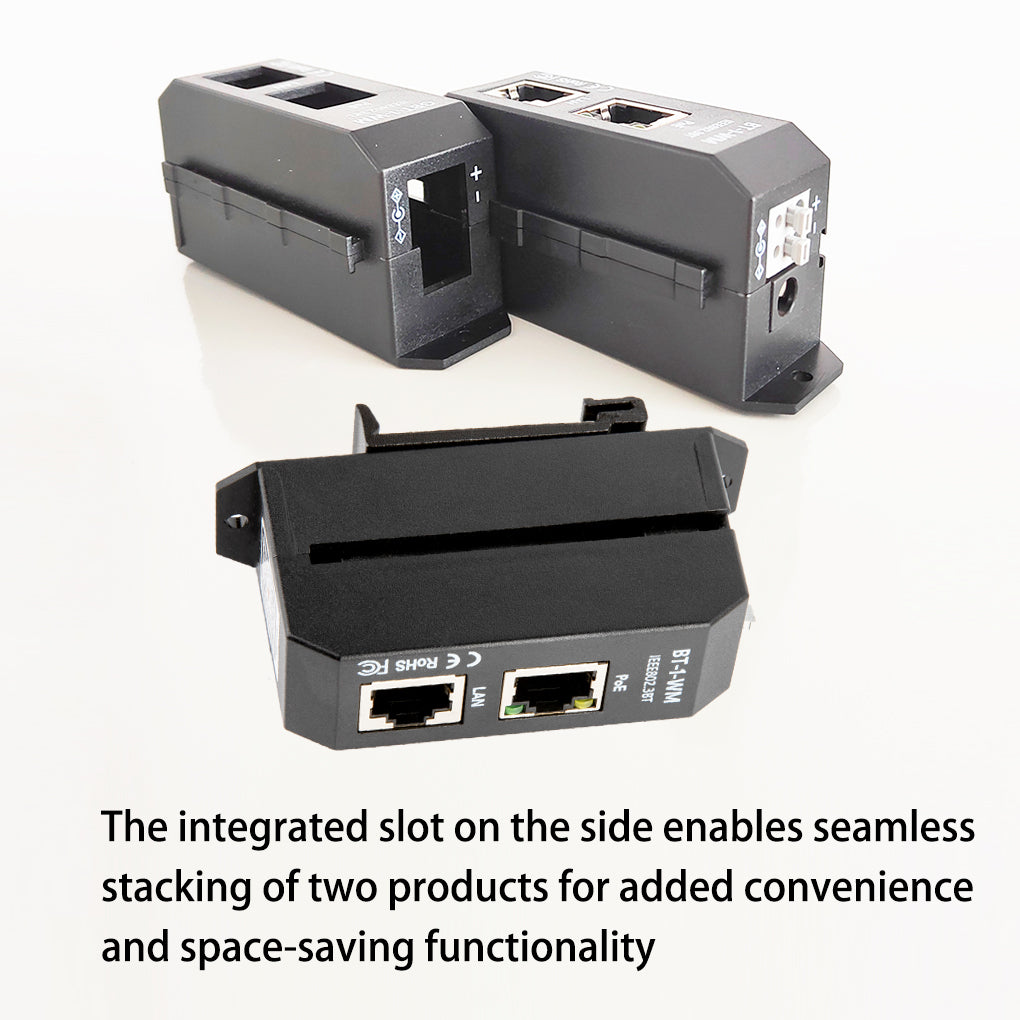

Dual installation mode, offers wall or DIN rail mounting type to accommodate various installation environments, ensuring flexibility and ease of setup. Further more, the integrated slot on the side enables seamless stacking of two/or more products for added convenience and space-saving functionality.

Product Features:
Instantly upgrade your network switch to IEEE 802.3at PoE+ or 802.3bt PoE++
Active negotiation protects non-PoE Devices
10/100/1000 Gigabit Data capability
Single port PoE with 90W max output, requires extra power adapter, BT-1-WM-48V120W kits is optional
Use to power IEEE 802.3at/bt (PoE+/PoE++) devices like, WiFi Access Points and Cameras

Product Specifications
Certifications: CE, FCC, RoHS
Data + PoE Ports: 1 Shielded RJ-45
Data Ports: 1 Shielded RJ-45
Data Rate: Gigabit (10/100/1000mbps)

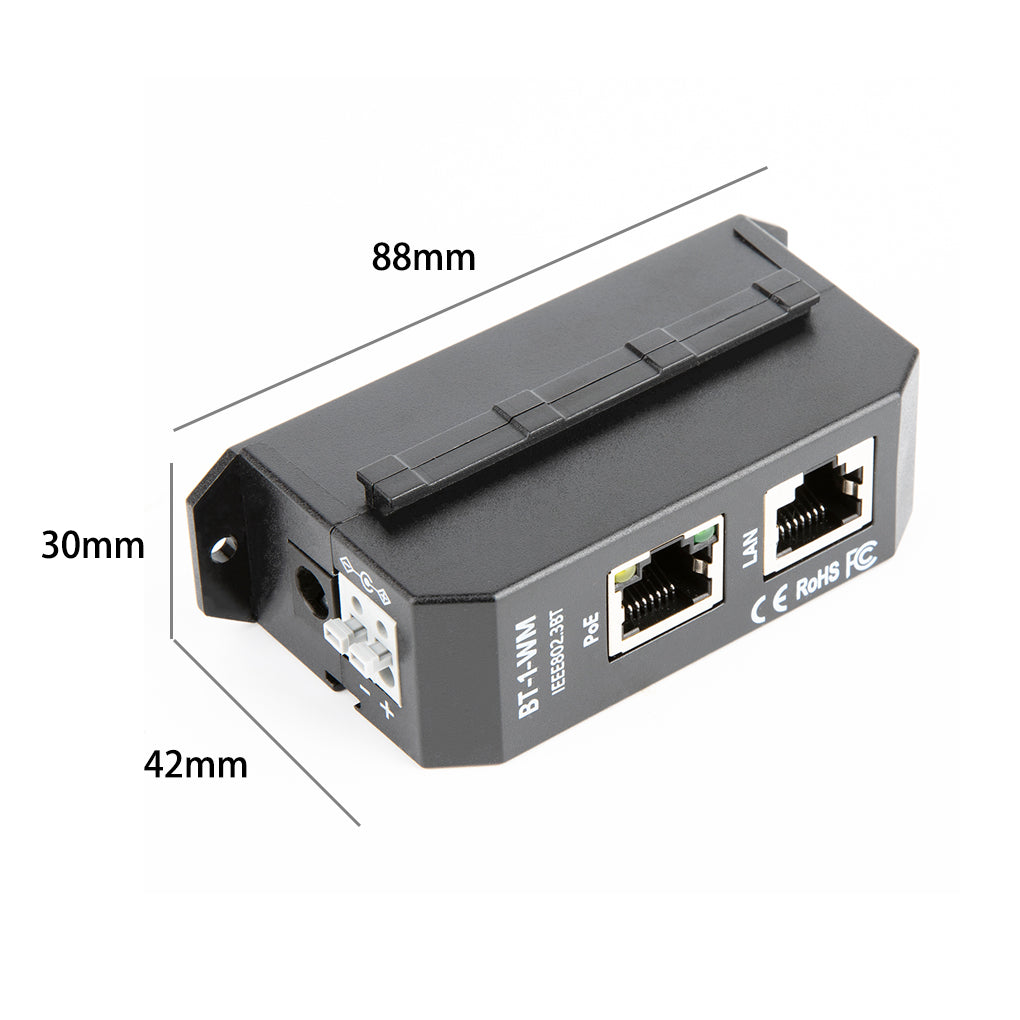

Dimensions: 88*30*42mm
Input voltage: 48-57 Volts DC
Max. Amps Per Port: 5A
Output Voltage: 48-57 Volts
PoE Method: Active
PoE Standard: IEEE 802.3af/at/bt
PoE Mode: 4 pair PoE operation ( type 4 )
2 pair PoE supported ( type 3 ) and 802.3at/af

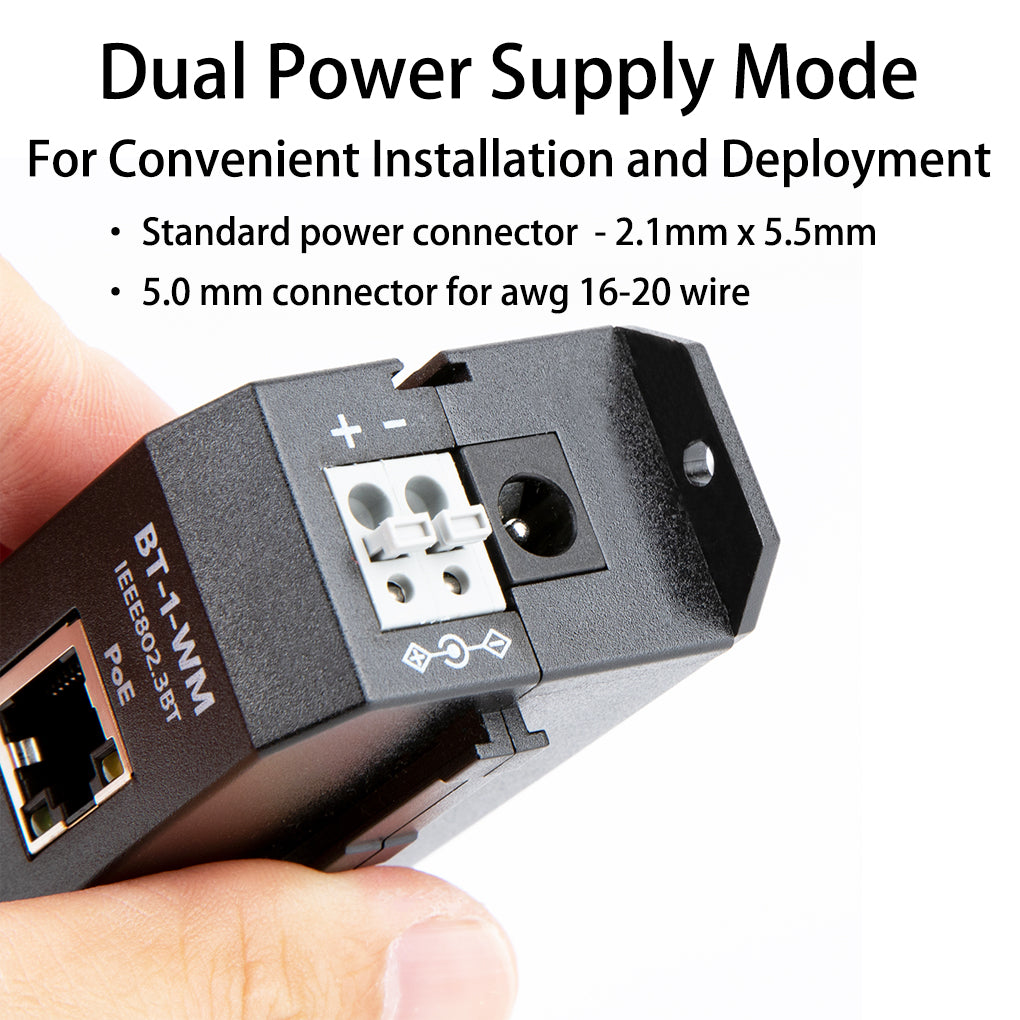

Power Input: Standard power connector - 2.1mm x 5.5mm
5.0 mm connector for awg 16-20 wire
Mount Type: wall or DIN rail mounting
Operating Humidity: 5% to 90%
Operating Temperature Range: 0 - 50 Deg C
Weight:100g

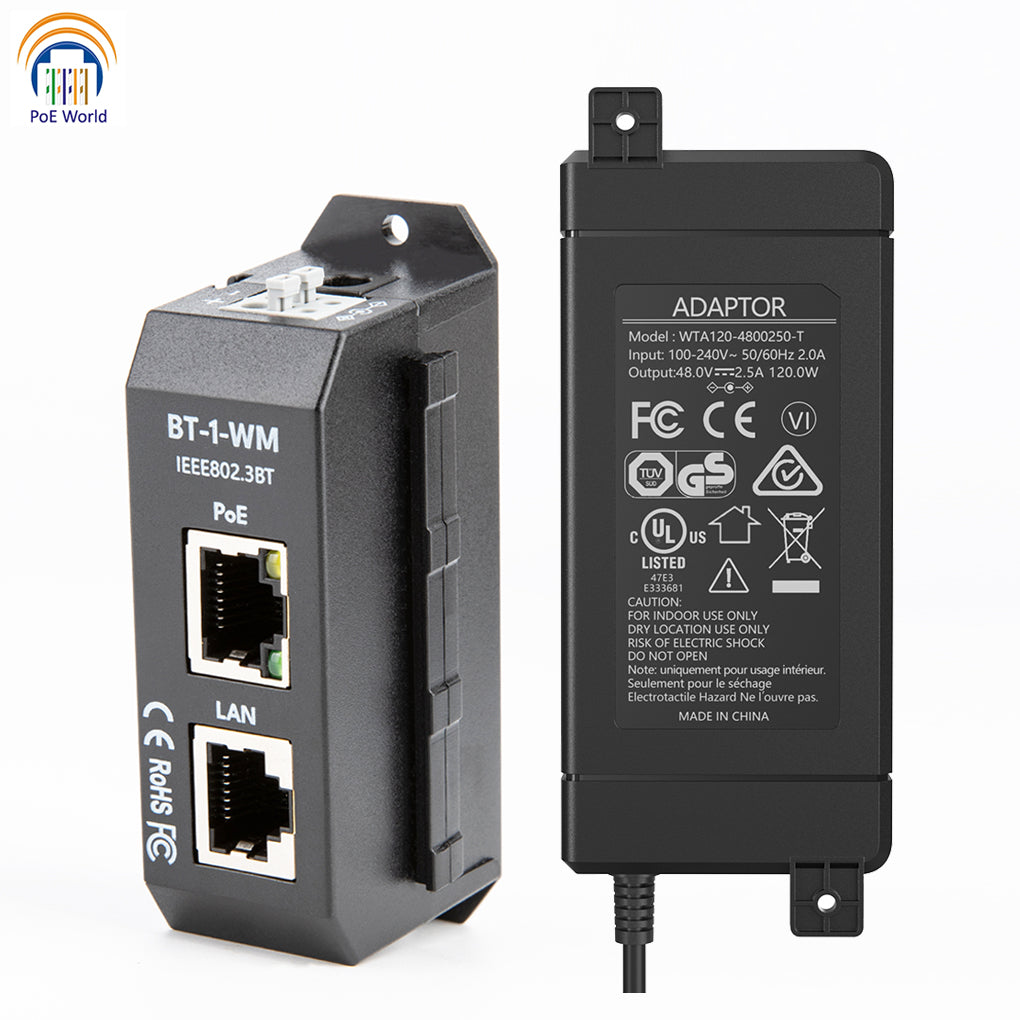

Power Supplies: Optional (BT-1-WM-48V120W kits include a 48V120W UL listed power adapter)

View full details

Frequently Questions About POE

What is "POE"?

PoE is " Power over Etherenet". A device like this one take DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, Wifi Access Points and other networks devices.

What is the difference between Mode A and Mode B?

Mode A and Mode B are two different POE pinouts ( the wire pairs used to transmit power).

Mode matters most if you're powering a 24-volt passive PoE devices like those from Mikrotik or Ubiquiti. These devices always need Mode B.

If you're powering a devices that has a spec of “802.3af” (48 Volts), them eighter mode A or mode B should work.

What does passive POE mean?

Passive PoE means the PoE Injector is always on rather than negotiating with the powered device to turn on and off as need.

Which power supply do I need?

The power supply will depend on the specs of the powered devices. Most VOIP phones and IP cameras use 802.3af PoE, which requires a 48 volt power supply. For Wifi, check your device specs for either 802.3af or 24 volt passive.
