AT-USBC-V4 PoE to USB-C Power Adapter 25W IEEE 802.3af/at RJ45 to Type-C Charger Converter for Tablet Smart Home Panel

IEEE 802.3af/at PoE Input | Up to 25W USB-C Output | Power Only | Compact Installation

PoE Power to USB-C – Simple & Flexible Power Solution The AT-USBC-V4 is a compact PoE to USB-C power converter designed to provide USB-C power from a compatible IEEE 802.3af/at PoE source. It receives power through an RJ45 PoE connection and converts it to USB-C output, providing up to 25W power for compatible USB-C devices. Unlike the AT-USBC-JB model, the AT-USBC-V4 is designed for power delivery only and does not support Ethernet data transmission. It is ideal for fixed installations where USB-C power is required but Ethernet data output is not needed.

Up to 25W USB-C Power Output

Supports multiple output levels for compatible USB-C devices: - 5V / 2.6A - 9V / 1.78A - 12V / 1.34A - 15V / 1.37A - 20V / 1.15A Maximum Output Power: 25W Actual output depends on the connected device and supported power requirements.

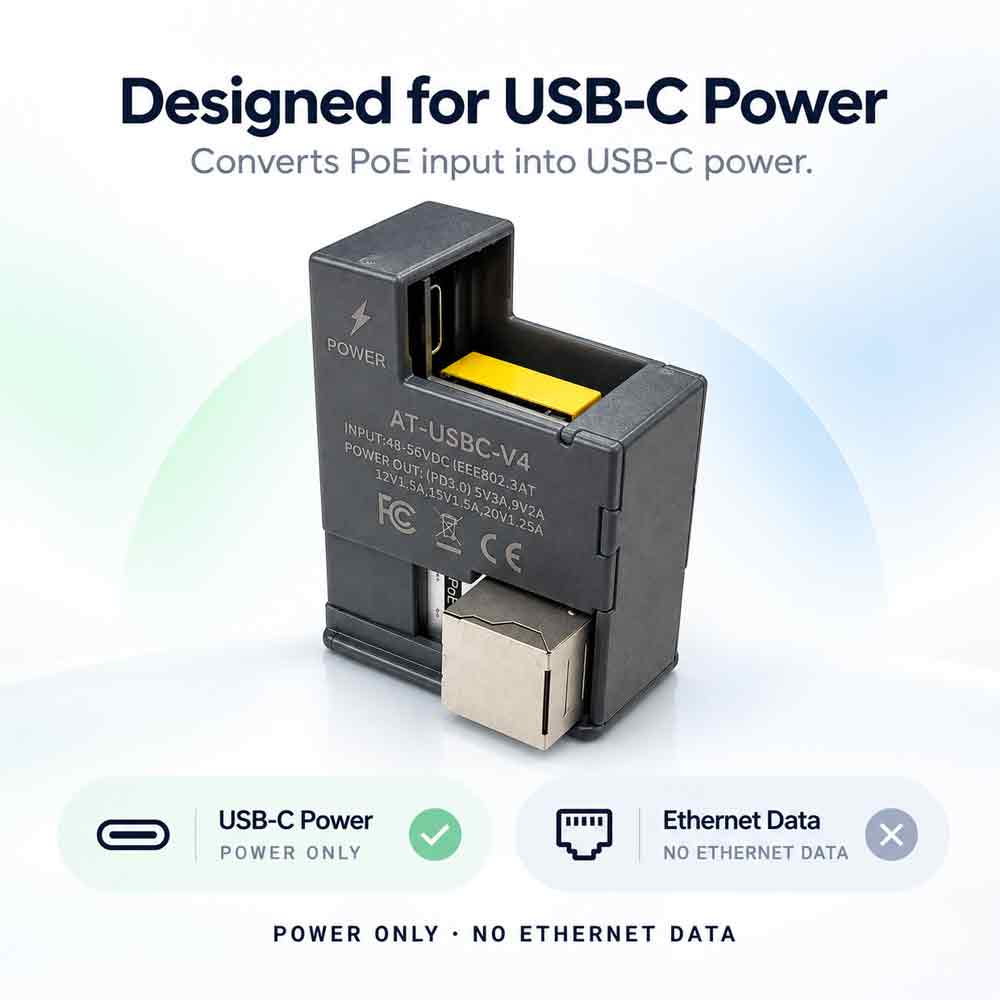

Power Only – No Ethernet Data Output

The AT-USBC-V4 features: 1 × RJ45 PoE Input 1 × USB-C Female Output The USB-C port is designed for: Power Output Only It does not provide Ethernet data transmission through the USB-C port. This makes the V4 suitable for applications that only require remote USB-C power delivery.

IEEE 802.3af/at PoE Input The converter supports compatible: IEEE 802.3af / 802.3at PoE Sources Input voltage: 44–56V PoE It can be connected to a compatible PoE switch or PoE injector to provide centralized power to USB-C devices without installing an additional AC adapter near the endpoint.

Mode A & Mode B PoE Input

Supports compatible PoE input wiring: Mode A Pins 1/2 (-), 3/6 (+) Mode B Pins 4/5 (+), 7/8 (-) This provides greater flexibility when used with compatible PoE power sources.

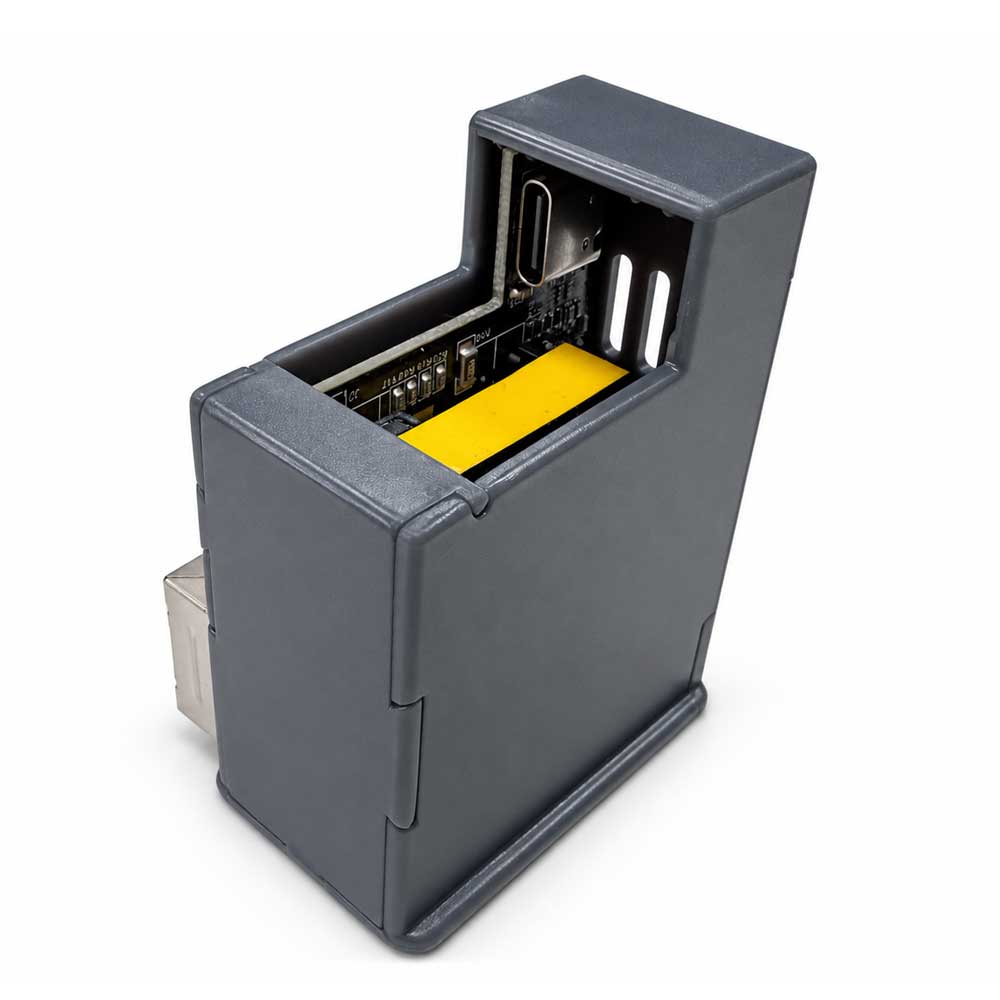

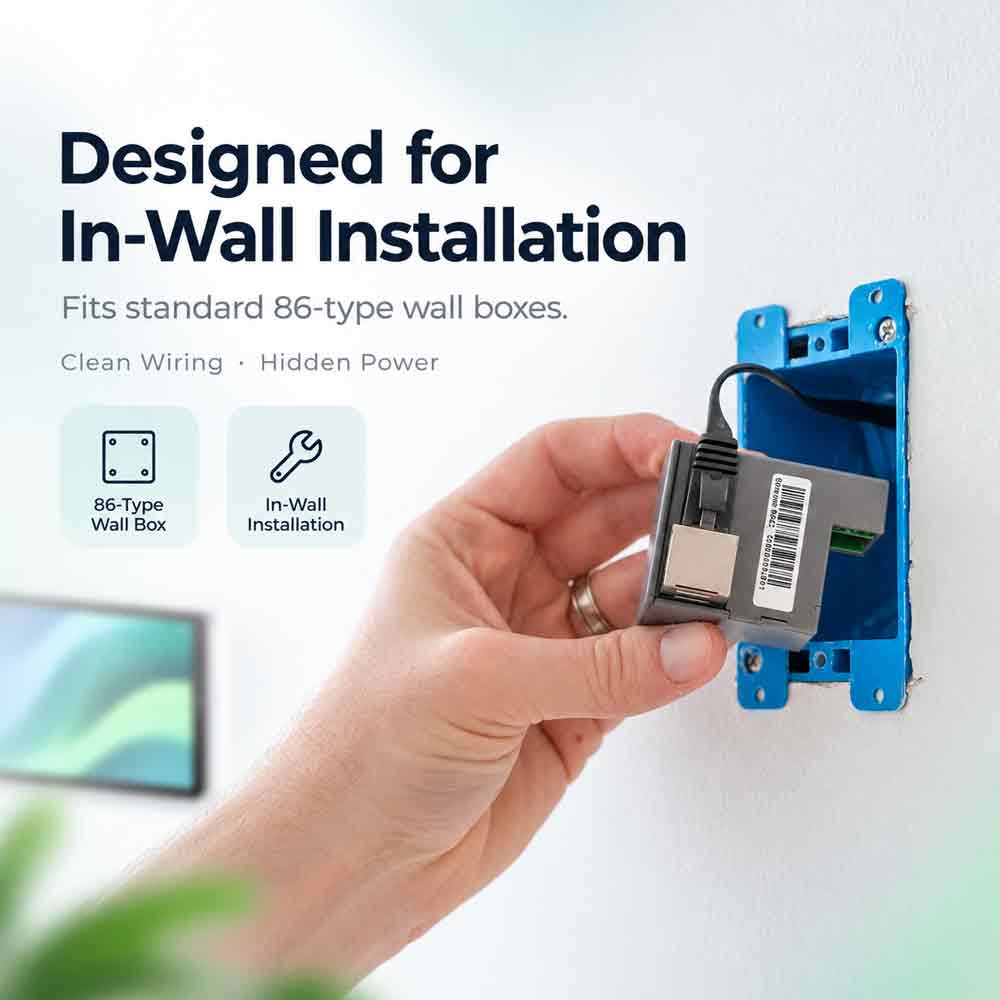

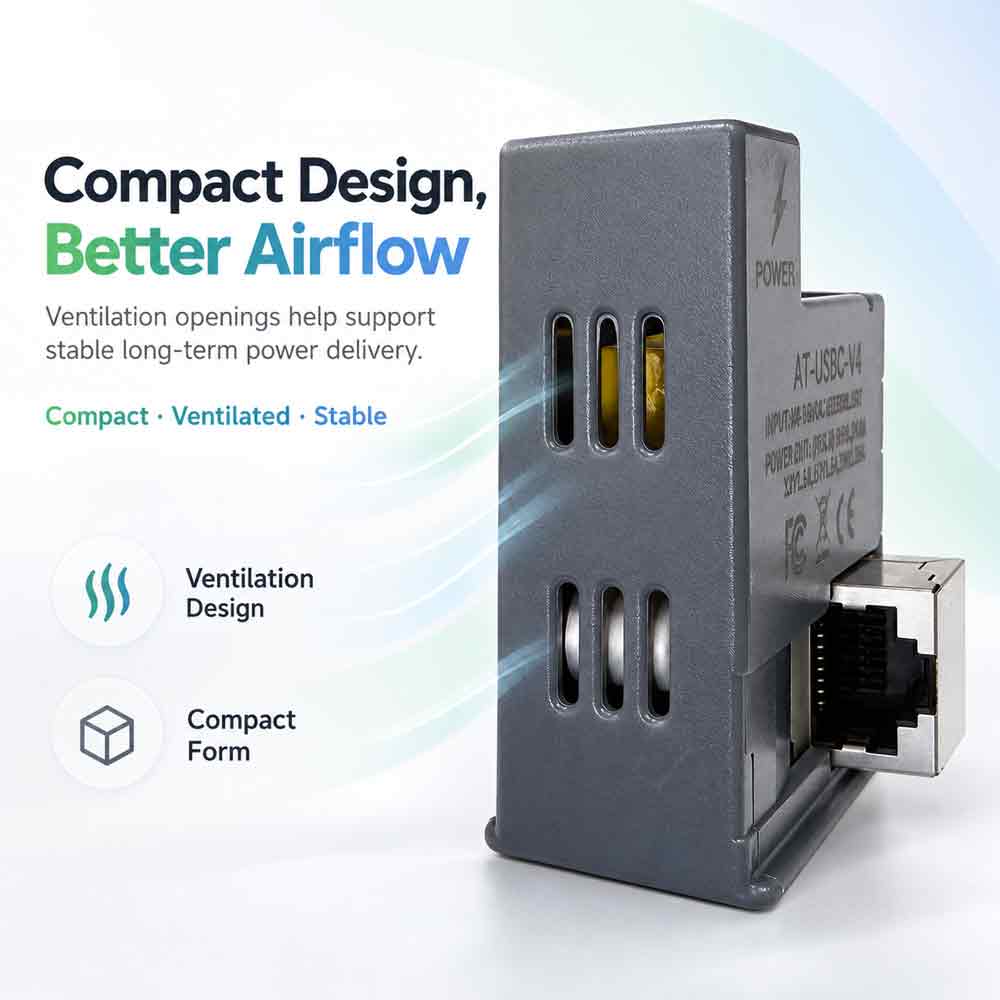

Compact Design for Hidden Installation

With a compact body measuring approximately: 55 × 40 × 30mm the AT-USBC-V4 is suitable for installations where space is limited. It can be integrated behind or near compatible fixed USB-C devices to help reduce visible power adapters and simplify cabling.

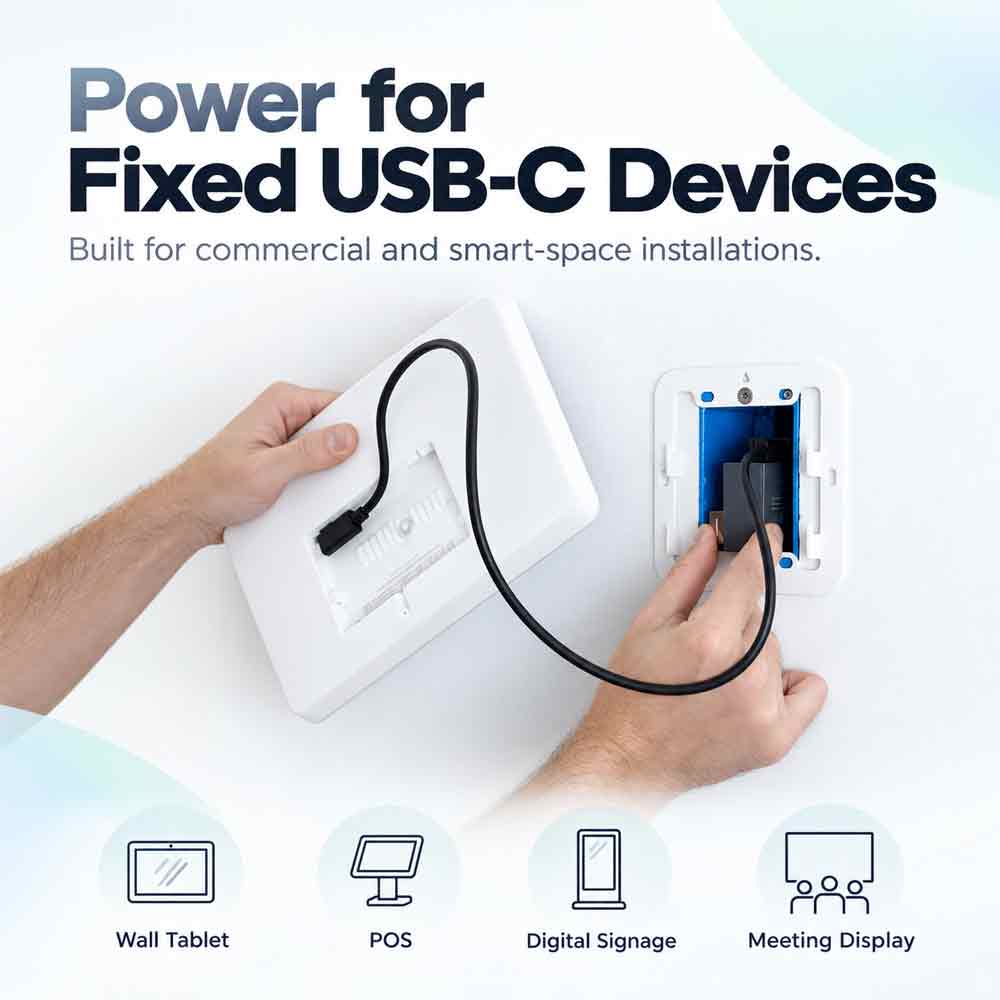

Typical Applications

Suitable for compatible USB-C powered devices such as: - Wall-mounted tablets - Smart home control panels - Digital signage displays - Meeting room scheduling panels - Information terminals - USB-C powered control devices - Other fixed-installation USB-C equipment

AT-USBC-V4 vs AT-USBC-JB

AT-USBC-V4: Best for USB-C power-only applications. AT-USBC-JB: Best when both USB-C power and Ethernet data are required.

Important Compatibility Notice

Please check your device requirements before ordering. - USB-C output is for power only. - Ethernet data transmission is not supported. - The PoE source must be compatible with the supported input specifications. - The connected USB-C device must support one of the available output voltage/current combinations. - Actual charging power depends on the connected device and operating conditions.
