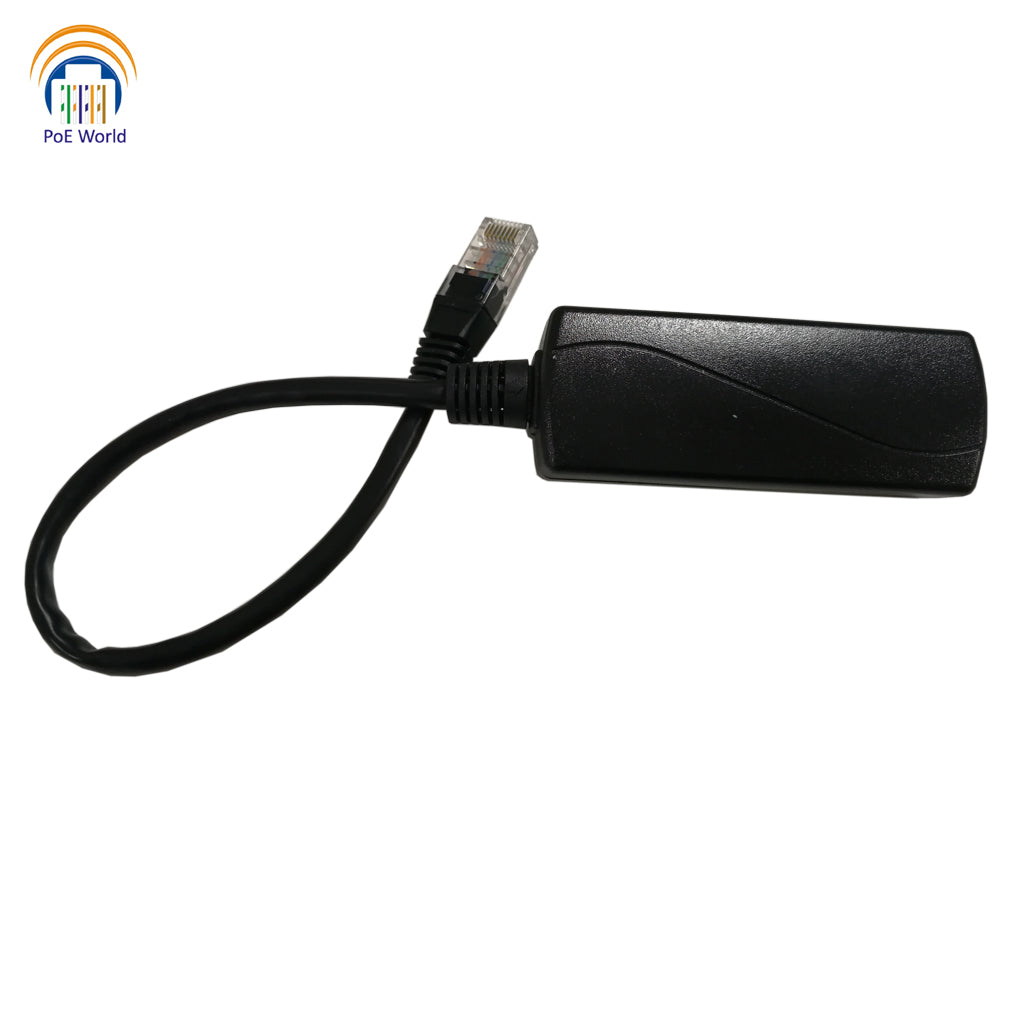

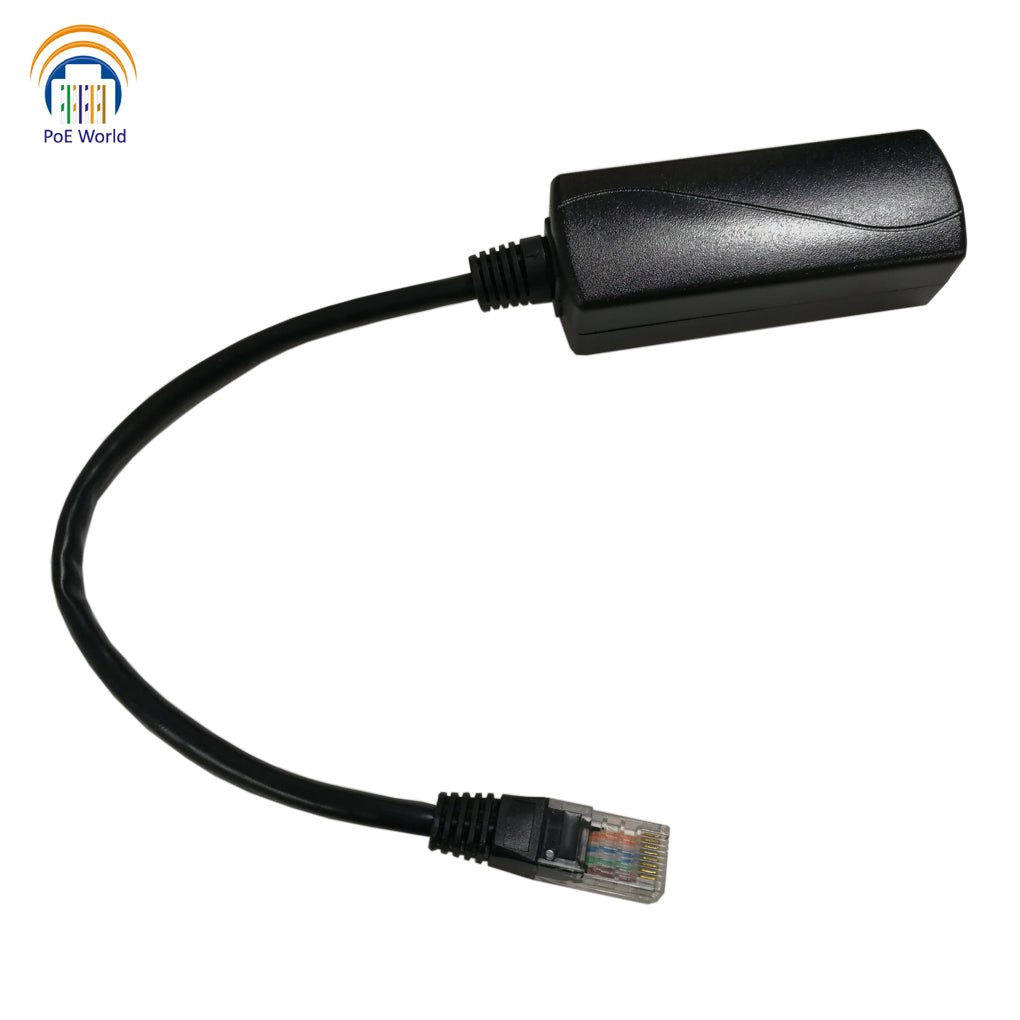

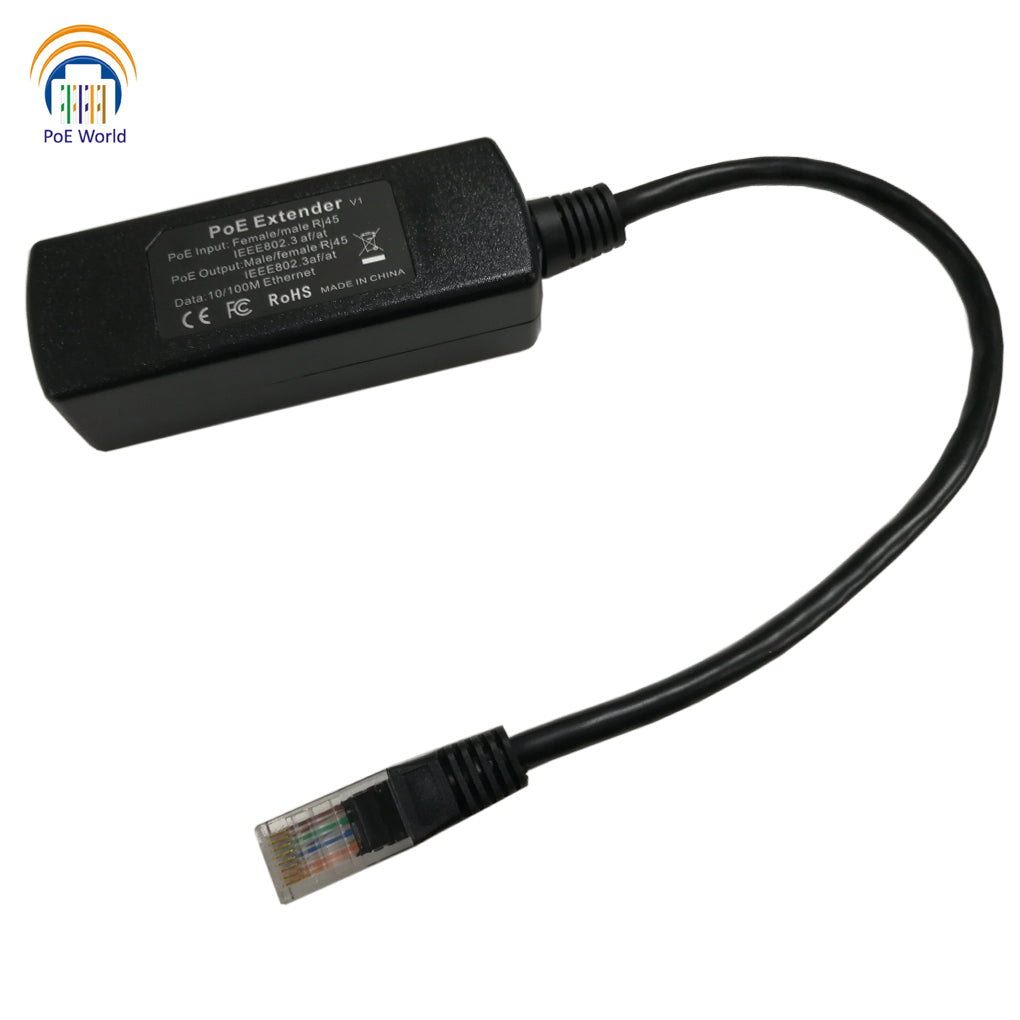

10/100mbps Active PoE Extender-Extend PoE power and data for 100 meters
10/100mbps Active PoE Extender-Extend PoE power and data for 100 meters
Regular price
€21,95 EUR
Regular price
Sale price
€21,95 EUR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

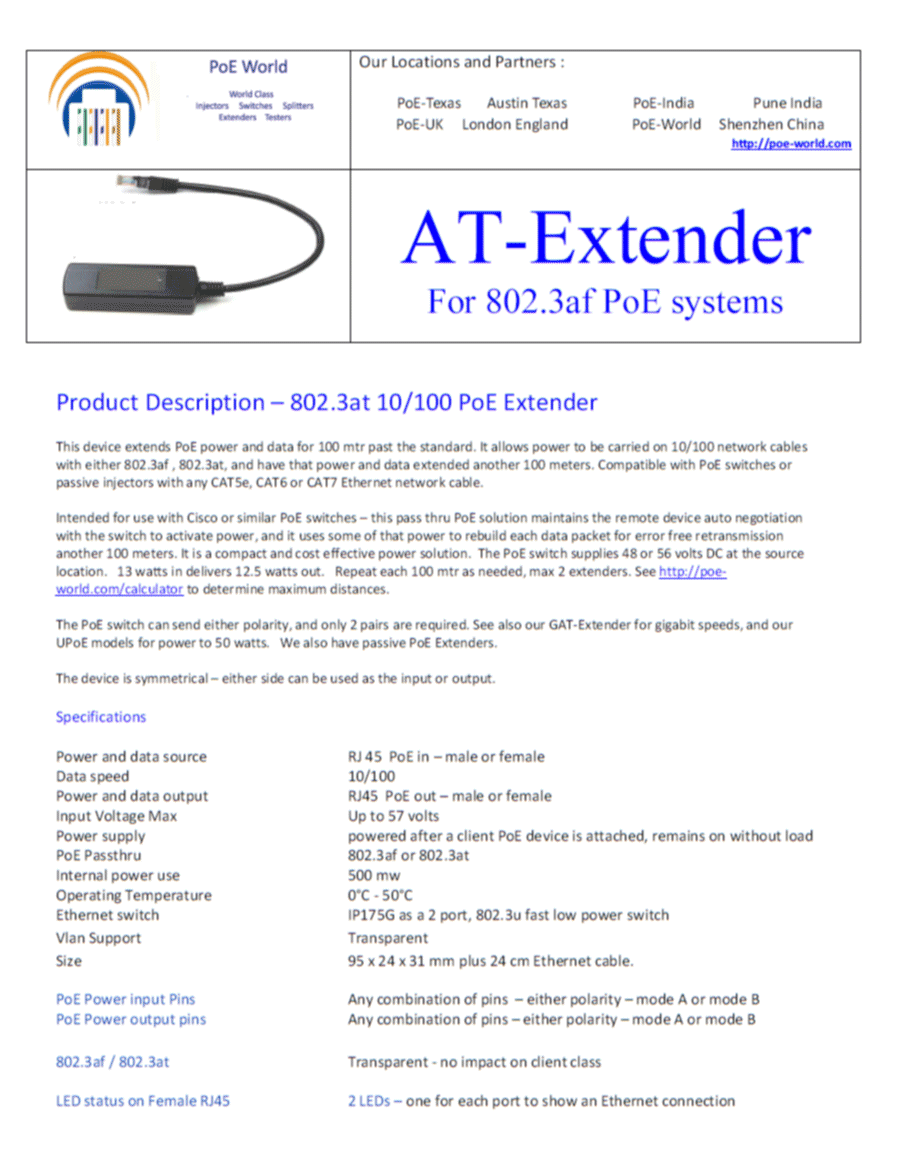

Active 10/100 PoE Extender - compact and cost effective power solution
This device allows you to extends PoE power and data for 100 meters past the standard. Power is carried on 10/100 network cables and have that power and data extended another 100 meters. Compatible with passive PoE switches or injectors with any CAT5e, CAT6 or CAT7 Ethernet network cable.
Maintains the remote device auto negotiation with the switch to activate power, and it uses some of that power to rebuild each data packet for error free retransmission another 100 meters.
Features:
- Supplies 15 - 56 volts DC at the source location
- Can send either voltage polarity for power input and output pins (Mode A or B)
- Either side can be used as input or output
- 10/100 data speed
- LED status on female RJ45
- 500 mw internal power use
- Power and data source - RJ45 PoE in (male or female)
- Power and data output - RJ45 PoE out (male or female)
- Operating temperature: 0°C - 50°C
Product Specifications:
- Size: 95 x 24 x 31 mm with 24 cm Ethernet cable
- Weight: 5 ounces
