GAF-5v10W POE Splitter PoE separator, 1.35x3.5mm Male Connector, Gigabit 802.3af Power Over Ethernet Splitter for 5 Volt Wanscam Non-poe Device
GAF-5v10W POE Splitter PoE separator, 1.35x3.5mm Male Connector, Gigabit 802.3af Power Over Ethernet Splitter for 5 Volt Wanscam Non-poe Device
Regular price
€19,95 EUR
Regular price
Sale price
€19,95 EUR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

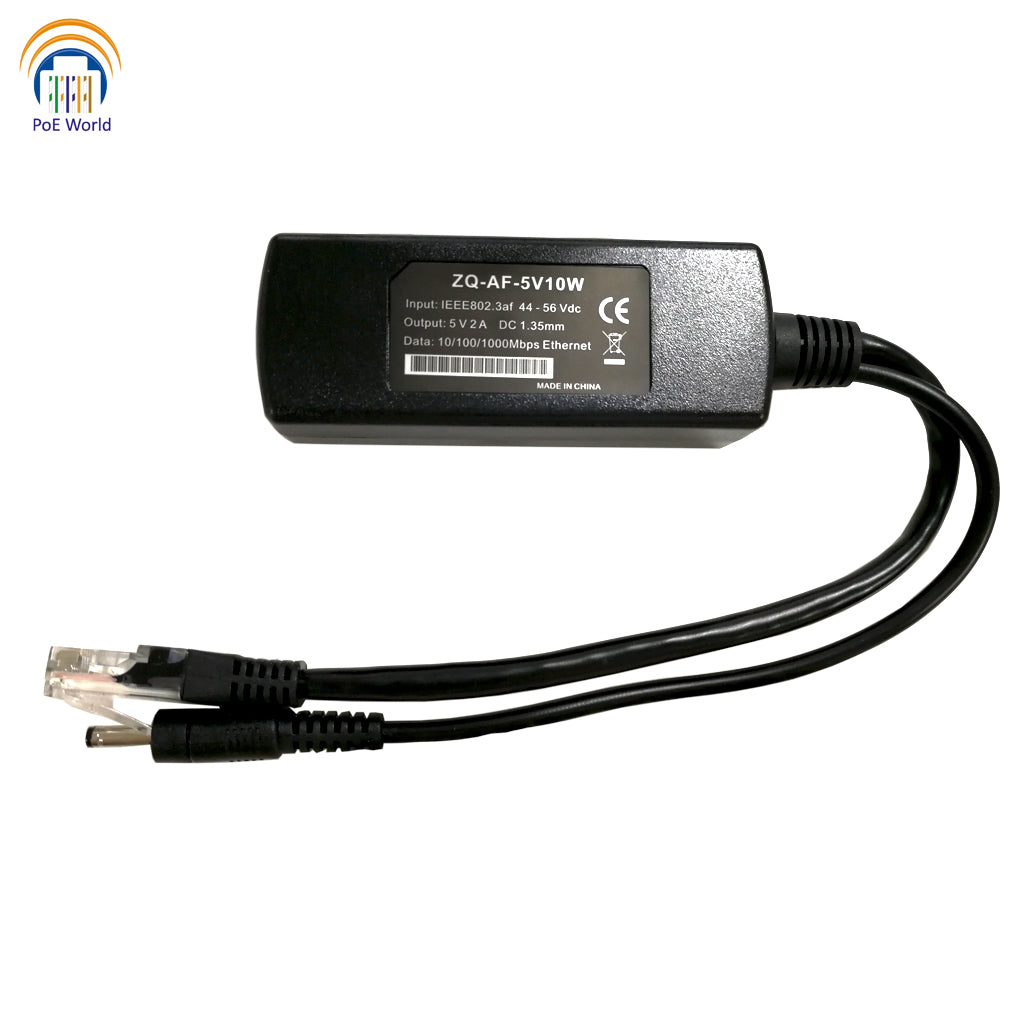

GAF-5v10w--5 volt 10 watt 2 amp POE Splitter
PoE solution for 5V 2A CCTV IP Camera, powered by PoE Switch or PoE Injector
This device provides a low cost solution for delivering power to a 5 volt camera or other device over 328ft of network cable. This device allows power to be carried on 10/100/1000 networks with either 802.3af or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable.
Intended for use with Cisco or similar PoE switches – this active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost effective power solution.
The PoE switch supplies 48 or 56 volts DC at the source location. The higher DC voltage means the current is reduced by a factor of 9, and then carried with less loss over the 10BASE-T or 48v source and 5v converter allows you to extend the distance with this product for this application up to 328ft or 100 meters.

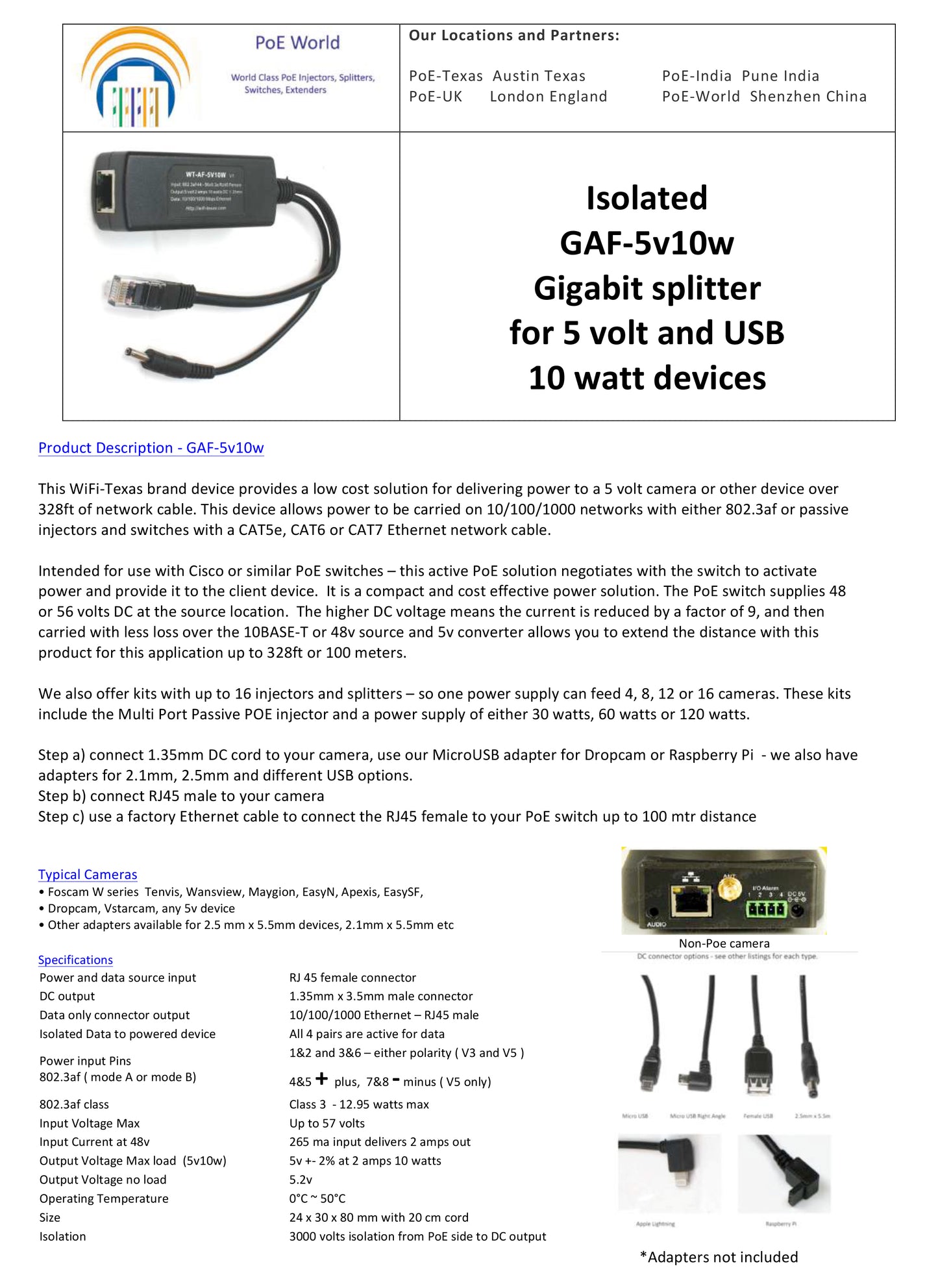

Specification
Power and data source input： RJ 45 female connector
DC output：1.35mm x 3.5mm male connector
Data only connector output： 10/100/1000 Ethernet (Gigabit) –RJ45 male
802.3af/at PoE, 44V to 57V
Use this splitter to power any 5 volt device remotely
Extend power to 328 ft/100M
Works with any PoE switch, 48v injector not included
Certificates: CE RoHS
Typical Cameras
Foscam W series Tenvis, Wansview, Maygion, EasyN, Apexis, EasySF,
Dropcam, Vstarcam, any 5v device
Other adapters available for 2.5 mm x 5.5mm devices, 2.1mm x 5.5mm et
